Universal Partition Connectors – Basic Set — STL Grátis

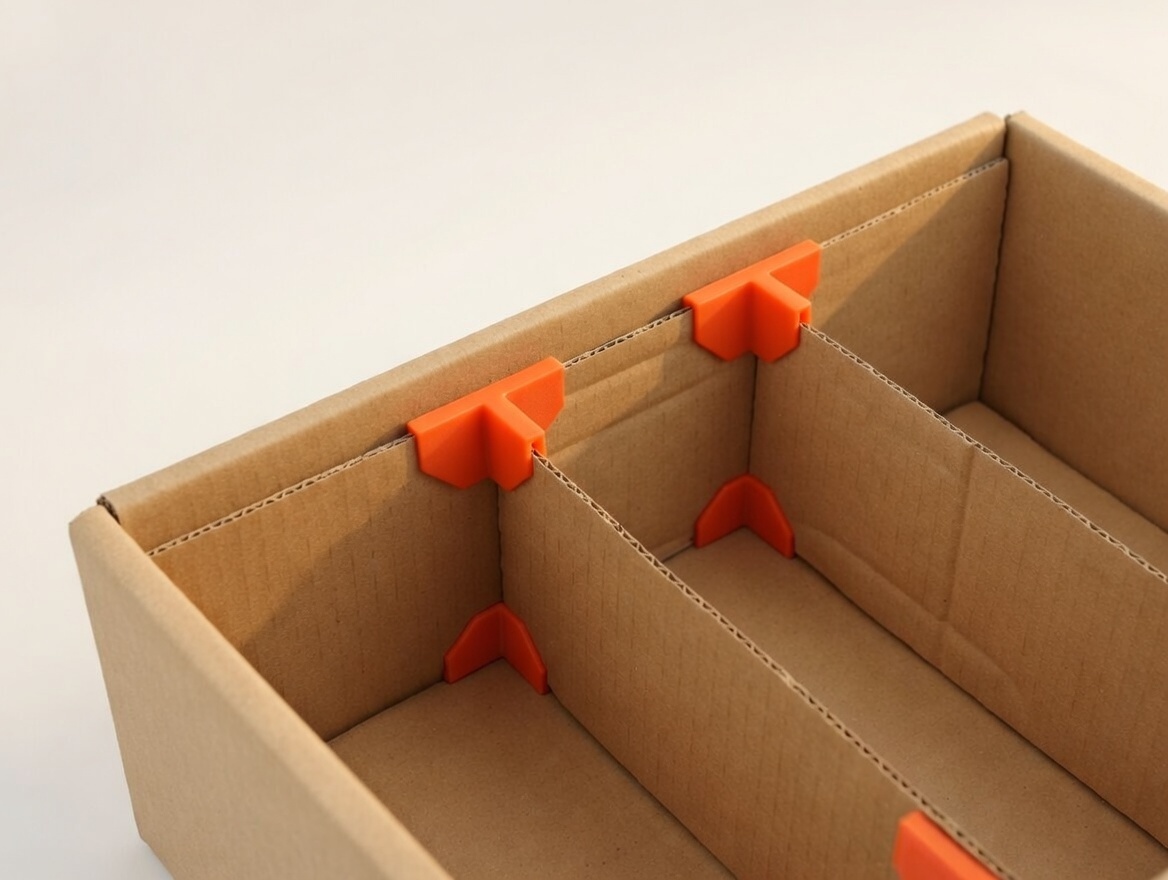

A starter kit of parametric modular connectors designed for universal partitioning across multiple materials—wood, acrylic, glass, cardboard, and more. This set includes the four essential shapes:

90° Corner – for simple right‑angle joins

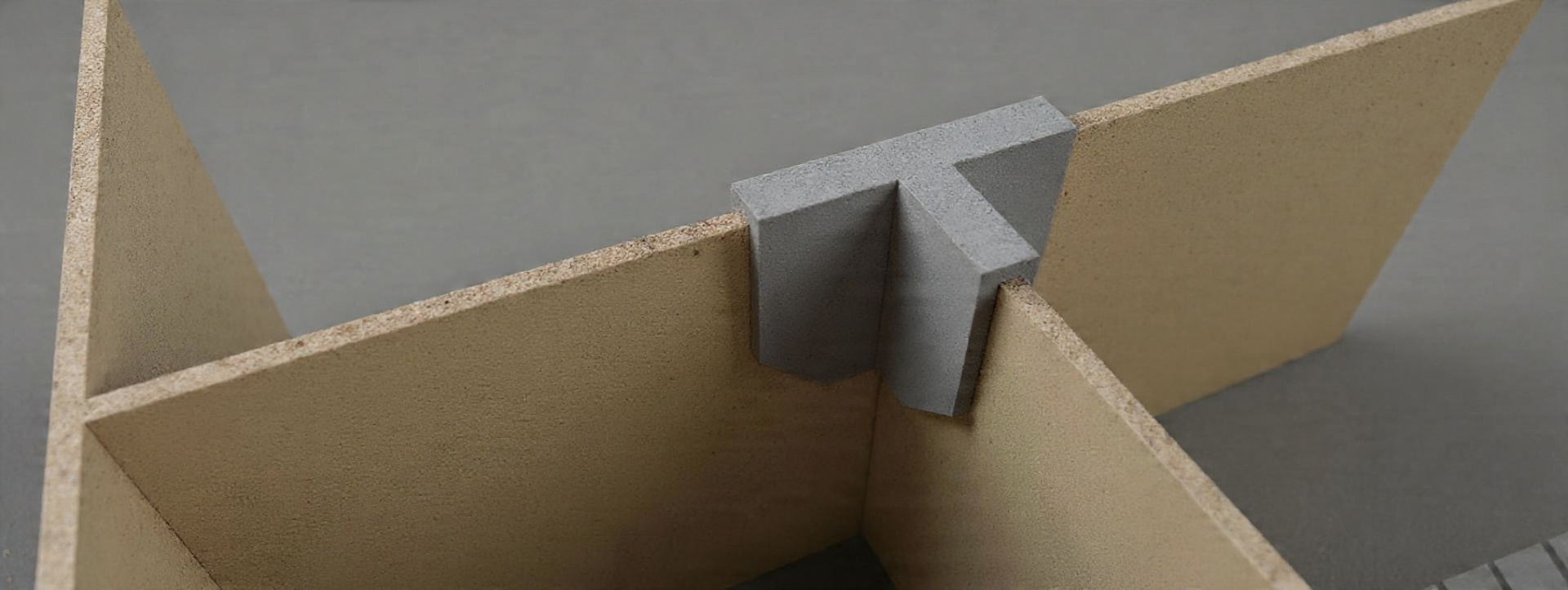

T‑Connector – for three‑way intersections
Cross Connector – for four‑way grid layouts
H‑Connector – for parallel partitions and double‑lane structures

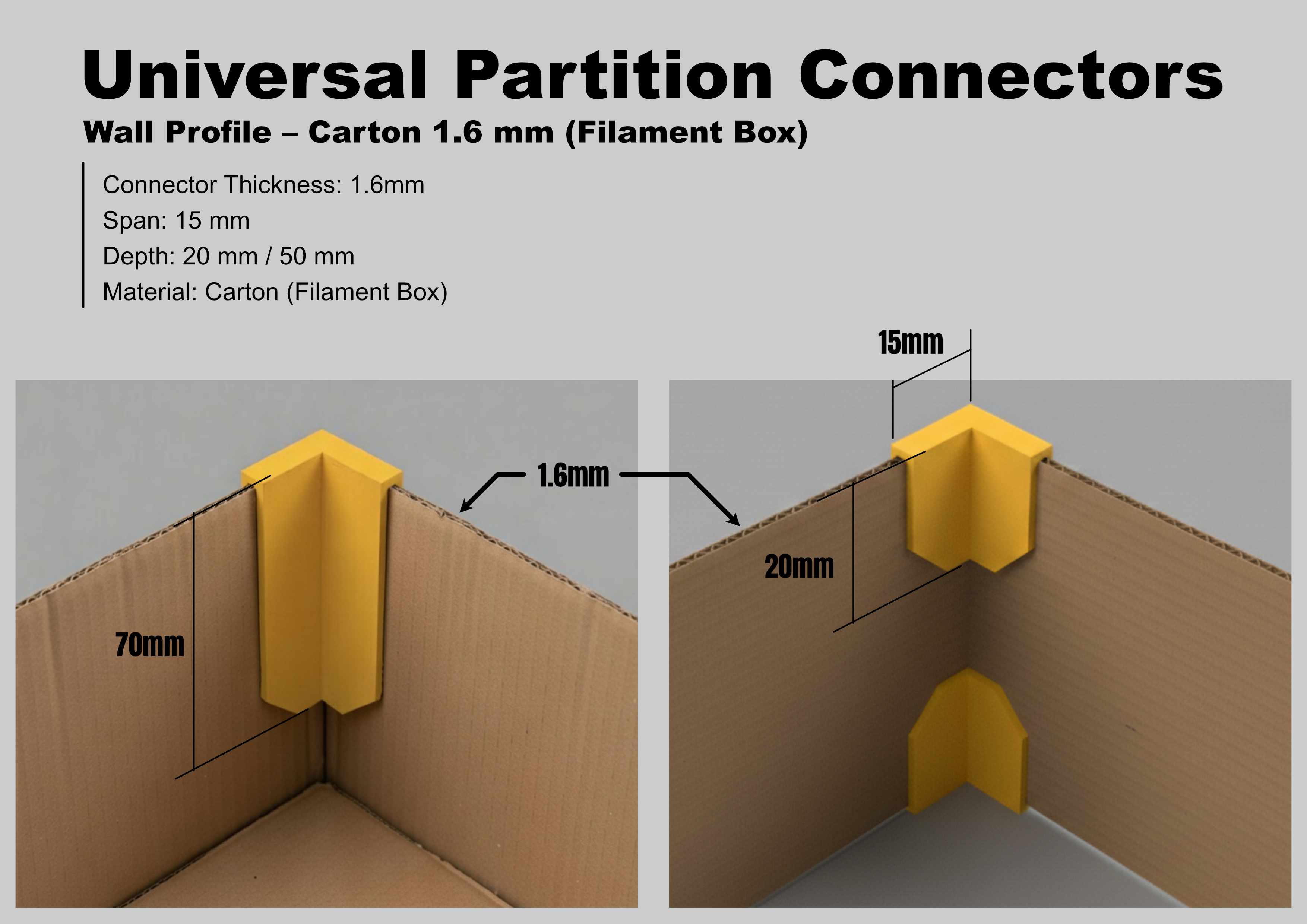

All models are parametric, allowing you to adjust slot width, tolerance, and wall thickness to fit your chosen material.

Features

Multi‑material compatibility: Works with thin sheets (acrylic, cardboard) and rigid panels (wood, glass).
Parametric customization: Adjustable slot width, tolerance, and connector dimensions.
Easy printing: Clean geometries with minimal overhangs, no supports required.
Expandable system: Forms the foundation for angled and reinforced connector sets

Print Settings

Layer height: 0.2 mm recommended
Infill: 20–30% (higher for load‑bearing use)
Supports: Not required
Material: PLA, PETG, ABS depending on application
