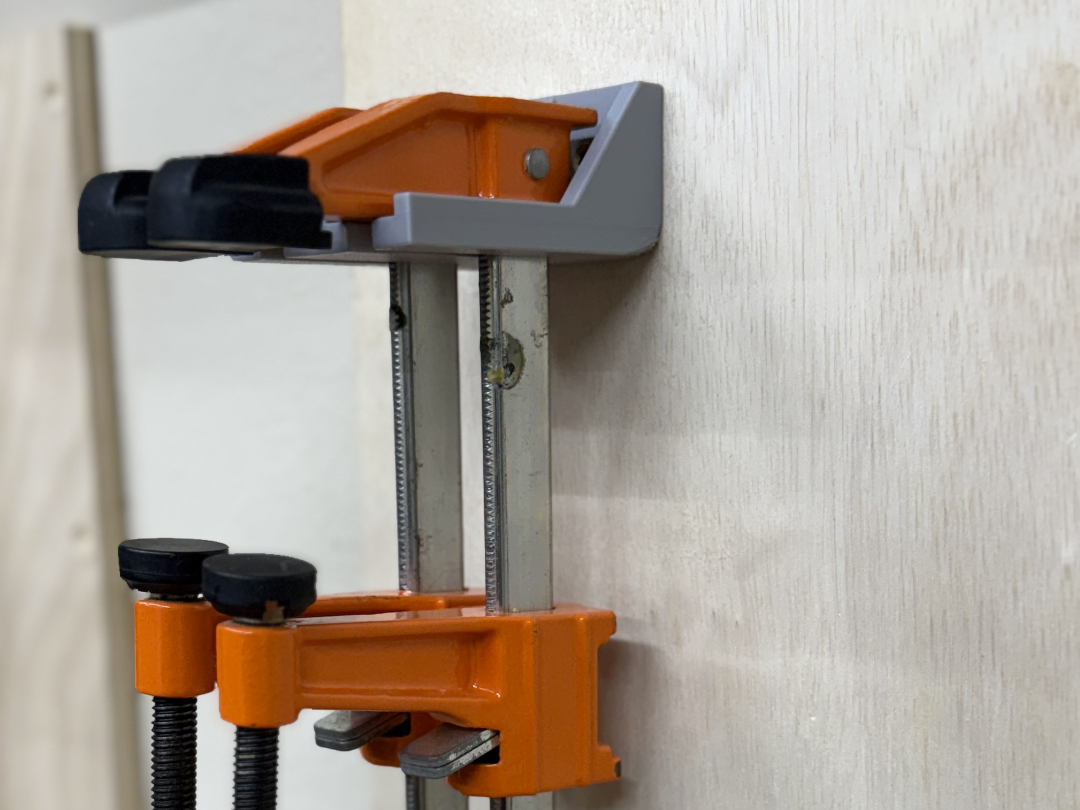

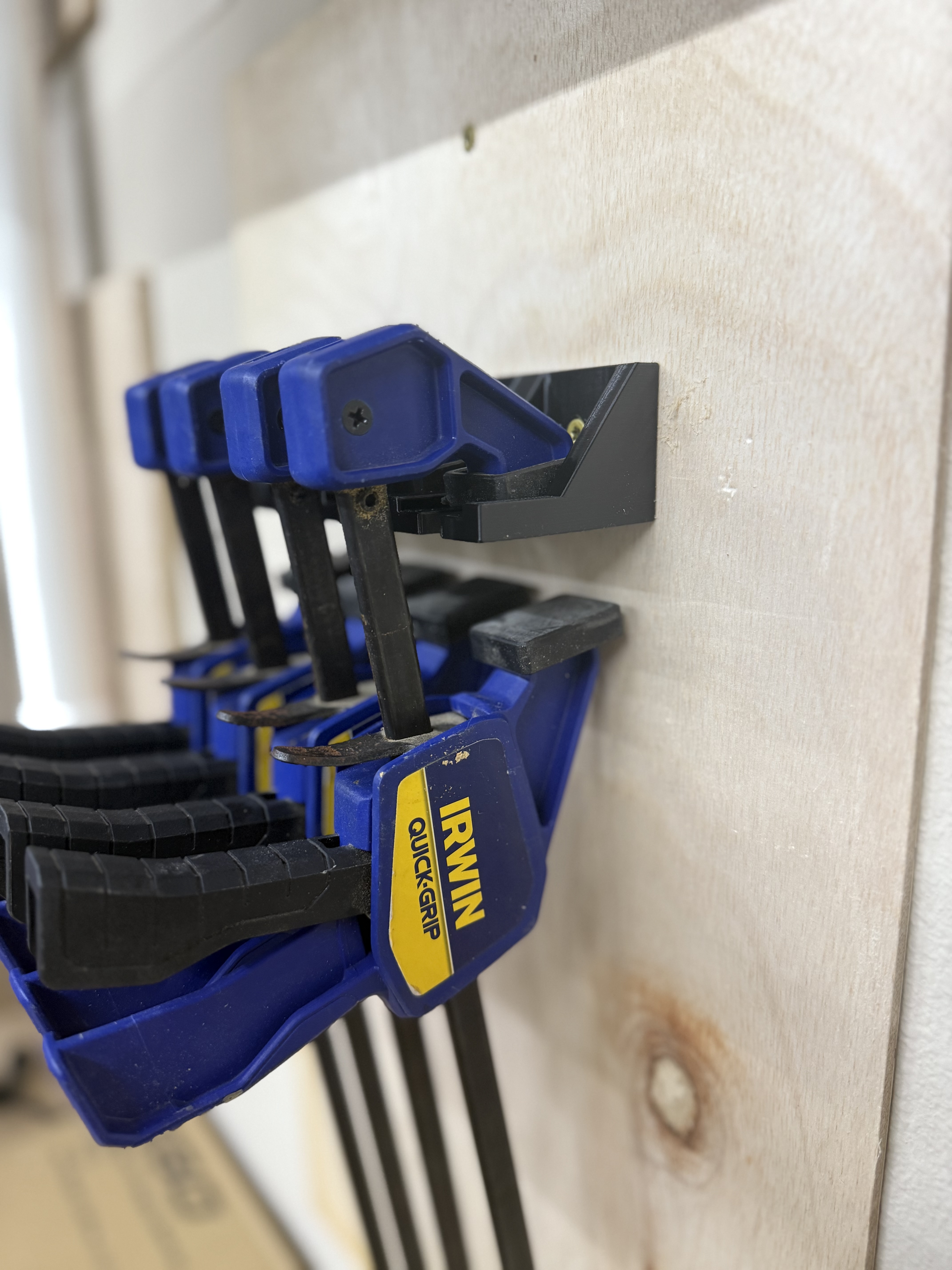

Get your clamps out of a pile and keep your space clean, organized, and efficient with this wall-mounted clamp organizer. This model is fully customizable to match your specific clamp brand, size, and dimensions. By utilizing the Parametric Model Maker,you can customize a rack designed around your exact measurements to ensure a secure fit.

Use one of the pre-made print profiles or customize your own and upload a remix for other to use!

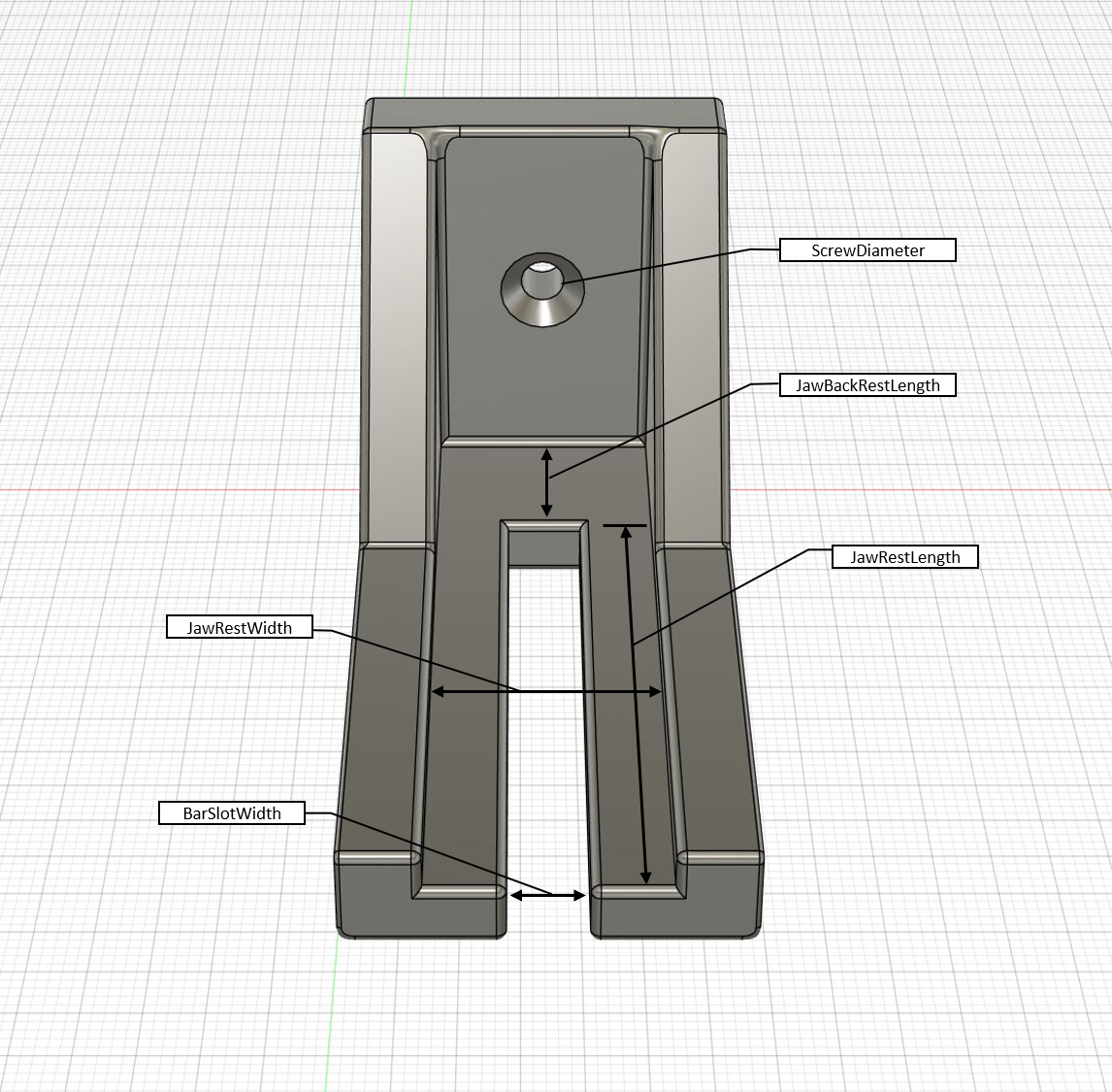

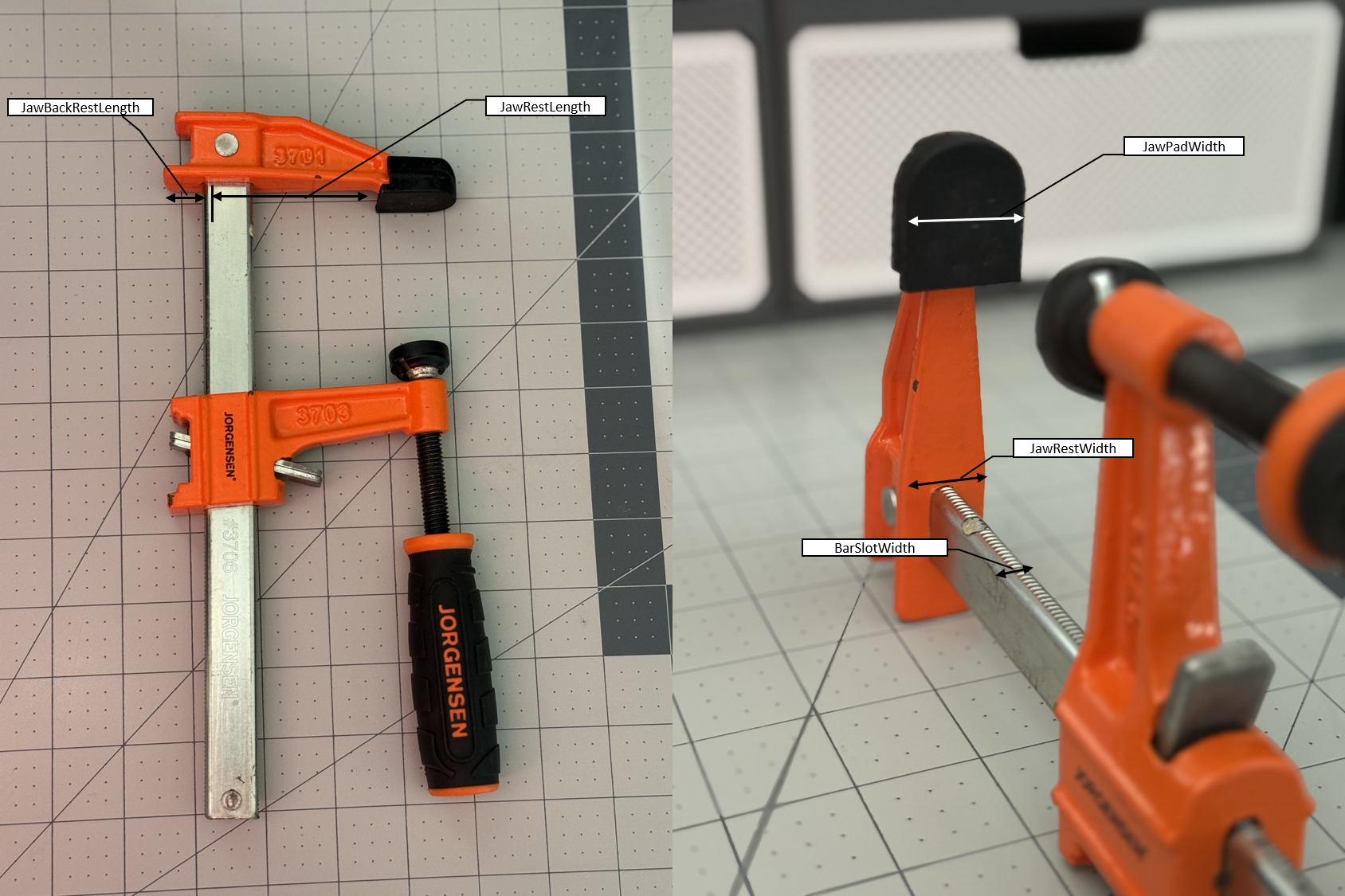

See below pictures for customizable measurement explanations:

JawRestLength: The length of the flat portion the clamp jaw rests on. Measurement is taken from the back of the bar to just shy of where the jaw pad begins.

BarSlotWidth: The thickness of your clamps bar or shaft. Recommend adding 0.4-0.6mm for tolerance.

JawRestWidth: The width of the flat portion the clamp jaw will rest on. Measurement is taken from the thickest part of the clamp's fixed upper jaw. Recommend adding 0.4 - 0.6mm for tolerance.

ScrewDiameter: Diameter of the screws you will be using to mount the rack to the desired surface.

ClampMountQuantity: The number of clamps you want to the rack to hold.

JawRestBackLength: Sort of an extension of the JawRestLength. It accounts for the portion of the clamp jaw that is behind the bar whereas the JawRestLength measurement accounts for the portion of the clamp jaw that is in front of the bar.

NOTE: The JawPadWidth measurement shown in the pictures is not a customizable feature but it is important to know so that the clamps have enough clearance between each other when mounted. If more clearance is needed, increase the JawRestWidth measurement slightly.
