A durable, modular bed scraper designed to actually last.
Tested over 30 prints with no damage to the blade edge, easy blade swaps, and optimized print settings for maximum strength.

🔧 Heavy-Duty Modular Bed Scraper

This is the first bed scraper I’ve used that actually survives repeated use.

I designed this scraper after being frustrated with blades chipping, bending, or wearing down after just a few prints. This model has now been used more than 30 times with no visible wear on the blade tip.

✅ Key features

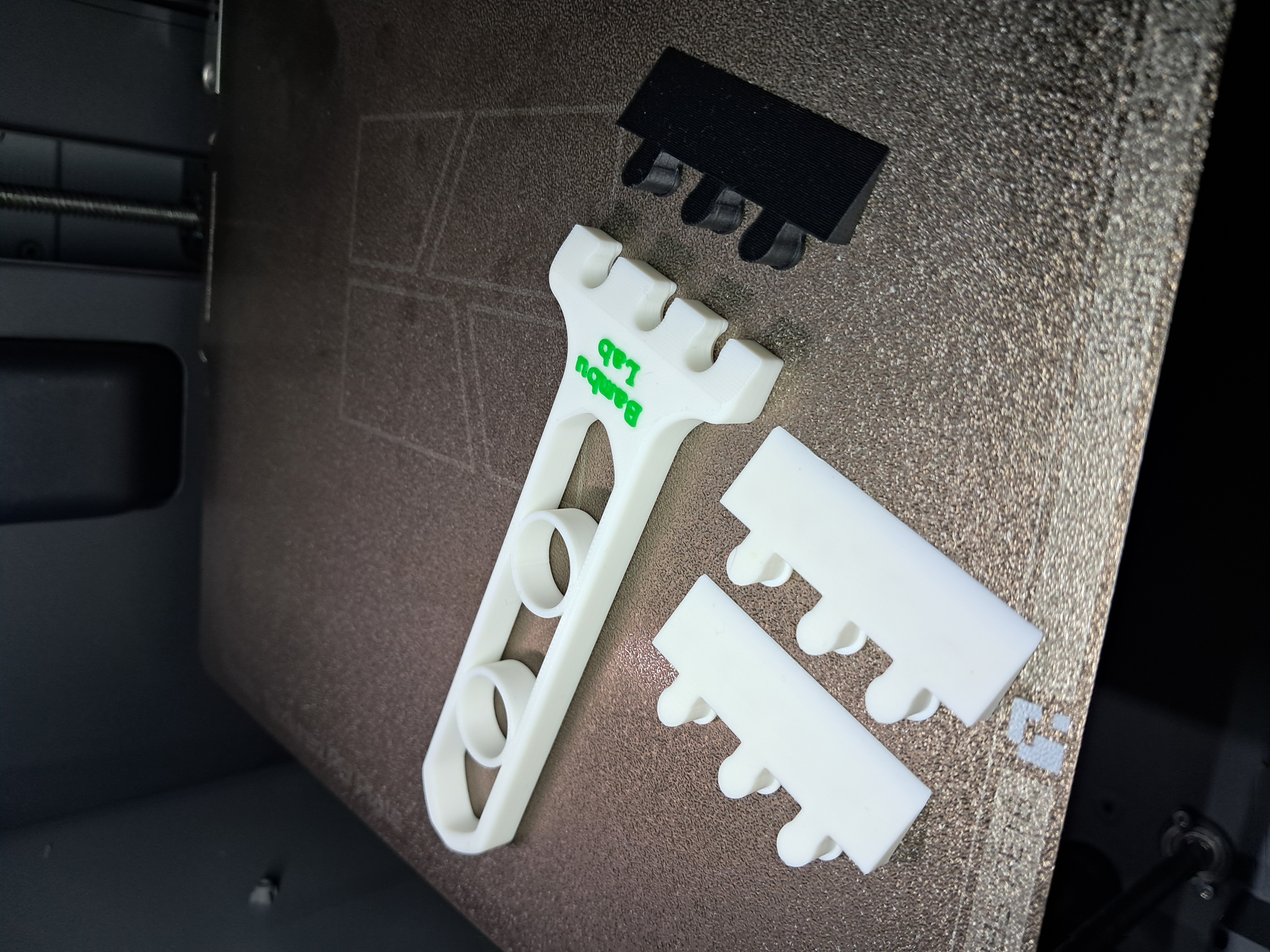

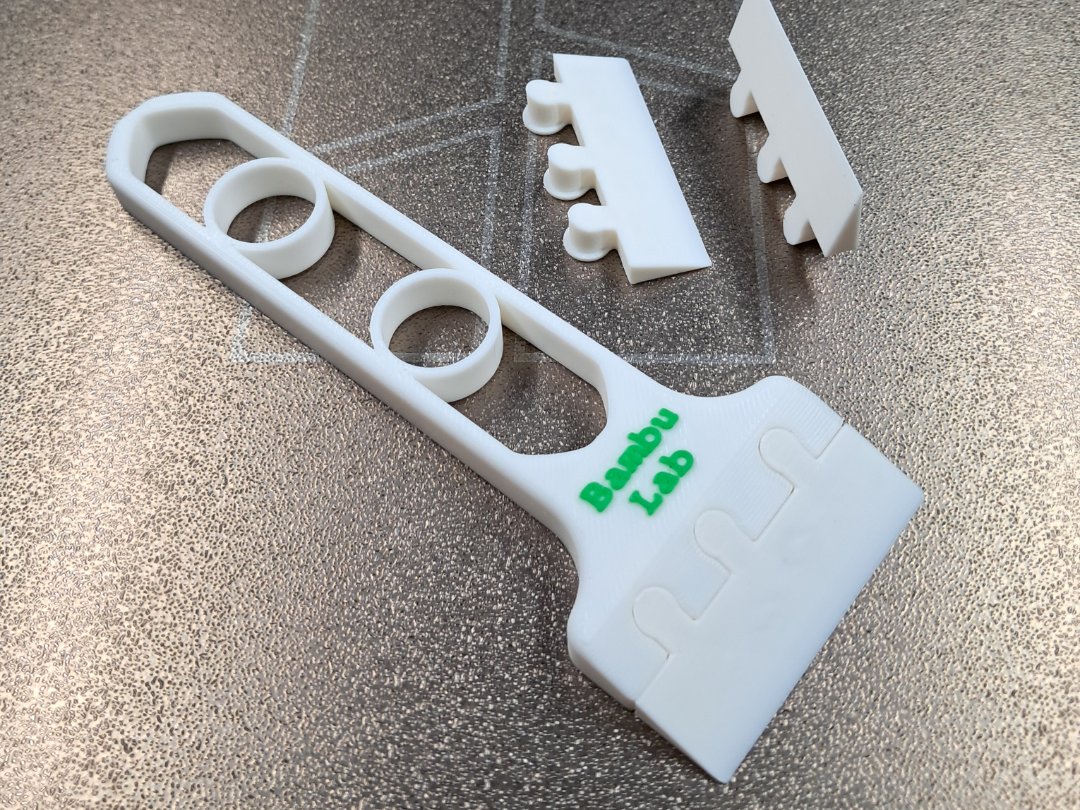

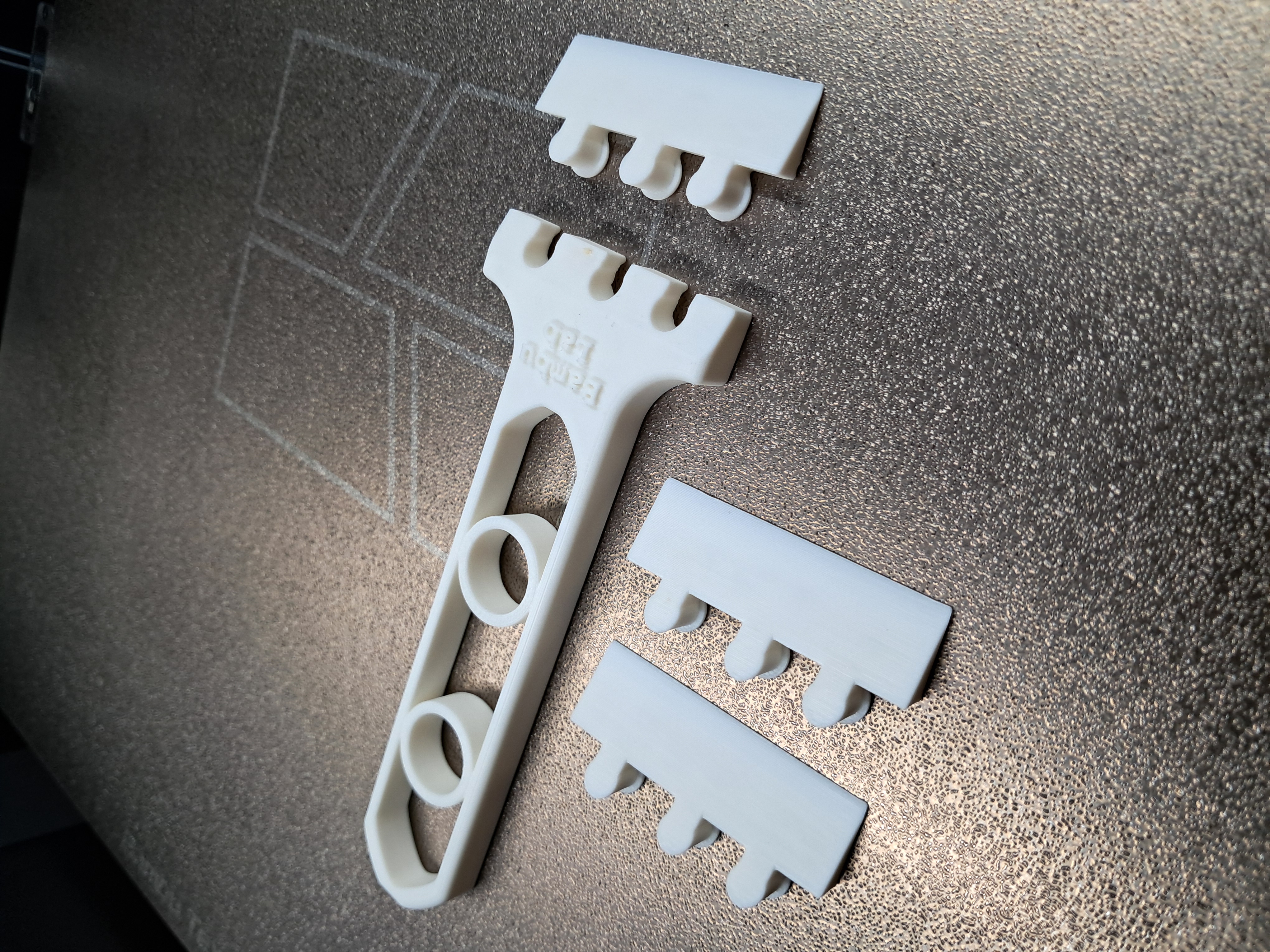

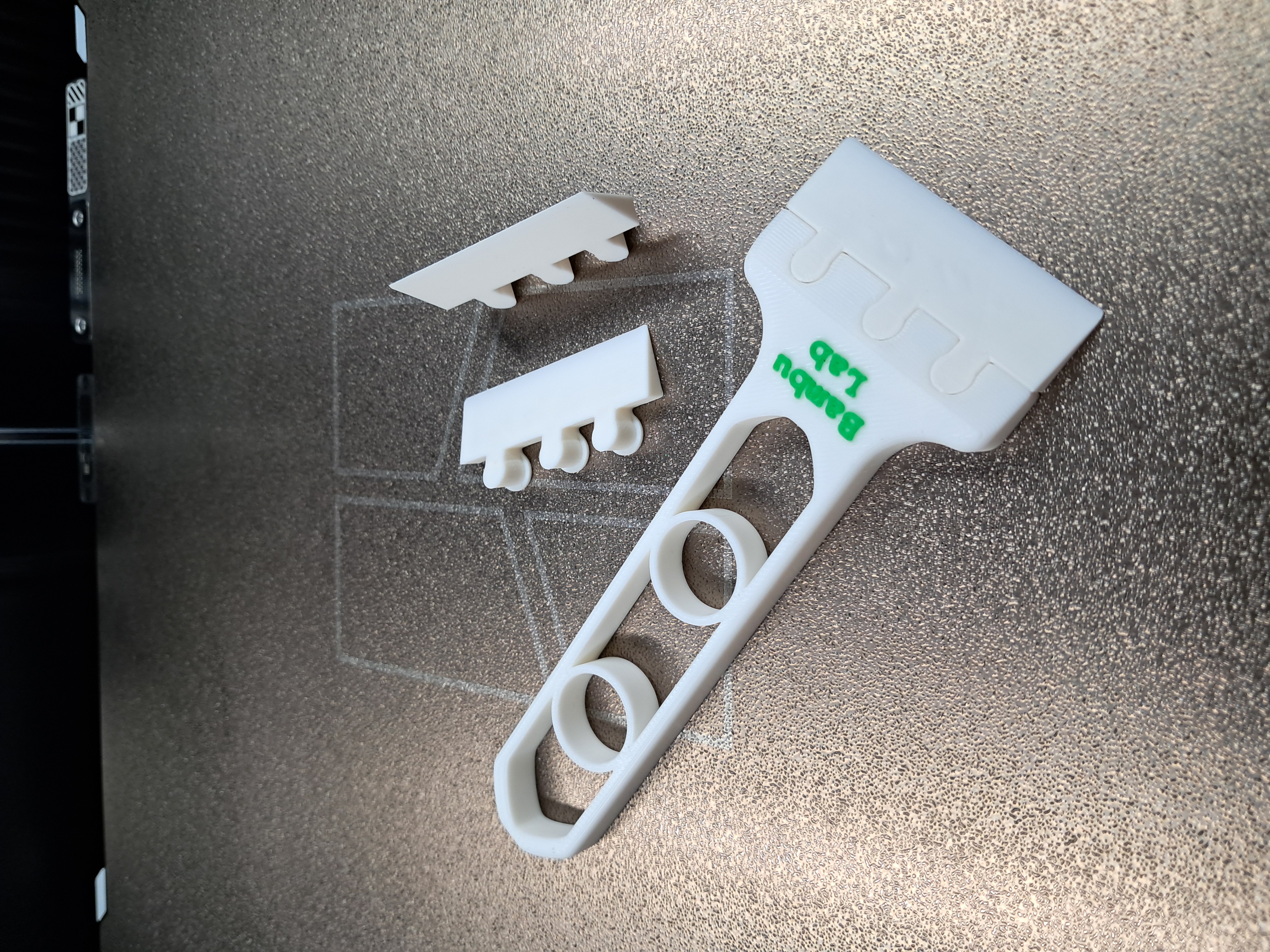

• Replaceable blade system – blades are easy to press in and remove
• Blade inserts from below and only fits one correct orientation
• Modular design – print handle and blade separately

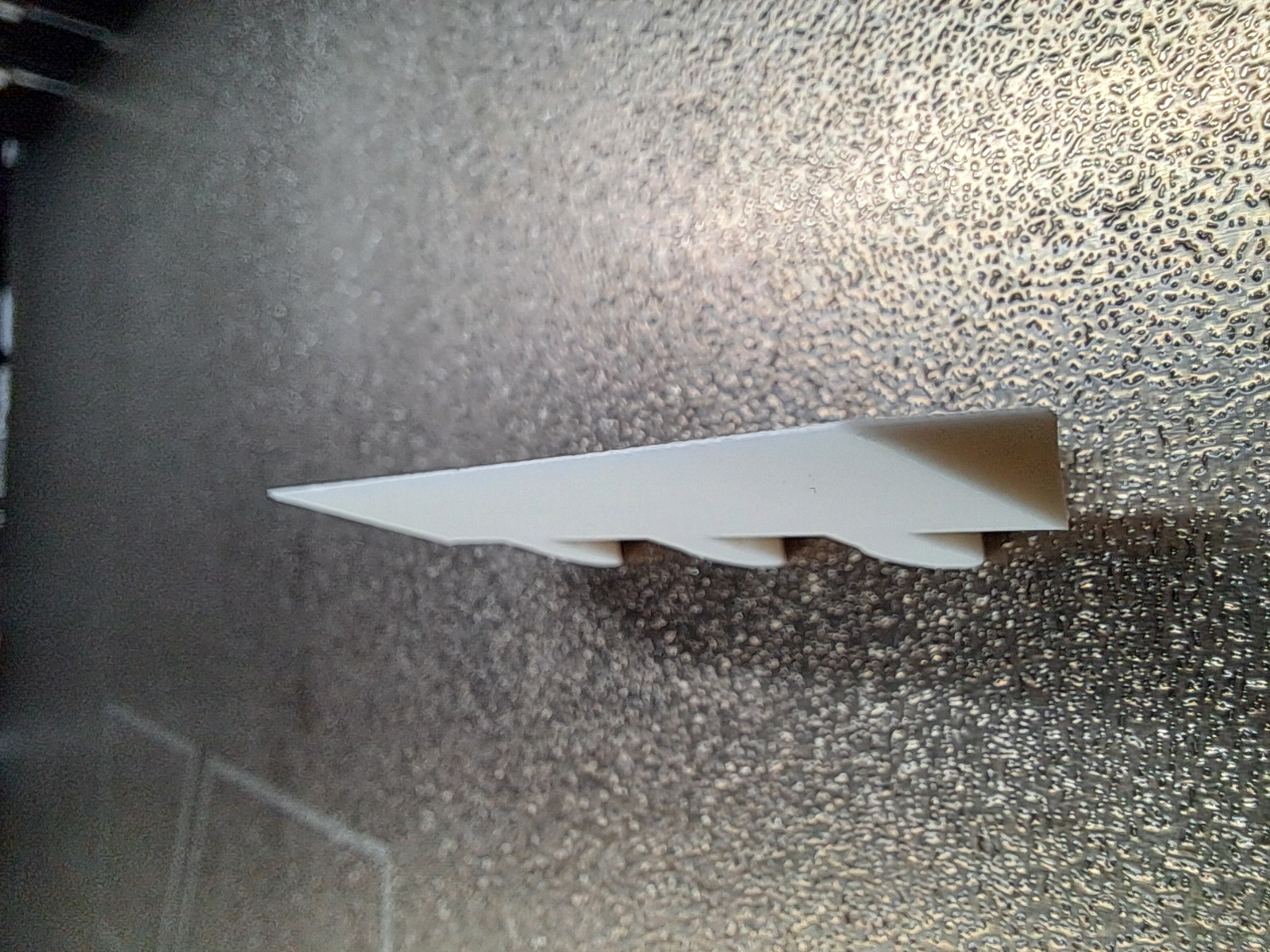

• Strong, stiff edge optimized for real-world use
• Works on textured and smooth build plates
• Important! Different stl and profile for ABS or PLA

🧱 Materials & print recommendations

Blade (recommended)

• Material: ABS
• Layer height: 0.8 mm recommended for maximum edge strength
  • 0.16 mm was tested but resulted in a weaker blade edge
• Walls: minimum 3 walls
• Temperature: increase hotend temperature by +5 °C compared to your normal ABS settings for improved layer bonding

This configuration provides the strongest and most durable blade edge.

Handle

• Material: PLA or ABS (Material recommended ABS)
• PLA works very well for the handle and has held up nicely after several uses, PLA version is needed for this print, stl or print profile
• PLA settings:
  • Layer height: 0.8 mm
  • 4 walls

  • Increase temperature by +4 °C compared to standard PLA



🔁 Blade swapping

• Old blade presses out easily
• New blade slides in from underneath
• Blade locks securely and will not mount incorrectly

🧪 Tested & proven

This scraper has been used extensively on real prints, not just test scraps.
After 30+ uses, the blade edge is still intact and performs like new.
