The Ultimate Bar Collection

Transform your space into the ultimate lounge.  This isn't just a 3D print, it’s a centerpiece. Designed for enthusiasts who appreciate both fine spirits and precision engineering, the Ultimate Bar Collection features 8 unique, geometric pods tailored for every major spirit. Each unit features a mechanical opening and integrated LED housing to illuminate your favorite bottles from the inside out.

Features

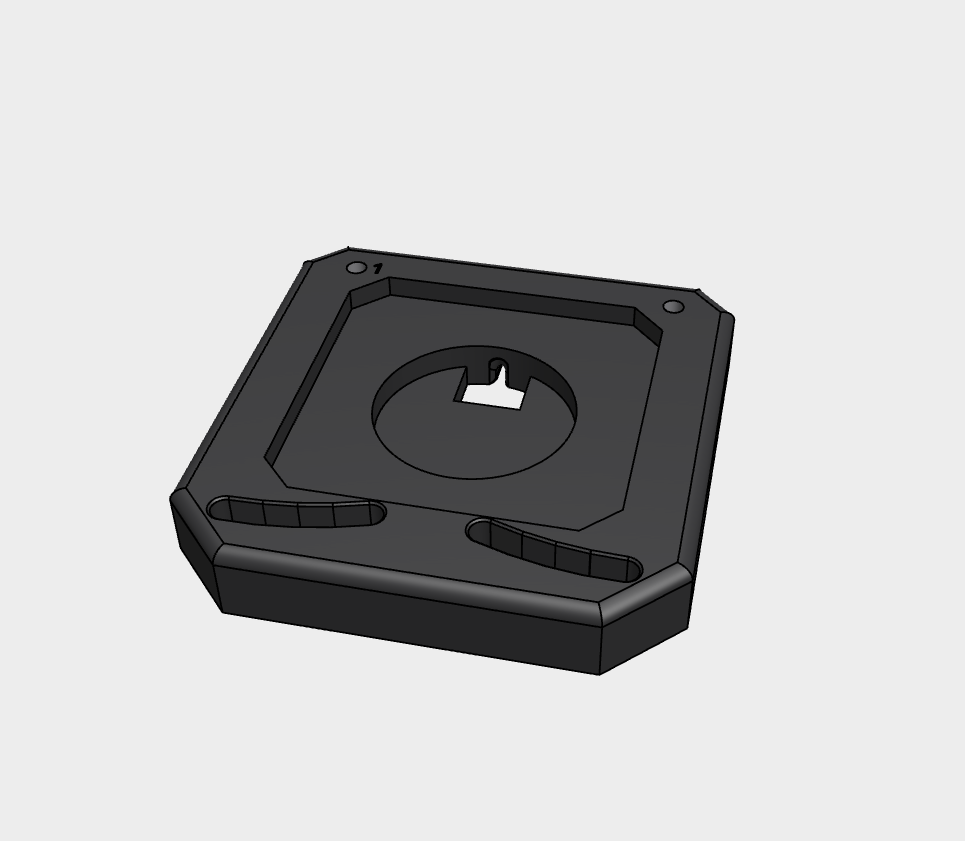

• LED Compatible: Includes an alternative base specifically for the LED Lamp Kit 001 to give your bottle a golden glow.
• Cutout for LED in the lid :  There is a cutout in the lid to fit the KC007 wireless LED

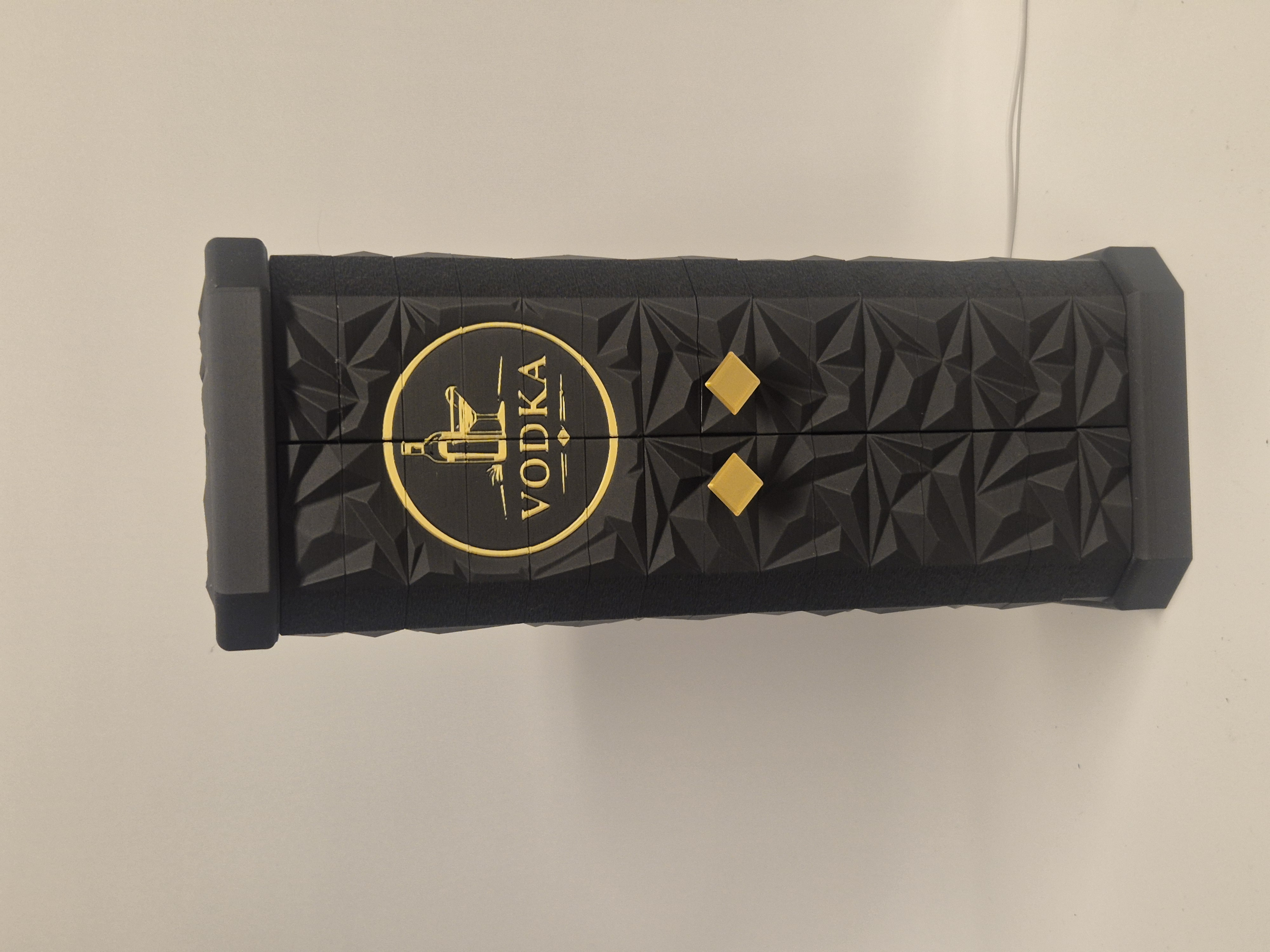

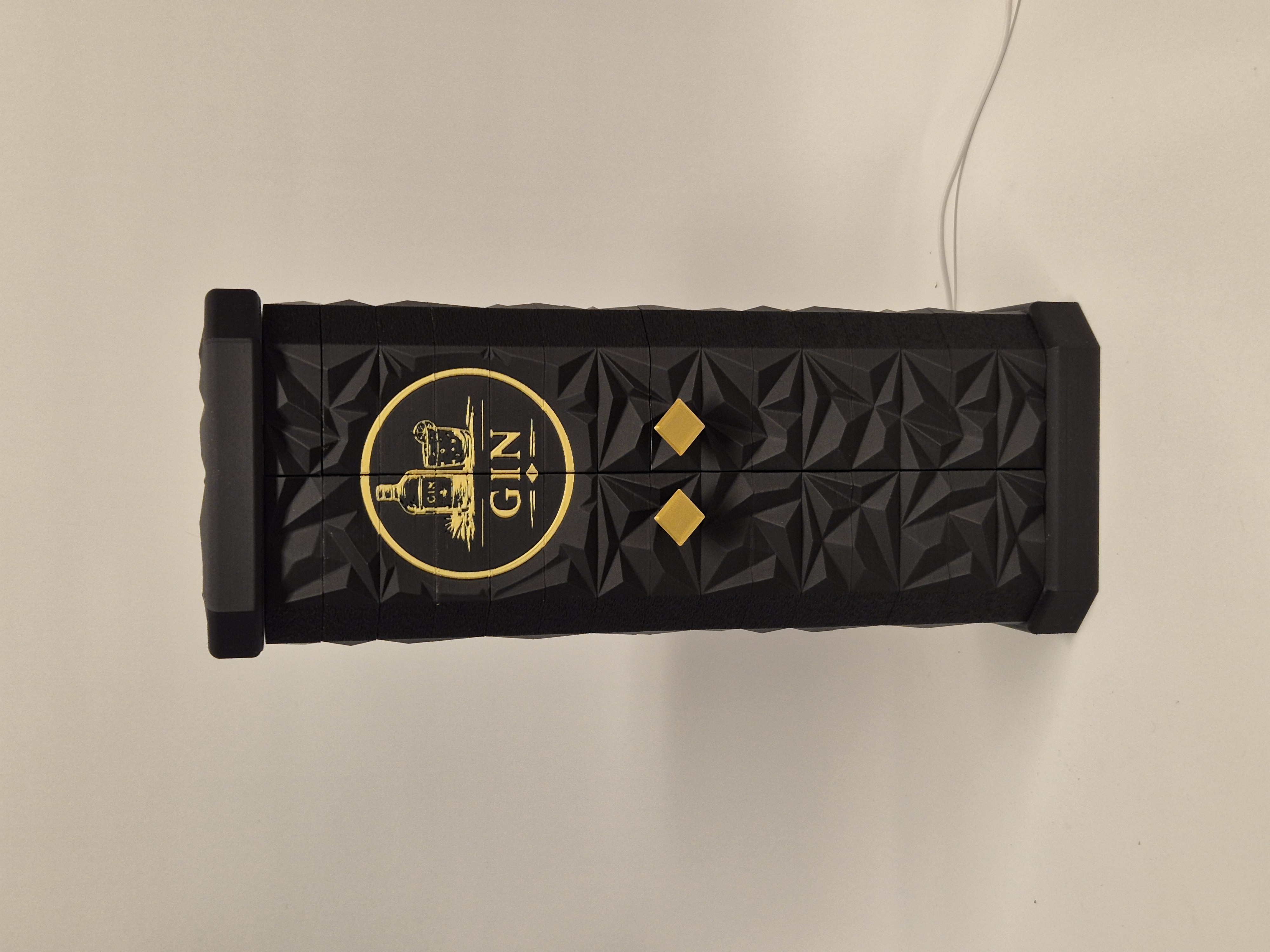

• The Set Includes: Whiskey, Wine, Gin, Bourbon, Cognac, Vodka, Tequila, Rum and a clean box for custom text.
• Magnetic Snap: Optimized for 8x2mm magnets to provide a satisfying, secure "click" when closing the doors.

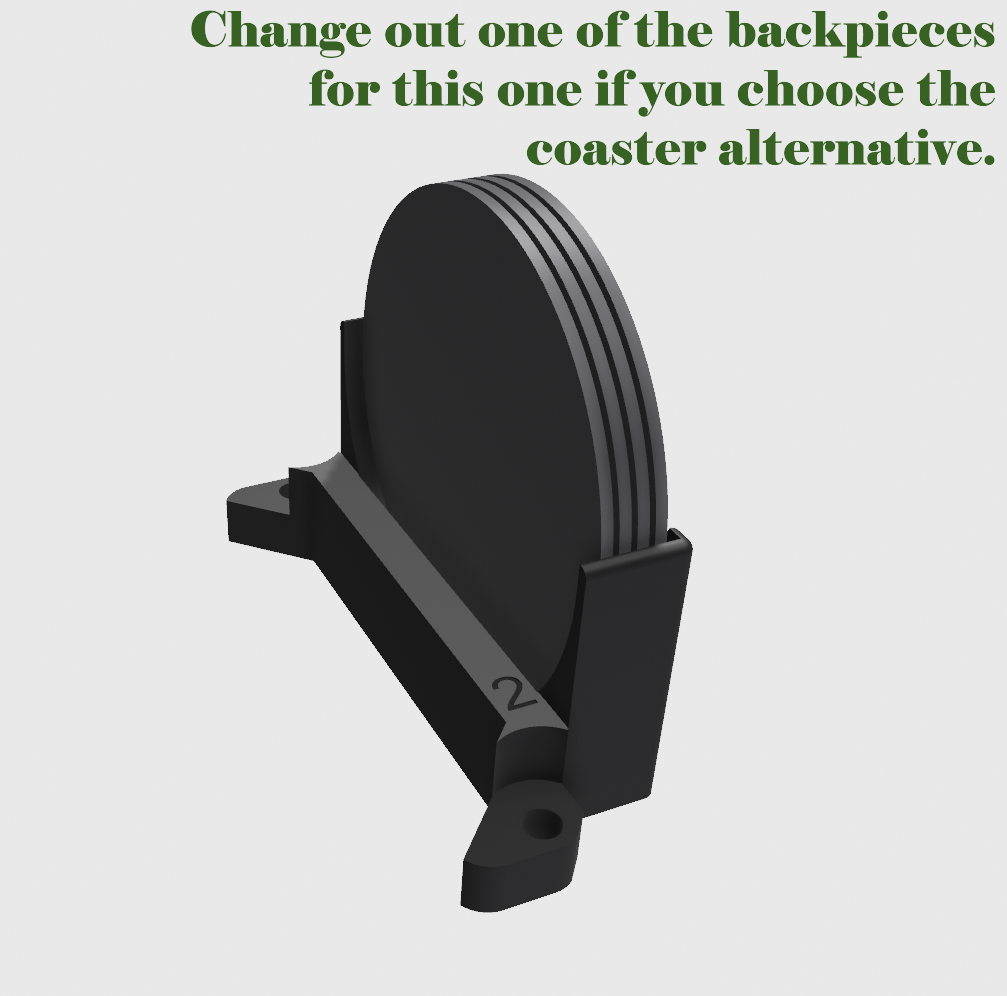

• Coaster holder : Alternative backpiece that fits 6 coasters.

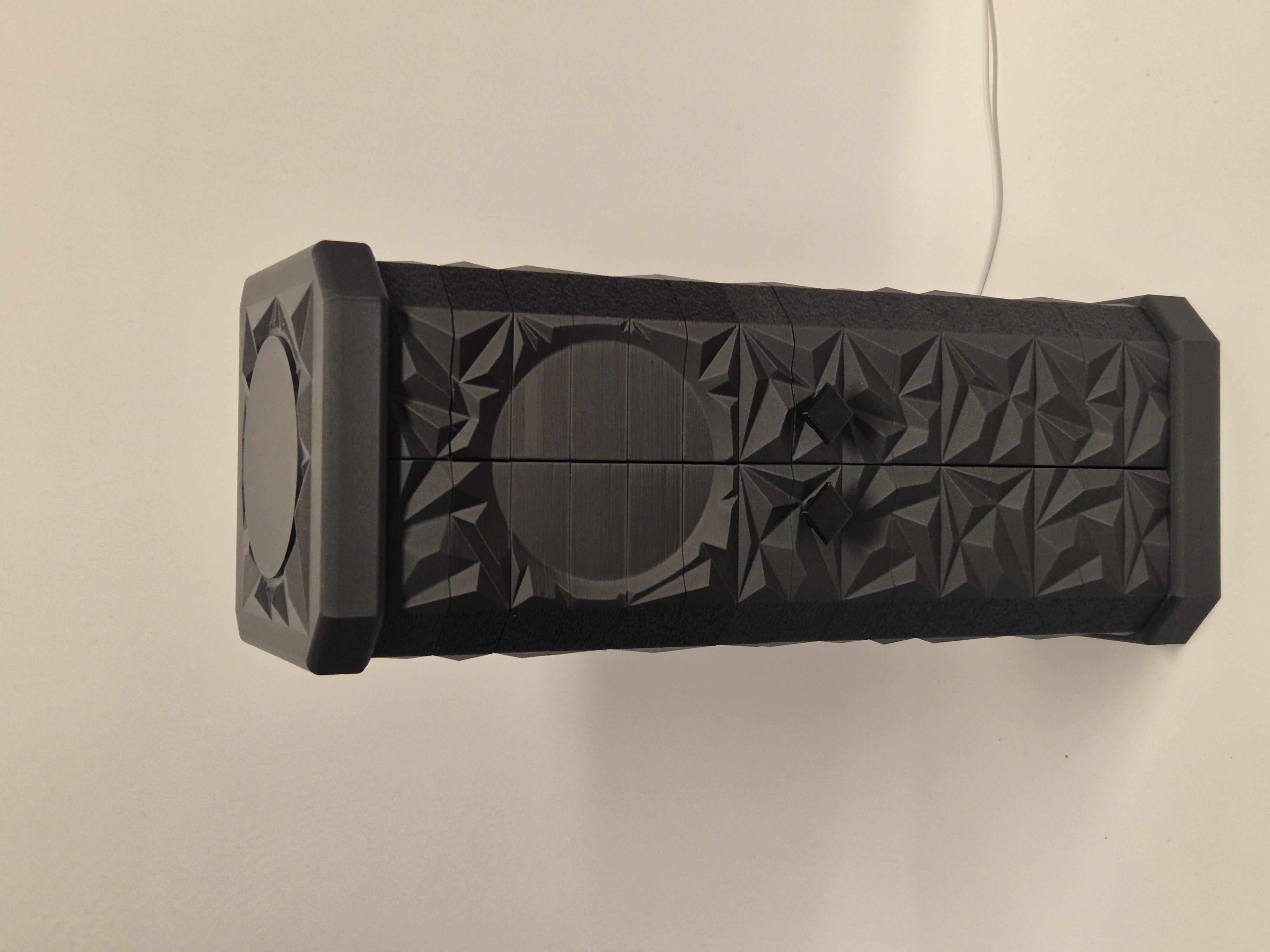

• Custom : A blank box were you can add your own design.
• Assembly guide : Follow the detailed assembly guide below.
• Internal dimensions: 100x100x300mm / 3,9x3,9x11,8 inch

Technical Specifications :

Hardware Required

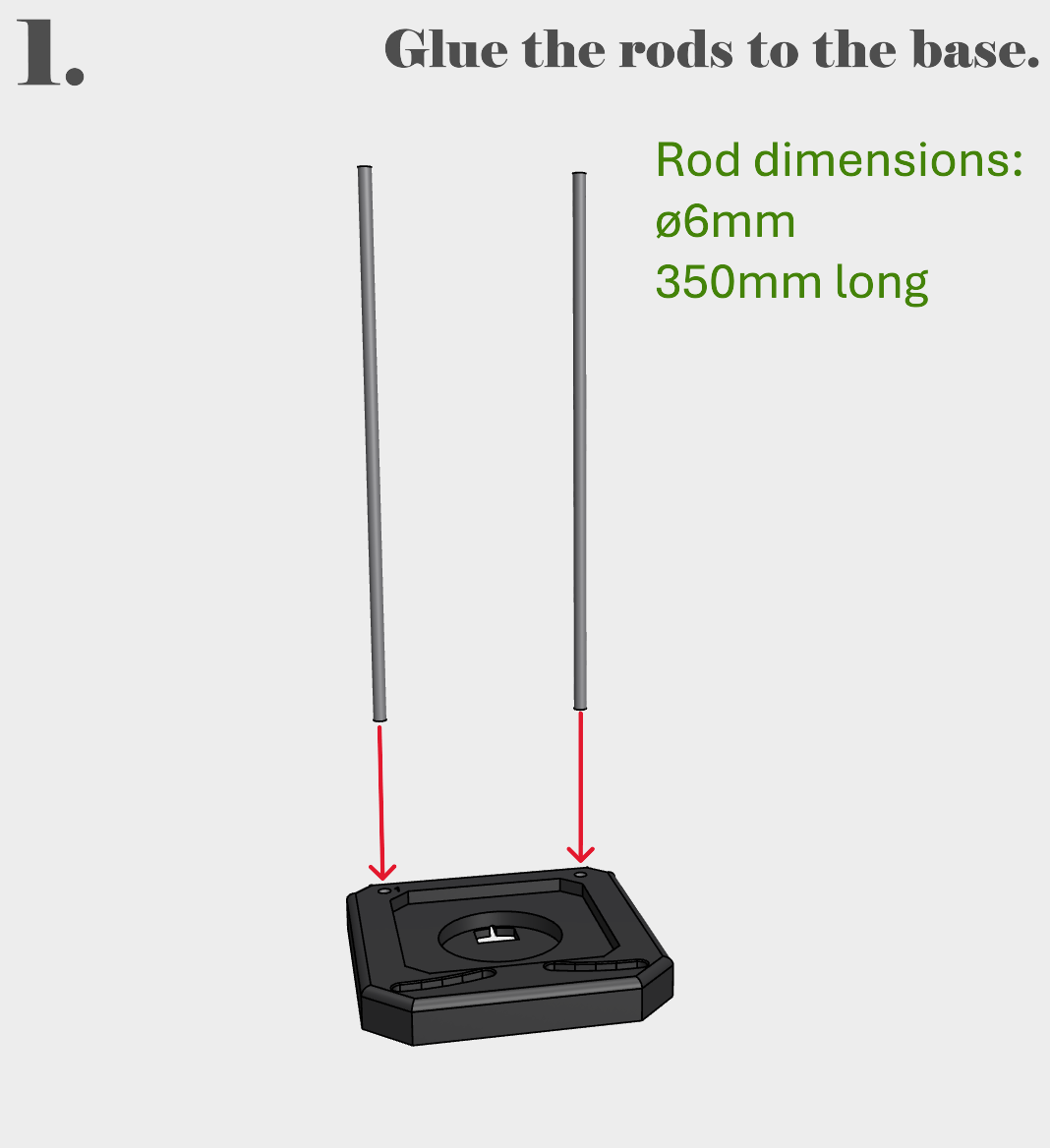

• Steel Rods: 2 pcs (ø6mm x 350mm long)
• Magnets: 30 pcs Round 8x2mm (Required for door closure)
• Adhesive: CA Glue (Superglue) for magnets and final assembly.
• Lighting: Optional LED Lamp Kit 001 and/or Kc007 LED
• Filament : I used Bambu's filament for this project. All the colors can be found in BOM.

Want it to look exactly like the photos? Use these filaments :

1.  Bambu Lab PLA matte Charcoal or Basic black

2.  Bambu Lab  PLA silk + Gold

   You can find them in BOM

Custom Box :

For the custom box (No logo) You can add your own SVG or text in the slicer, you could paint/draw on it or you can cut out vinyl stickers to apply. Show me in the comments how you did yours!

You can find the steel rods you need here  →    (affiliate link)

If Bambu i out of stock, buy LED here → (affiliate link)

If Bambu's 8x2mm magnets are out of stock! You can find some here → (affiliate link)

Assembly Tips

• Alignment: Ensure your steel rods are clean and straight for the smoothest door rotation.
• Supports :  Make sure all the supports are removed before assembly.

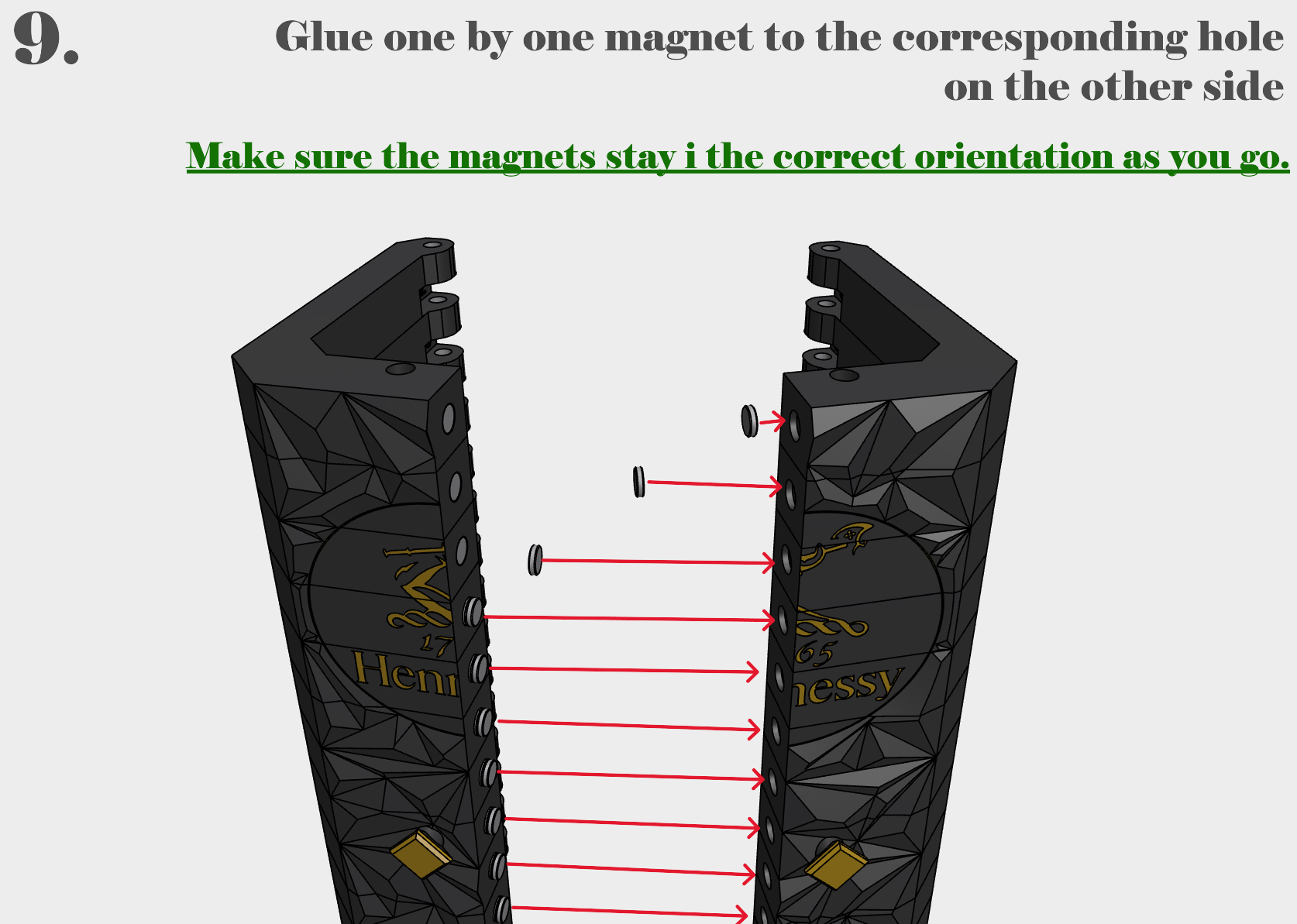

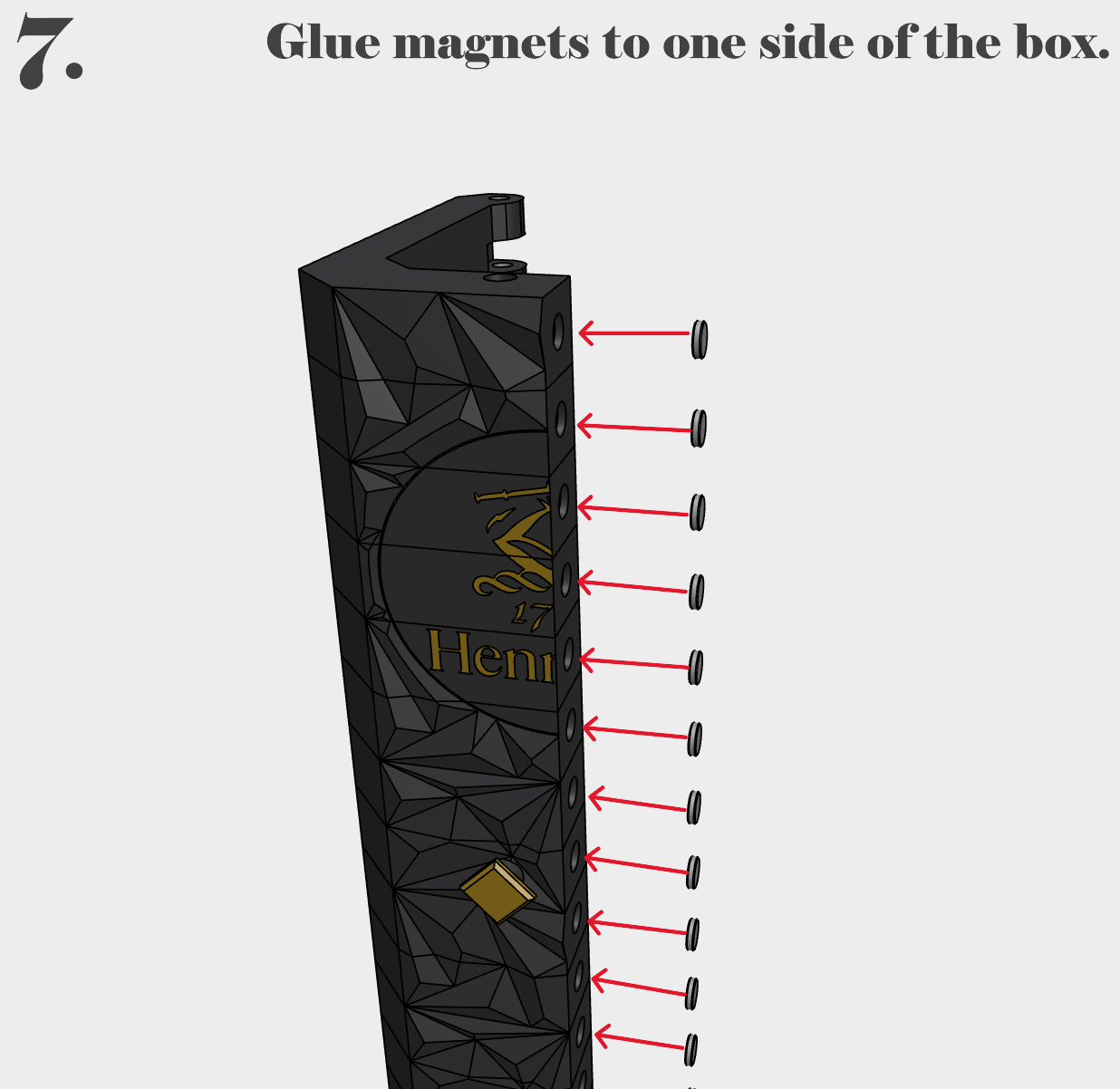

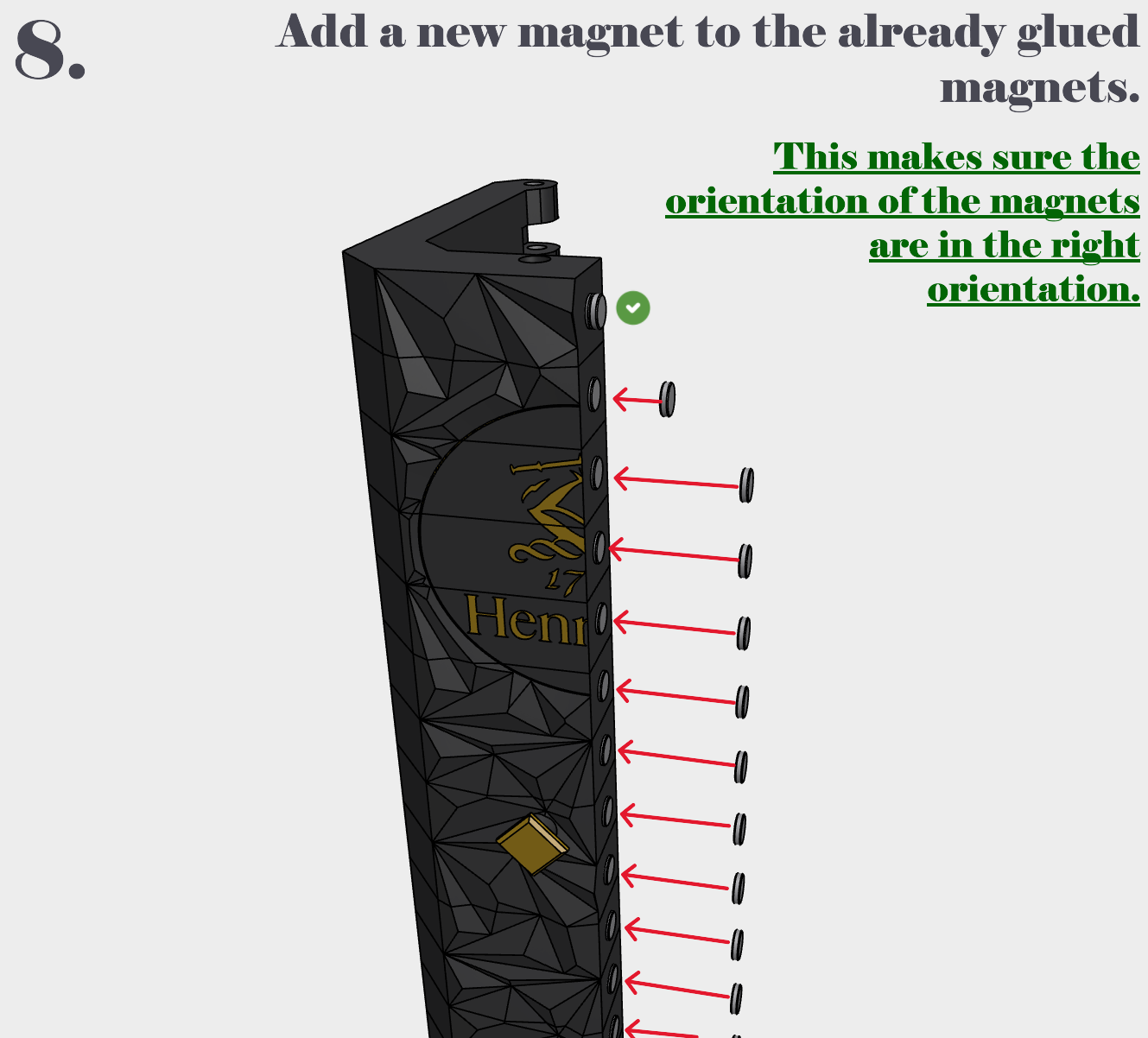

• Magnets : Be sure to orient the polarity of the magnets under assembly.

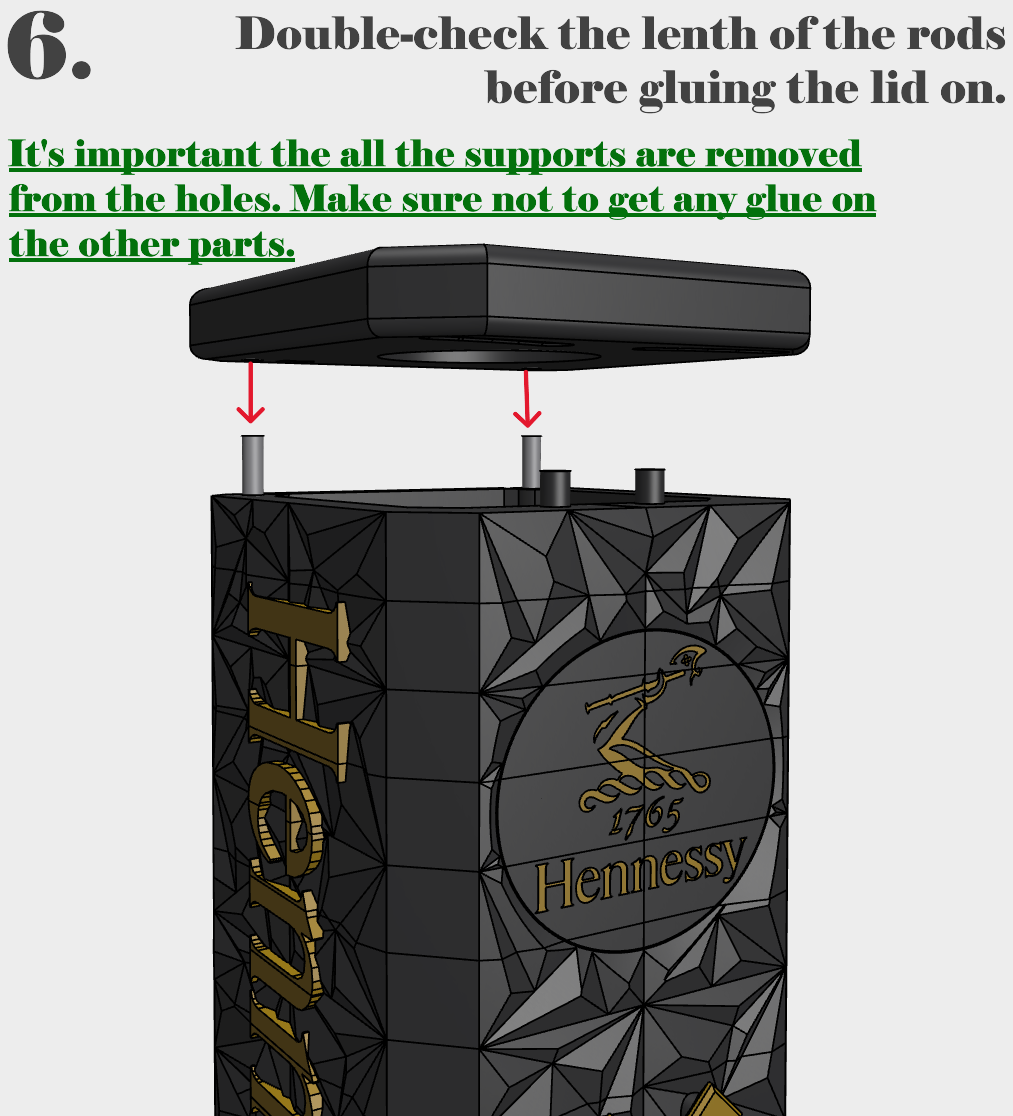

• Rod length : Before gluing the top on, double check that the rods aren't to long.
• Tolerance : Printers and filaments can behave differently. In rare cases, the holes can be a bit to tight because of settings.   If this happens, i recommend using a drill with a 6mm drill bit. Just run it through the hole a few times and you should be fine.

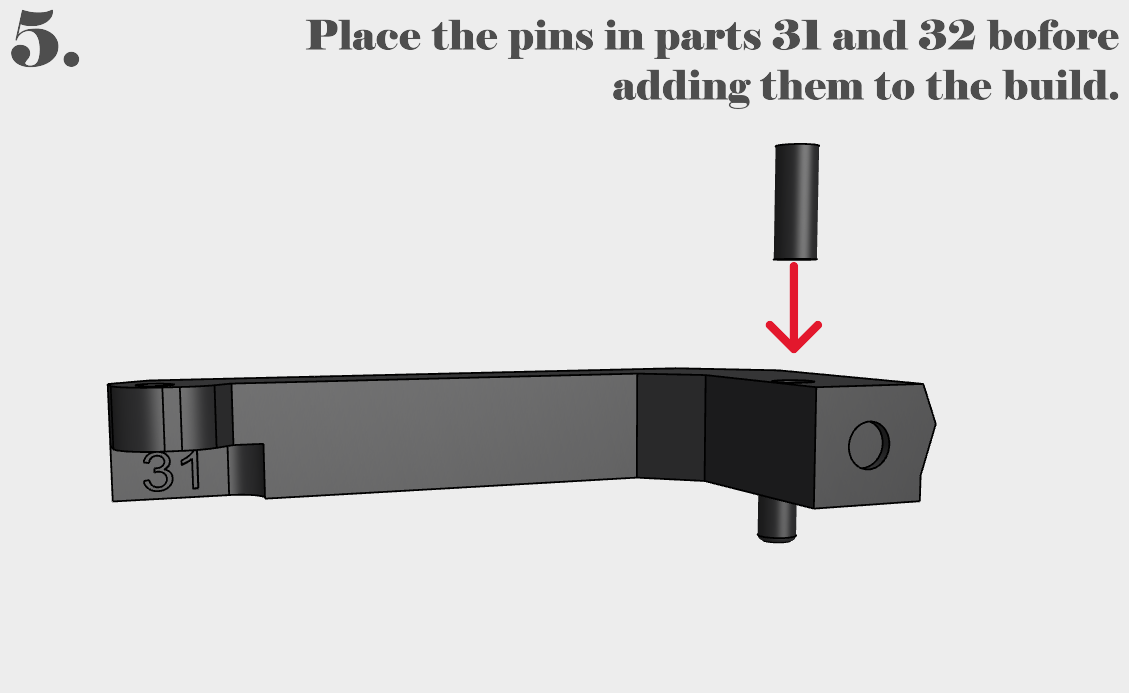

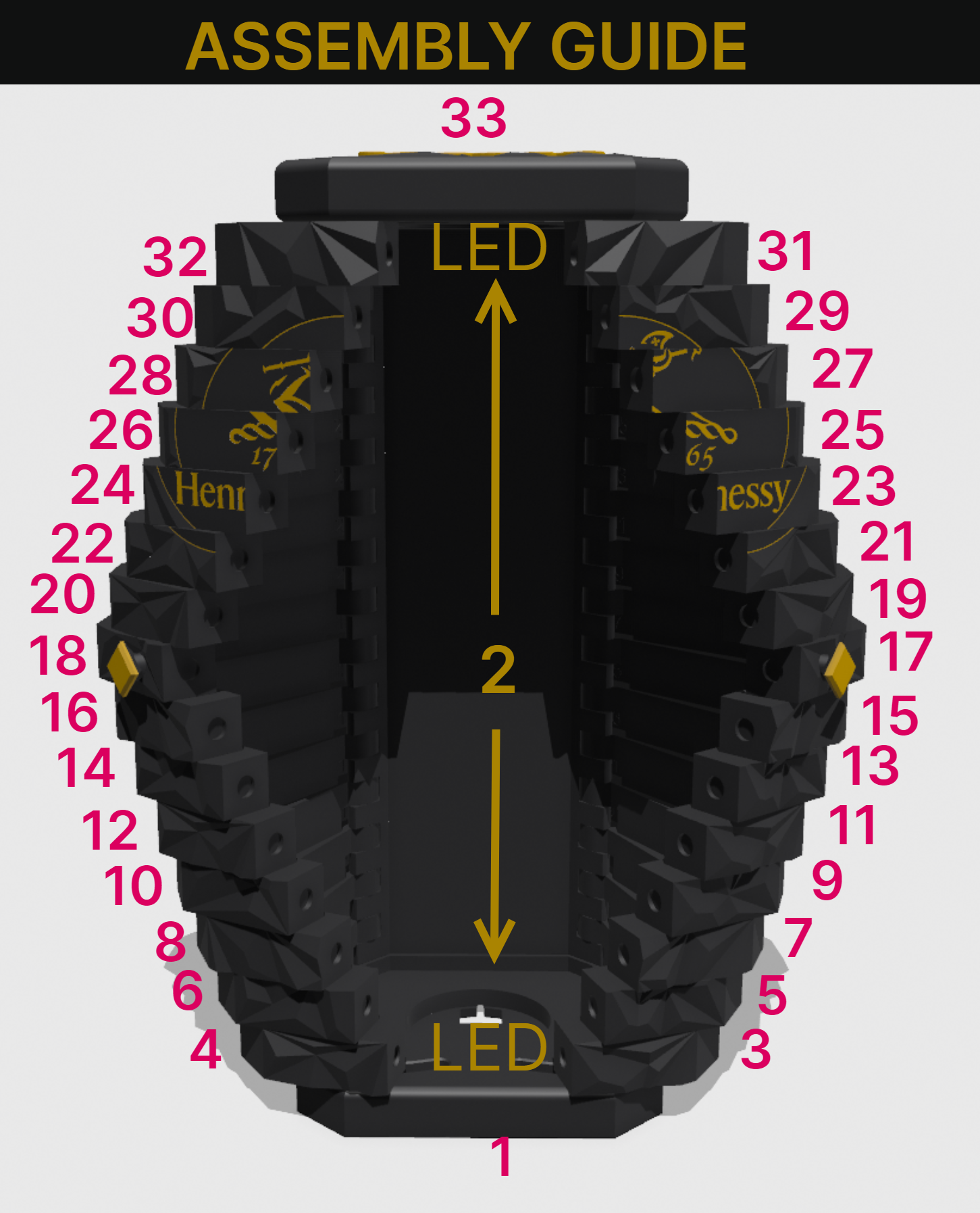

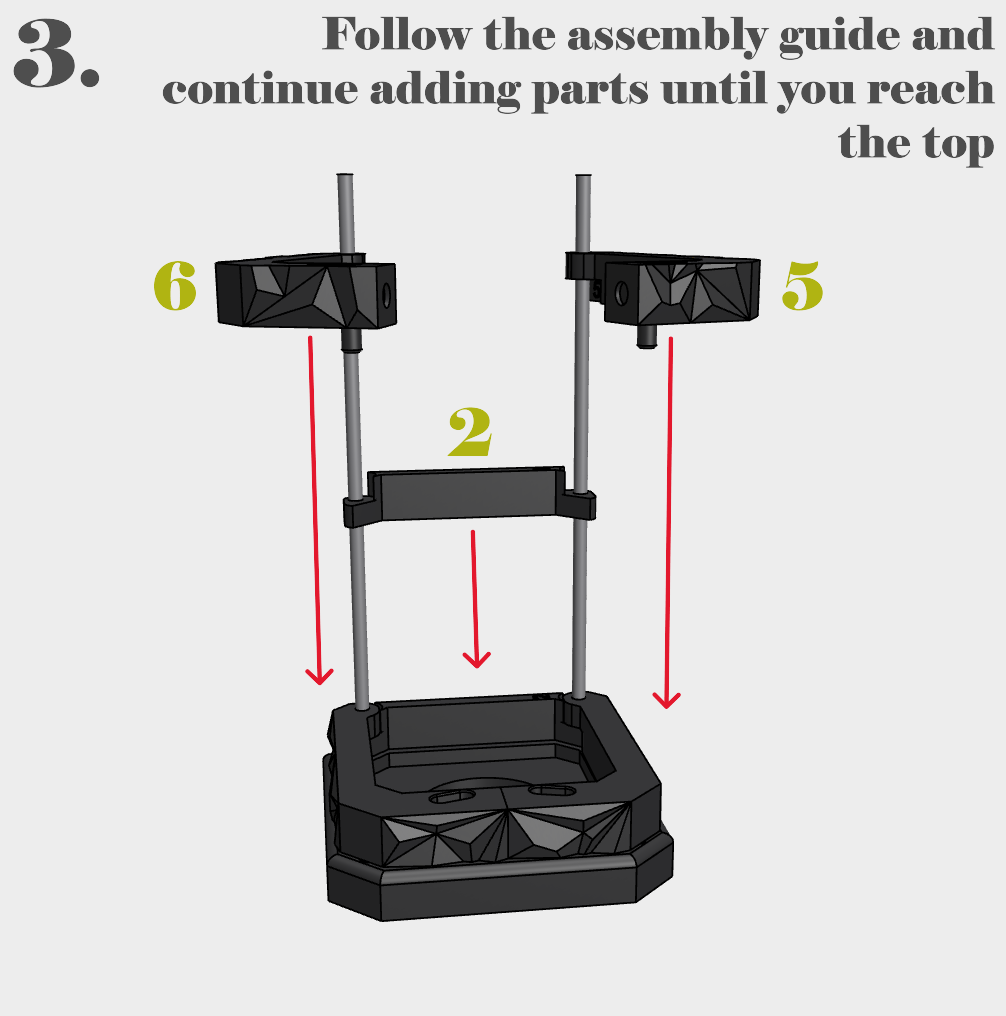

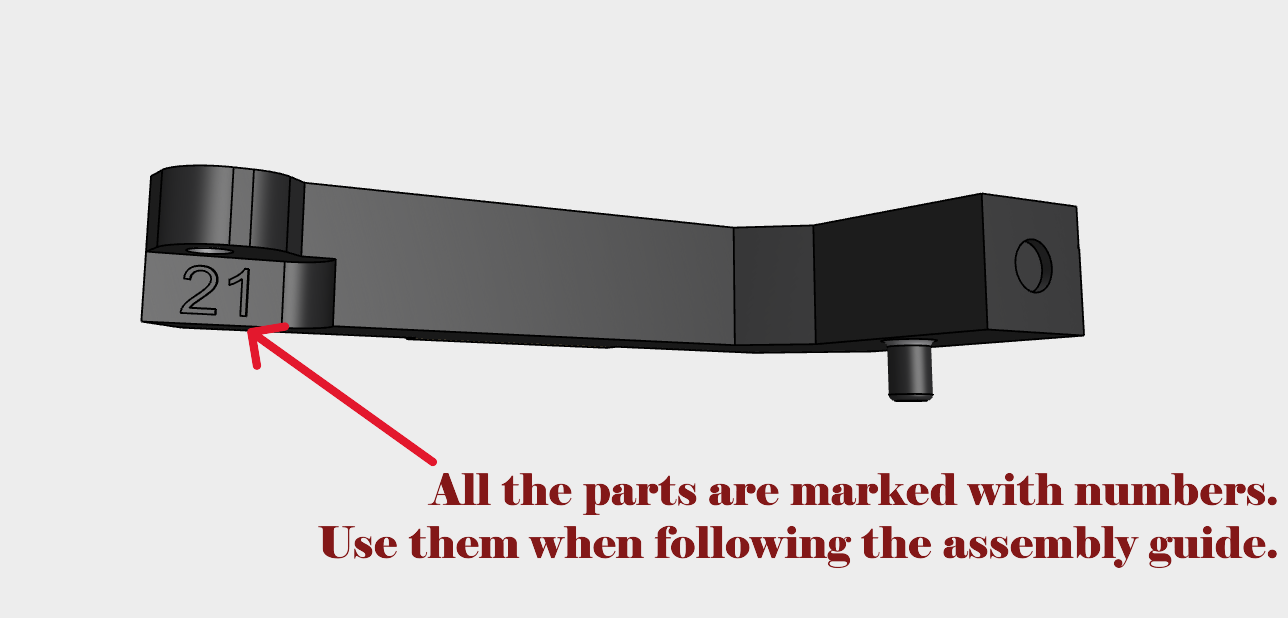

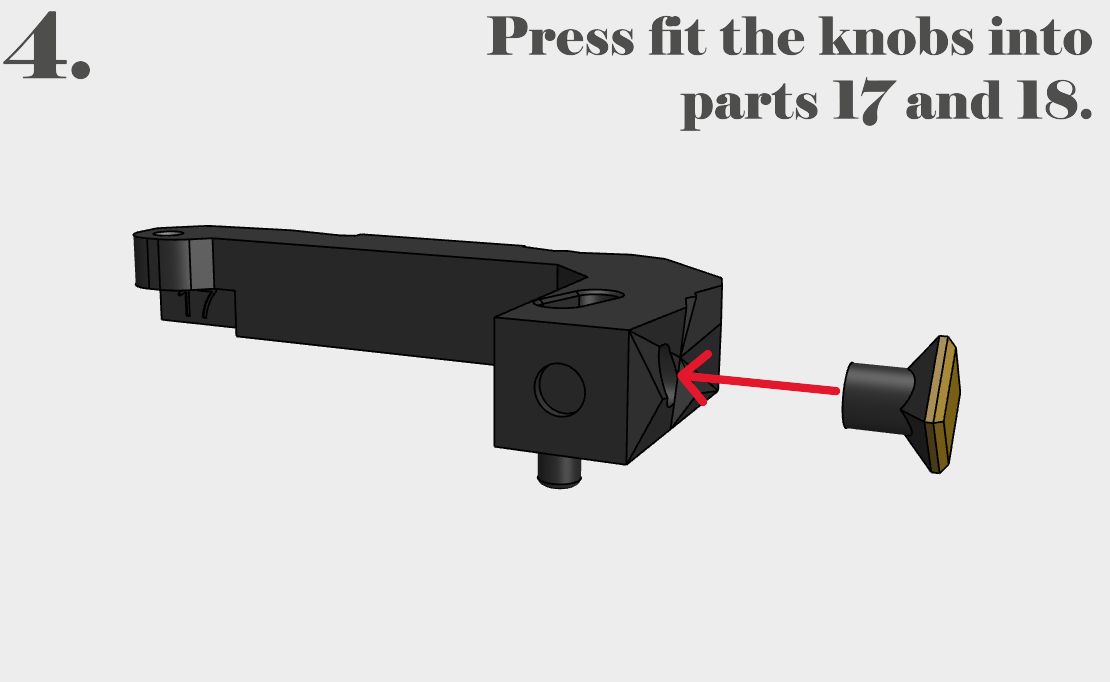

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

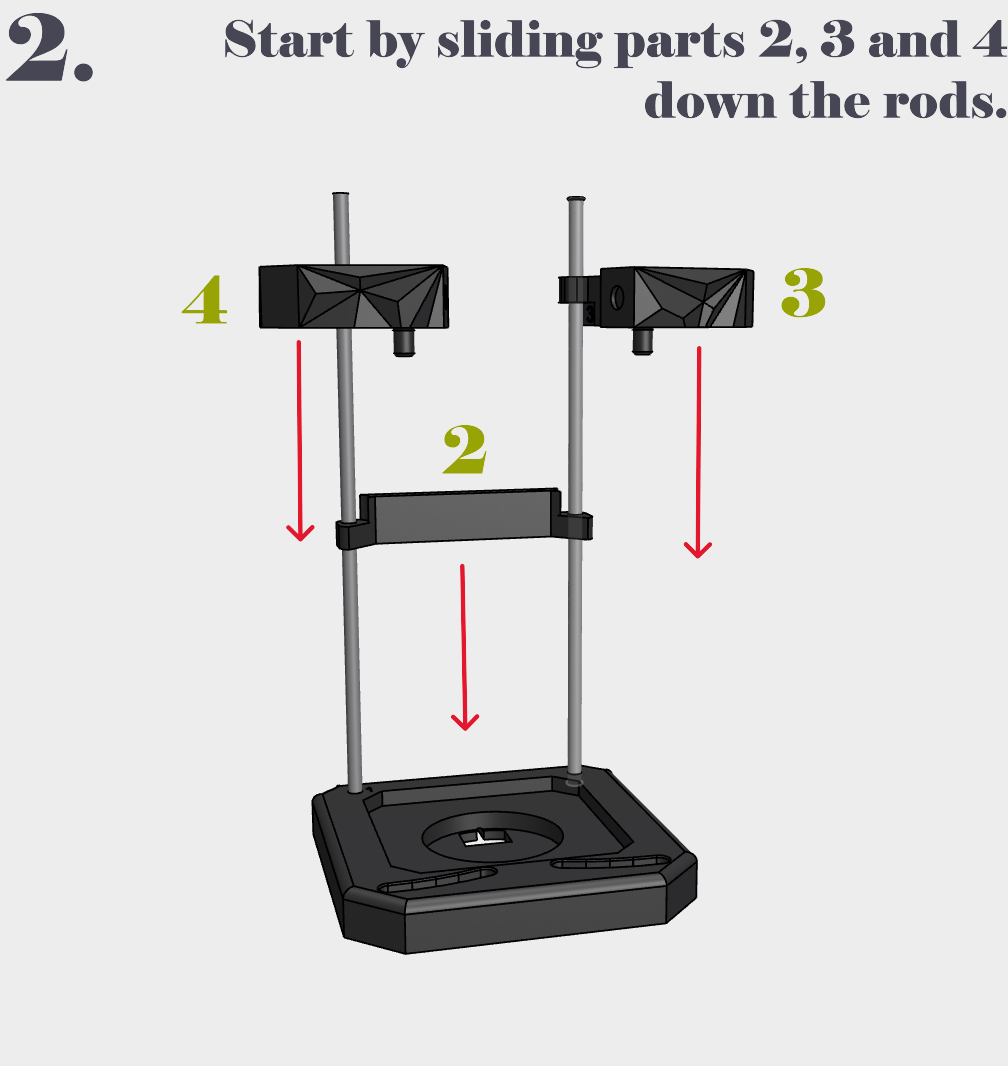

Start :

When you're done, it should look something like this.
