Simple ATX Bench Power Supply Front Panel

This project presents a simple laboratory bench power supply built using a standard ATX power supply. It allows you to easily repurpose a commonly available PSU into a practical power source for electronics projects, testing, and workshop use.

Hardware Required

• 4x M3x5 screws (for mounting the ATX power supply) - that's enough for this project
• 8x M3x10 or M3x12 screws
• 8x M3 nuts

Features

• Designed to work with a basic voltmeter and ammeter module for monitoring output parameters
• Supports banana connectors with mounting hole diameters of approximately:
  • 7.5 mm

  • 10.2 mm



Assembly & Wiring

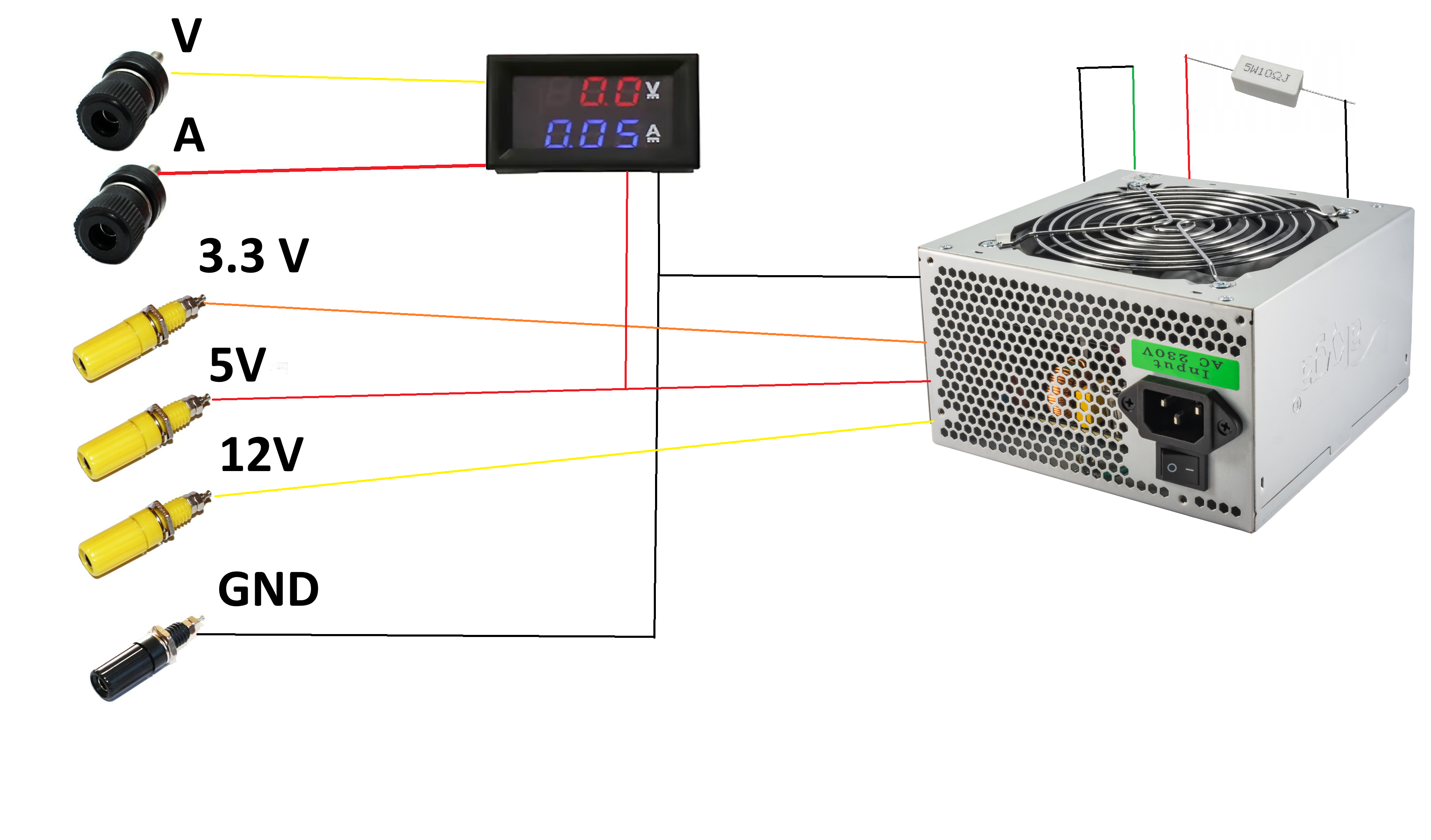

Information about connecting the components is shown below.

Future Plans

Front panels will be updated and expanded in the future. Additional variants and layout options are planned to support different configurations and user needs.
