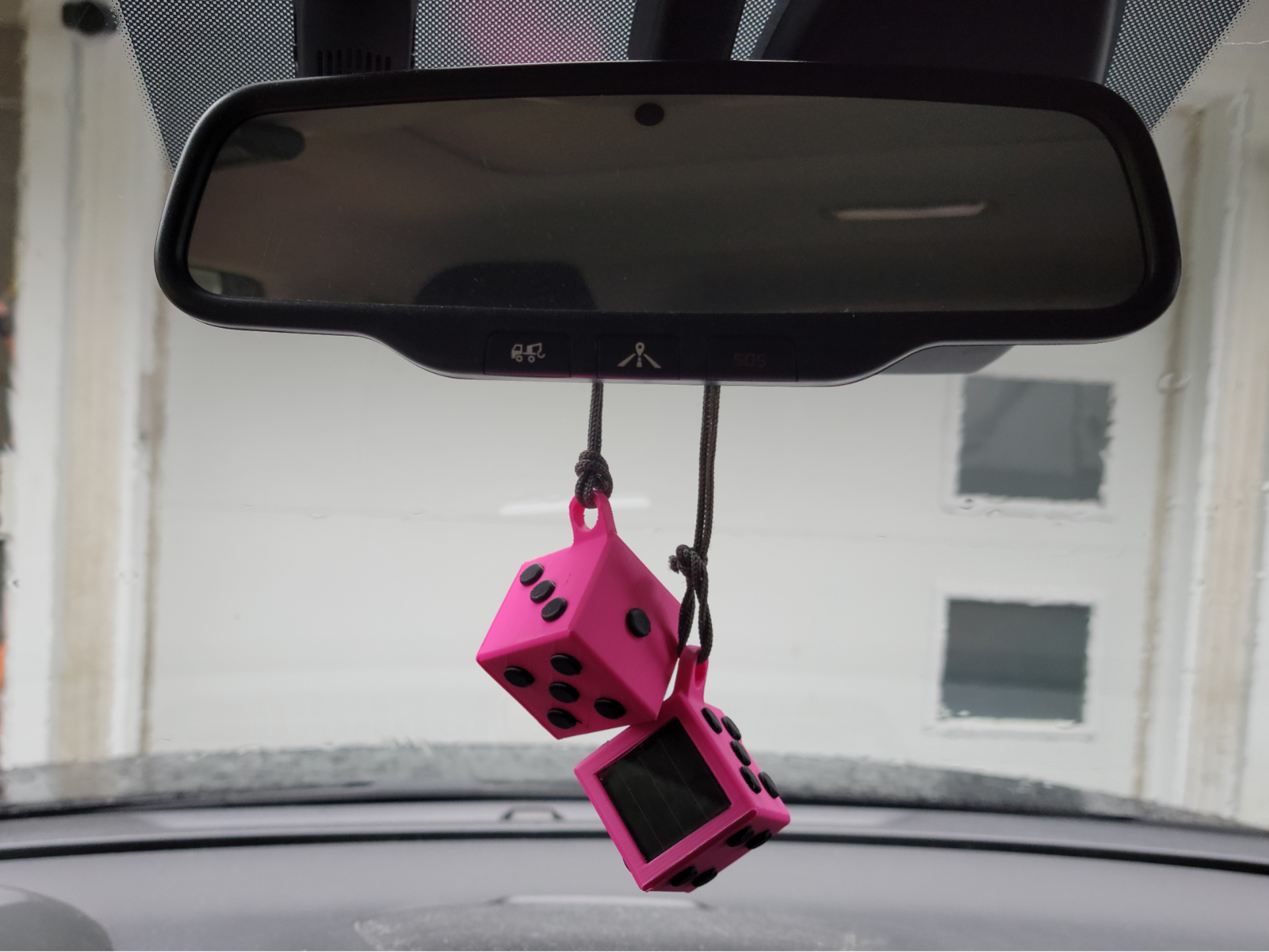

Rearview mirror Solar Dice Node!

This node uses a 30mm x 30mm solar panel from a solar path marker light and a 13300 battery from a disposable vape along with a RAK Wisblock Mini. USB and button access on bottom of dice, indent for easy cap removal.

FACE SOLAR PANEL TOWARDS WINDSHIELD. Shown with solar panel facing in for pictures only.

An empty die is provided to make a set, in the downloadable files.

For the Mesh part it uses the RAKwireless Mini Meshtastic Starter Kit US915 RAK19003 + 4631 SKU 115093, this includes the supplied PCB LoRa and BT antennas as well as the supplied battery and solar connectors.

The battery is a 13300 Li-ion cell, I salvaged one from a disposable vape.

The solar panel is a 30mm x 30mm solar panel from a solar pathway spike light found at my local hardware store.

Links only for example purposes, non affiliated.
