Split-Flap Style Counter - Resettable

A fully mechanical, split-flap counter with a reset mechanism.
No electronics – pure mechanics.
Designed for smooth operation and reliable counting.

Perfect for:

• Counting repetitions or tasks
•  Workshop / garage use
• Events or games
• Daily tracking without electronic
• Desk gadget for mechanical enthusiasts

Mechanism overview:

Each actuation advances the internal mechanism by one step.
The reset function disengages the counting mechanism and returns all panels to zero.
The design ensures consistent positioning and repeatable results.

Parts Needed

• M3 × 6 mm screw
• M3 × 5 × 4 mm threaded insert
• Spring 0.4 × 5 × 25 mm (Alternatively, you can also use a standard pen spring)

Assembly:
An assembly guide (PDF) is provided to ensure correct setup.
Please follow the guide carefully, as correct alignment is essential for proper function.

Important:
For best results, it is strongly recommended to use the provided print profile.
The model was tested and optimized using this profile to ensure proper mechanical function.
For this reason, no STEP or STL files are provided.

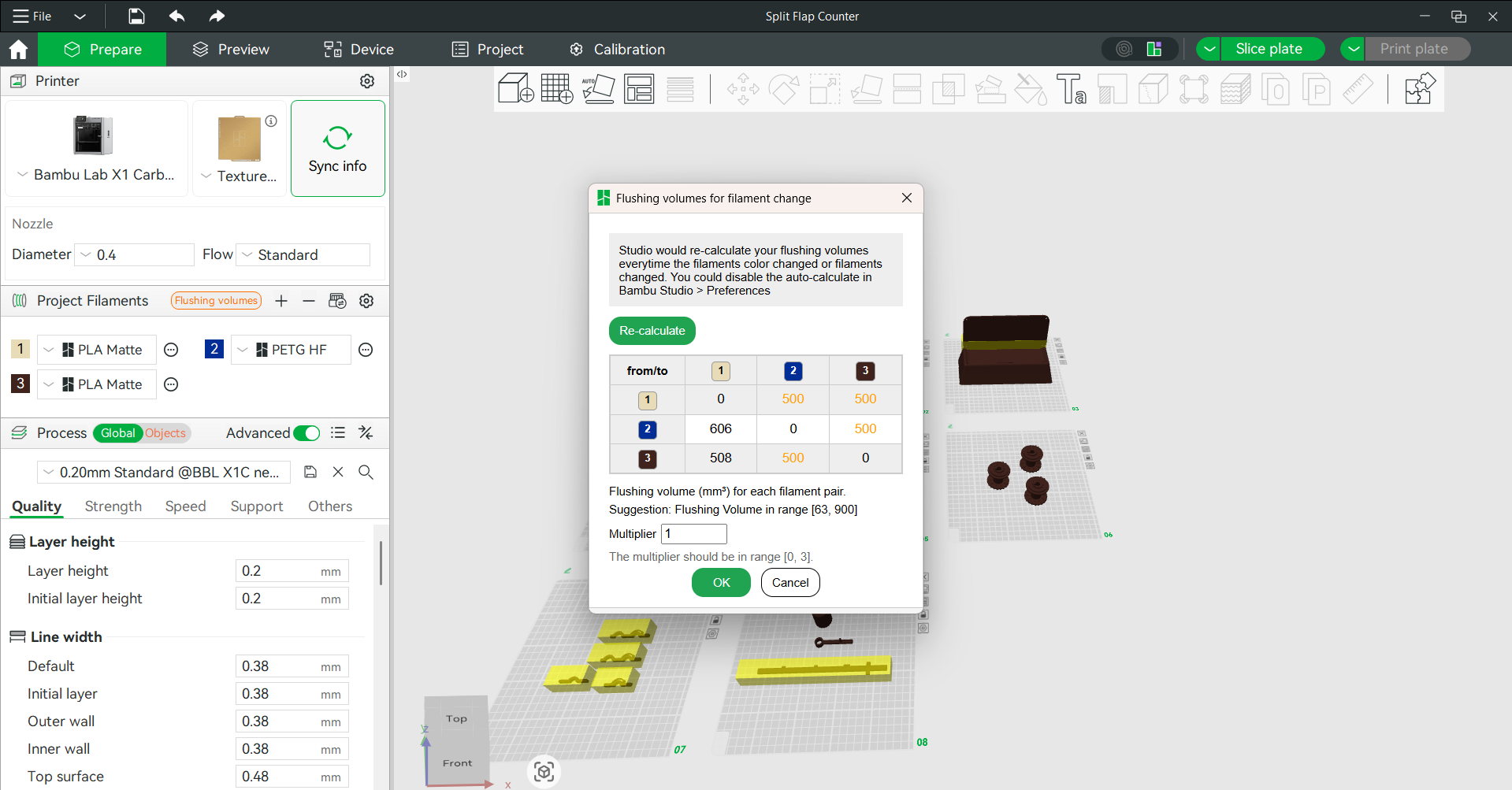

Flushing Volumes:
For reliable color changes, increase the flush volume between filaments to at least 500 mm³.

If you like mechanical designs, feel free to rate and share feedback.
Enjoy the build!
