Parametric slanted SKADIS Bins (Stackable)

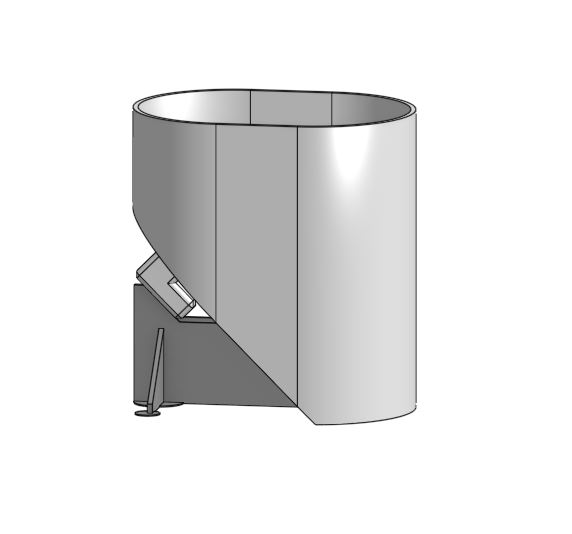

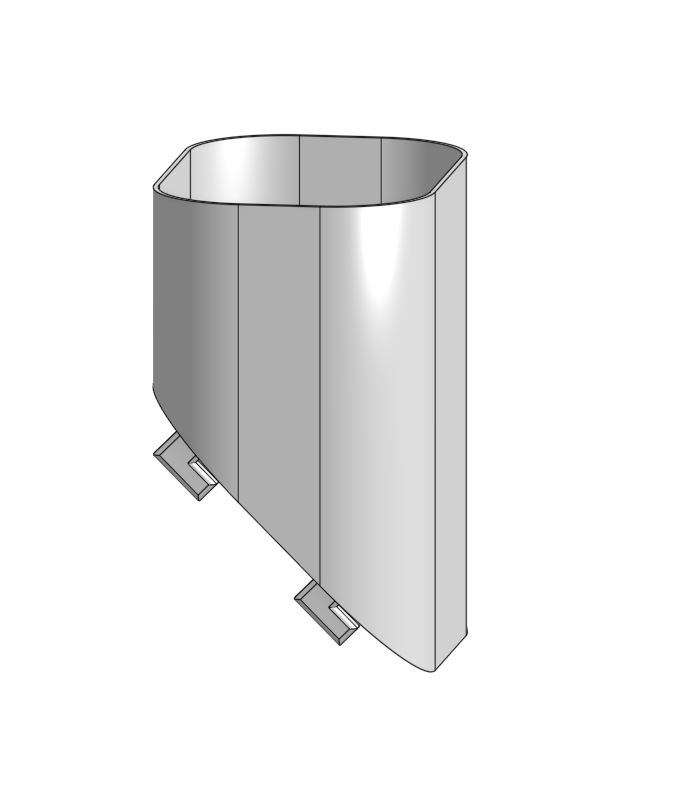

Stop settling for bins that are almost the right size. This fully parametric SKADIS bin system allows you to create the exact storage you need. Designed with a unique unit-based geometry, these bins are slanted at 45° to be perfectly stackable while mounted, maximizing every inch of your pegboard.

👉 [Click here to customize your own on Onshape]

🧩 The Unit System

To ensure perfect alignment on the SKADIS hole grid, the bins use the following unit dimensions:

X-Axis: 40 mm
Y-Axis: 28.2 mm
Z-Axis: 20 mm

⚙️ How to Customize

I have included several common sizes as ready-to-print profiles, but the real power is in the Onshape Configurator. You can adjust:

Dimensions: Change X, Y, and Z units to fit your tools.

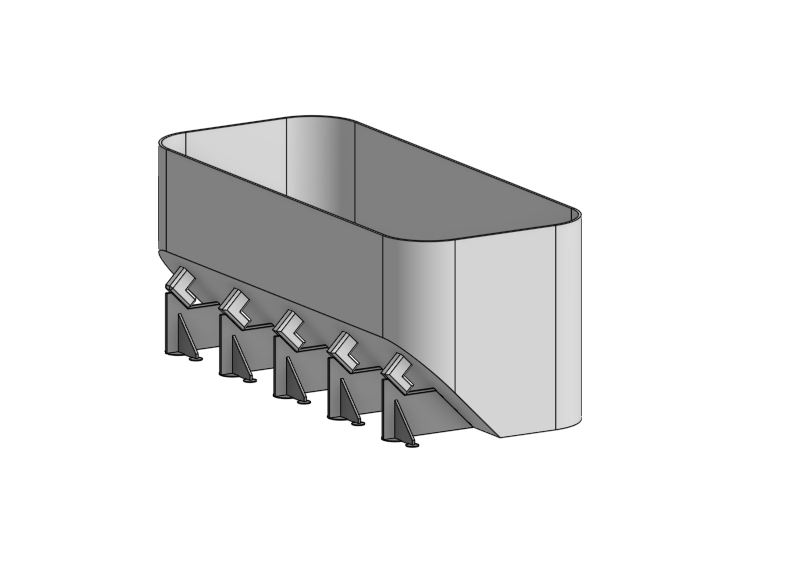

Flat Bottom Toggle: Switch between a sleek bottom or a flat bottom (includes easy-breakaway supports).

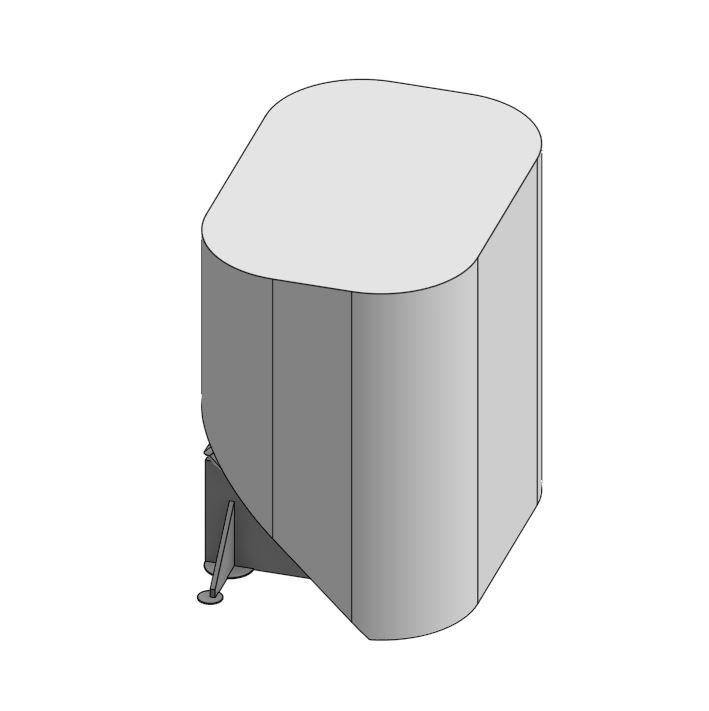

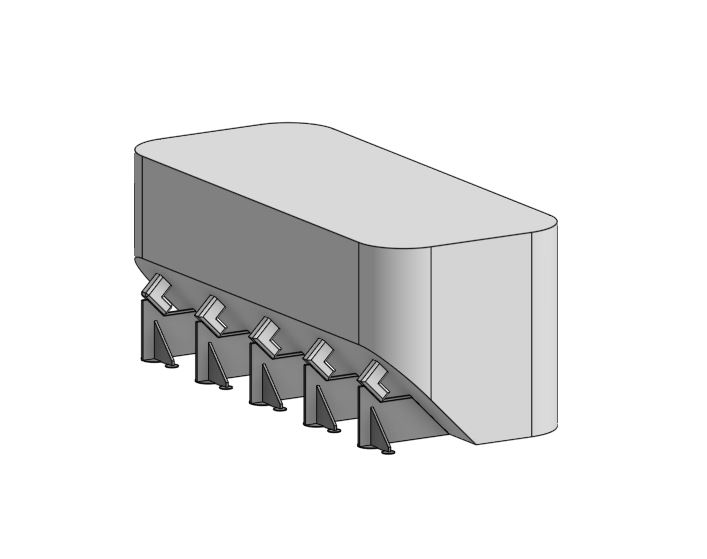

Shell Options: Print with or without a shell to add your own custom cutouts in your slicer.
