Design Concept

The 3D Scanning Turntable is designed to hold objects securely for accurate 3D scanning. Its simple yet effective design allows for a smooth 360-degree rotation, making it suitable for various scanning applications. The size of the turntable for 3D scanning is 300 mm. Which requires a print plate greater than 300mm.

Application

Ideal for use with 3D scanners in capturing detailed scans of small to medium-sized objects. It's useful in industries like product design, archaeology, and education.

Printing Suggestions

Use a sturdy material such as durable PLA or PETG for optimal performance. Ensure a smooth surface finish to achieve high accuracy in scanning results.

Assembly Instructions

Assemble the turntable by attaching the top rotating surface securely to its base. Ensure it rotates smoothly before use.

Required material, M2.5x6 screws BBs 6mm,

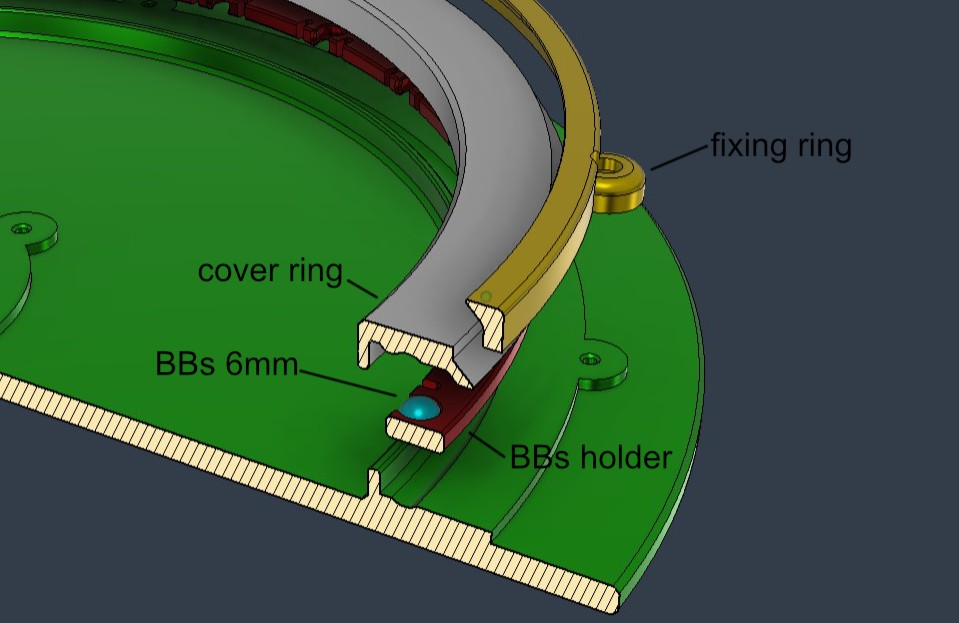

Insert the BBs (6mm)  into the holder, place the holder with BBs on the bottom of the plate, then cover with the rotating base, fix everything with the fixing ring with the m2.5x6 screws

Important note, lubricate all balls.
