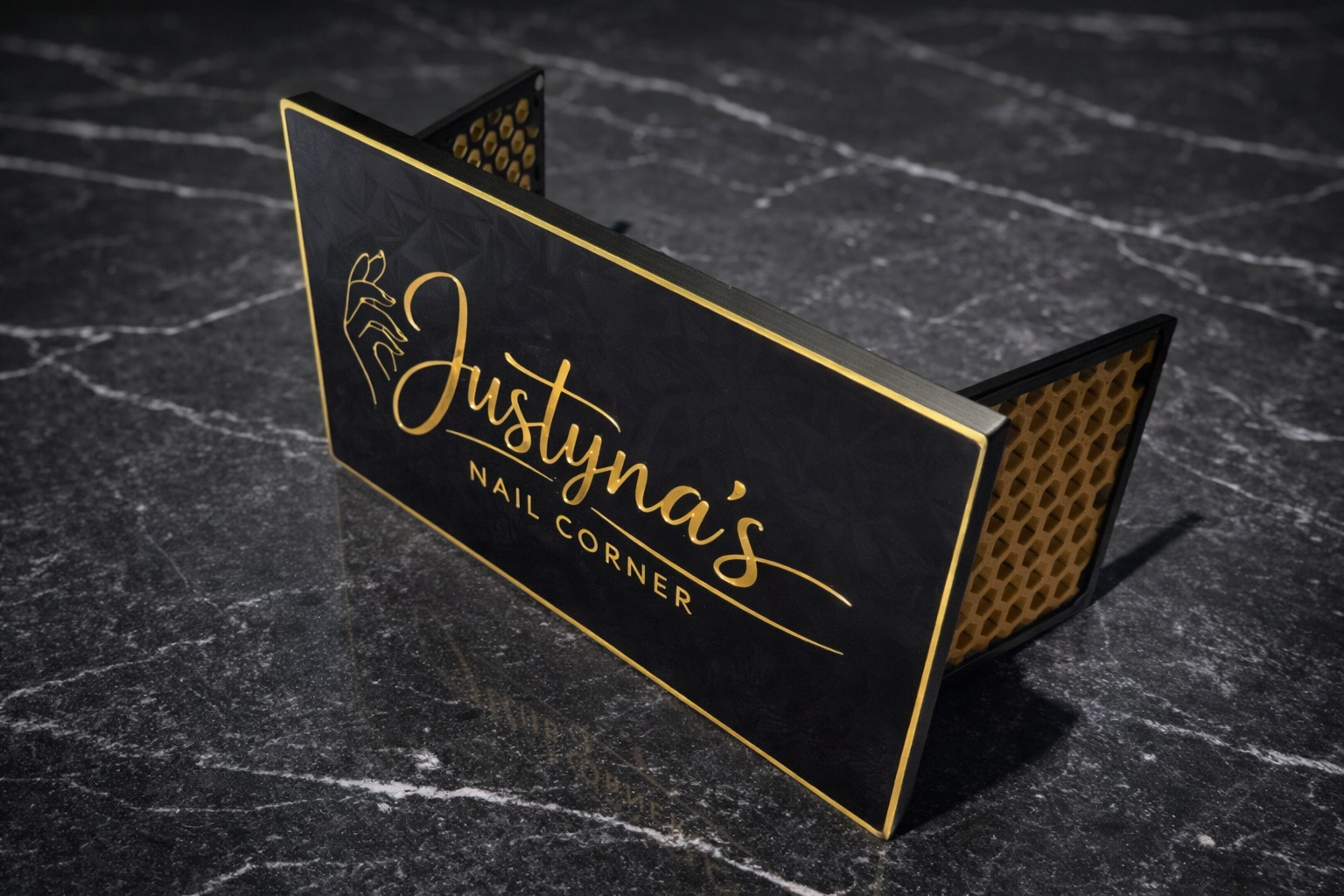

This is a compact and sturdy foldable table designed with a strong focus on durability and functionality.

Many existing foldable table designs rely on weak hinge solutions, which can compromise stability over time. To address this, this design features reinforced hinges with specially designed, fully printable hinge pins, providing improved strength and reliability during repeated use.

All components are 100% 3D printable, and the table requires no external hardware for assembly (Besides magnets if used) .

Dimensions

• Footprint: 210 × 120 mm
• Height (unfolded): 98 mm

• Height (folded): 30 mm



Design Details

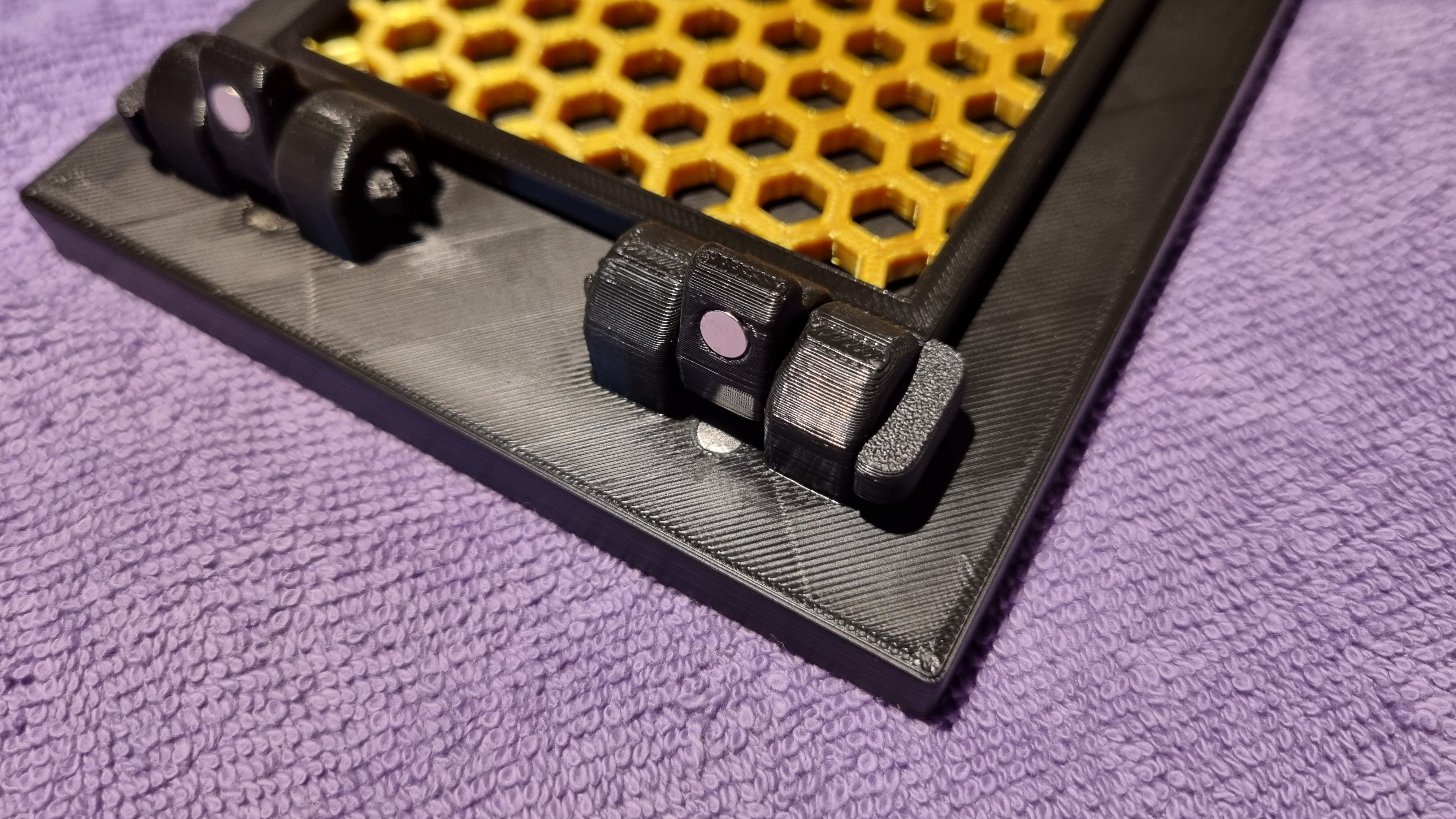

After extended use, foldable legs can develop slight looseness. To prevent this, the design includes integrated magnet mounting holes that help keep the legs securely locked in both the folded and unfolded positions.

• Magnet size: 5 × 3 mm
• Fit: Press-fit
• A small amount of glue is recommended to ensure long-term retention of the magnets.

For quick setup, the table features rapid leg deployment: simply press on the raised nubs located on each leg near the hinge to unfold the legs efficiently.
