Technical Brief: ESP32-C3-SuperMini Protective Enclosure

Overview

This ultra-compact enclosure is designed specifically for the ESP32-C3-SuperMini, serving as a robust shield for testing and long-term deployment. It is optimized for use as a wireless signal repeater/relay module while ensuring maximum hardware longevity.

Key Features

• Safety & Protection: * Eliminates the risk of short circuits or ESD (Electrostatic Discharge) failures caused by direct skin contact during testing.
  • Provides high-grade protection against external physical impacts.
• Internal Stability: * Features an integrated internal locking holder that secures the module firmly in place.
  • Universal Compatibility: Specially engineered to accommodate modules both with and without soldered headers.

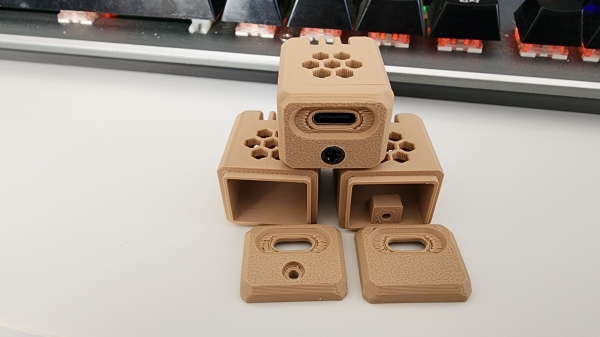

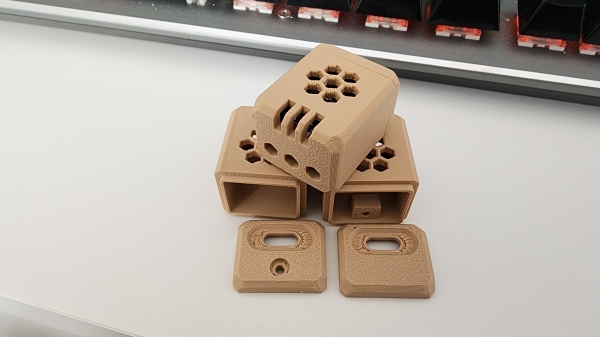

• Thermal & Signal Optimization: * Strategic ventilation slots located on the top and rear panels ensure consistent airflow.
  • Antenna-specific vents are positioned directly above the signal area to minimize interference and maximize wireless transmission efficiency.

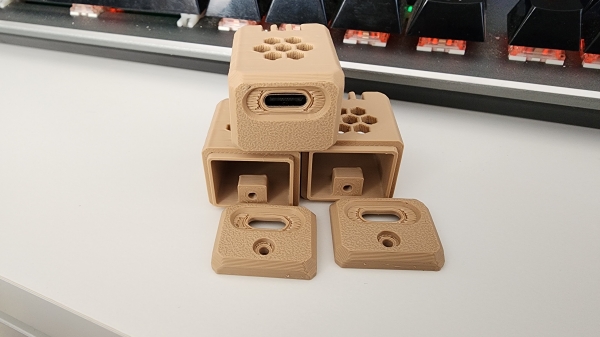

• User Accessibility: * The ventilation design allows direct access to the Boot and Reset switches without opening the case.

Assembly & Modular Design

The enclosure features a modular front-panel system for flexible assembly:

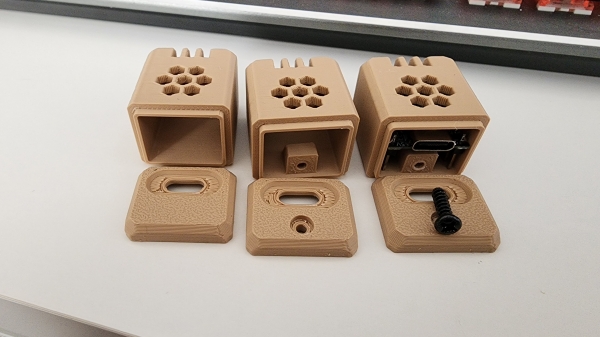

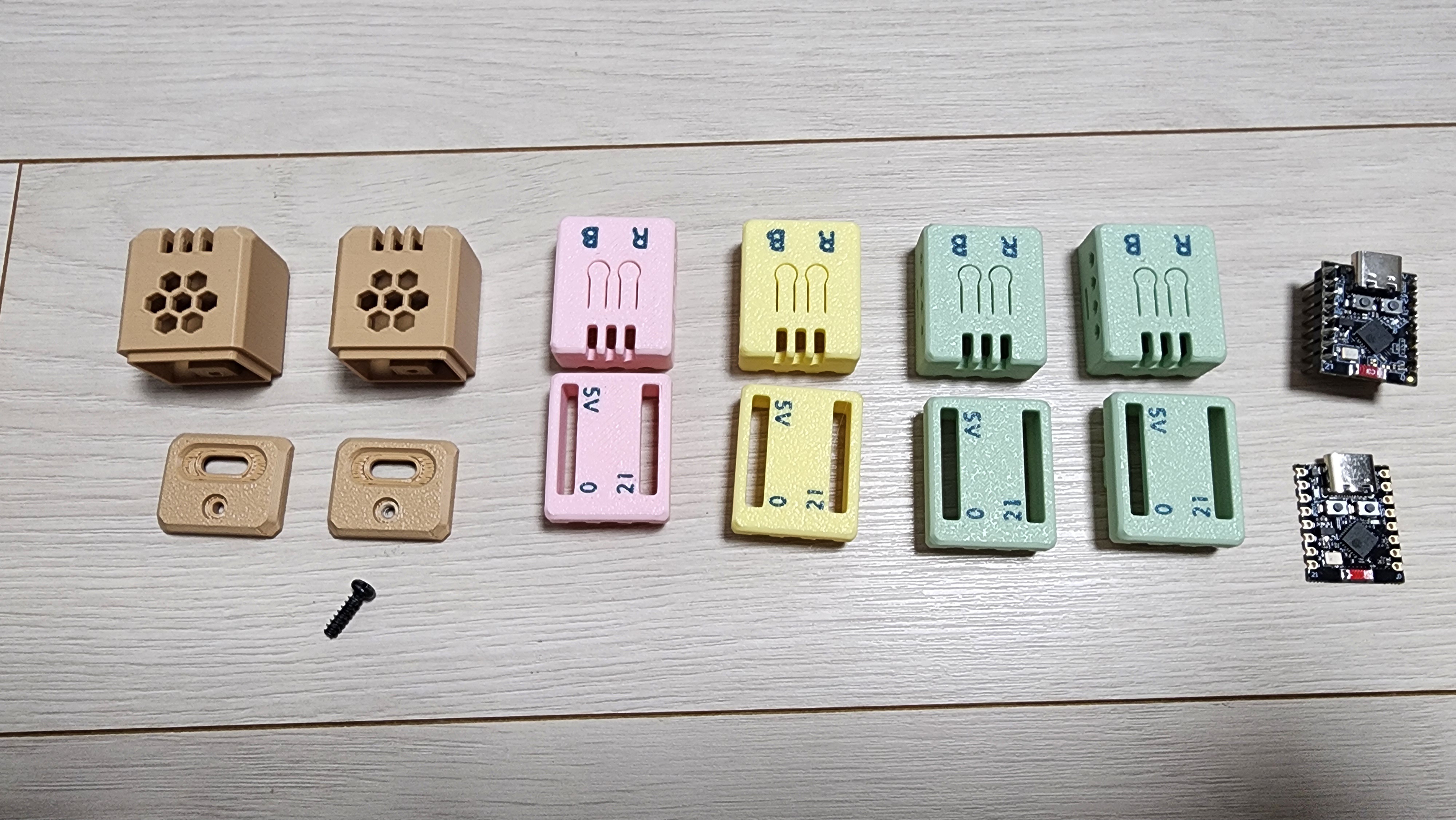

• Front Panel Options: Available in two versions—one for M3 9mm self-tapping screws and another for adhesive bonding.

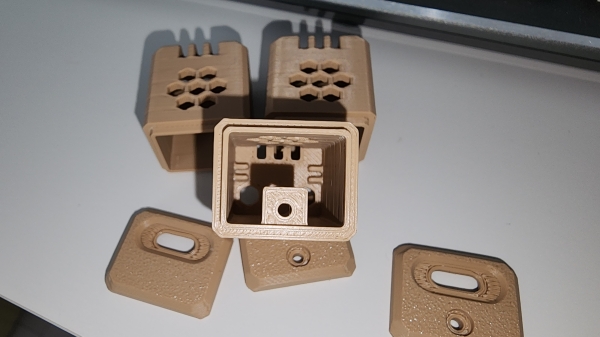

• Universal Body: A single, standardized body design is compatible with both types of front panels, simplifying the manufacturing and assembly process.

■ ESP32-C3-SuperMini Protection Enclosure Model to Connect Jumper Cable to Solder Header Pin Without Removing the Case
