Mechanical dice box - remix

Changed the following:

• Removed the bottom ring as it caused printing issues
• Added a handle part in the middle as the ring is removed
• Raised the internal walls to prevent the dice from moving to other cells

Instructions

Printing

No assembly, no support, print in place.

Print with 0.16mm layer height, with first layer set to 0.2mm.

Post-printing

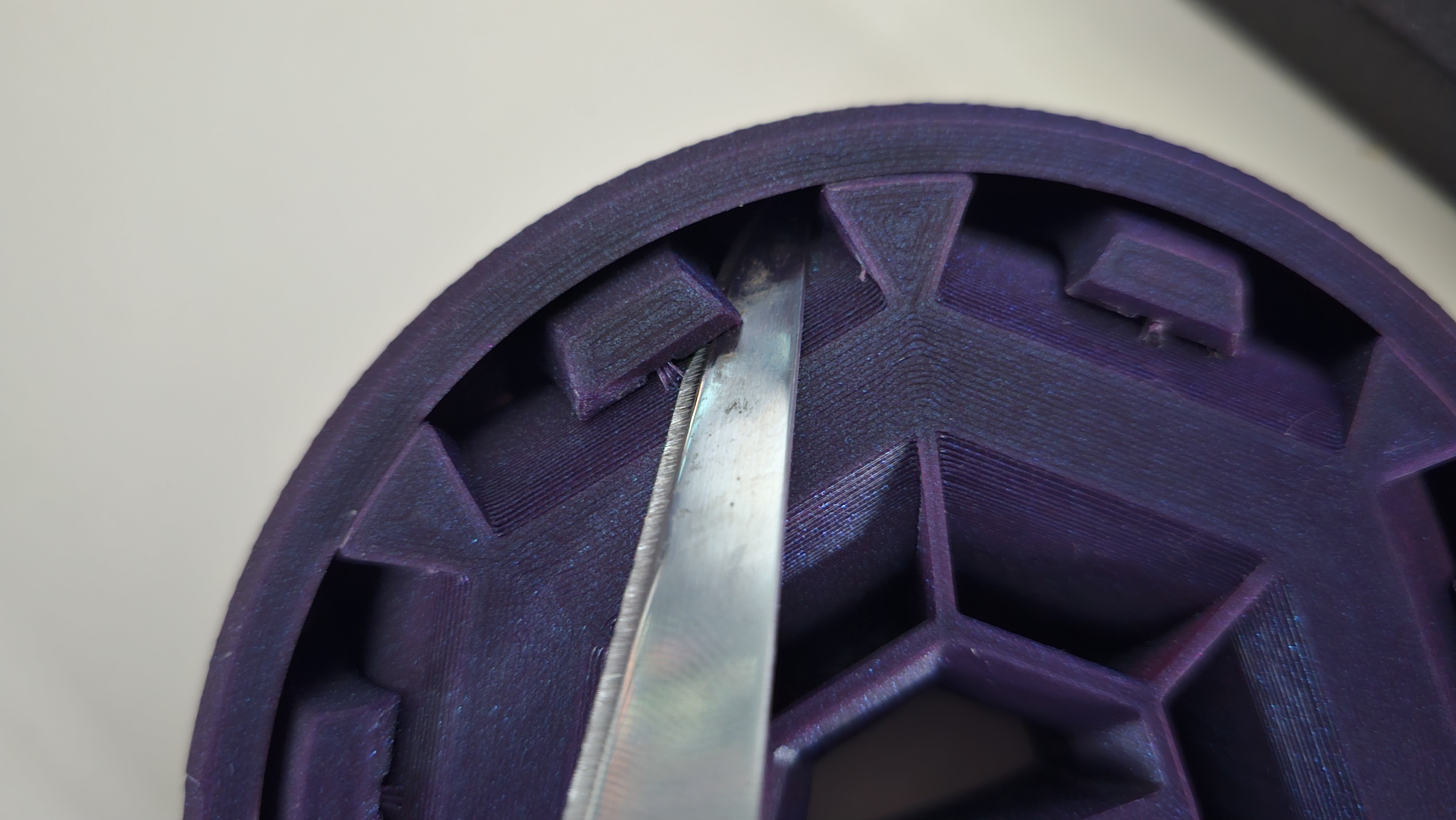

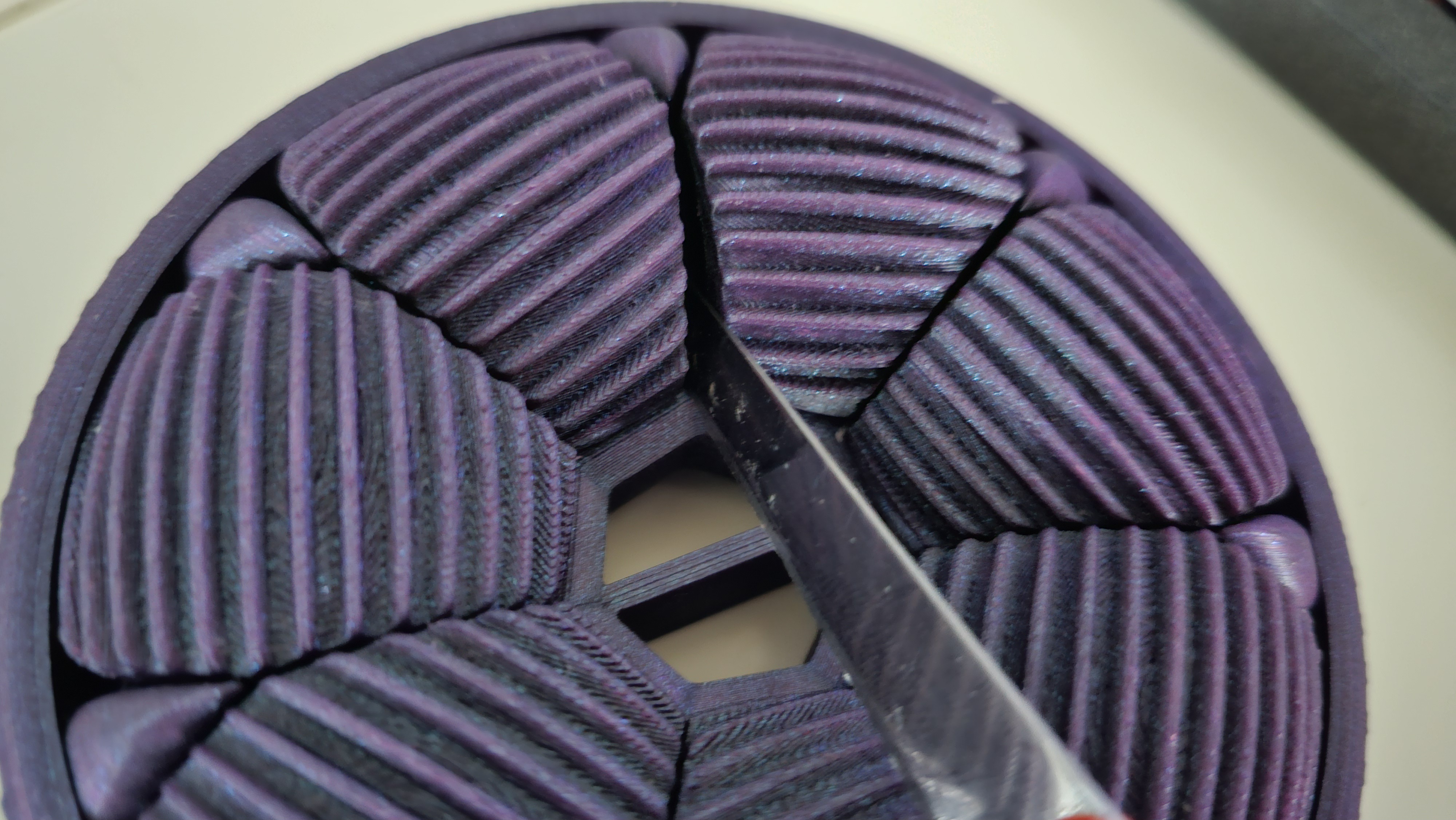

The lid sections need to be broken free. Insert a flat head tool or knife in between the sections on the top and if needed on the bottom as well. As soon as all of them are moving freely, it just needs some opening and closing to make it  spin smoothly.
