Customizable Parametric Handle

🔹 Description
This modern and elegant handle is fully customizable.

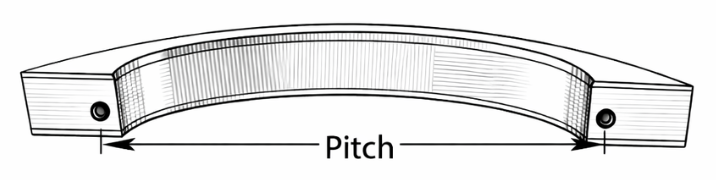

Simply click the Customize button and set the pitch, which is the distance between the centers of the two mounting holes.
By changing this value, the model automatically adapts to the new size, allowing you to download the customized STL file.

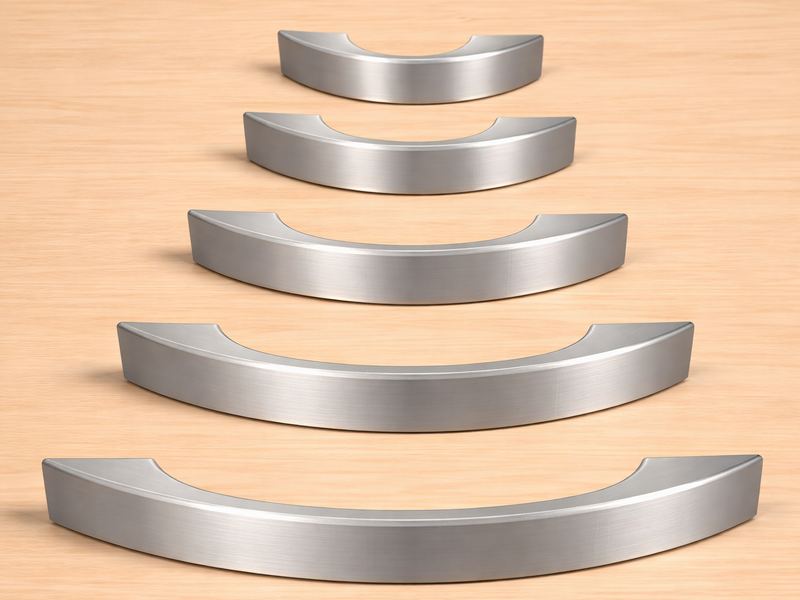

The project includes 2 ready-to-print profiles with handles in the most common sizes (64-76-96-128-160 mm), available in two versions:
• 1-Color

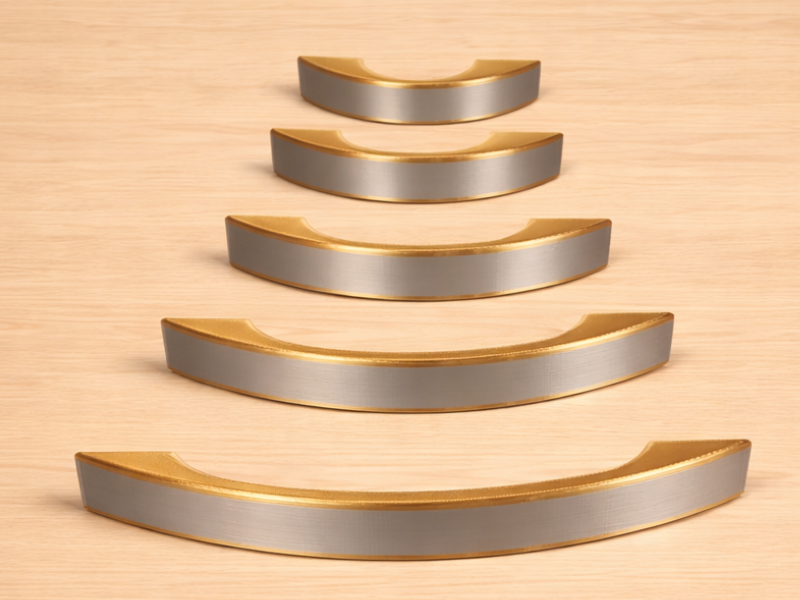

• 2-Colors
Colors can be freely changed according to your preferences.
If you can freely choose the size, I recommend the 128 mm or 160 mm handles, as they allow a comfortable full-hand grip.

The ready-made handles can also be downloaded individually as STL files by selecting STL (instead of 3MF) using the green button.

Note:

To mount the handle, use standard M4 screws M4×0.7 (4 mm thread outer diameter and 0.7 mm thread pitch).
A future version of the handle will allow you to choose the thread type (ISO or Imperial) and the diameter of the threaded holes.
During tightening, friction generates heat; for this reason, it is recommended to tighten the fixing screws slowly to avoid deforming the handle threads.

Use Collect to save this project to your personal collection and reuse it in the future.
