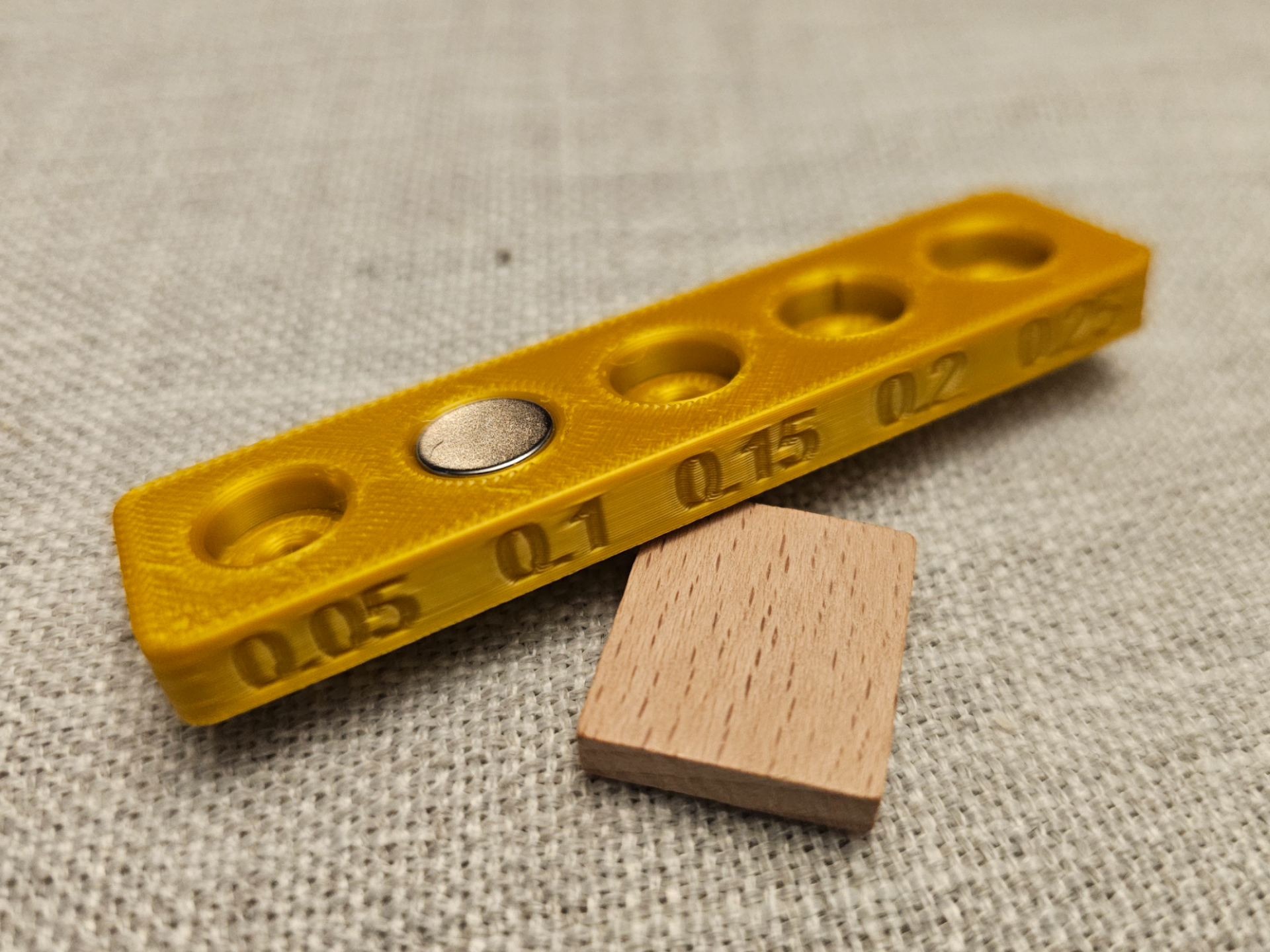

Tired of trying to find a magnet tolerance test for every size magnet? The search is over. Customize this tolerance test for every size you own (within reason). Includes a slight chamfer to make inserting the magnets a little easier and a through hole for removal.

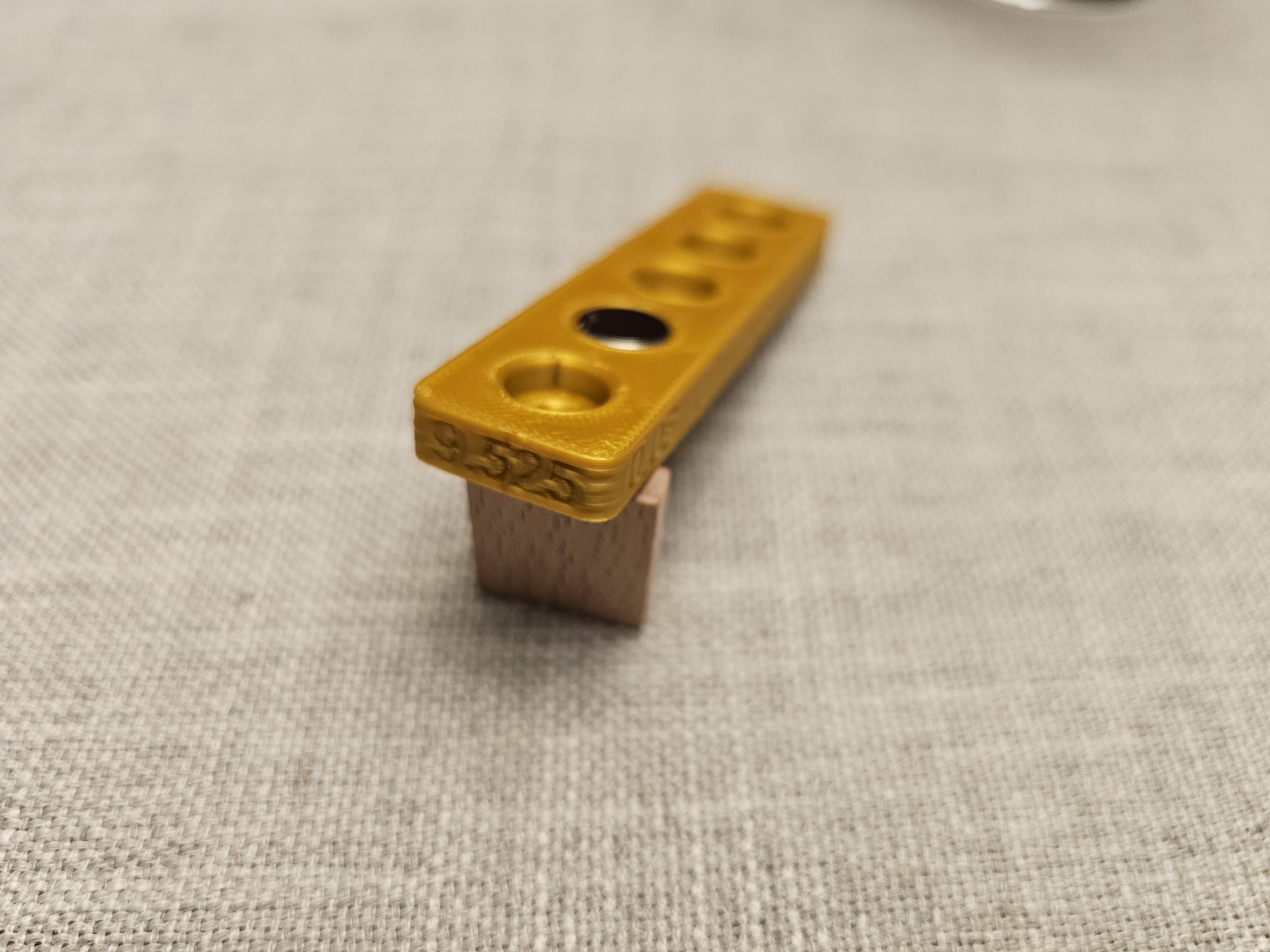

Includes dynamic labels (based on ‘testSteps’ parameter) on the front for each step in tolerance and a side label (with optional override) for the magnet size.

Profiles above include 5 ready to print common metric sizes (5x2, 6x2, 6x3, 8x3, and 10x3) and imperial sizes (¼x⅛, 5/16x⅛, ⅜x⅛, ½x⅛, ½x3/16)

💡 TIP 💡: If your model is going to be printed with the magnet holes sideways, print the tolerance test sideways as well for more accurate results. 😊


Using the MakerLab Parametric Model Maker (or downloading the f3d file and importing to Fusion), you can instantly create a custom test print for almost any magnet size.

PARAMETERS:
Mandatory

magnetDia - diameter (in mm) of your magnet. To convert from inches, multiply by 25.4

magnetH - height (in mm) of your magnet.

Optional
testSteps - step in diameter between tests (default: 0.05mm)

spacing - spacing between and on the edges (default: 5mm)
throughHoleDia - diameter of the through hole (default: 3.5mm)

magnetLabelOverride - CURRENTLY NOT AVAILABLE: for longer decimals (e.g. imperial fractions), you can override the text label. Leave blank for the default label (default: ‘’ < two single quotes)
