Customizable Dice / Geometric Cube

🎲 Parametric Dice / Geometric Cube

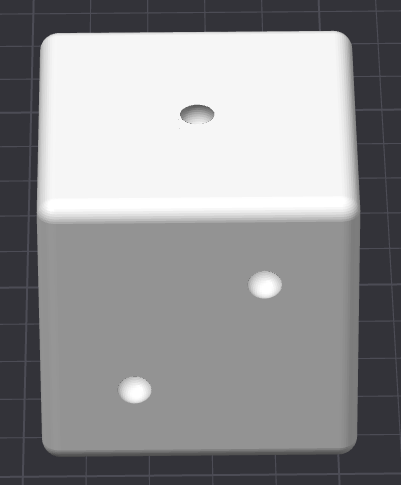

This model can be used either as a classic six-sided dice or as a pure geometric cube.
By adjusting just a few parameters, the dice can be generated without edge rounding and without pips, making it suitable whenever a simple, clean cube is required.

The model scales reliably while preserving correct proportions, balanced geometry, and a standard dice layout when pips are enabled (opposite faces always sum to 7).

✨ Features

Can be used as a dice or a plain geometric cube
Fully scalable size
Optional rounded edges
Optional engraved pips
Standard dice numbering when enabled
Clean, symmetrical design

⚙️ Parameters

dice_size (mm)

Edge length of the cube.

Controls the overall size of the model.

Geometric cube: any value
Dice: any value

corner_radius (mm)

Edge and corner rounding radius.

0 → sharp edges (pure cube)
> 0 → rounded edges

To create a geometric cube:

corner_radius = 0

pip_radius (mm)

Radius of each pip (dot).

Controls the visual size of the engraved dots.

Only relevant when pips are enabled
Has no effect when pips are disabled

pip_depth (mm)

Depth of the engraved pips.

Controls how deeply the dots are engraved into the surface.

Has no effect when pips are disabled

pip_spacing (mm)

Spacing of pip positions from the center of each face.

Controls the visual balance and readability of the dots.

Only relevant when pips are enabled

render_pips (true / false)

Enable or disable the pips entirely.

true → classic dice
false → blank cube

To create a geometric cube:

render_pips = false

center_model (true / false)

Center the model around the origin.

true → model is centered (recommended)
false → model starts in positive coordinates

Optimal Parameter Presets for Common Dice Sizes

Dice Size	corner_radius	pip_radius	pip_depth	pip_spacing
5	0.30	0.45	0.25	1.1
10	0.60	0.75	0.40	2.2
15	0.90	1.05	0.55	3.2
20	1.20	1.25	0.70	4.2
25	1.50	1.55	0.85	5.2
30	1.80	1.85	1.00	6.2
35	2.10	2.15	1.15	7.2
40	2.40	2.45	1.30	8.2
45	2.70	2.75	1.45	9.2
50	3.00	3.05	1.60	10.2

🔢 Statistics

I did 100 test rolls with a sample 25mm die, and the values were within the statistically expected range without any number occurring noticeably more often than others. It behaves like a store-bought die.

⚙️Printing Settings

I recommend a fill level of at least 50% and an even fill pattern such as rectilinear or grid.
