Gridfinity Modular Drawer System

Take your Gridfinity setup to the next level with this fully parametric modular drawer system, designed for customization, strength, and style.

Included Models

Each drawer size includes:
- Drawer 1 version per grid size.
- Shells 4 types per size:
  - Bottom
  - Middle
  - Top
  - Single-piece
- Universal Feet One model fits all shells, and should be glued to its designated spot on the bottom drawer.
- Gridfinity Top Plate - 1 version per grid size (for widths of 2 units or less, Gridfinity Top Plate is not possible)
Sizes range from 22 to 44 grid units (widths smaller than 2 units are not possible). The first number in the file name is its width, and the second one is its depth. All provided drawers are designed with:
- 100mm drawer height
- 20mm arc radius

Printing Tips

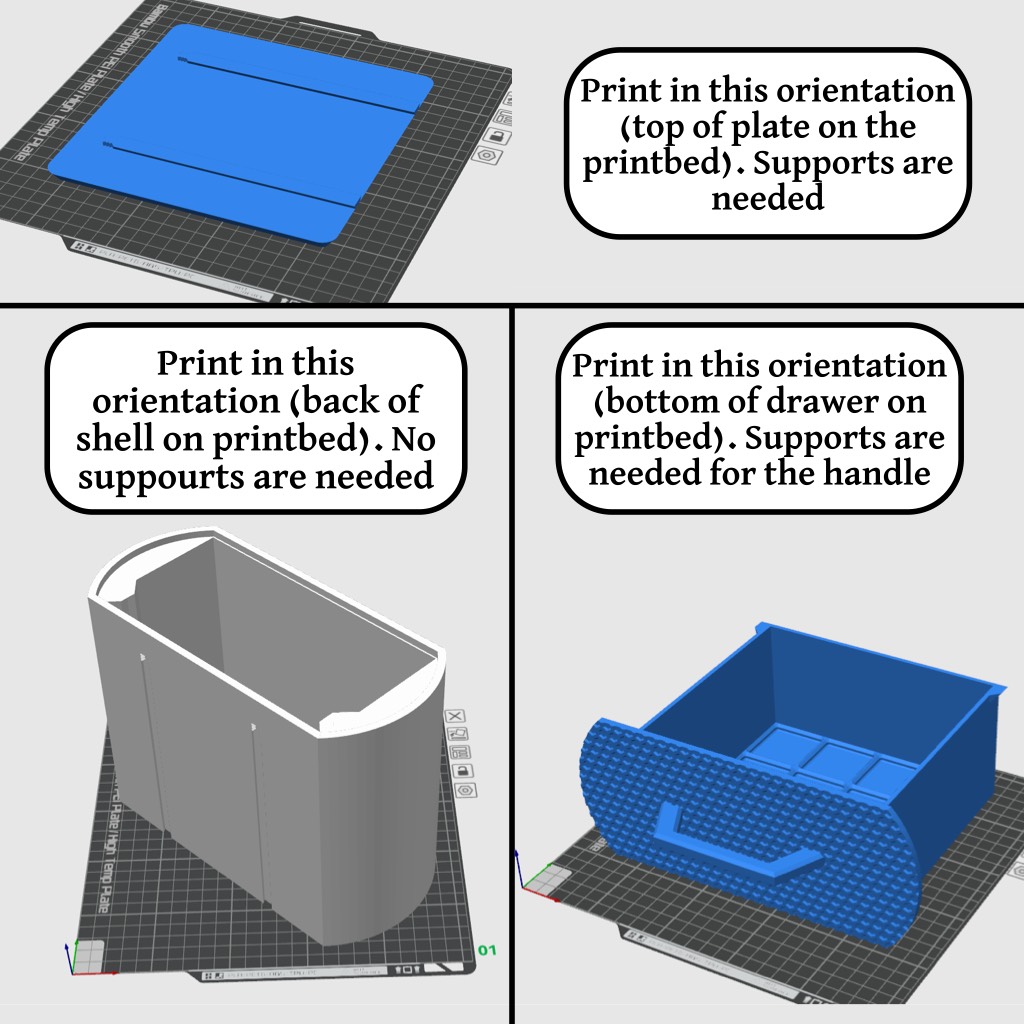

- Support-free design except for the drawer handle.
- Designed with efficient printing in mind but expect large filament usage depending on your size.
- Print the shell and the drawer out of PLA, and the feet out of TPU.

Key Features

Fully Parametric Design

- In case the sizes Ive provided dont suit your needs, create drawers in any size you want from a 21 all the way to .
- Easily tweak:
  - Drawer height
  - Arcs size (how wide they are). Note: when you change the arcs size, beware - if you will change it to half of the drawers height, in case youll want to change it to anything smaller, issues will occur.
  - Grid size

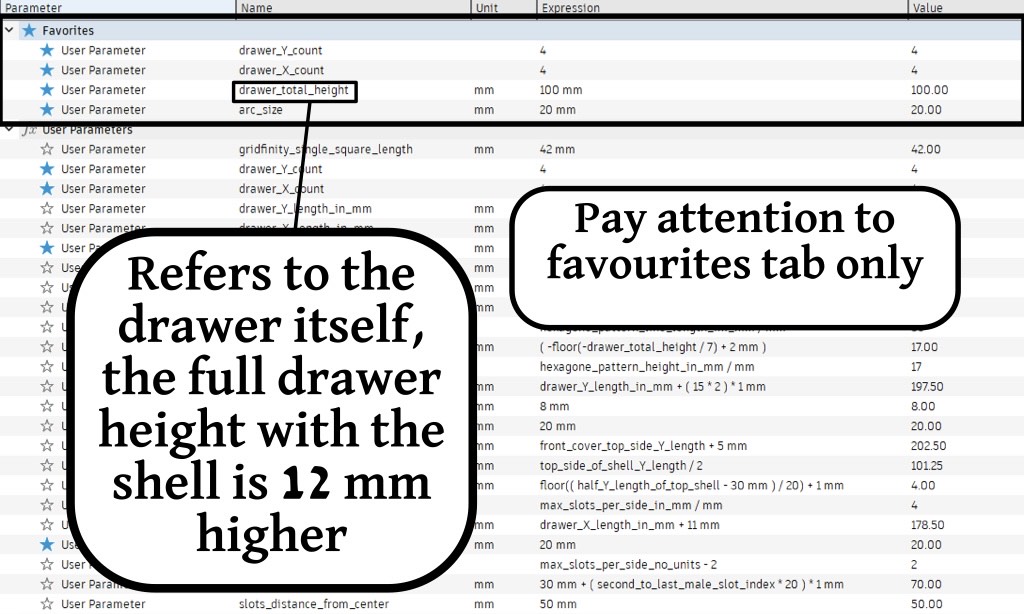

- All done via the included Fusion 360 file, with user-friendly parameters.

Sliding Locking Mechanism

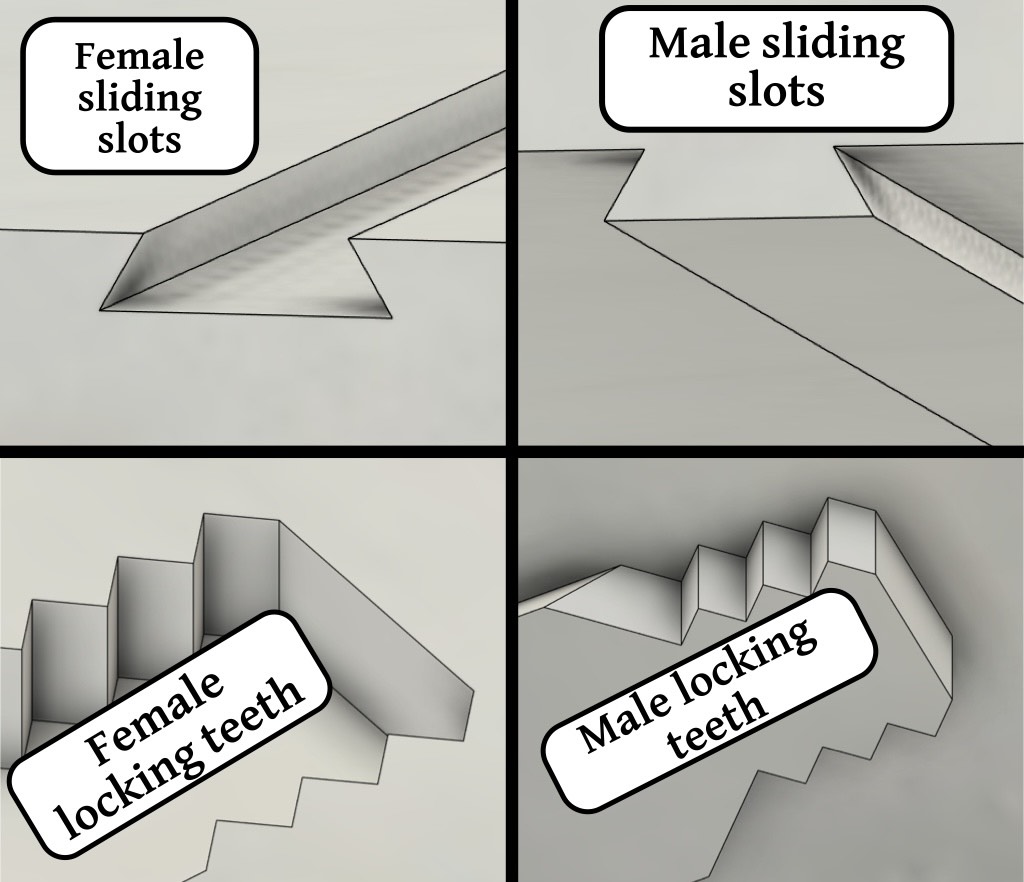

- Drawers connect horizontally using a jigsaw puzzle-style sliding rail.
- Once connected, lock them in place with the built-in locking teeth no accidental slide-outs.

Drawer Locking Mechanism

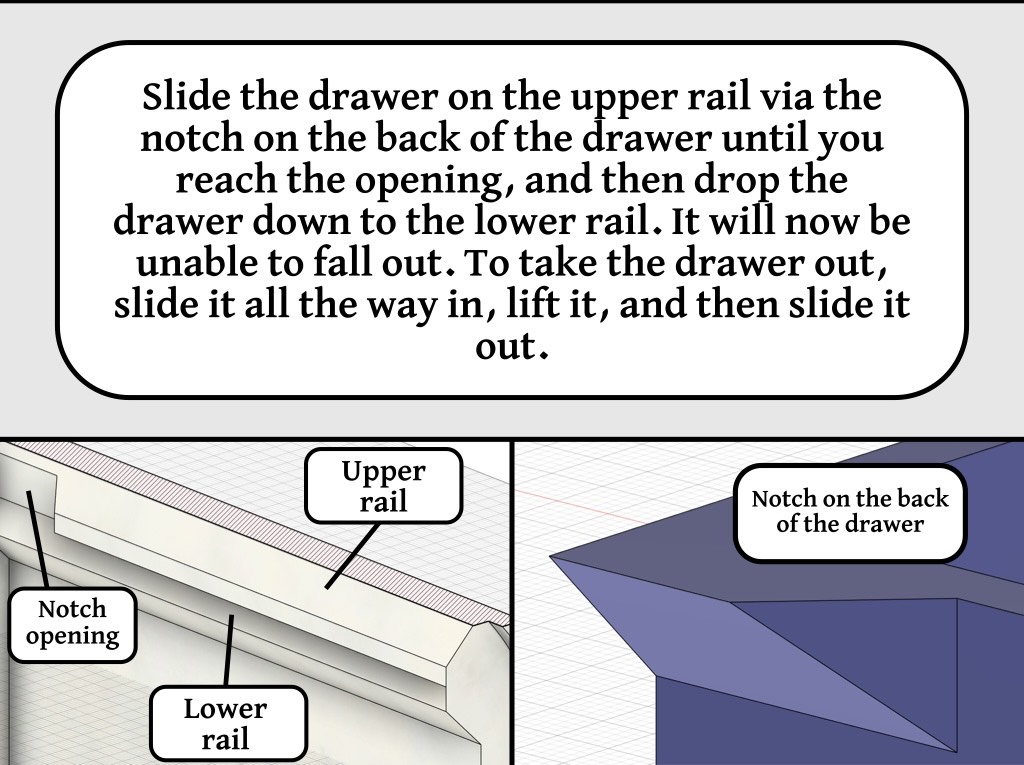

 Just slide the drawer all the way into its shell, drop it down, and it slides into a track that stops it from coming back out until lifted. Clean and satisfying.

Built-in Gridfinity Base

Every drawer comes with an integrated Gridfinity baseplate this defines its size and makes it plug-and-play with your existing system.

Compatibility

All The sizes are compatible with one another.
