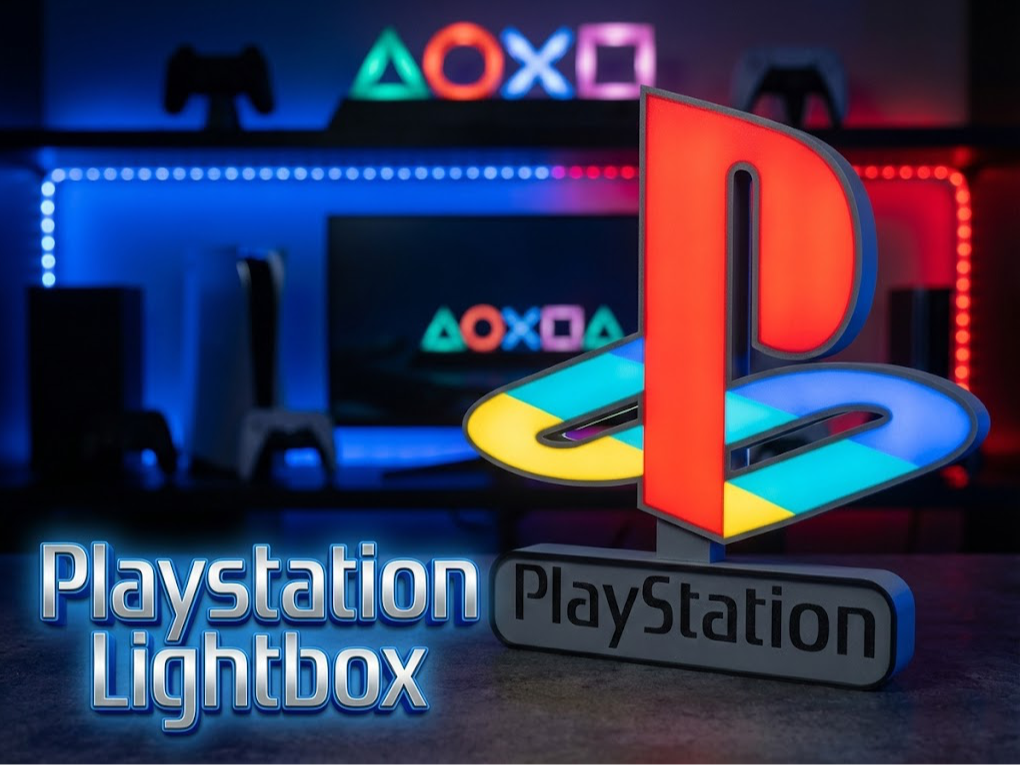

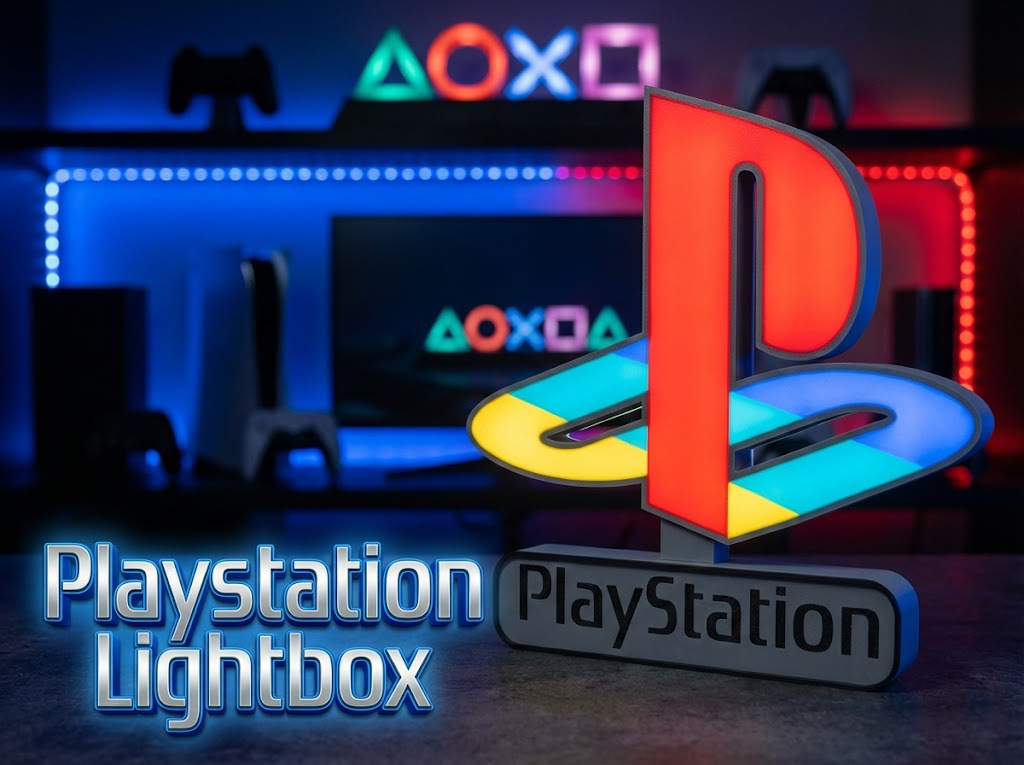

A Playstation logo lightbox that I recently designed. You can attach 5V COB Led strips to the back and wire to a USB C inlet port and a switch if desired. The cutouts are designed specifically the H2 series printers for the below parts. If you have a smaller printer, I included a profile for them but you'll need to add cutouts for what parts you decide to use yourself as the back is blank. I'm also including H2 profiles for blank, usb c, and then usb c + the switch.

You'll need to be handy with a soldering iron to solder the port to the switch and LED strip. I used 20awg solid core wire.

To properly wire

• Solder the positive of the USB C inlet to the middle prong of the swtich.
• Solder a wire from either side prong of the switch to any 5v pad on the LED strip
• Solder the ground of the USB C inlet to any ground pad on the LED strip
• Then connect 5v to 5v and ground to ground for each of the additional strips you lay on the back plate

BOM

USB C port pigtail

On/Off Switch

5v COB LED Strip
