UPDATE 07.07.2026

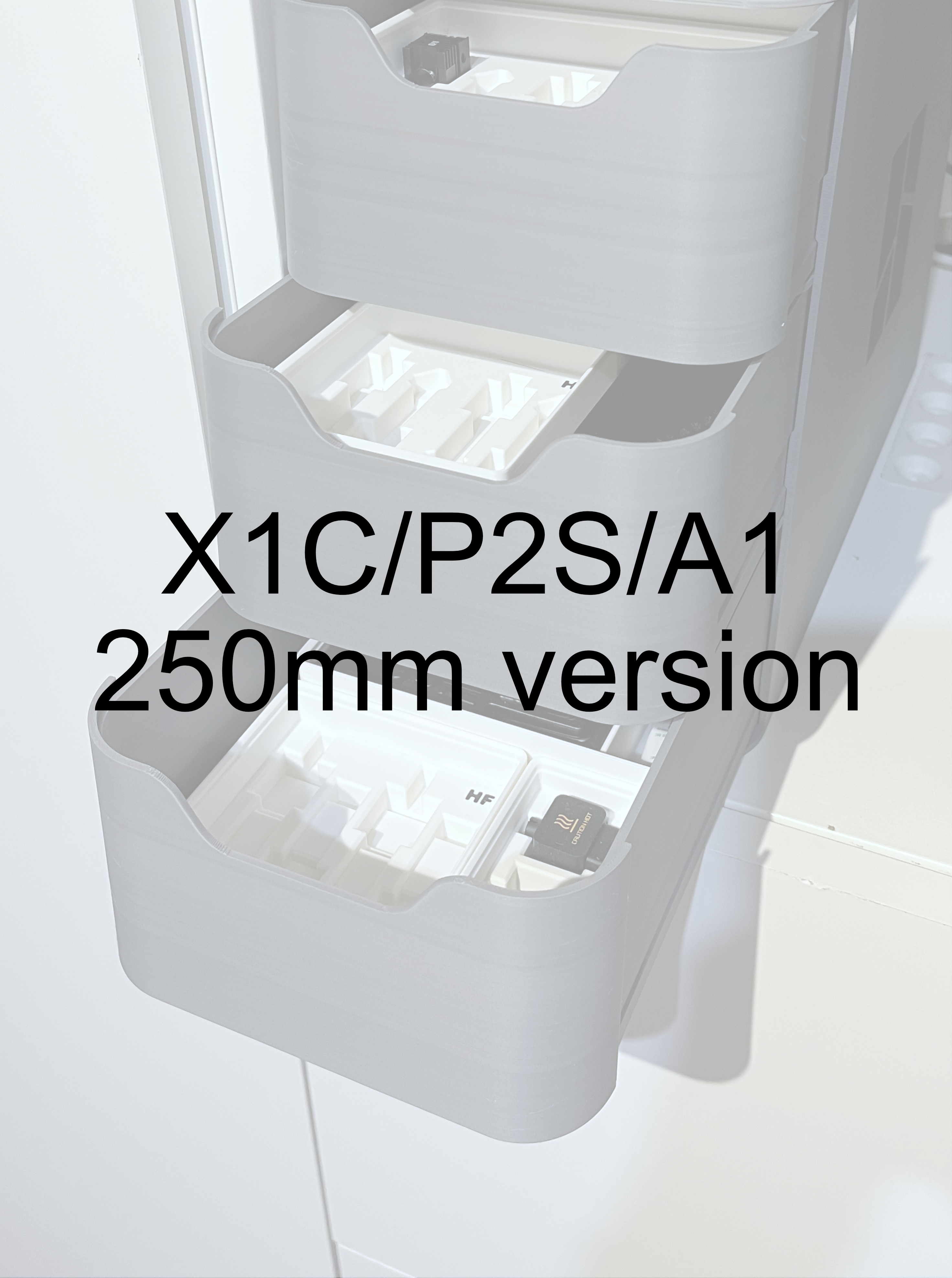

I added a shorter version for smaller printers like the P2S, X1C or A1 (250mm cubed build volume). There is also the gridfinity drawer and full version available.

Please note that this is too short to acommodarte the AMS HT.

______________________________________________________________________

SlideVault (Gridfinity compatible) is a compact, fully 3D-printable three-tier drawer system designed for clean, modular organization on your workbench or next to your 3D printer.

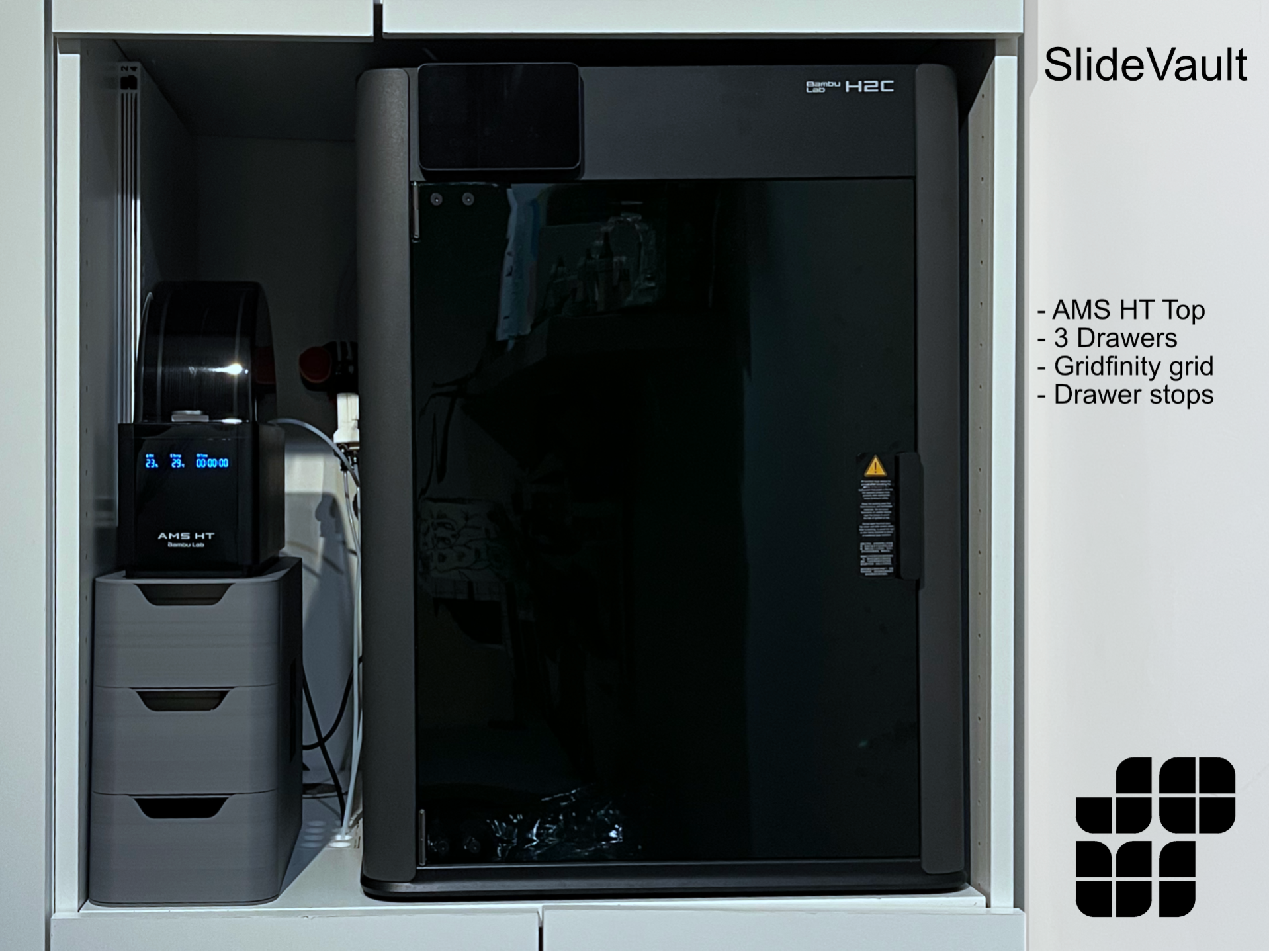

Built to support Gridfinity inserts, SlideVault keeps tools, parts, and accessories neatly organized while maintaining a small footprint. The reinforced top surface provides dedicated space for the Bambu AMS HT in the supported version, making it an ideal printer-side storage solution. A second version is included without a dedicated AMS HT spot for users who prefer a clean, universal top surface.

For maximum flexibility, drawer variants without the Gridfinity system are also included, allowing SlideVault to be used as a general-purpose drawer unit or adapted to custom storage layouts.

Each drawer features integrated drawer stops, preventing accidental pull-outs while still allowing smooth and reliable operation. The entire system is designed to be printed on standard consumer 3D printers without additional hardware, adhesives, or supports (depending on printer tuning).

The Minimum Build Volume must bw 320mm depth and 320mm height.

Key Features

• 3-tier drawer system
• Fully 3D printable
• Gridfinity-compatible drawer versions
• Optional drawers without Gridfinity
• Version with dedicated space for Bambu AMS HT (only on the 320mm version)
• Alternate version with flat top (no AMS HT slot)
• Integrated drawer stops
• Clean, modular, workshop-ready design
• Bambu Logo on the sides (assign the same material as the body to delete it)

Physical Dimensions

• Depth: 319 mm/250 mm
• Width: 150 mm
• Height: 245 mm

SlideVault (Gridfinity compatible) is ideal for makers who want a modular, printable, and printer-adjacent storage solution that adapts to their workflow.
