hey again!

i took things to a different place with this, i have been wanting to create things that had some function and expand my work. This is a cabinet that has an opening door and a key that is used as a lock (just inserts to lock). i made the hinges to press fit into the body and they are snug it takes a little force to push in but that means they will not back out with normal use. i made these at 7mm x 4mm for a little easier time i had made 4mm x 4mm originally like the door but this helped in the assembly process. if need be the hinged can be worked back out for replacement if it ever occurs. i also tried to half the insert tabs so make it easier but it seems to cause it to back out easily i can always upload these upon request.

this is a 220mm ish tall box and with the printed separately risers its 10mm taller. now you don't have to use the risers but the bottom on the door will drag on whatever surface you have this on. you can use what ever material you like i made this .1 small radius for a snug fit but i used tpu and super glue to make it permanent.

one of things i noticed again after a long time is that not all filament is created equal and there are many factors to how the print turns out. i used generic filament under bambu setting and it turned out very bad and this is because the bambu setting print faster and cause layer line issues  making bulging walls. with filament expansion and retraction the small holes for the hinges maybe super tight or just right its a toss up but i have printed 5 of these to test different things out.

as always i am human and could make mistakes feedback is important as i could always over look thins other see. hope this turns out well for every one happy printing !

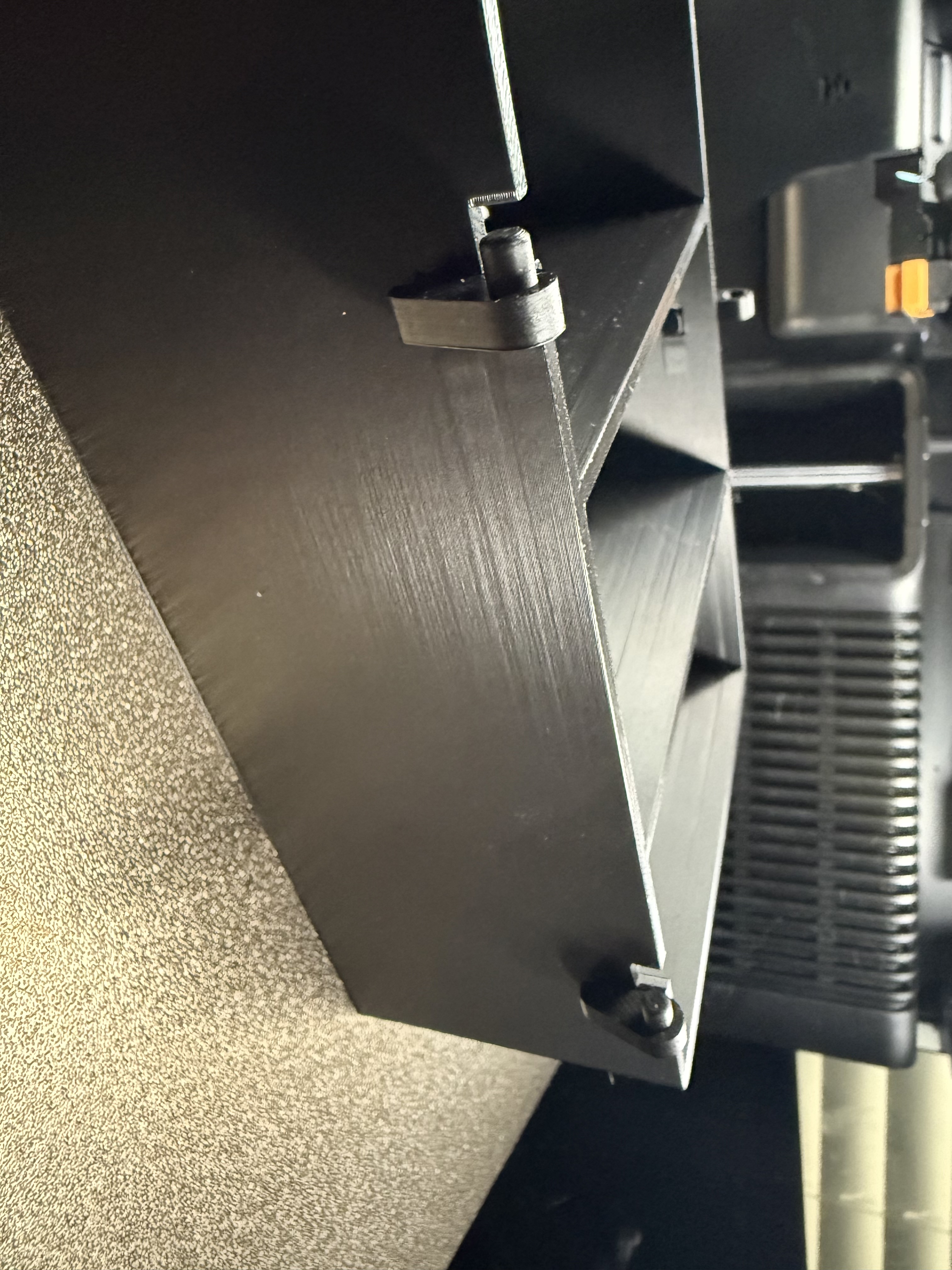

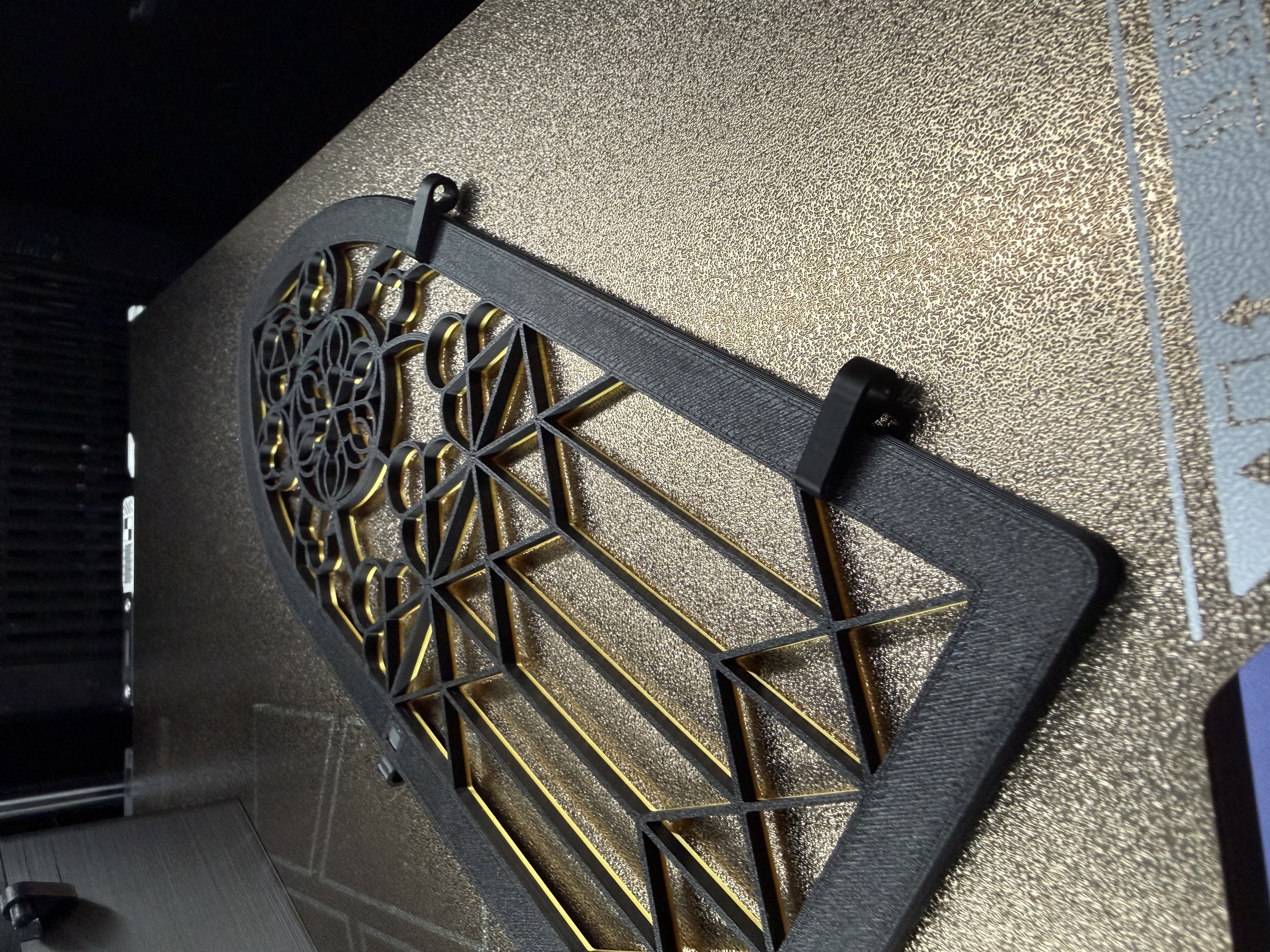

there are 2 hinges with an upward prong that hold the door up and should face up when assembling , the 2 other hinges go on the door and the door is removeable it just sits on the prongs.

notice the oritation of the hinges they are both equal no top or bottom one but. the 2 longer ones are for the door hinge and the smaller one is for the key door lock
