Dust Covers

! PRINT WITH TPU IF POSSIBLE !

LINK FOR TPU IN MY BOM UNDER THIS MODEL

I designed these dust covers to protect ports from dust, debris, and airborne particles. They can also be used to color-code or mark specific ports as reserved or restricted.

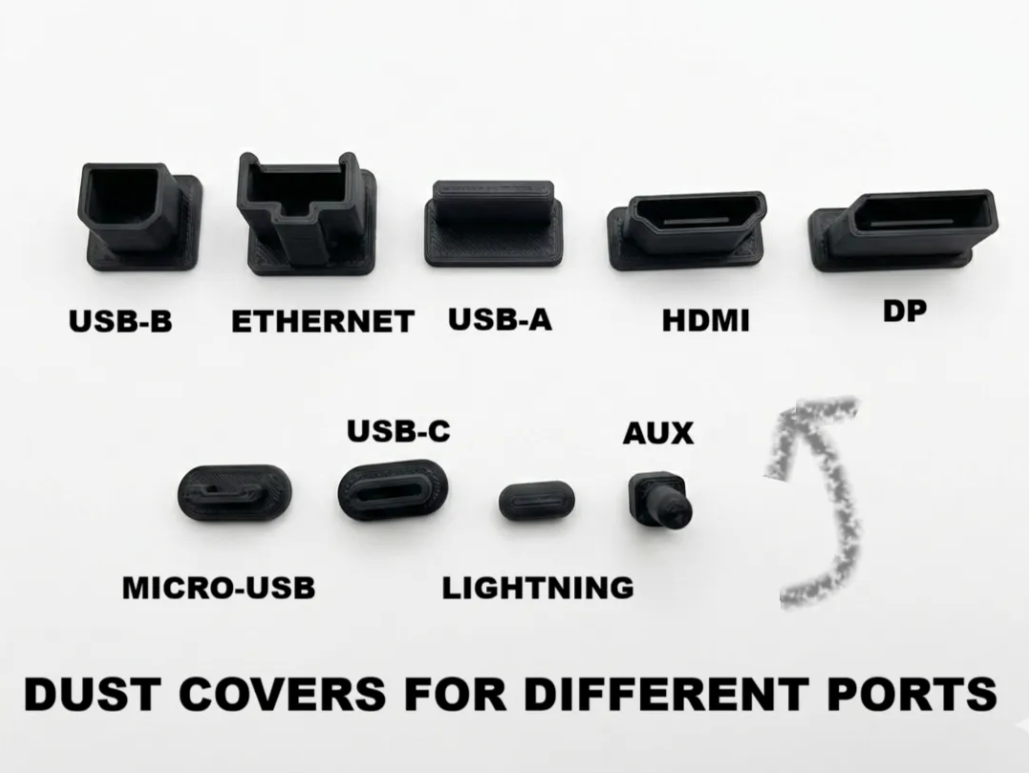

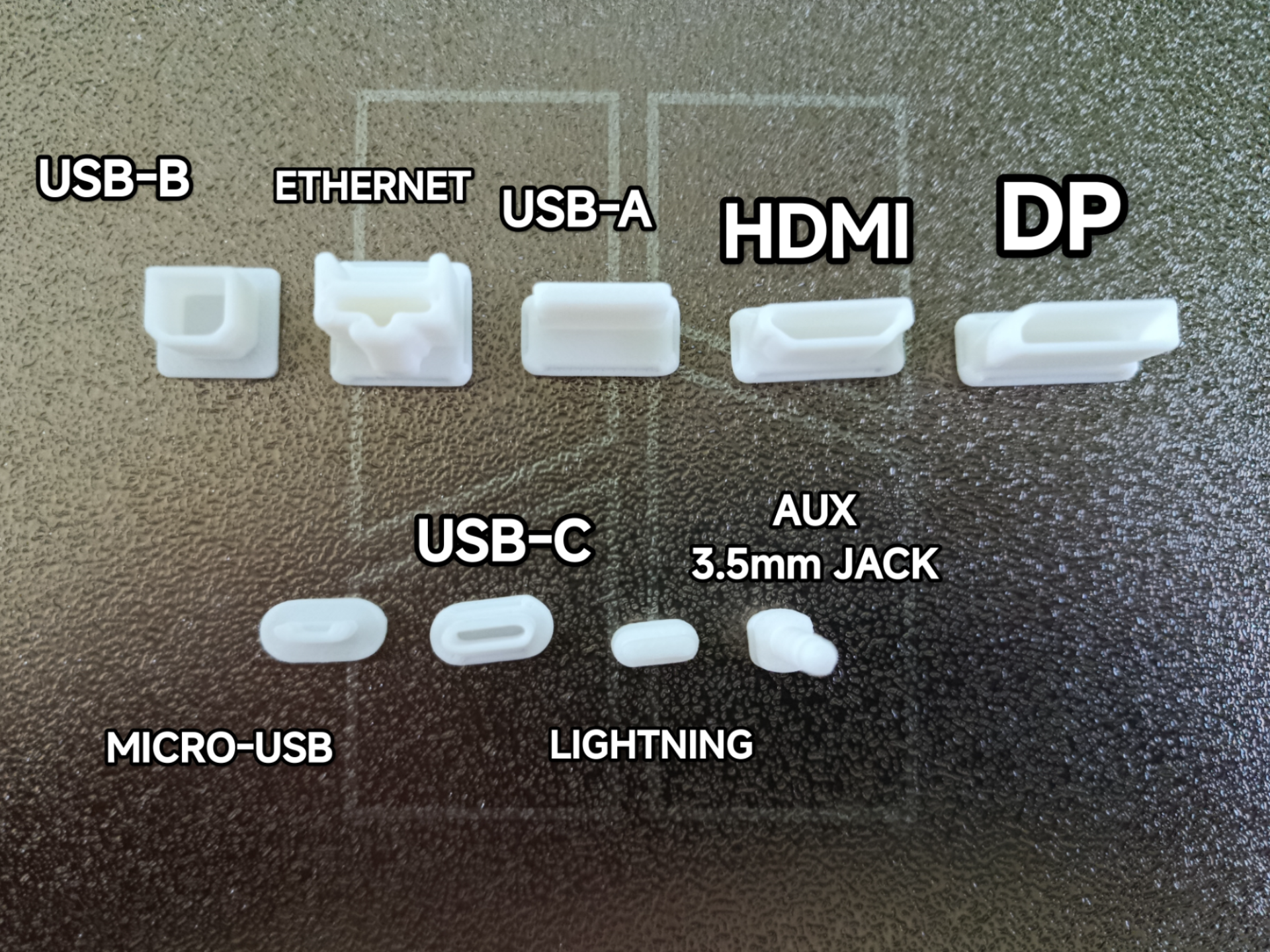

Supported Port Types

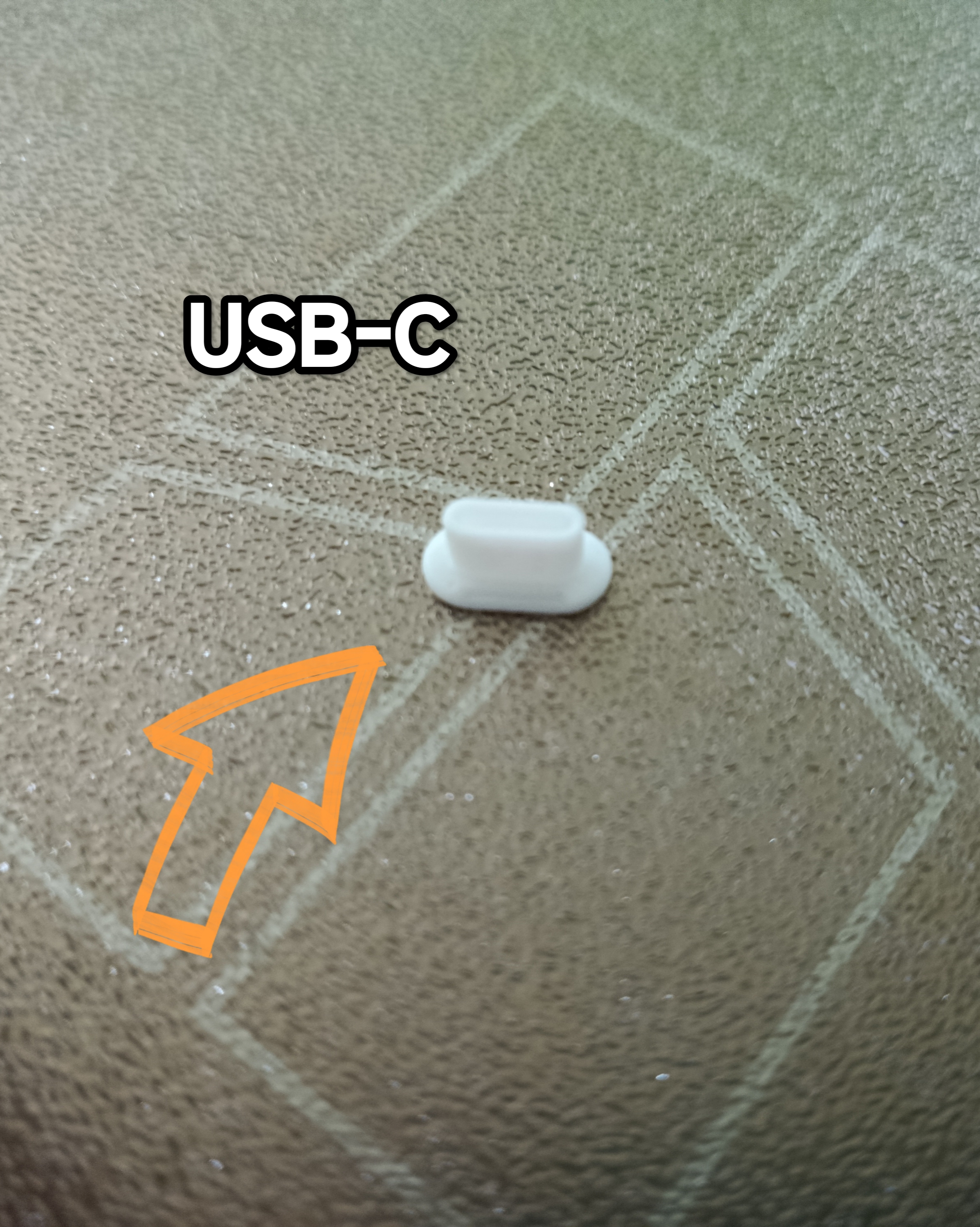

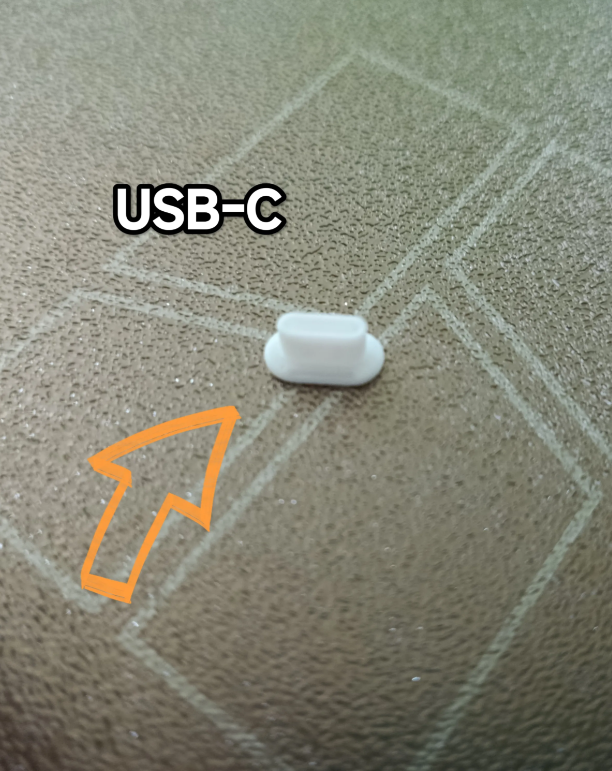

USB-C

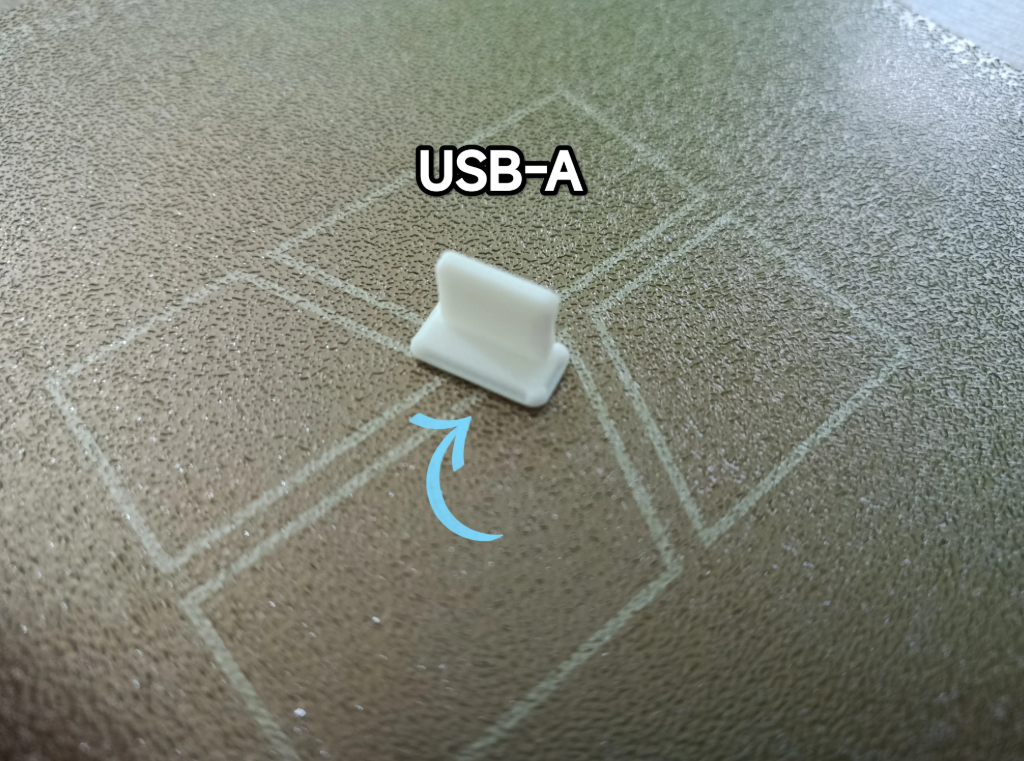

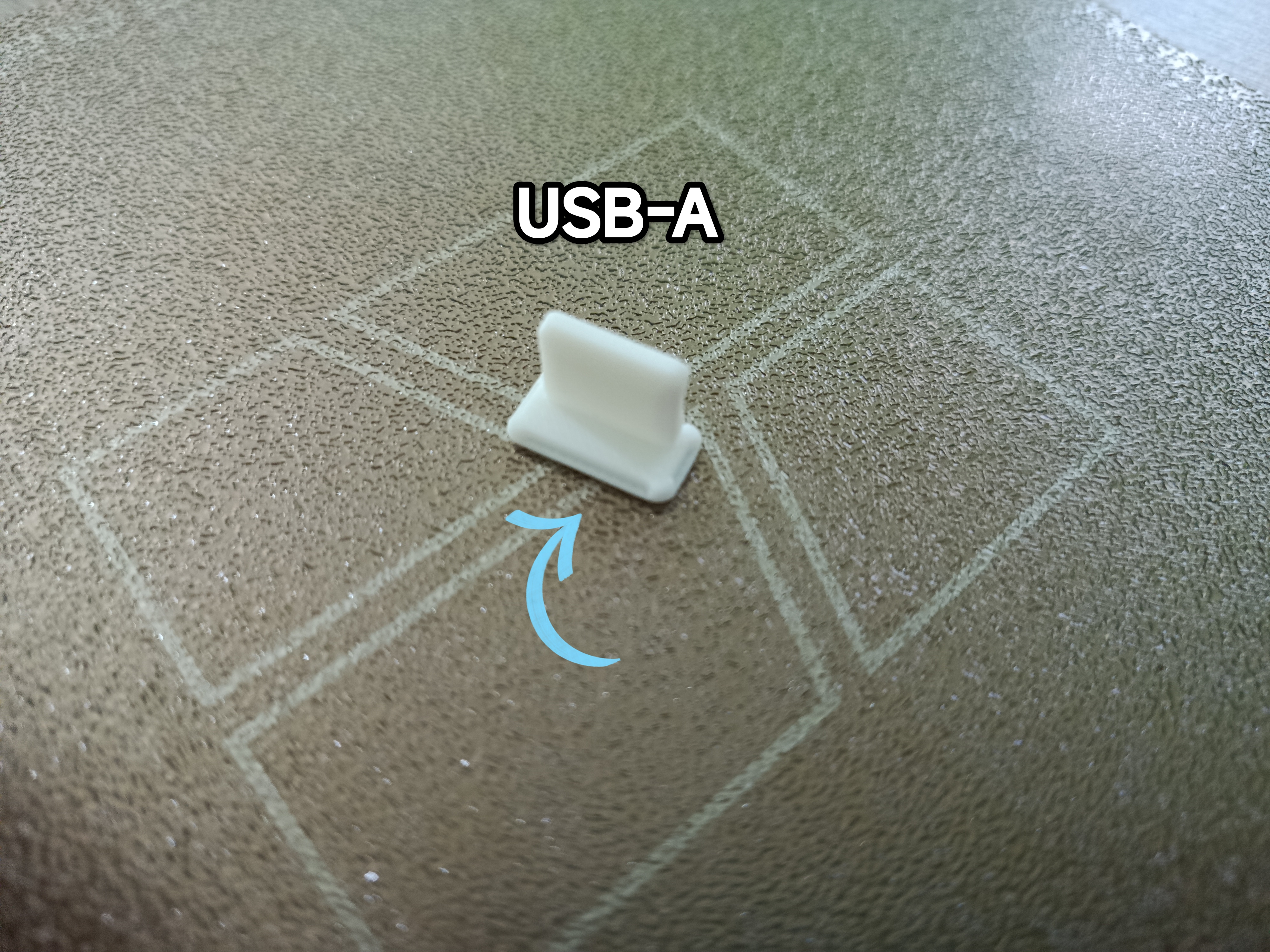

USB-A

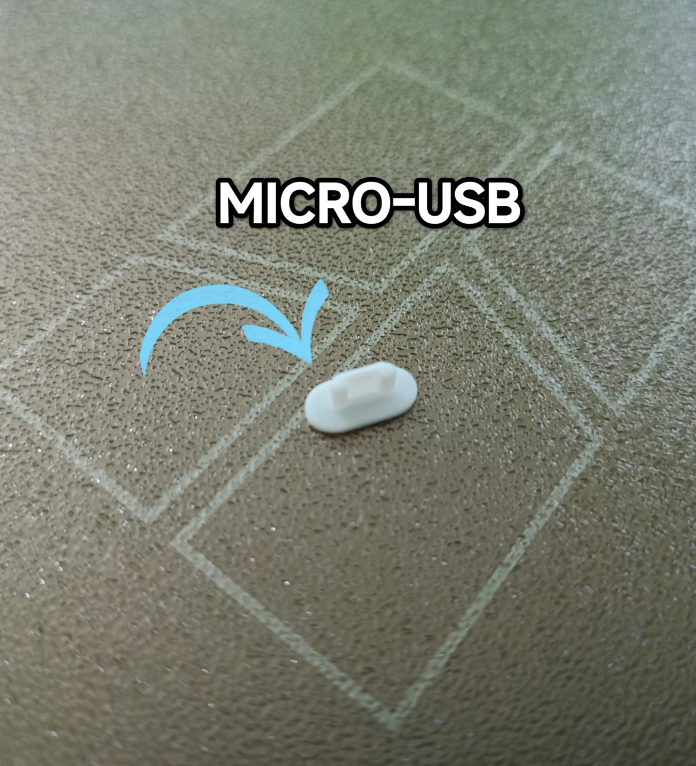

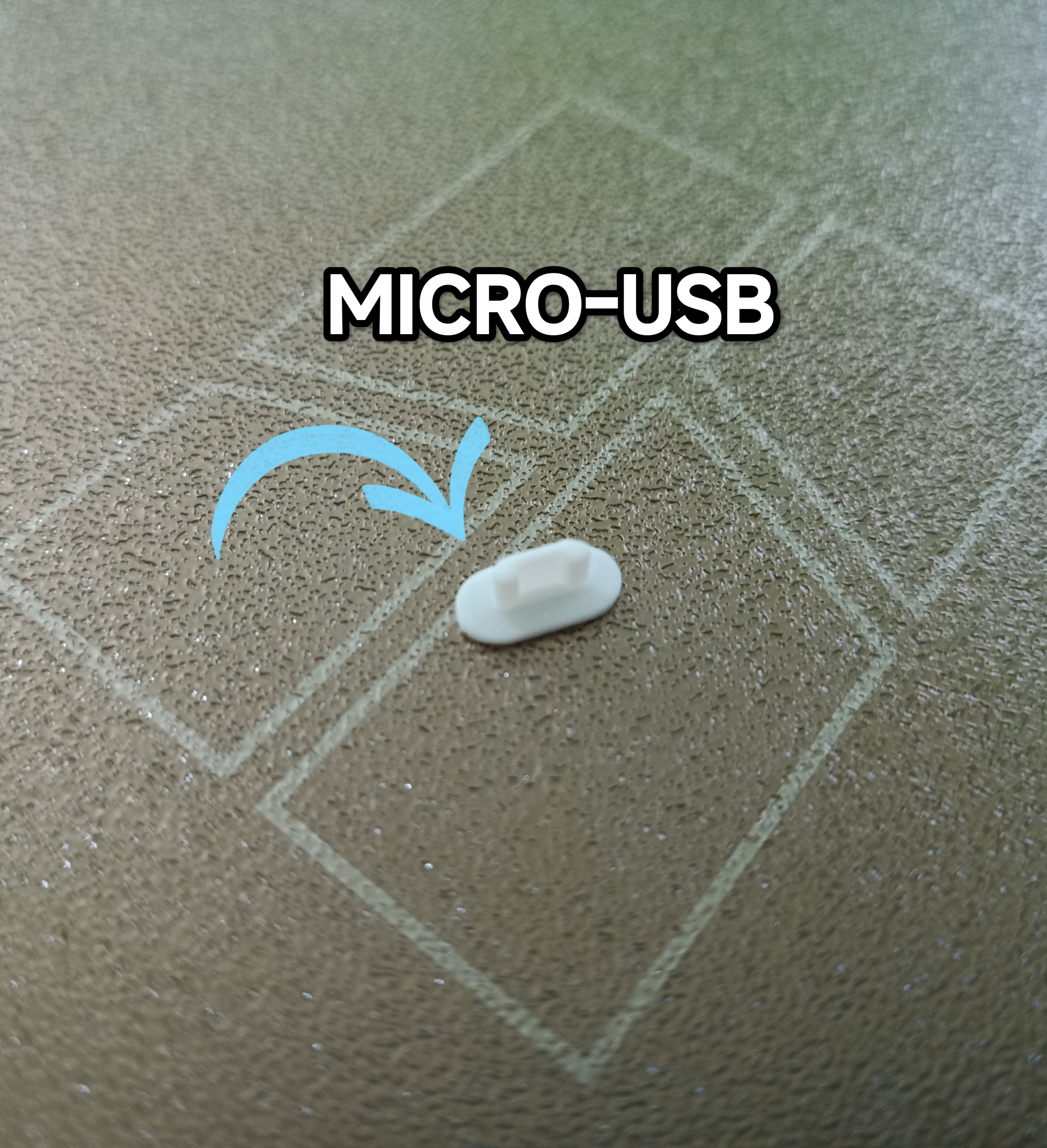

USB-Micro B 2.0

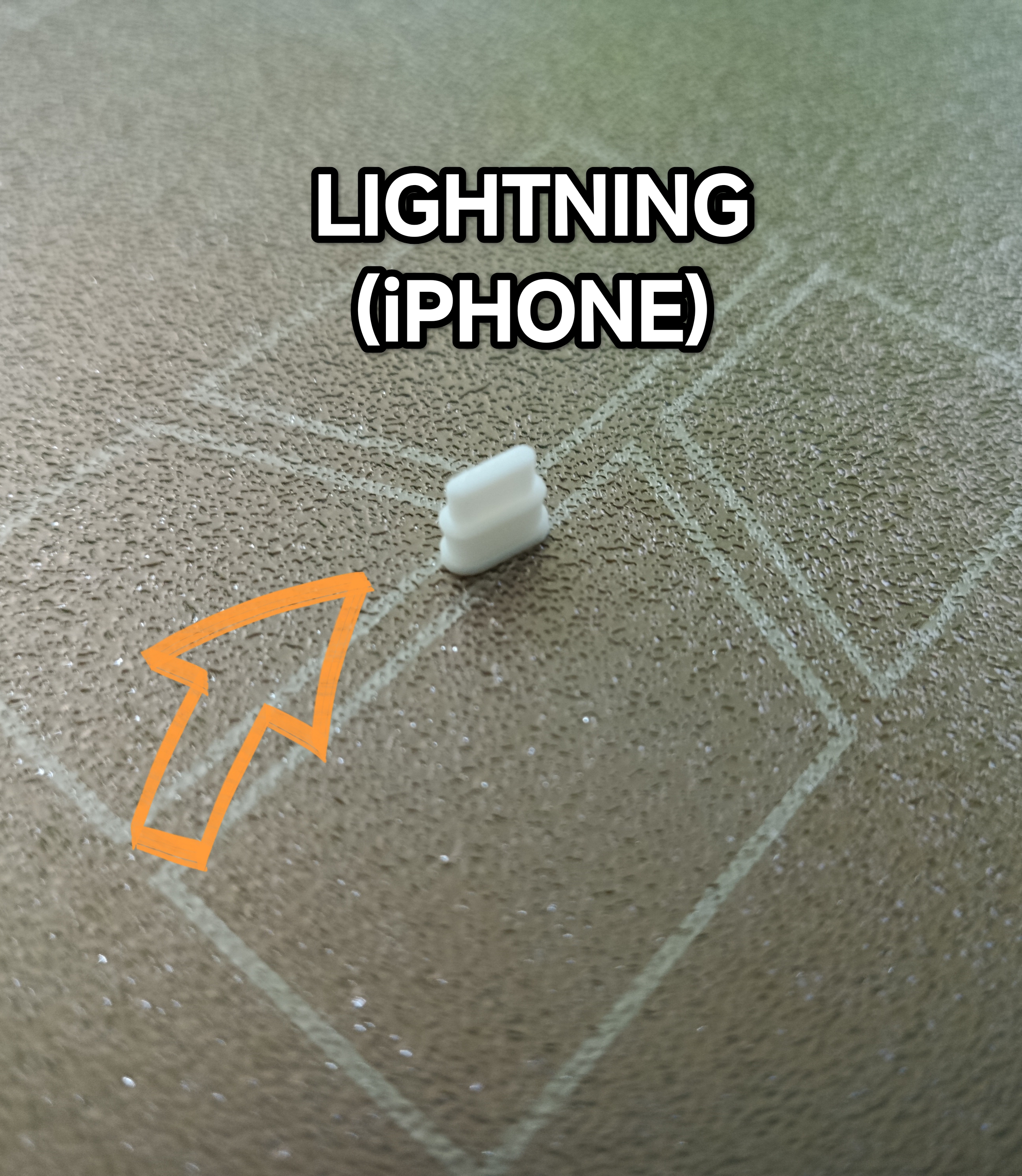

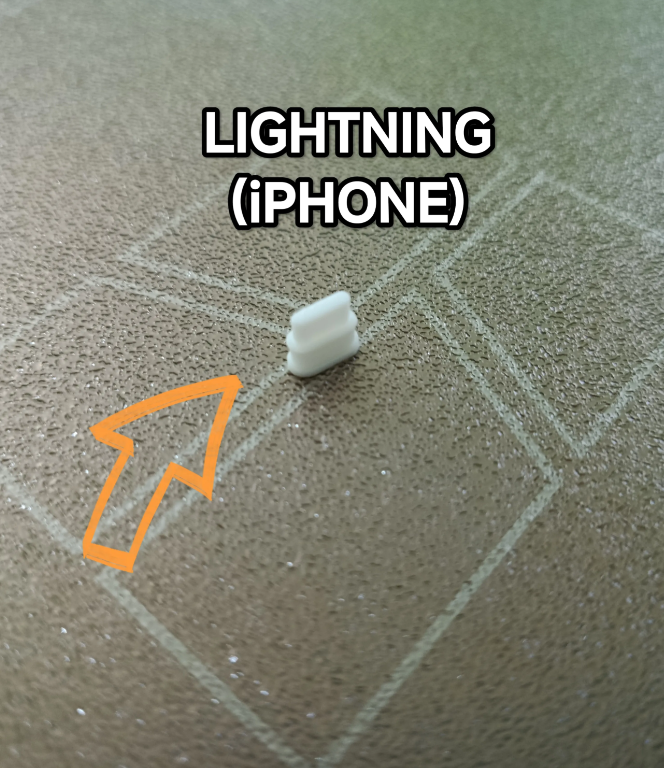

Lightning

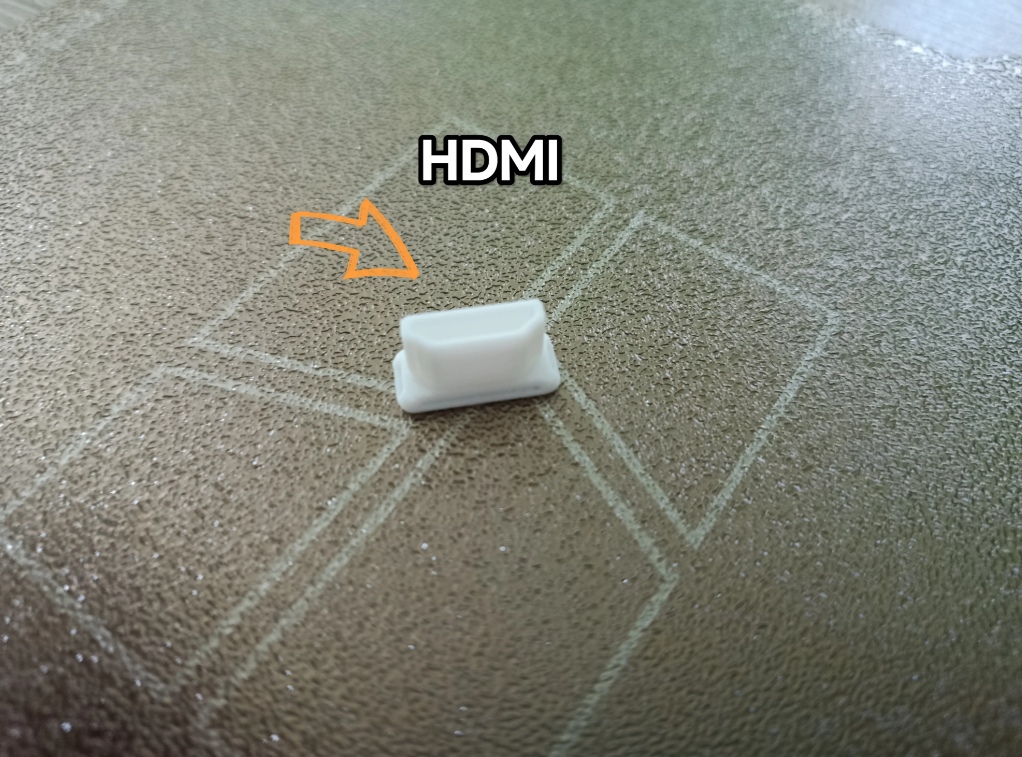

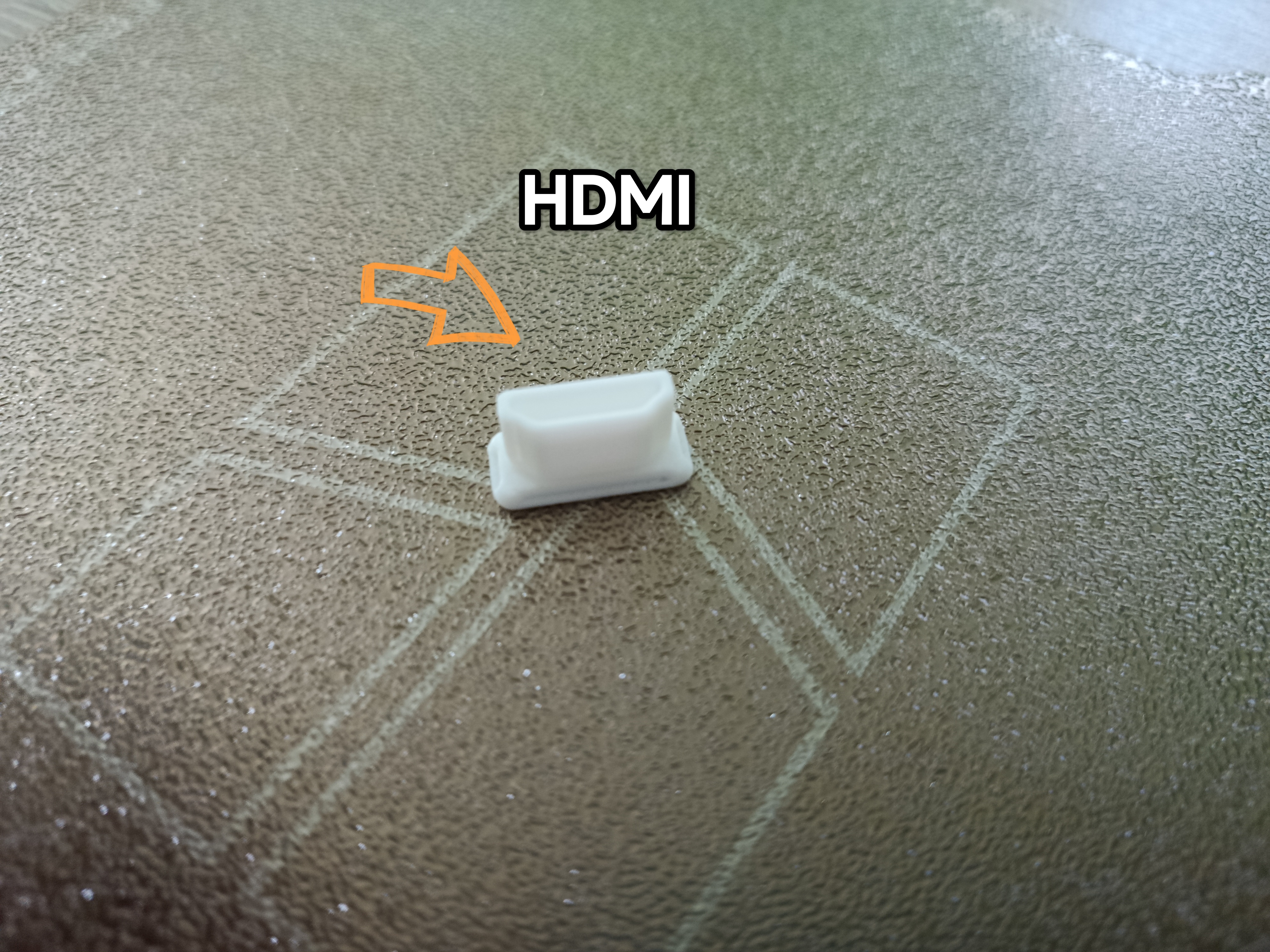

HDMI

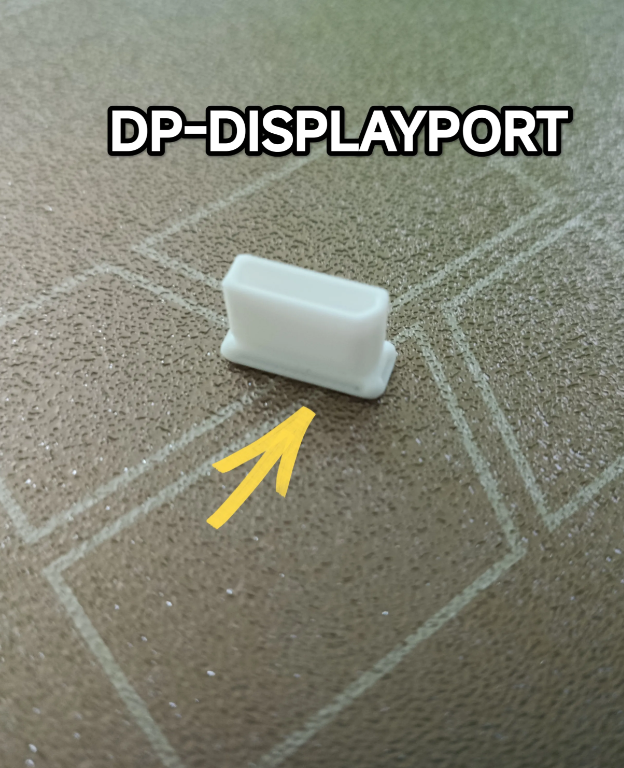

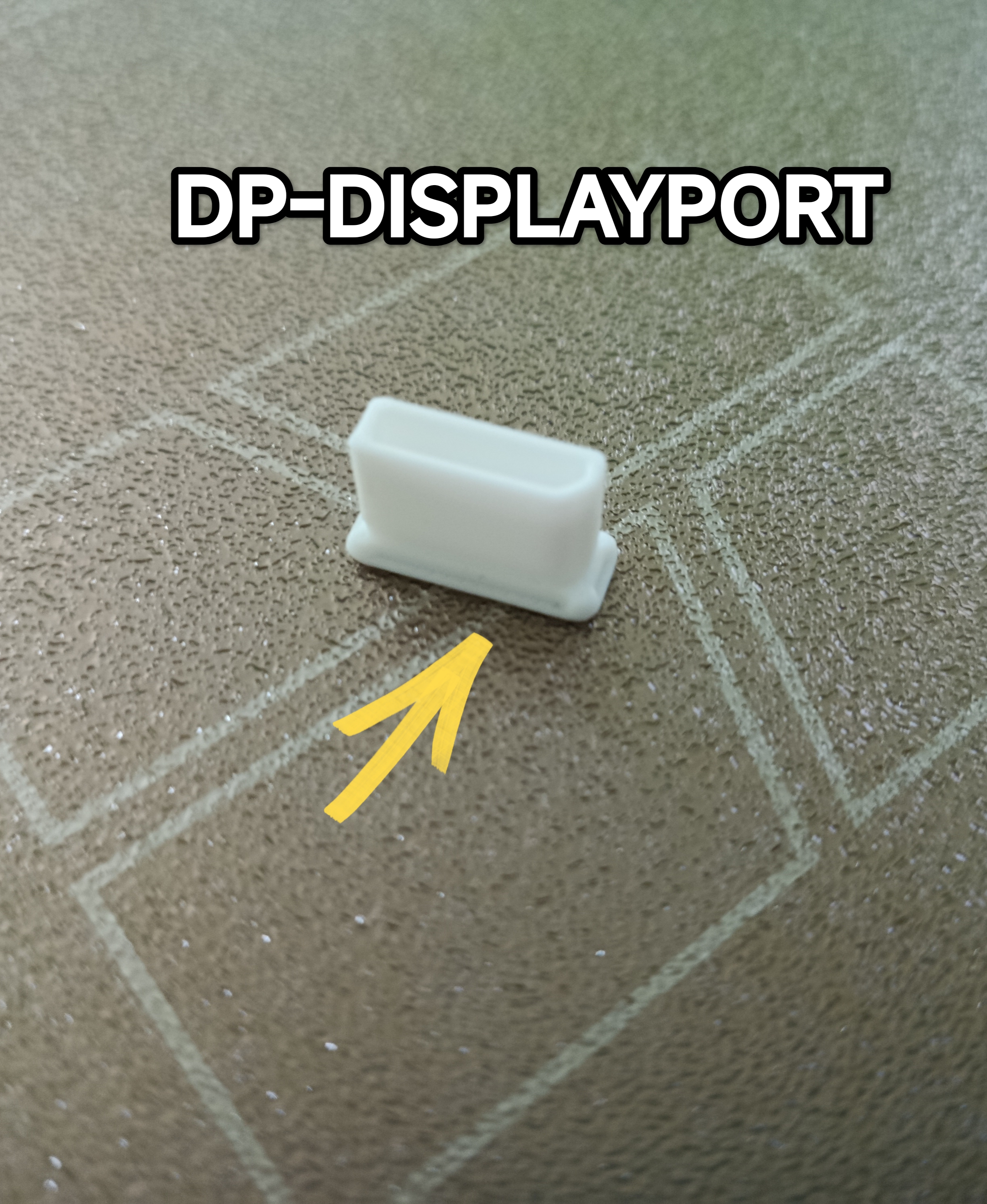

DisplayPort

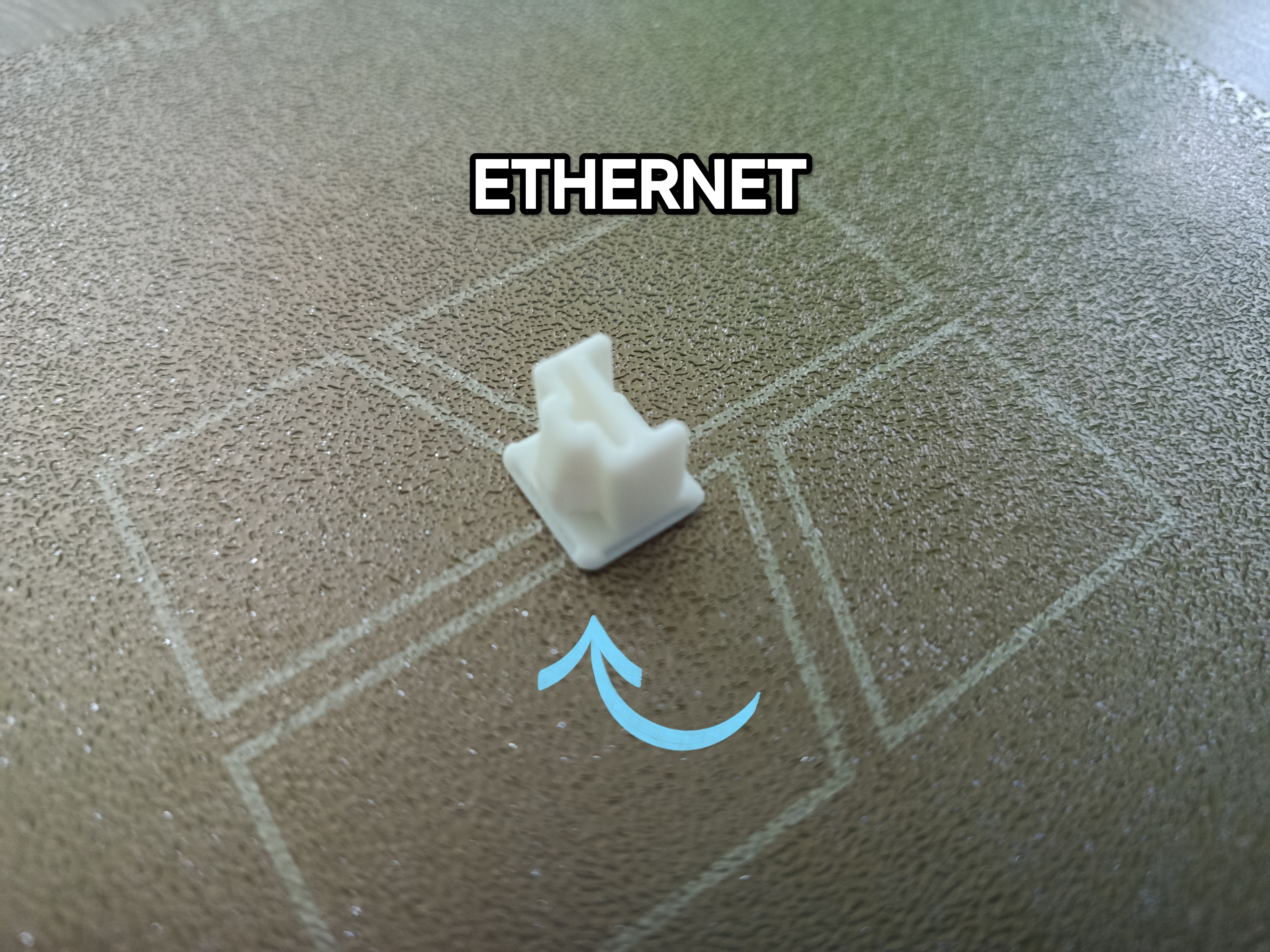

Ethernet

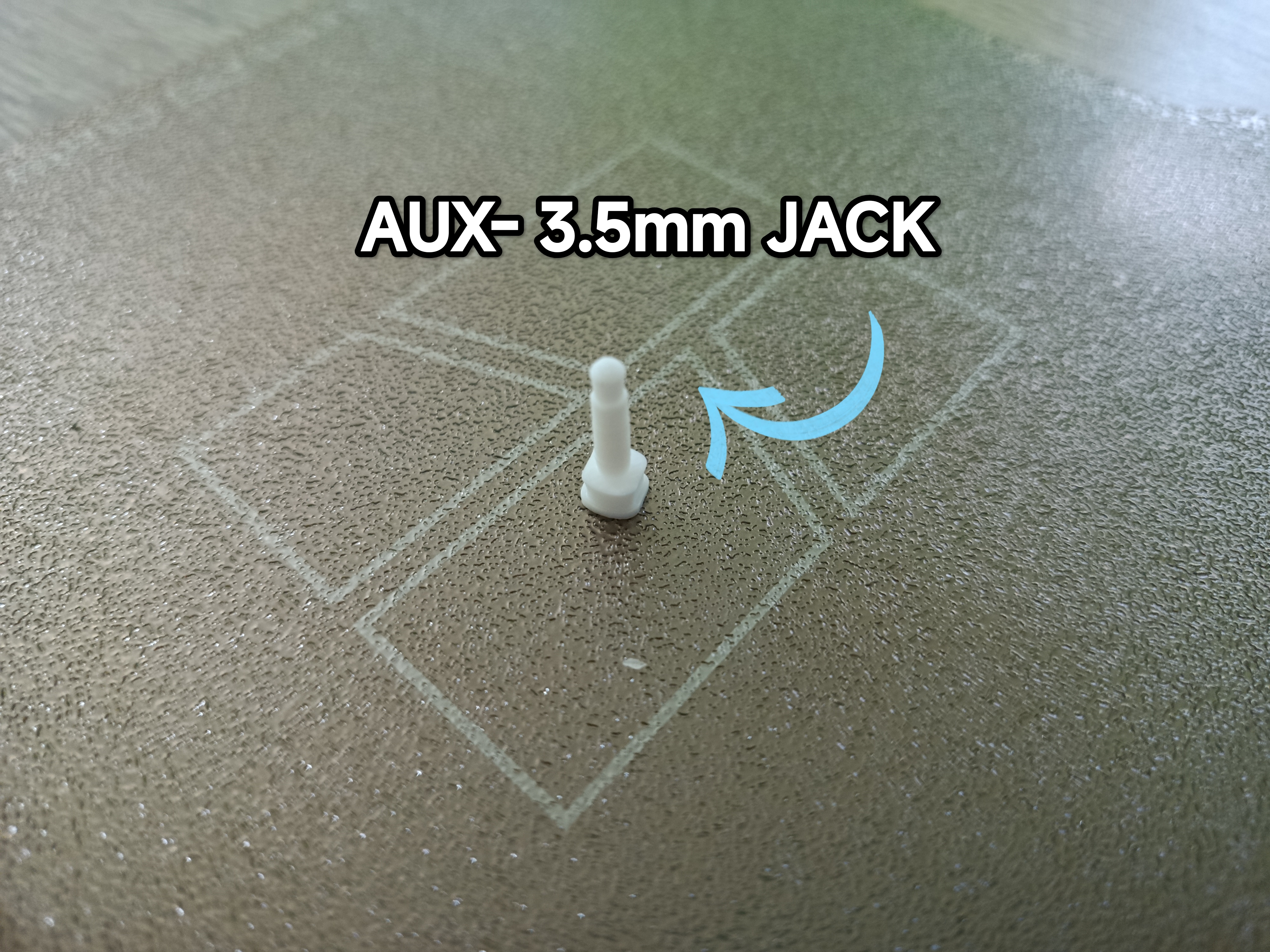

AUX 3.5mm Audio

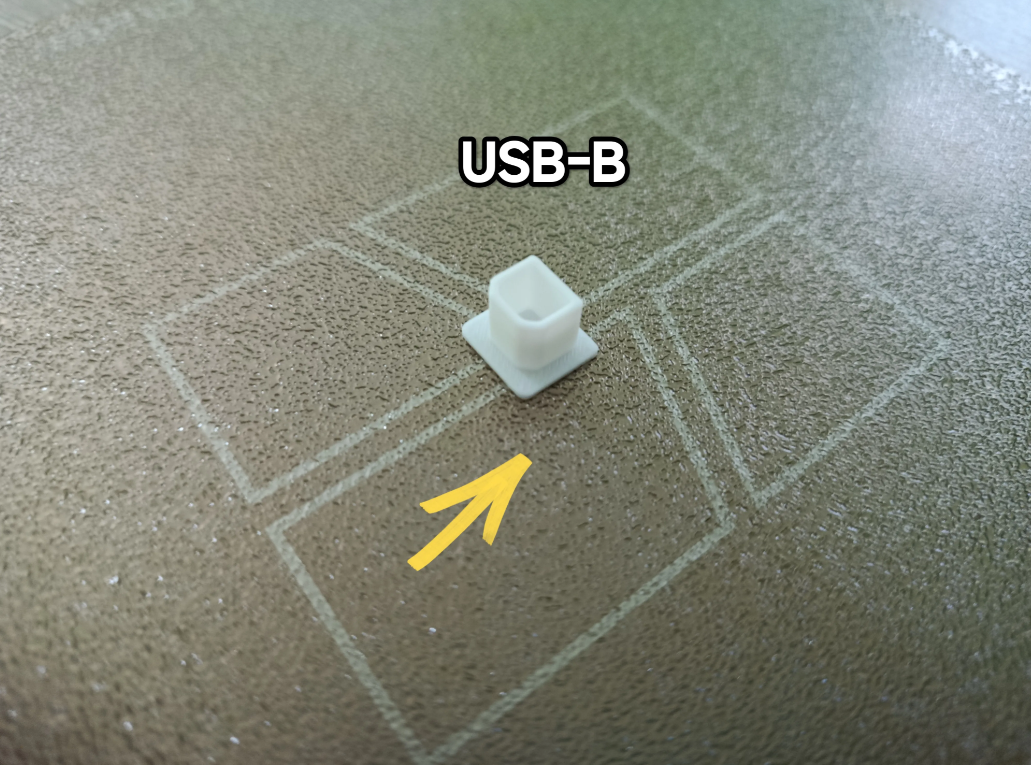

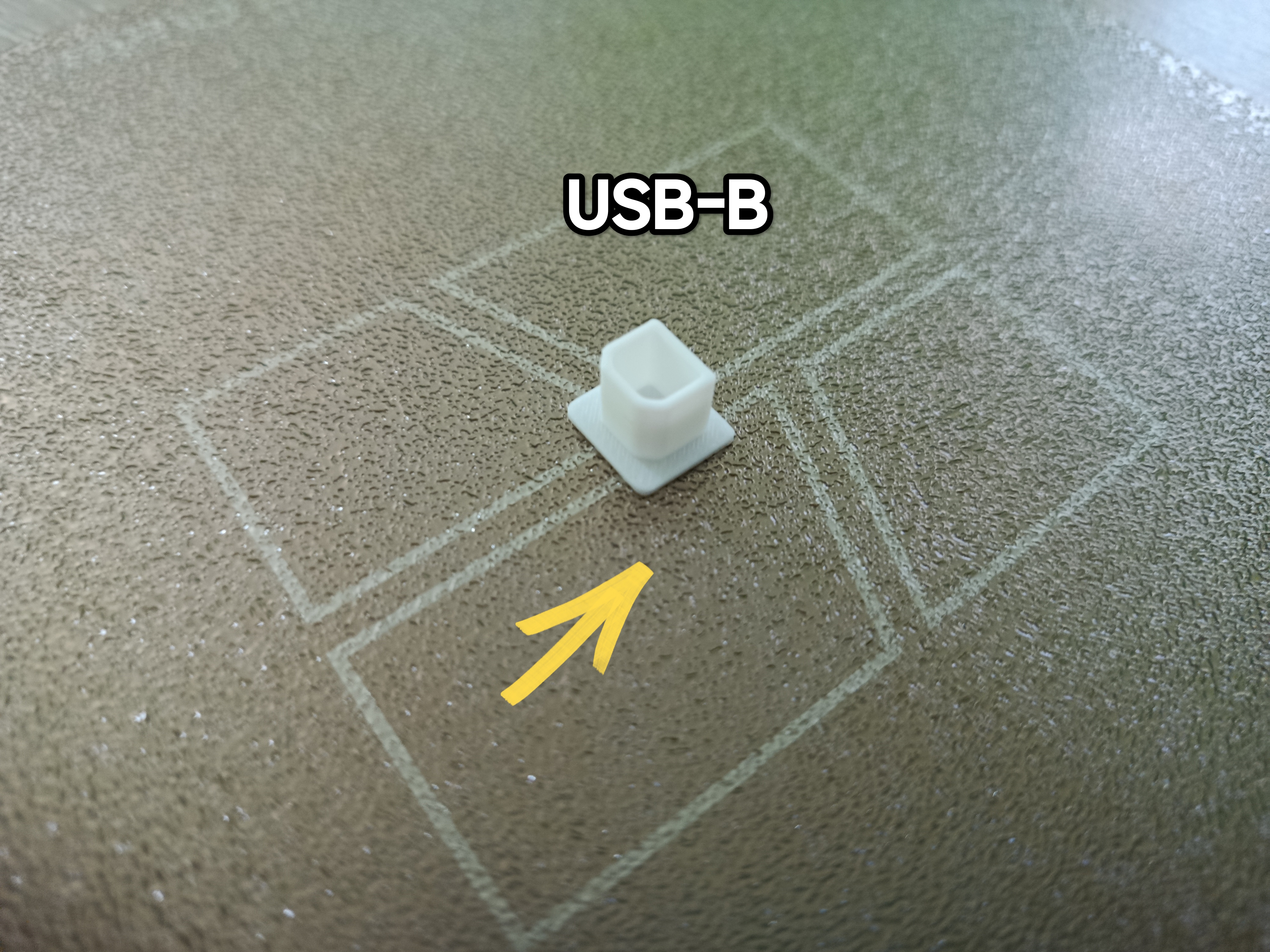

USB-B

Version History & Printing Guidelines

v1.0 (Legacy)

Design: Printed vertically (standing up).
Limitations: Vertical printing can reduce layer adhesion strength in certain orientations, occasionally causing the covers to snap inside the port.
Recommendation: If printing this version, use the softest TPU material available to prevent breakage. Included in the Bill of Materials (BOM).

v2.0 (Reinforced)

Design: Model rotated horizontally (lying flat) to significantly increase structural strength.
Requirements: This orientation requires print supports.
Important Note: Thorough post-processing is mandatory. All support material must be completely removed, as any remaining fragments will prevent the cover from fitting into the port correctly.

v2.2 (Current Version)

Design: Optimized iteration of v2.0 with a reduced layer height to ensure smoother insertion and a more precise fit inside the ports.
Material Recommendation: Highly recommend printing with the softest available TPU, though PLA and PETG can also be used depending on user preference.
Important Note: Just like v2.0, this version requires meticulous post-processing to ensure all support structures are fully removed before usage.

Future Roadmap

Planned updates will expand the library to include covers for additional common connection standards, such as:

SD Card / Micro SD slots
DVI Ports
VGA Ports
SATA / eSATA Ports
Toslink (Optical Audio)
XLR Ports

Happy Printing

Alex
