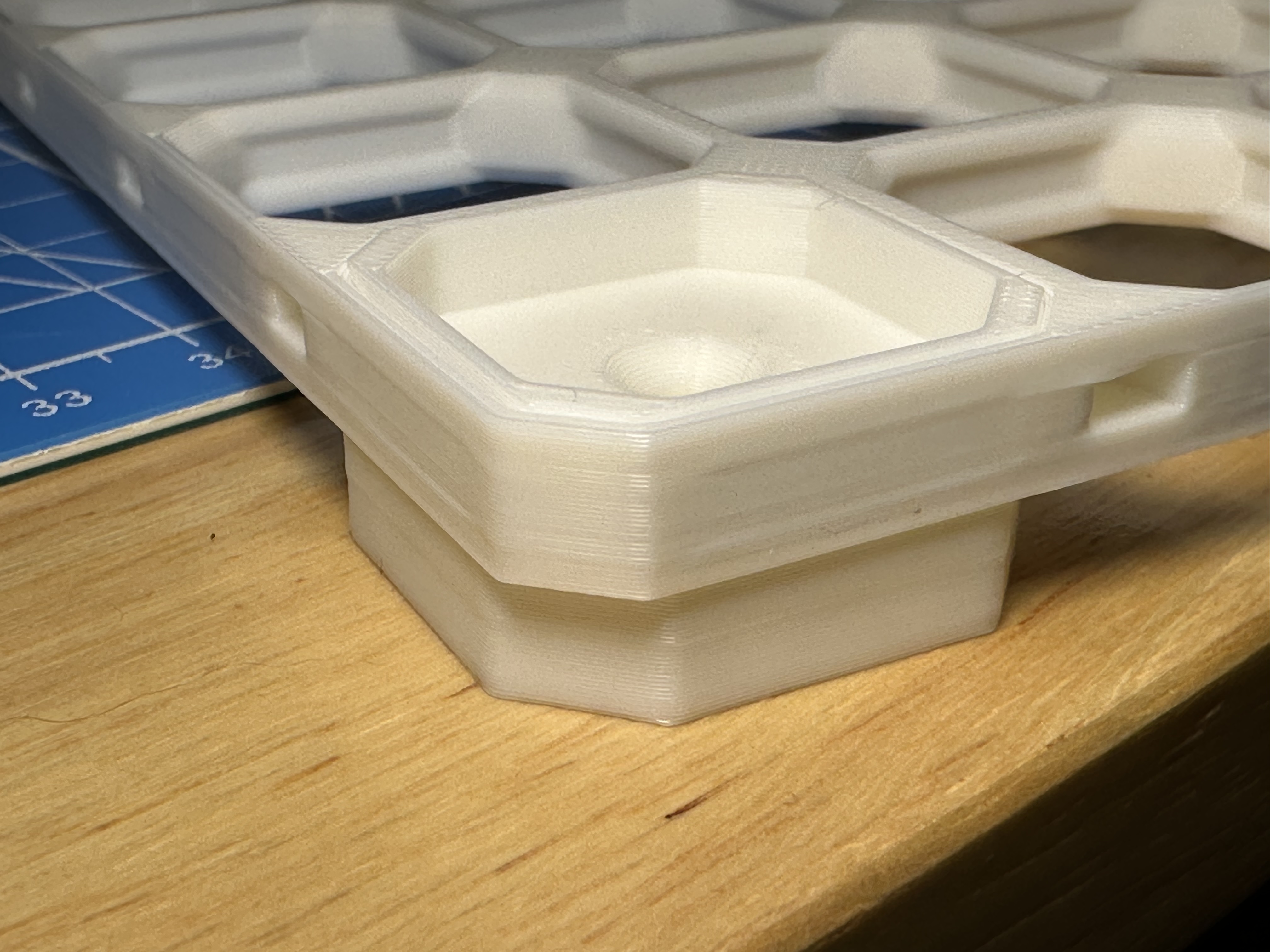

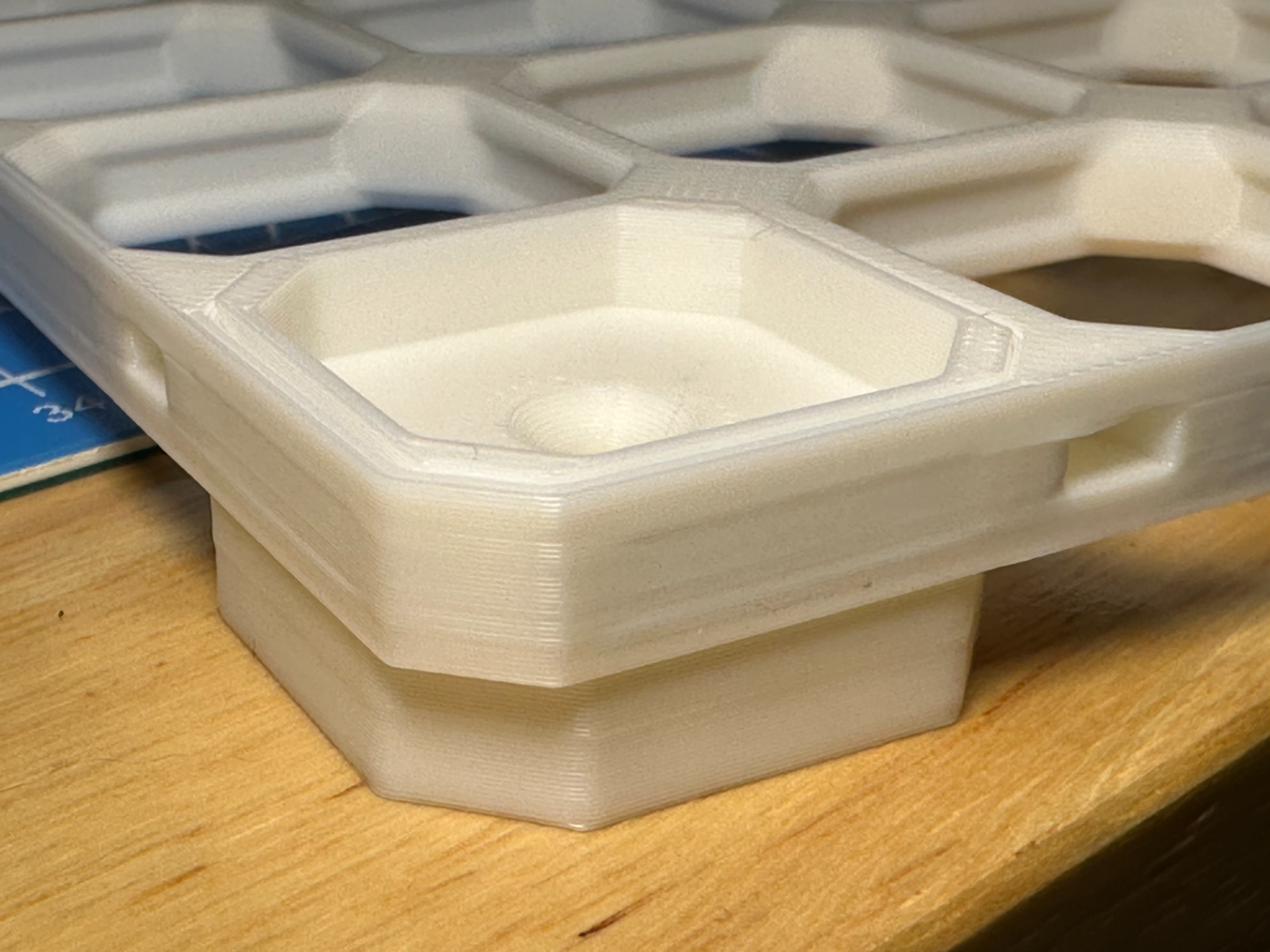

This model is an add-on for the 2mm official openGrid wall mount (including then open variant) that provides a more secure way to create larger offsets by supporting the board from behind.

How to use:

1. Print the official 2mm wall mount offsets (if you're using an unofficial offset mount that works, please let me know!)
2. Select the profile from this model for your total desired offset
3. Insert the original wall mount into your board, then press in the additional offset from the back

Additional notes

• Each profile only contains one copy for ease of selecting a number of copies in the Bambu Handy app. If I should provide options directly in each profile, please let me know!
• This will only work with screw mounts as it is just a spacer sandwiched between the wall and the original 2mm offset in your board.
• The 2mm profile will appear different from the other options, as it still requires the original 2mm offset but only provides the support ring that prevents the model from slipping backwards.
• If additional sizes are required, please let me know and I may be able accommodate your requests or provide a parametric version.
