Description:

This is a wall-mounted holder designed for UNI-T UT71C multimeter.

The holder allows safe and convenient storage of the multimeter directly on a cabinet wall or workshop panel. The meter can be easily inserted and removed with one hand.

The design consists of separate clips that securely hold the multimeter in place while keeping the display visible and cables accessible.

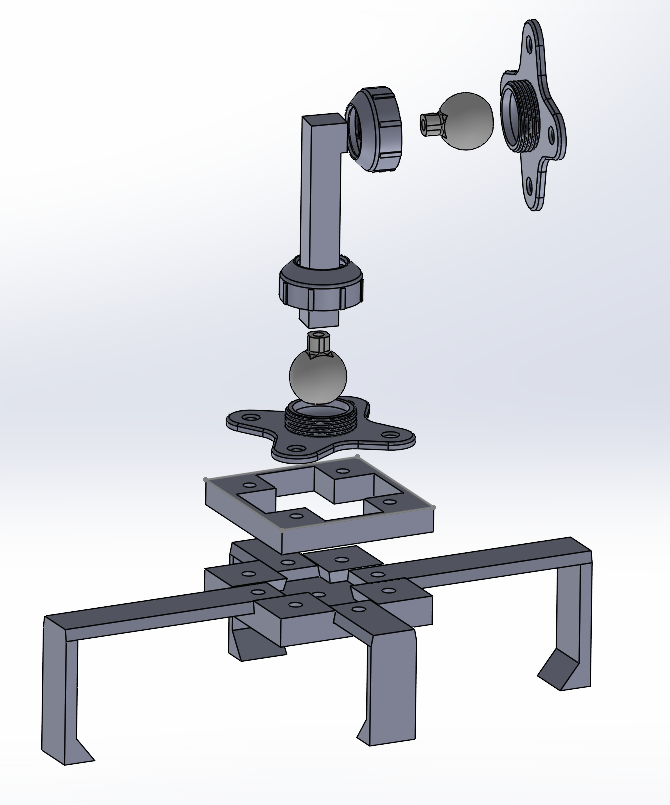

🔧 Assembly Instructions:

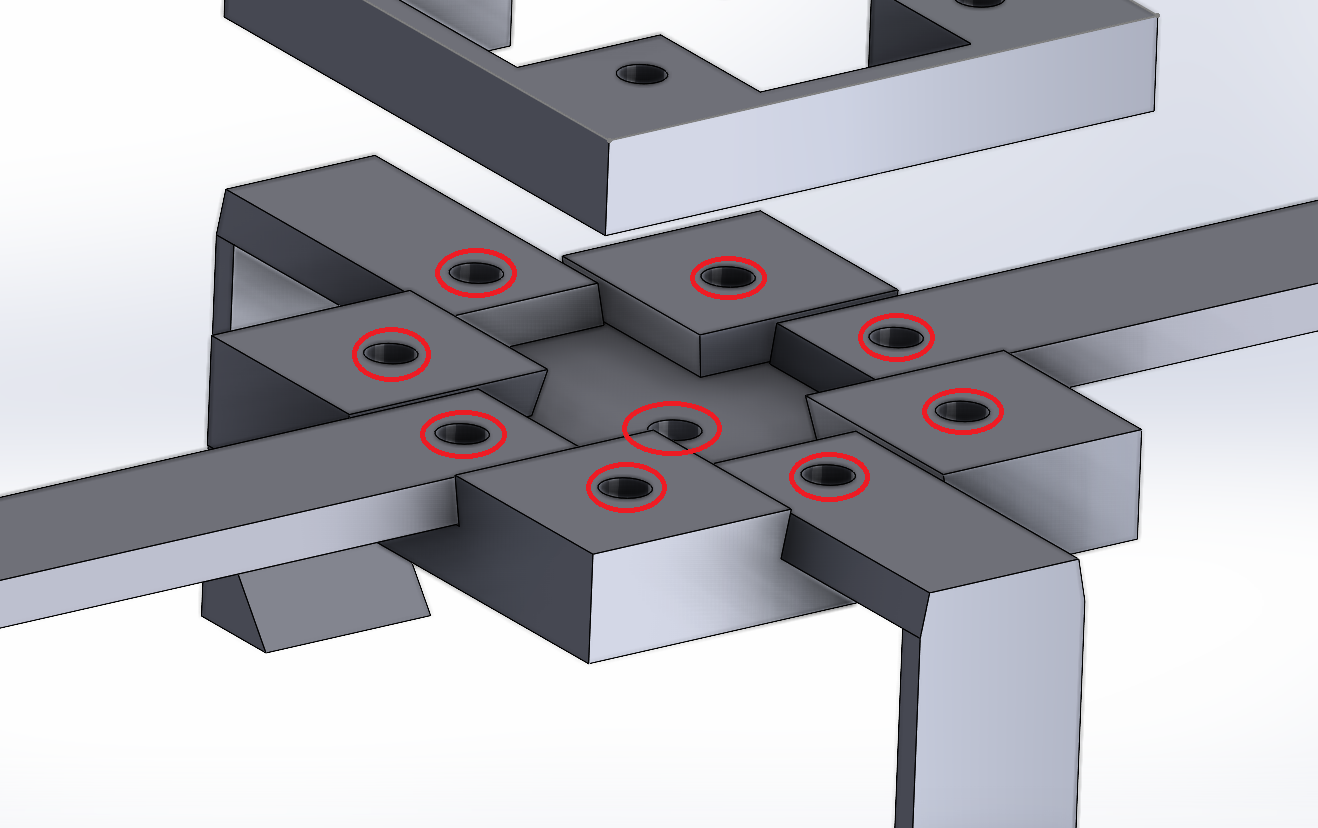

During assembly, brass threaded inserts must be installed in the marked locations.

Threaded inserts: M4 × 4 × 6 mm

For the connection between the arm and the ball joint, use an M4 × 25 mm screw.
It is also recommended to use cyanoacrylate (super glue) for better strength.

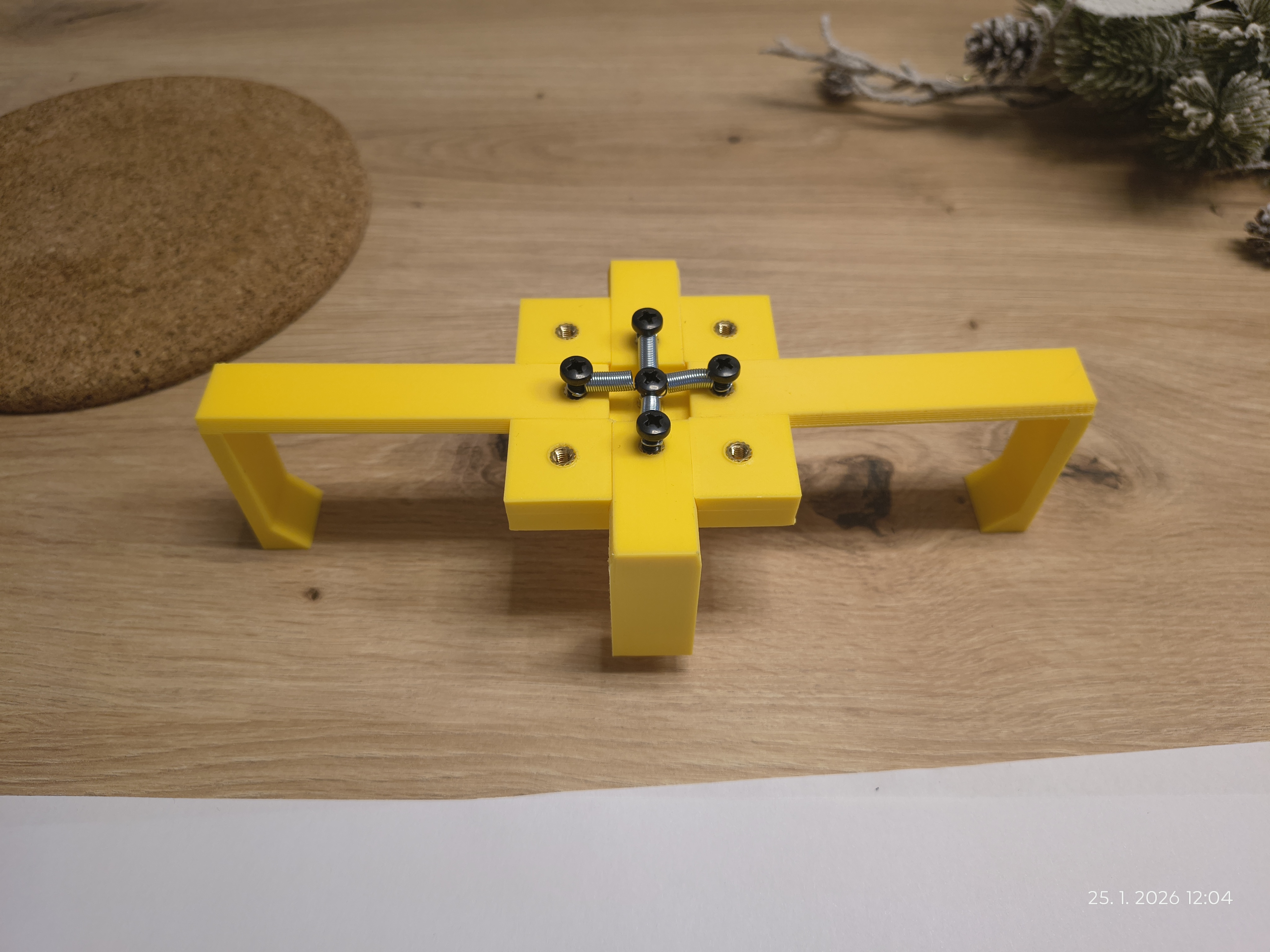

The connection between the base and the movable arms is made using:

• M4 × 10 mm screws
• Springs 0.5 × 5 × 10 mm

For the connection between the base and the main arm, use an M4 × 25 mm screw.



⚠️ Important:

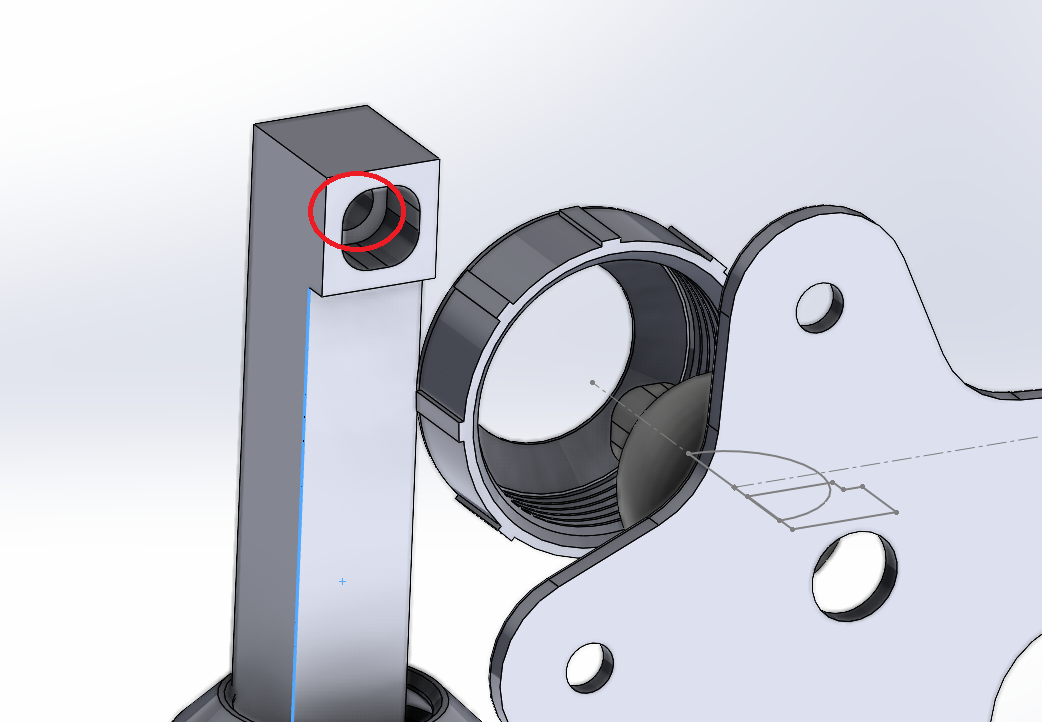

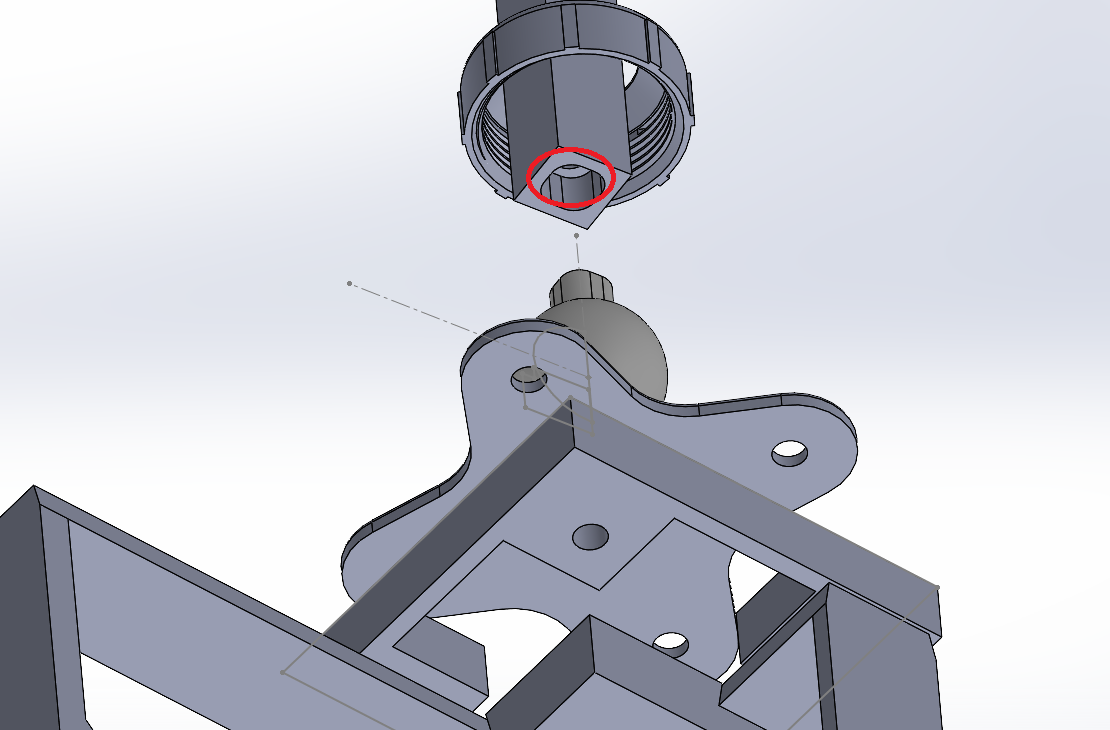

When assembling the arm and the ball joint, do not forget to install the locking nut (collar nut) first before inserting the ball.

🖨️ Print Settings

Printer: Bambu Lab A1 mini

Nozzle: 0.4 mm
Layer height: 0.12 mm
Perimeters: 4
Infill: Gyroid 30 %
Supports: Tree supports

Material: Bambu PLA Tough+
