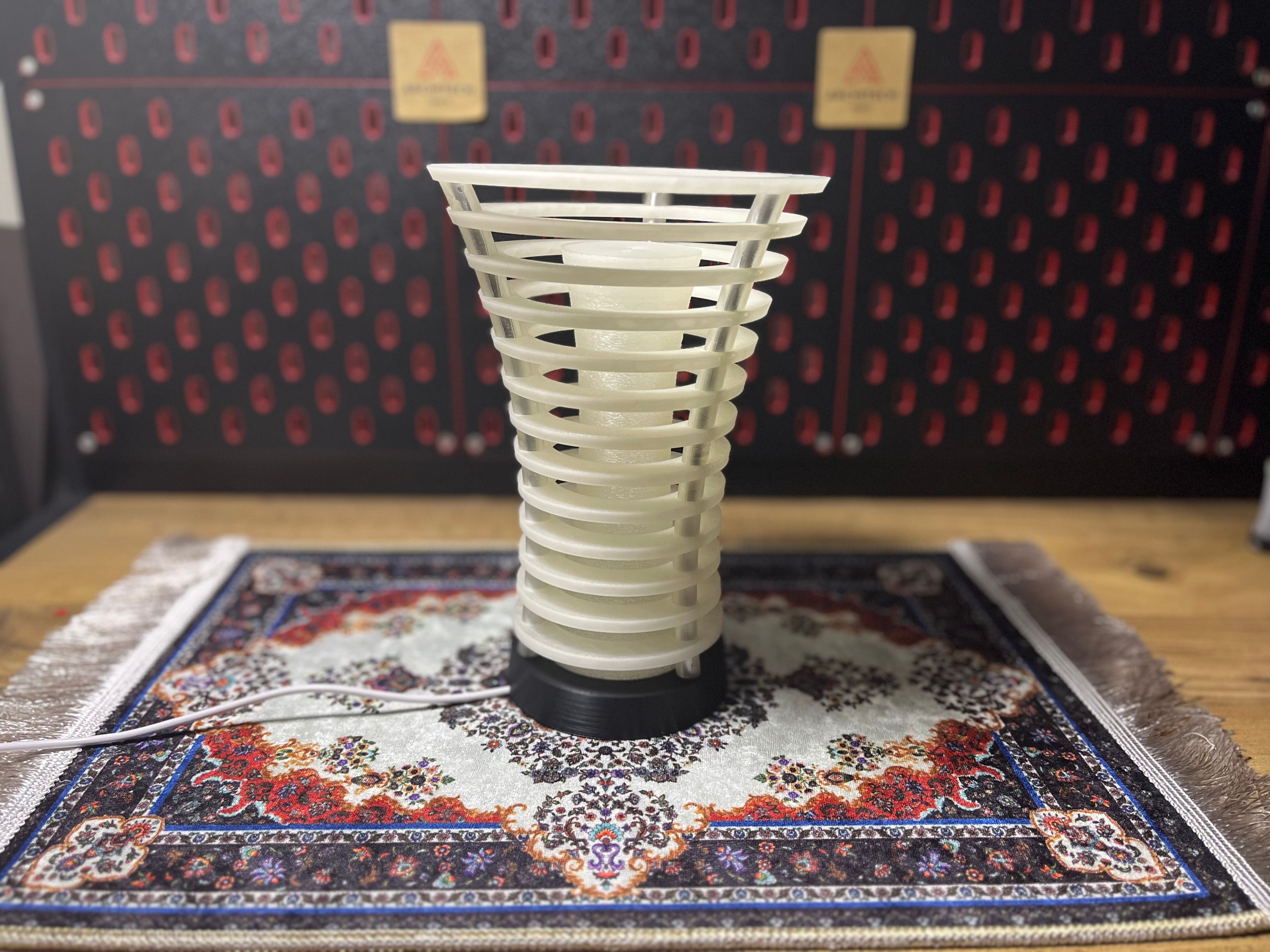

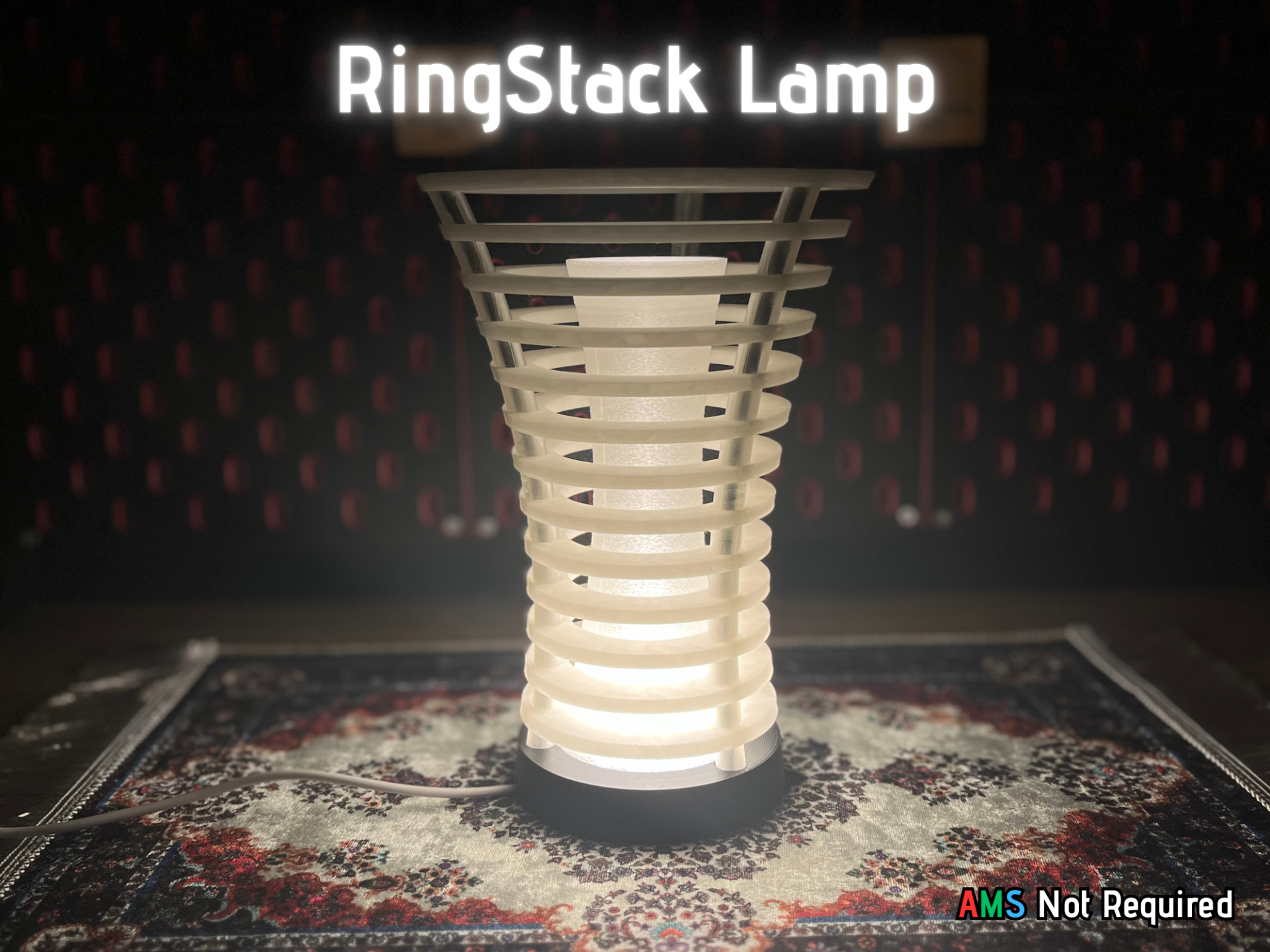

This design was created specifically to work with the BambuLab LED Kit, so you don’t have to hunt for a hard-to-find light source. It’s easy to get, easy to install, and the whole build is designed around it.
The form is not a spiral: it’s a layered structure built from circular ring segments stacked vertically, giving a clean modern look while letting the light flow out in a controlled, cozy way.

The model consists of 18 parts:

• 13 middle layers (the stacked circular rings)
• 3 vertical posts
• 1 bottom hub
• 1 diffuser (to soften and spread the light more evenly)

To make assembly smooth, the middle layers are numbered, so the order is always clear. After installing the LED, a dedicated cable channel guides the wire neatly out of the base. Thanks to this, the lamp sits cleanly on the table without needing an extra stand or riser.

Best part: the entire design is made to be printed support-free. The print process is easy, and the assembly is satisfying. Use it as a desk lamp or a night lamp, and it instantly adds a warm decorative touch to the room.

Note: This design is intended for LED lighting only. I don’t recommend using high-heat light sources.

Assembly Guide (Step-by-step)

1. Install the LED: Mount the BambuLab LED Kit into its dedicated slot in the bottom section.
2. Add the diffuser: Place the diffuser on top of the LED to help soften the light.
3. Stack the rings: Start stacking the numbered ring layers in order.
4. Insert the posts: Before placing the final top layer, push the 3 posts down through their holes into position.
5. Glue for rigidity: Before the final layer goes on, apply a small amount of glue to the tips of the posts. This keeps the lamp solid and rigid.
6. Finish: Place the final layer, check alignment, and you’re done
