Leaf Lamp - Monstera inspired — STL Grátis

After many of you asked for alternative leaf designs for my first lamp, I decided to create a more compact version of the original. The smaller frame makes it ideal for bedside tables or windowsills, while still preserving the layered, organic character of the design.

These leaves are fully interchangeable with my Lush Leaf Lamp and vice versa.

The model requires 50 leaves in total.

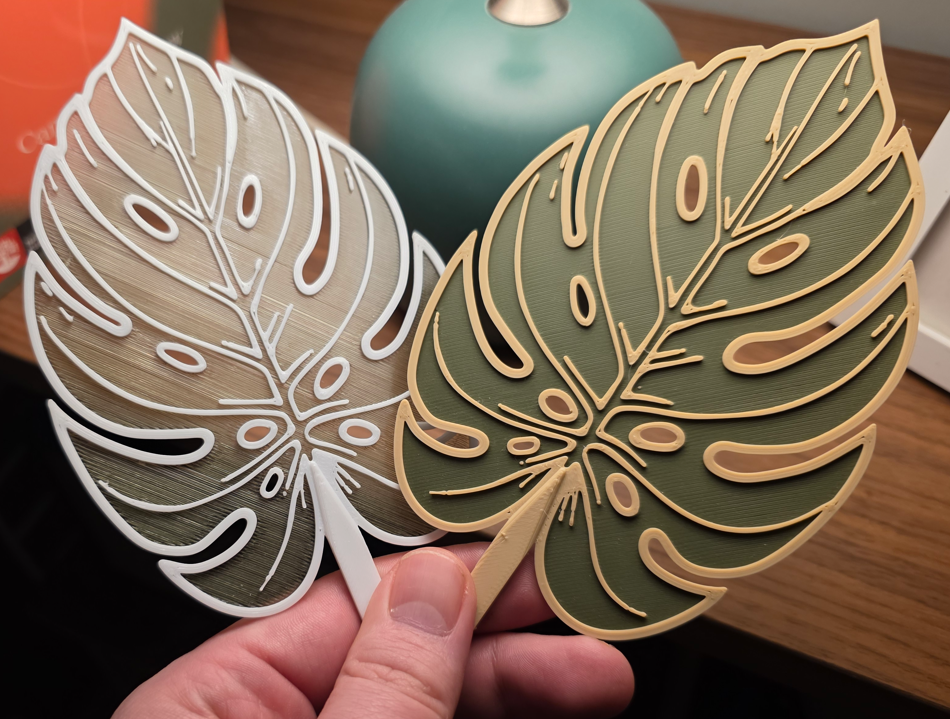

I painted 21 individual leaves in Bambu Studio using a combination of the Sphere and Triangle paint tools, then printed them in different orders to reach the full set of 50. This gives a more natural variation without needing to paint every single leaf.
You can of course remove the coloring (paint tool in Bambu Studio) and print the leaves in just two colors.

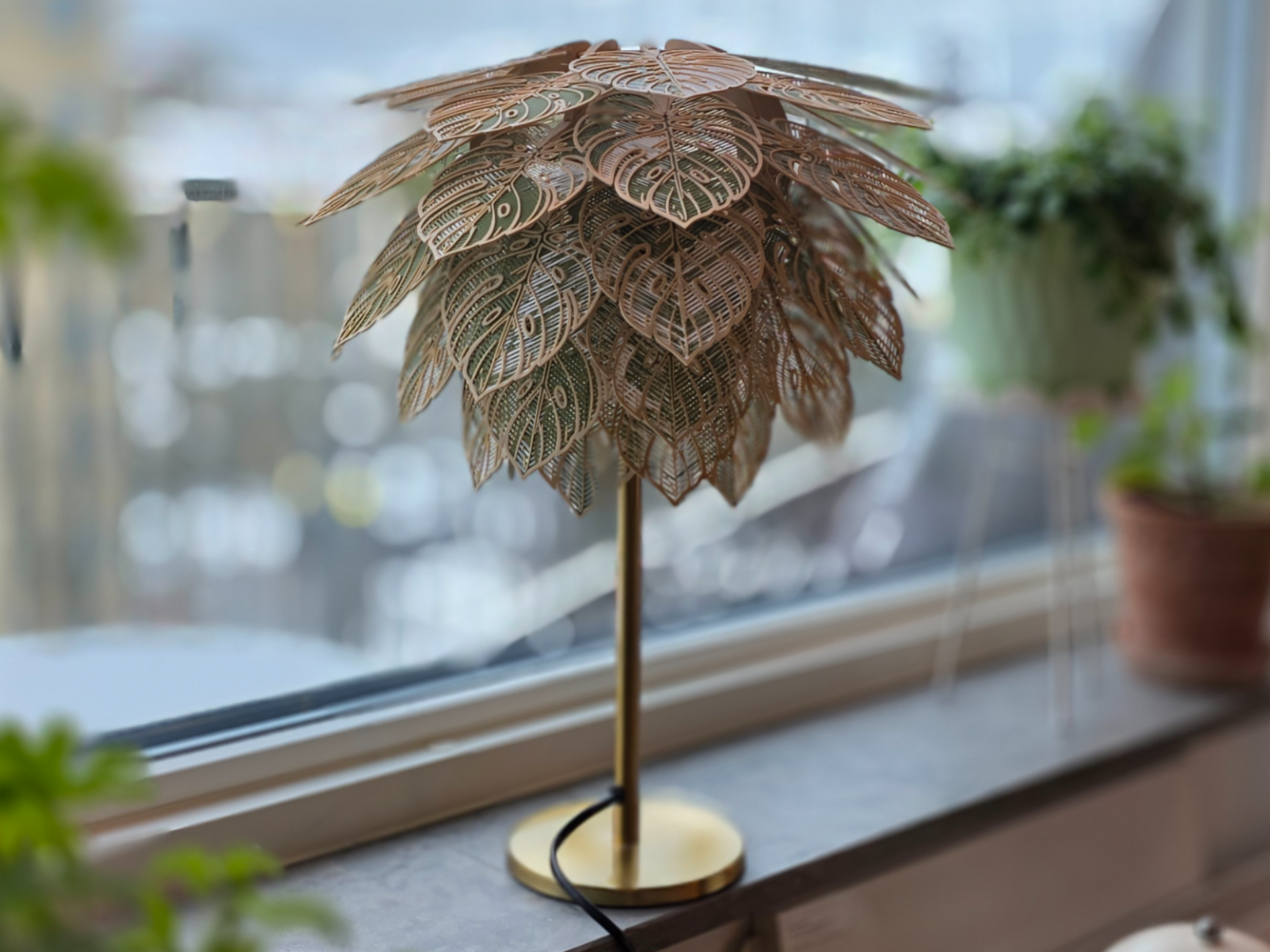

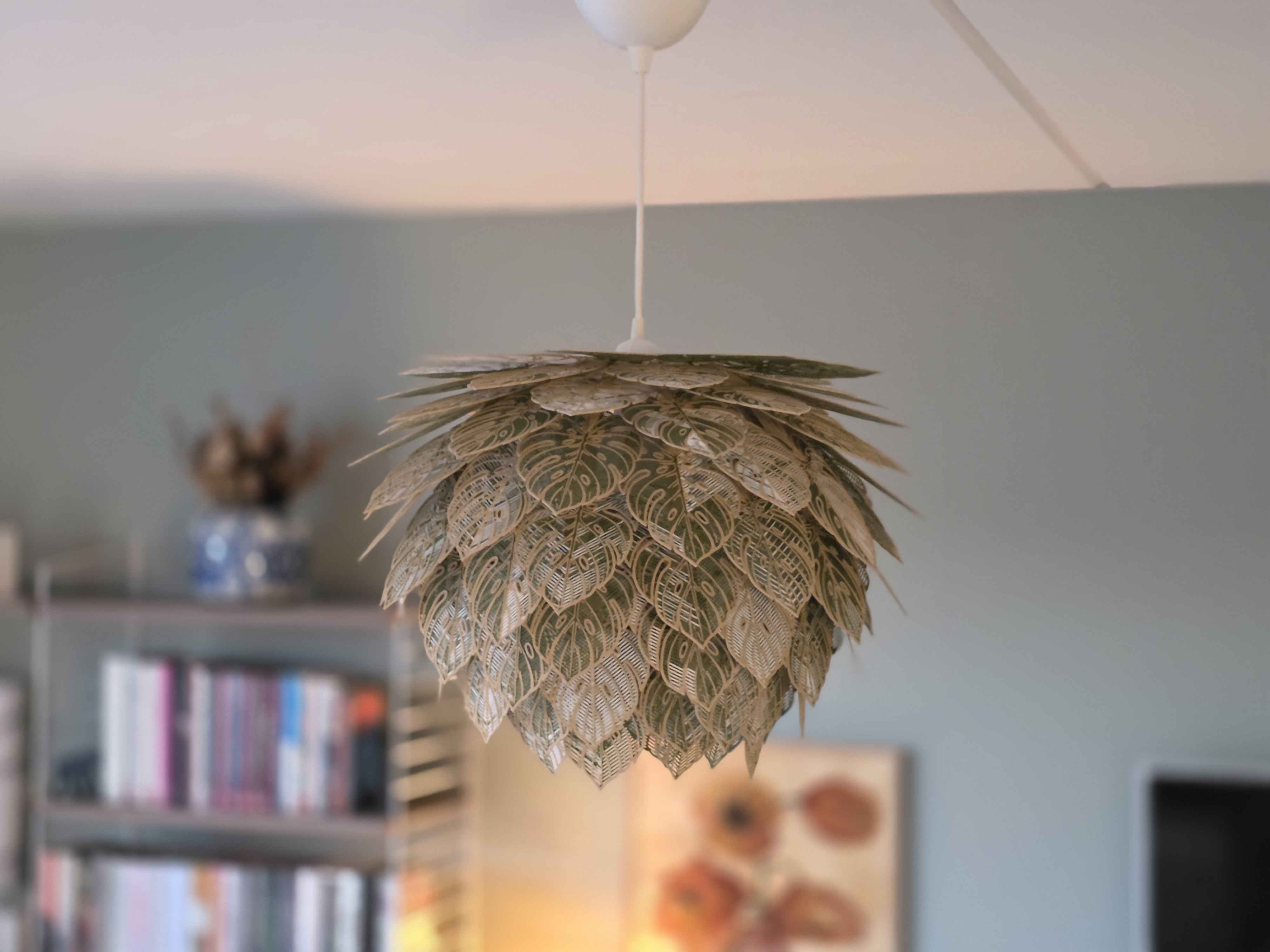

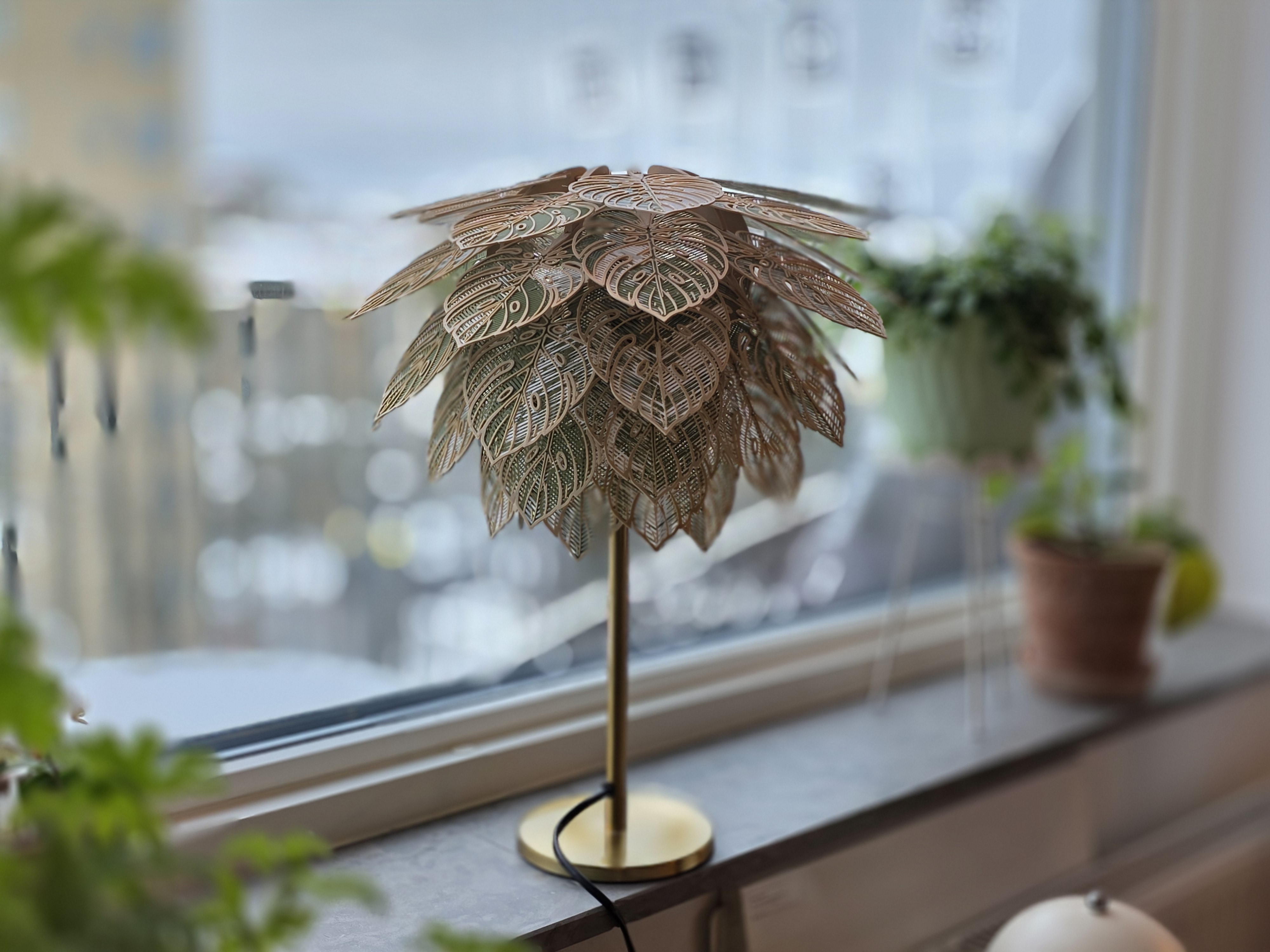

The lamp can be assembled either as a pendant lamp or mounted on a lamp foot, depending on how you want to use it.

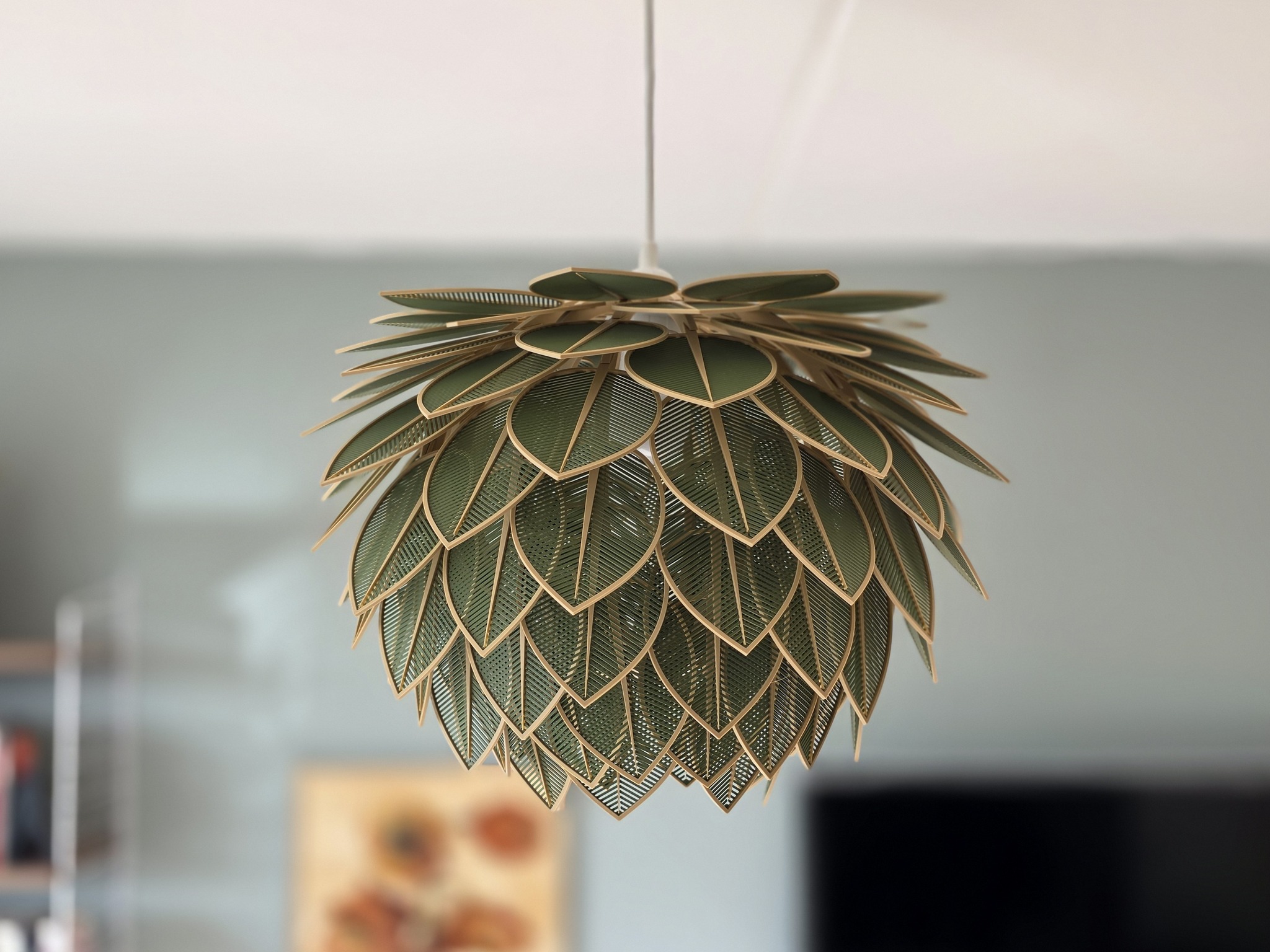

I also included an alternative print profile for the leaves with a solid green section instead of the notched pattern. For best results, I recommend printing the solid green part in a translucent material, as an opaque filament may block too much light.

Printing notes

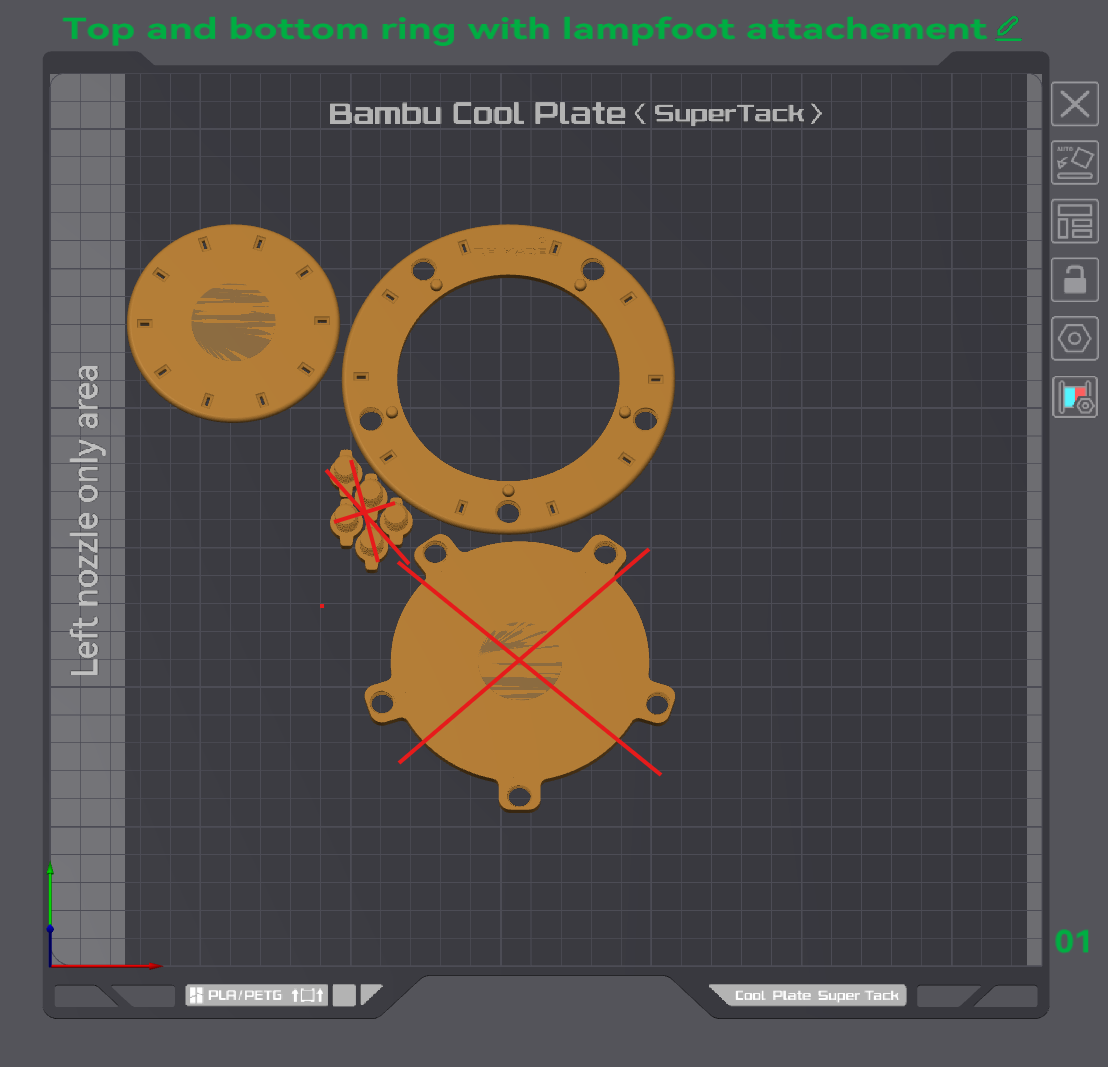

Depending on your setup, you do not need to print all parts from Plate 1.

Lamp foot version

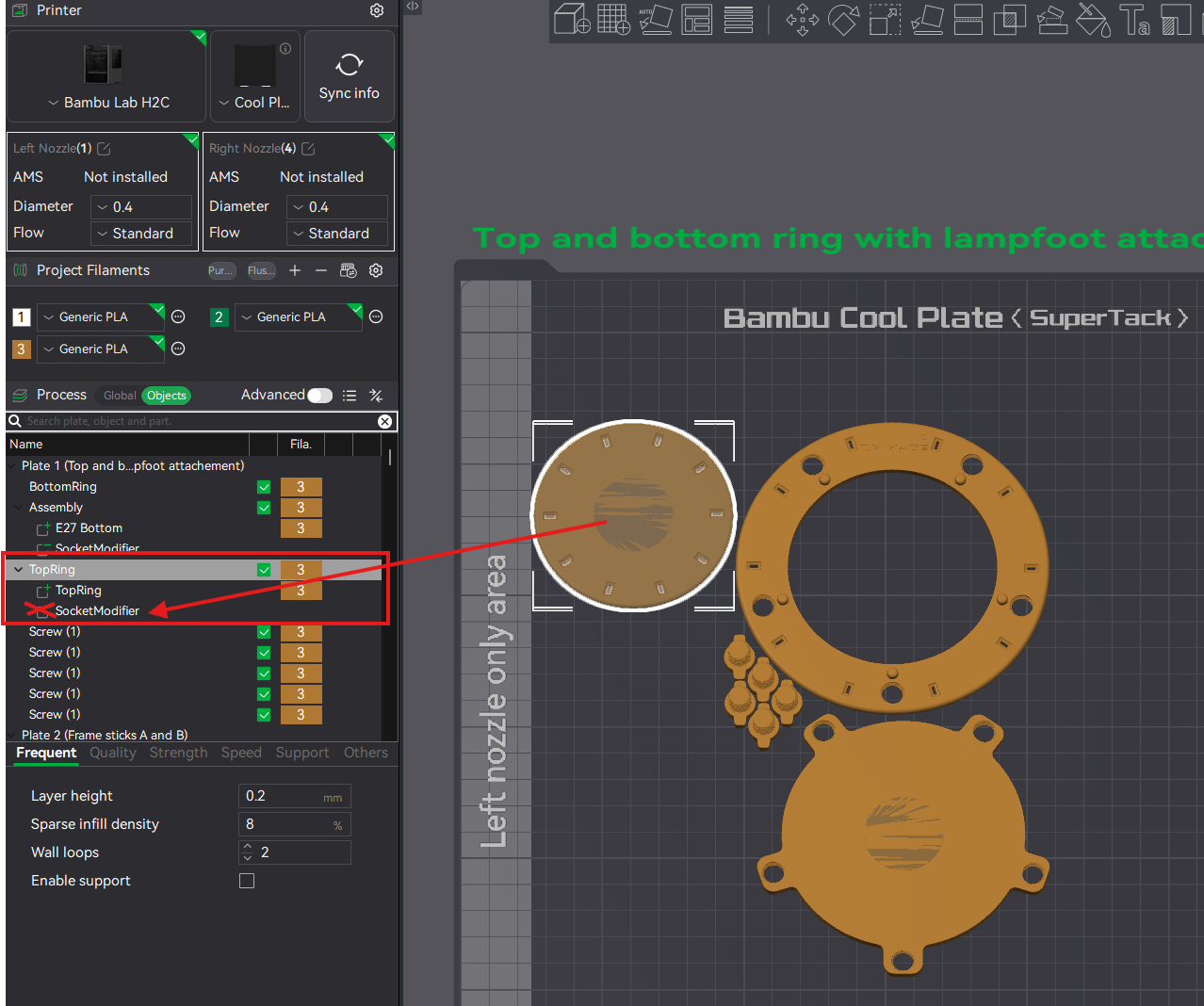

Remove the part called Socket modifier from the Top Ring assembly.

Pendant version

Remove the LampFootHolder and all screws.

Both the Top Ring and LampFootHolder include a negative modifier.
These can easily be scaled to match the socket you are using.
The default size is set to 28 mm (E14).

⚠️ Only use LED lights.
Please see Assebly guide! :)

You can also see a quick assembly video on my:
