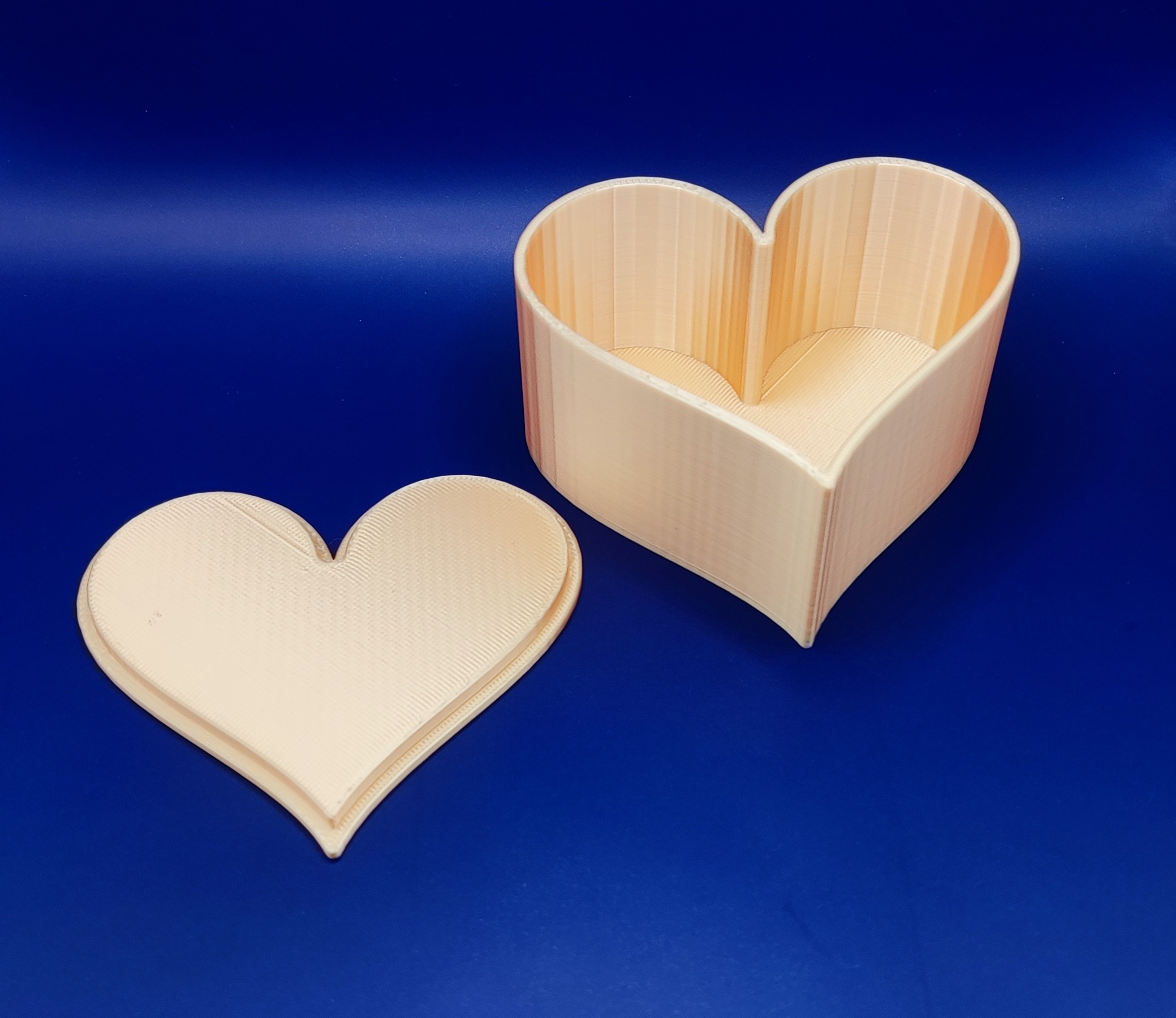

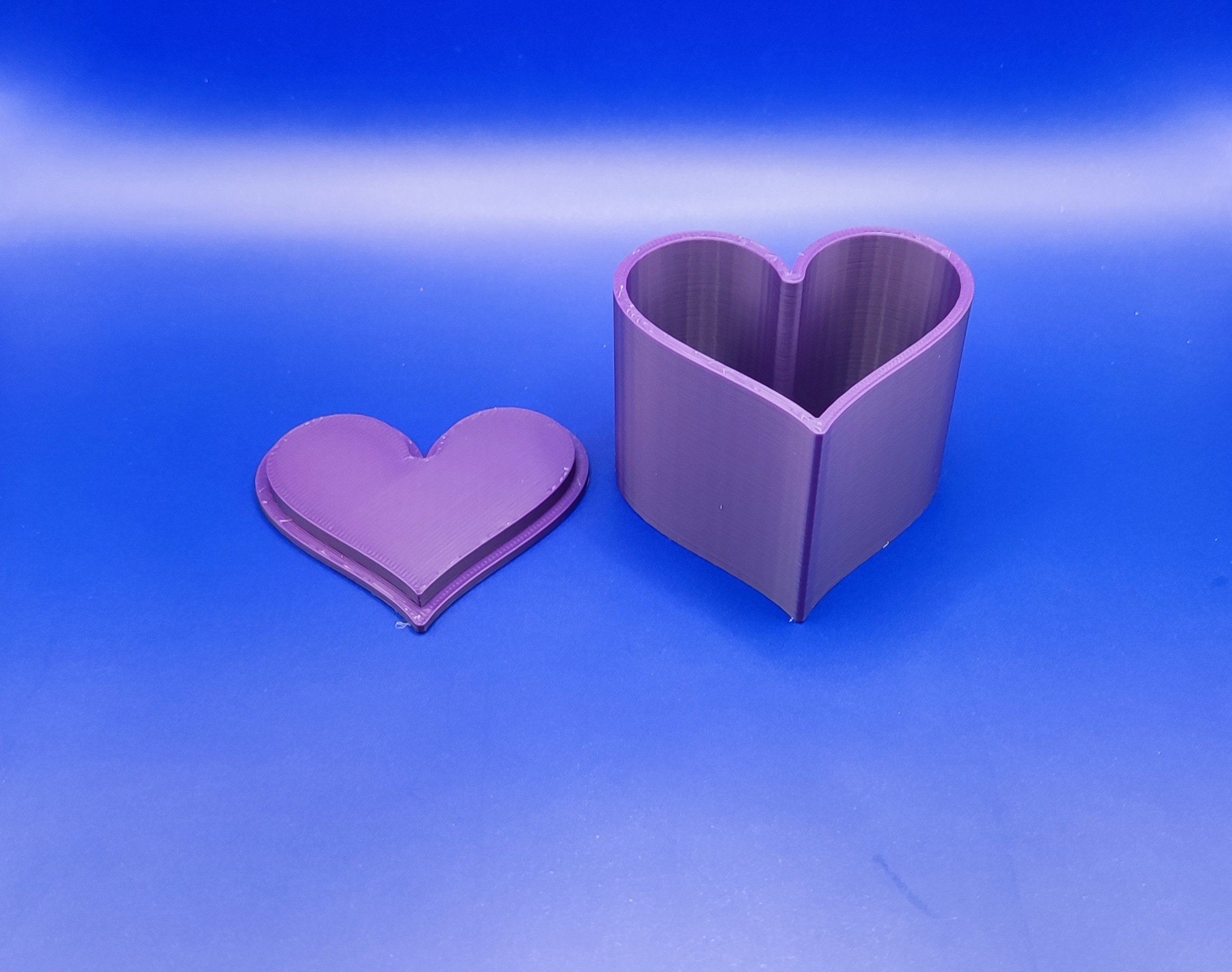

Make this Valentine’s Day extra special with a custom heart-shaped box! This generator lets you create a perfectly sized box with your own text engraved on the lid. Building on my original box generator, this Valentine’s edition adds the option to personalize it with your own heartfelt message for a unique and meaningful touch.

Key Features:
- Custom Text: Add up to two lines of text (Names, Dates, "I Love You", etc.).
- Flush Inlay: The text is designed to be 0.4mm deep (2 layers) by default, creating a smooth, flush surface when printed face-down.
- Perfect Fit: Adjustable tolerance settings ensure the lid fits the box perfectly, regardless of your printer's accuracy.
- Fully Parametric: Resize the heart size, box height, and wall thickness to suit your needs—from a tiny ring box to a large gift container.

How to Customize:
Click the "Customize" button to open the Makerworld Customizer, modify the text, size, and colors, then download.

PARAMETER EXPLANATION

--- Text Settings ---

• Text Line 1:  The main text to display (e.g., "Love").
• Text Line 2: Optional second line (e.g., "You"). Leave this empty to automatically center Line 1.
• Text Size: Controls the font size of the message.
• Text Depth: How deep the text goes into the lid. 0.4mm is recommended for flush printing (usually 2 standard layers).
• Line Spacing: Adjusts the vertical gap between Line 1 and Line 2.
• Text Offset Y: Moves the text up or down to visually center it on the heart shape.
• Flip Lid in Preview:
  • Check this box to read the text normally in the preview window.
  • Uncheck this box before downloading if you want the lid exported in the flat printing position (face down).
• Text Font: Sets the font
  • See all available fonts here: [https://makerworld.com/en/models/2170625-makerworld-font-previewer-all-fonts-in-one-place](https://makerworld.com/en/models/2170625-makerworld-font-previewer-all-fonts-in-one-place)

--- Dimensions ---

• Heart Size (X): The total width of the heart shape.
• Box Height: The total exterior height of the bottom container.
• Wall Thickness: How thick the walls and floor are. Higher values make the box sturdier.

--- Lid & Fit Settings ---

• Lid Thickness: The thickness of the top plate of the lid.
• Lid Lip Depth: How deep the rim extends into the box.
• Tolerance (Clearance): Controls the gap between the lid and the box.
  - Value 1 = 0.1mm gap (Tight fit)
  - Value 2 = 0.2mm gap (Standard fit)
  - Value 3 = 0.3mm gap (Loose fit)
• Extra Spacing: Adjusts the distance between the box and lid when viewing "Both Side by Side".

--- General ---

• Part to Generate:
  • Box Only: Downloads just the bottom container.
  • Lid Only: Downloads just the top cover.
  • Both (Side by Side): Downloads both parts in one file.
• Colors: Change the preview colors (does not affect the STL file itself, but helps visualize the design).
