适用于40铝型材的键盘支架，是可旋转的！

转动丝滑，随意悬停。

预留了4个6x2的磁铁孔位，可供选择使用。

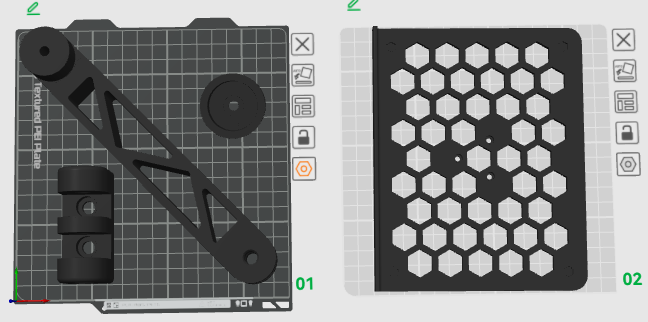

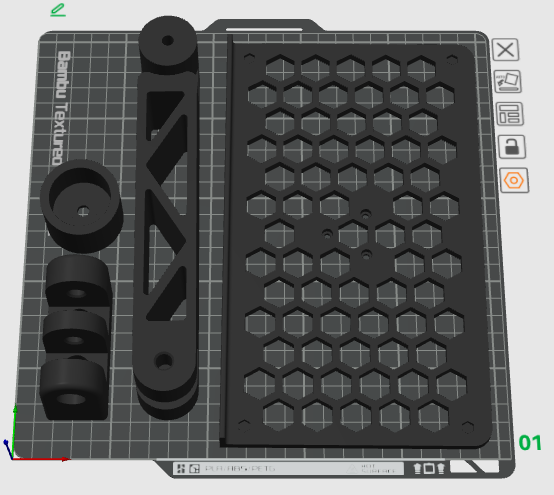

因为我的打印机是A1 MINI，图片中键盘托已经是能打印的最大尺寸了，但我还设计了更大的键盘托板，有其他打印机可以打印那个配置~

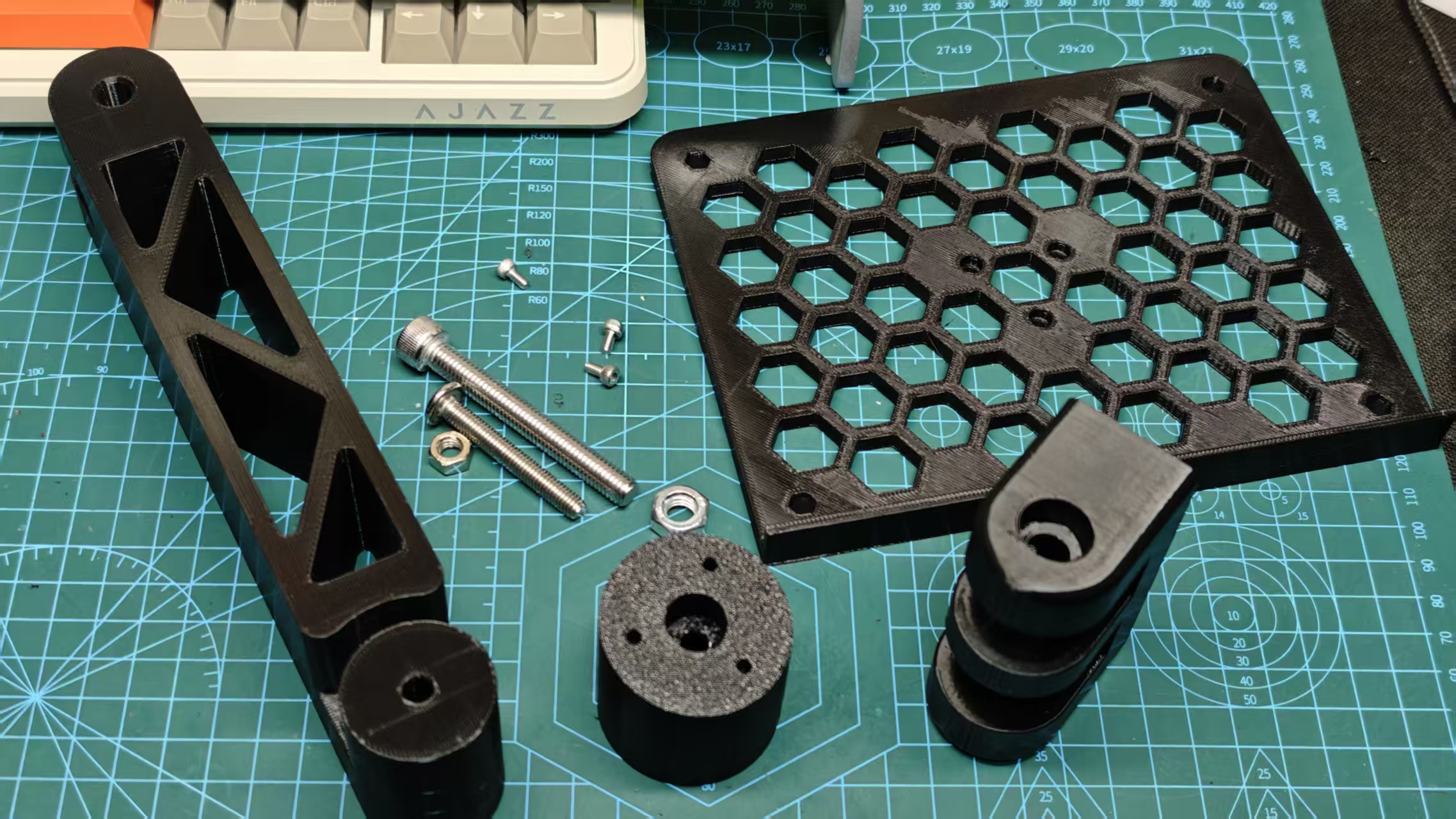

需要的零件：

M8x65 内六角螺钉  1PCS

M8 六角螺母 1PCS

M6x45 内六角螺钉  1PCS

M6 六角螺母 1PCS

M3x6 内六角螺钉  3PCS

与型材连接：

M8x16 内六角螺钉  2PCS

M8 T型螺母 2PCS

A keyboard stand suitable for 40 aluminum profiles, which is rotatable!

Smooth rotation, can hover freely.

4 positions for 6x2 magnets are reserved, which can be used as an option.

Since my printer is A1 MINI, the keyboard tray in the picture is already the maximum size that can be printed, but I have also designed a larger keyboard tray, and other printers can print that configuration~

Required parts:

M8x65 hexagon socket head cap screw 1PCS

M8 hex nut 1PCS

M6x45 hexagon socket head cap screw 1PCS

M6 hex nut 1PCS

M3x6 hexagon socket head cap screw 3PCS

Connection with profiles:

M8x16 hexagon socket head cap screw 2PCS

M8 T-nut 2PCS
