LEV360 – 360° Workstation with Slot System, Ball-Bearing Turntable, Suction & Blower Function

LEV360 is a modular all-in-one workstation for makers who want to securely fixture parts, rotate them comfortably, and keep the workspace clean and organized.

At its core is a 360° turntable with slots, allowing you to mount a wide range of clamping and holding systems using T-nuts/slot nuts. This makes LEV360 highly adaptable—from small components to larger assemblies.

The turntable is equipped with rollers/ball bearings, enabling very smooth, low-friction rotation.

That’s great for hands-on work—and it also makes LEV360 an excellent 3D scanning turntable: objects can rotate consistently for clean scan sequences.

At the same time, it works perfectly as a photobox/product photo setup.

In addition, a vacuum cleaner kit is fully integrated into the housing (vacuum motor, vacuum filter, controller, switch, and battery).

This gives LEV360 2 functions:

💨 Blower function: for cleaning and drying directly at the workstation
🧲 Suction function: with a suction intake above the workpiece to help remove fumes/dust/particles during processing (depending on your setup and material). For quick table cleanup, there is an integrated pocket/intake area in the left corner: debris can be swept or blown into it and then vacuumed away—a fast workspace reset without the mess.

✨ Highlights

🔄 360° turntable with slot system (ball-bearing supported)
⚙️ Rollers/ball bearings for ultra-smooth rotation
🧩 Slots + T-nuts for flexible clamping and fixture setups
🎯 Rotate the workpiece instead of moving it: faster, cleaner, more precise

🌬️ Integrated suction & blower
🧰 Vacuum cleaner kit inside the housing: motor, filter, controller, switch, battery
💨 Blowing: clean and dry
🧲 Vacuuming: remove fumes/dust/particles (depending on use case)

🧹 Clean table reset via vacuum pocket
📍 Left corner: sweep or blow debris in
🧲 Gets vacuumed instantly—ideal for quick cleaning cycles

🛠️ Use Cases

🖨️ 3D printing post-processing (deburring, sanding, cleaning)
🧷 Gluing and assembly work with stable fixturing
🎨 Painting/finishing: rotate instead of touching
🧩 Model making, props, cosplay parts
🧼 Cleaning/drying the workspace, controlling dust and particles
📡 Also ideal as a 3D scanning turntable (consistent 360° rotation)
📸 Also ideal as a photobox/product photo station (secure positioning, rotate, capture multiple angles)

ADD-ONS

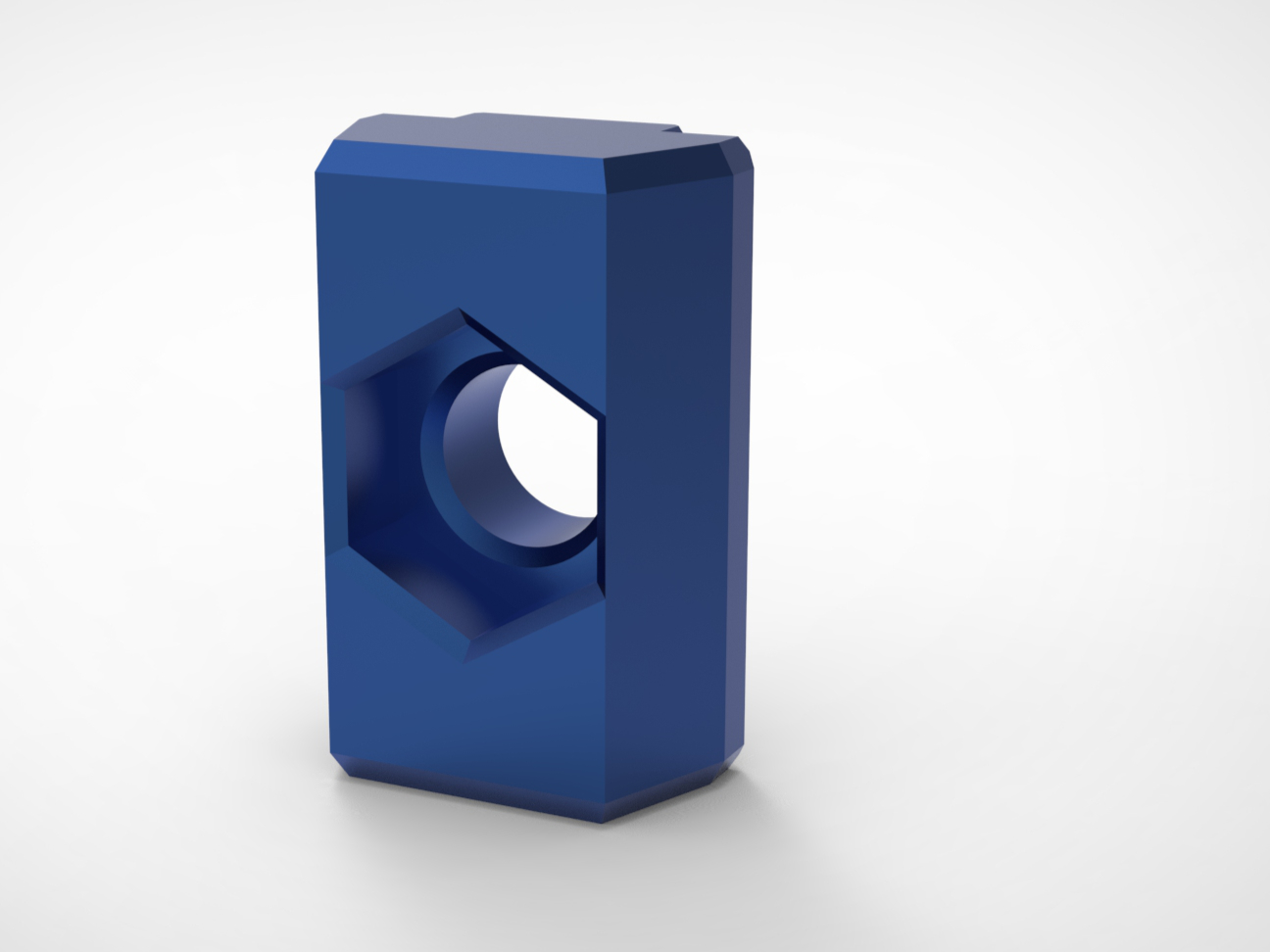

T-NUT M5	This add-on is required for attaching components to turntable and flexadapter. It is compatible with M5 screws. An M5 nut is required and must be press-fitted.	[https://makerworld.com/de/models/961136-t-nut-m5-for-circusmod-lev360#profileId-931110](https://makerworld.com/de/models/961136-t-nut-m5-for-circusmod-lev360#profileId-931110)

UPDATES

UPDATE 3: 21.01.2026

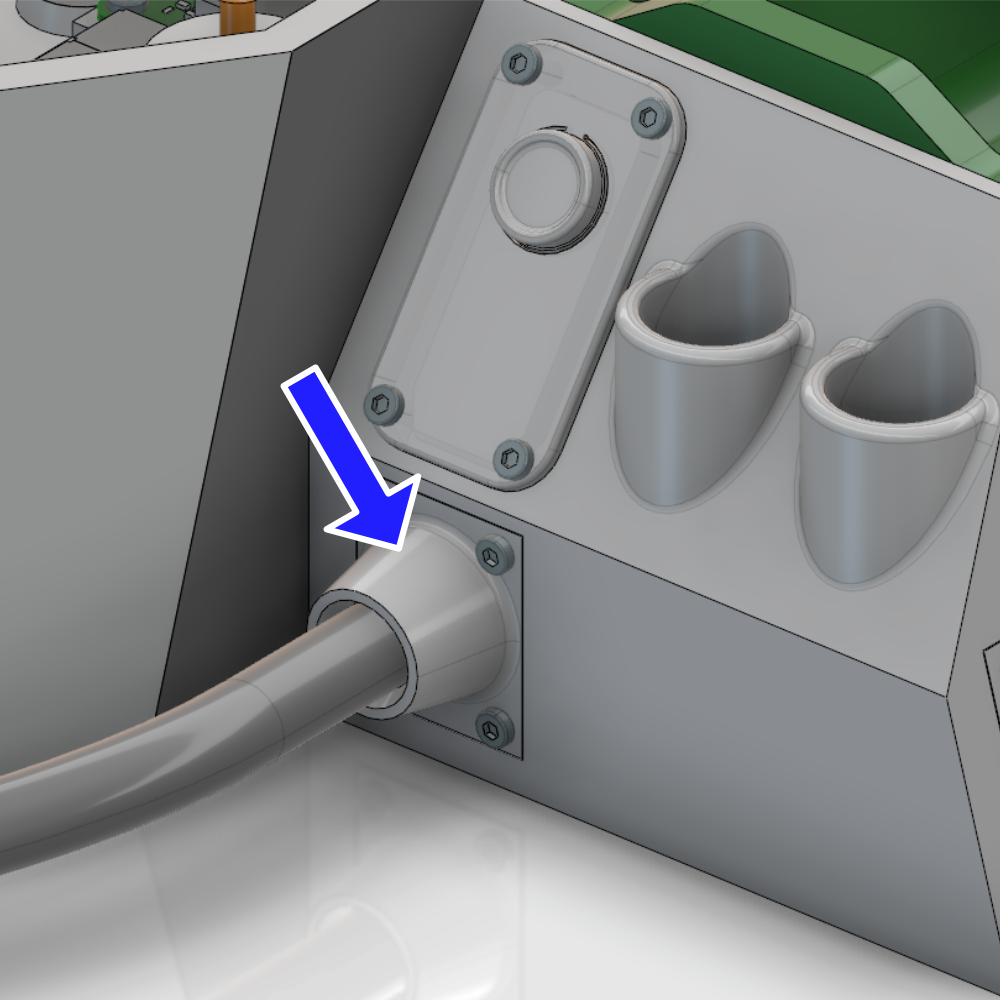

NEW ADAPTER	With this connector adapter, you can securely attach and use a silicone hose with an 8 mm outer diameter. It works much better because it allows more airflow.

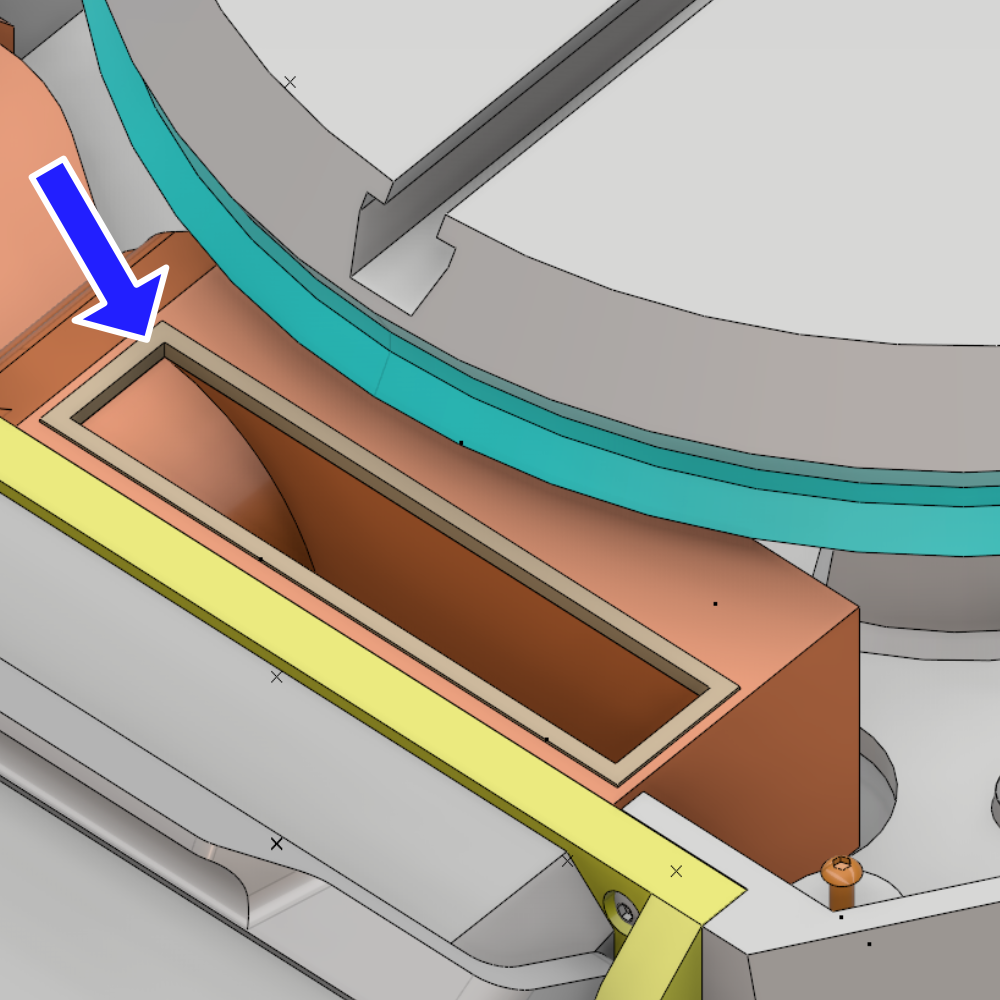

NEW SEAL	Added a seal for the motor housing.

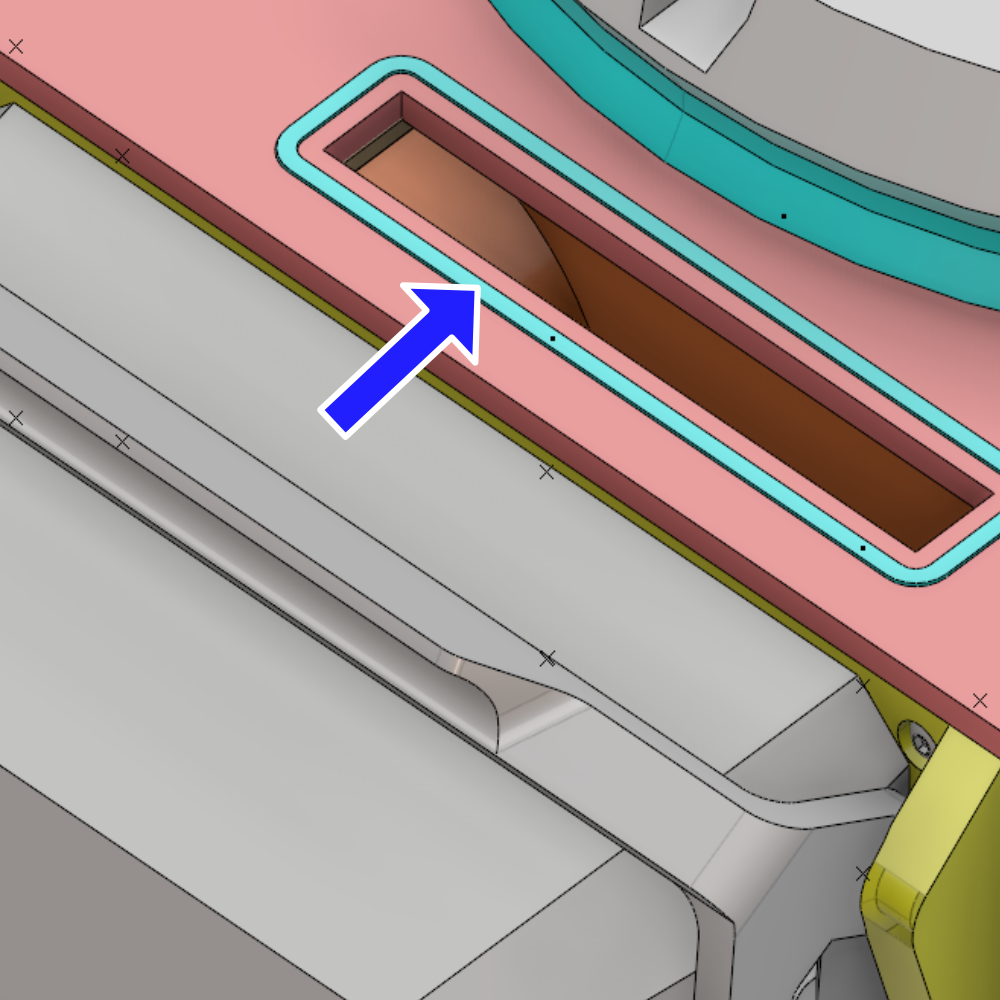

NEW SEAL	Added a seal for the cover.

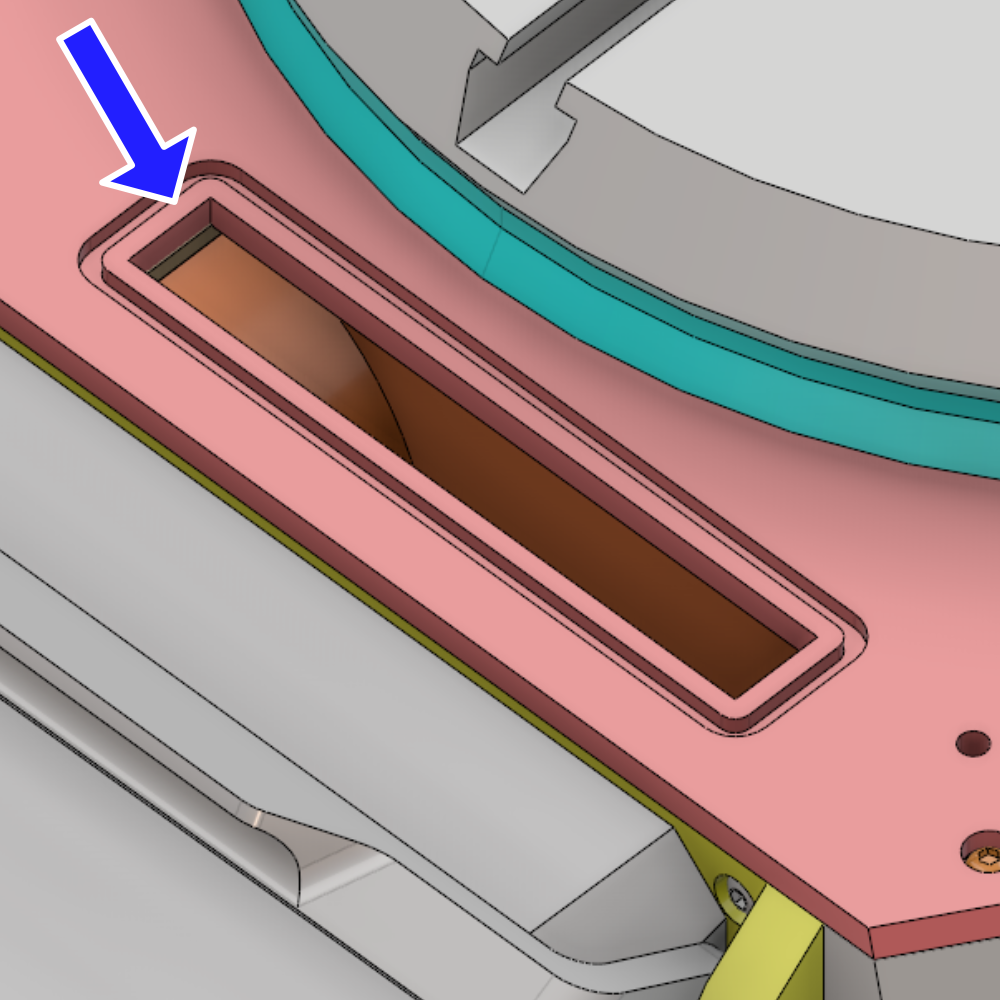

COVER PLATE	I published the flex adapters in the previous update. Therefore, I had to optimize the cover plate’s air outlet.

UPDATE 2: 19.01.2026
NEW VARIANT FLEXADAPTER	With this adapter plate, you can attach your own applications using T-slot nuts. The matching T-slot nuts will be released soon.
LICENCE	The licensing has been changed to the MakerWorld Exclusive License, so you can create your own remixes.
Step Files	In my opinion, I’ve published the most important interface as a STEP file.

UPDATE 1: 18.01.2026
CABLE PROTECTION	NEWLY ADDED
MOTOR ENCLOSURE	GROOVE FOR SEAL ADDED
LID	GROOVE FOR SEAL ADDED
SHIELD	AIR OUTLET ENLARGED
TURNTABLE	HOLE ENLARGED
SPACER TURNTABLE	SPACER REPLACED WITH SLEEVE

😊 Have fun with the model. Let me know if you have any suggestions for improvements.
