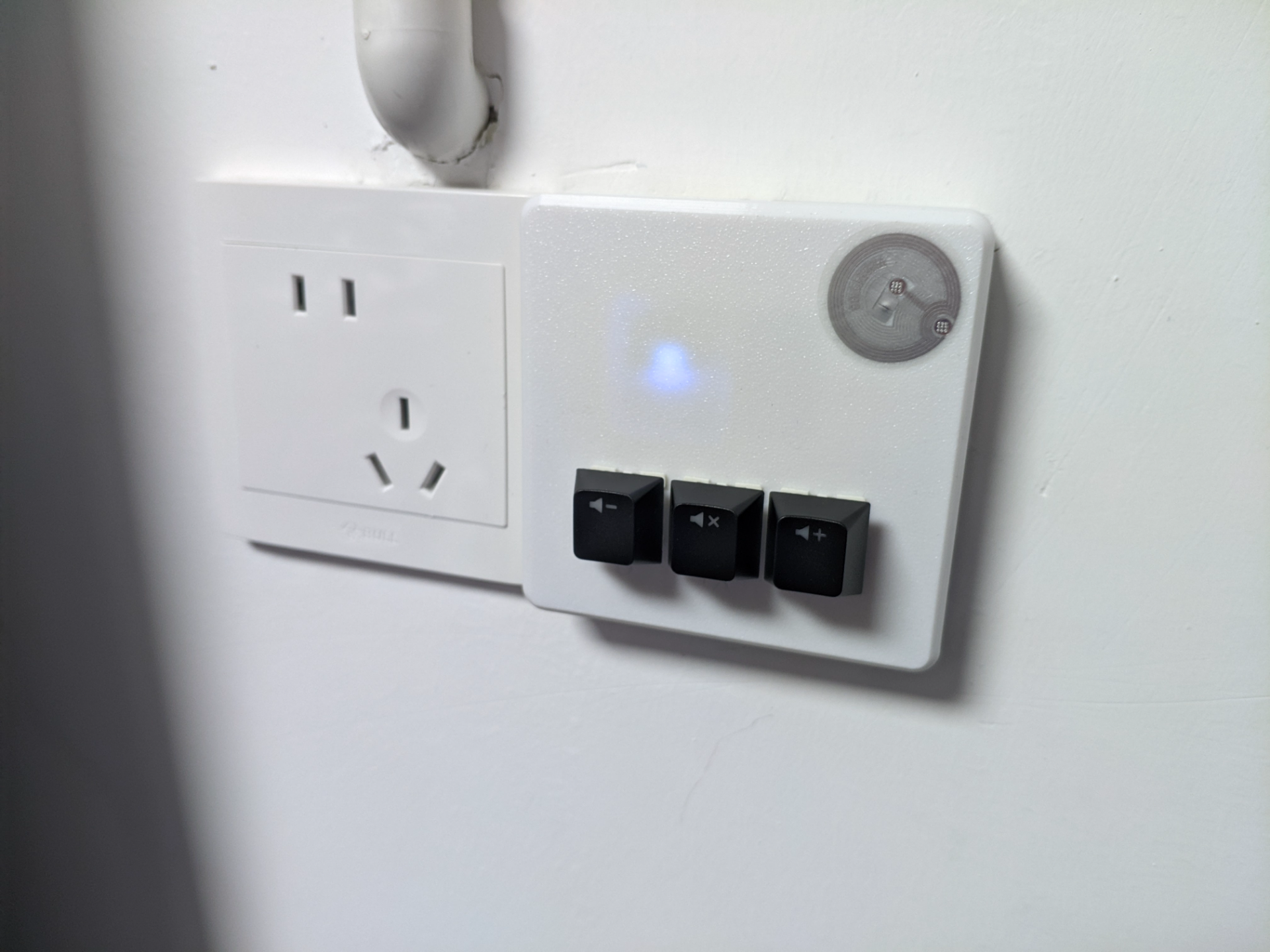

智能86面板

用该面板将灯具接入hass避免钻入被窝后才发现未关灯的窘境

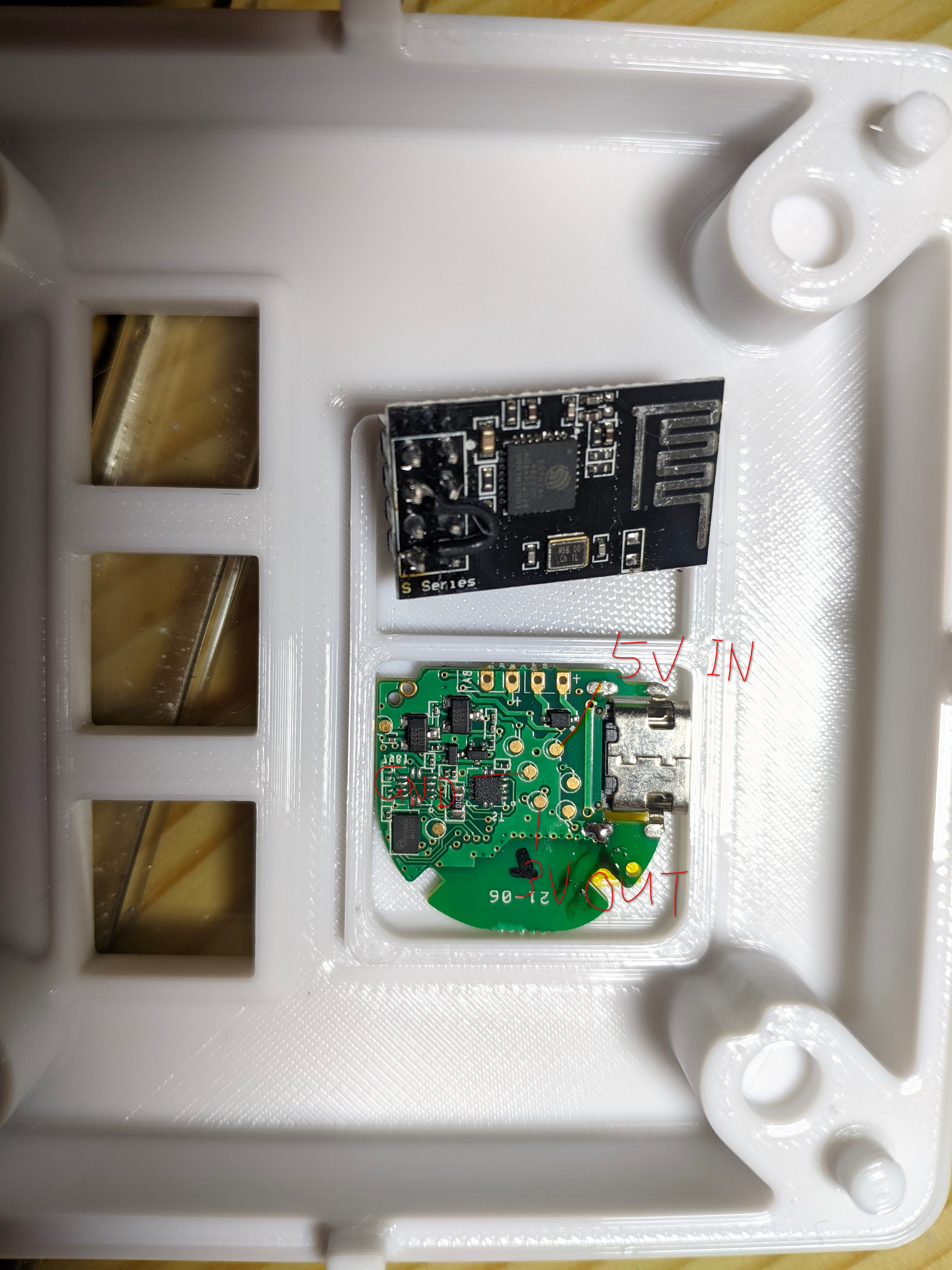

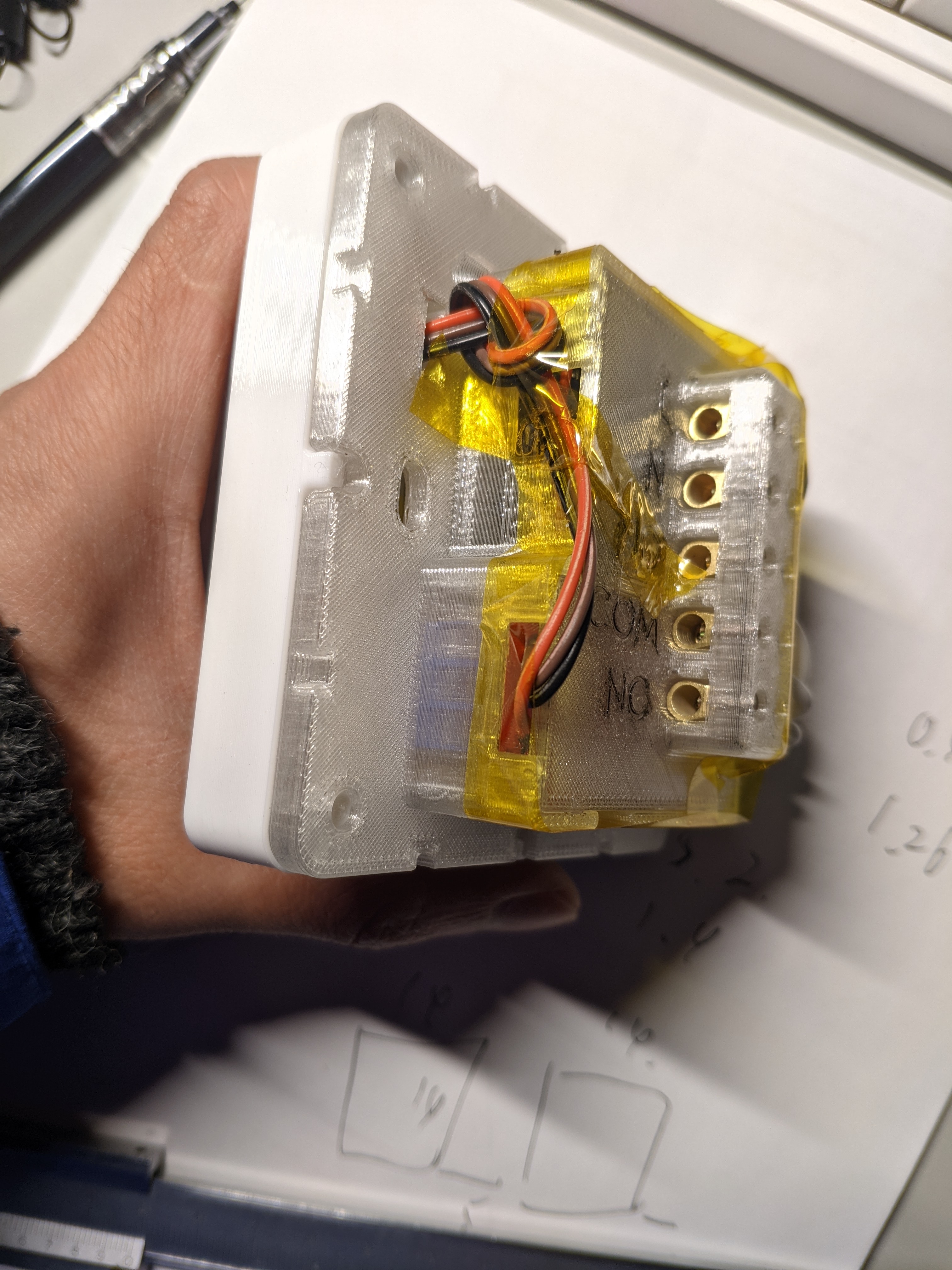

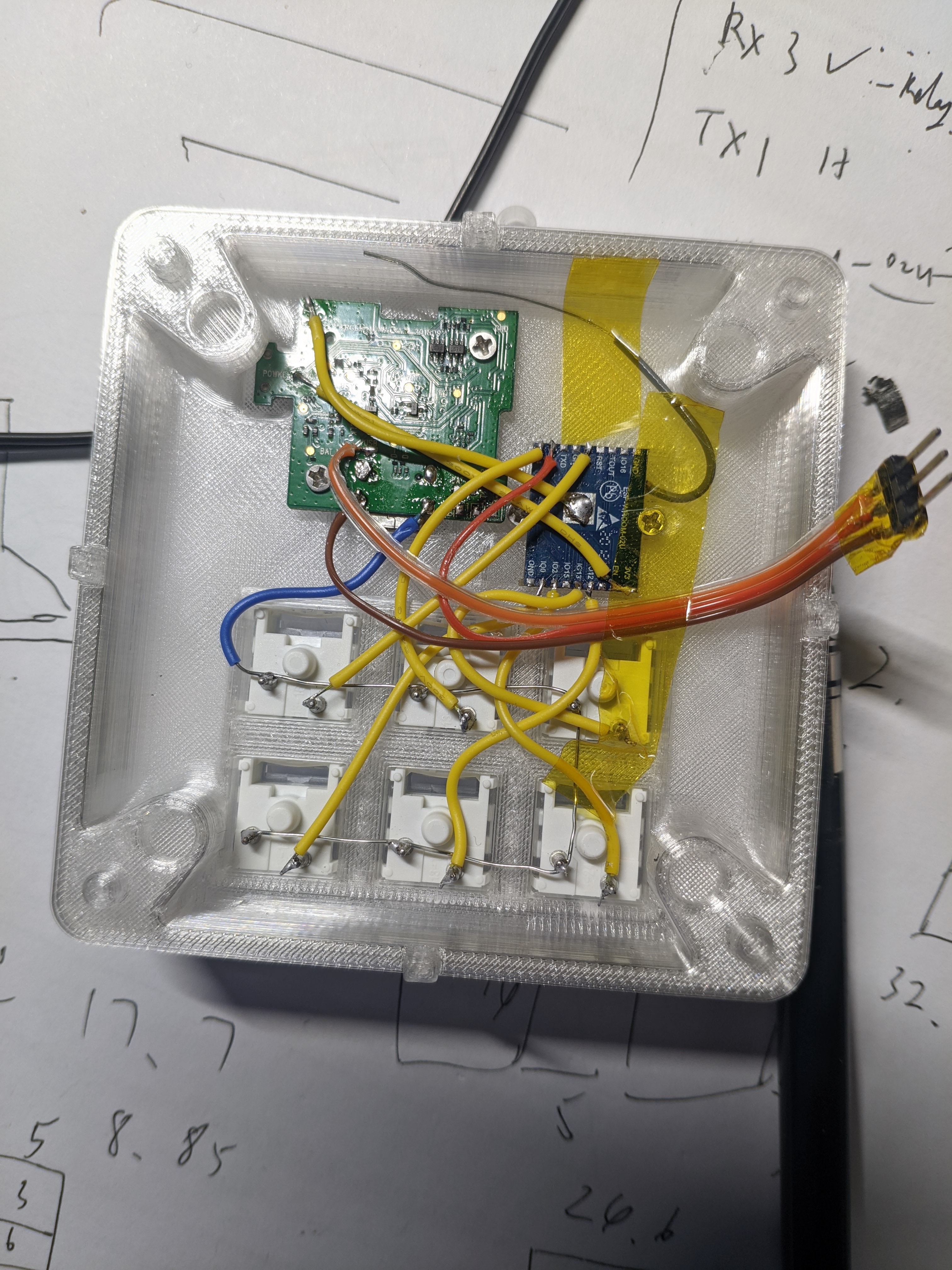

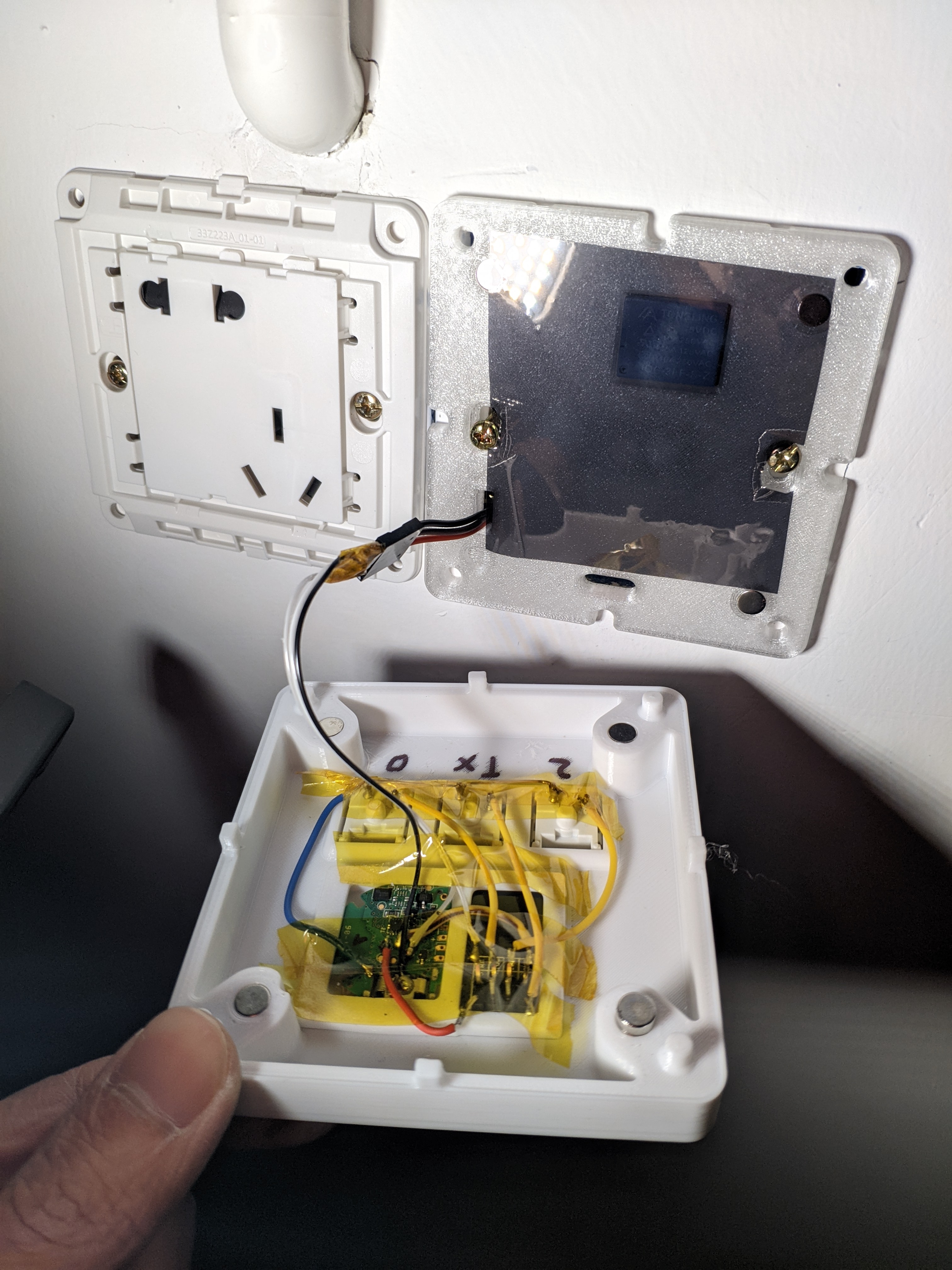

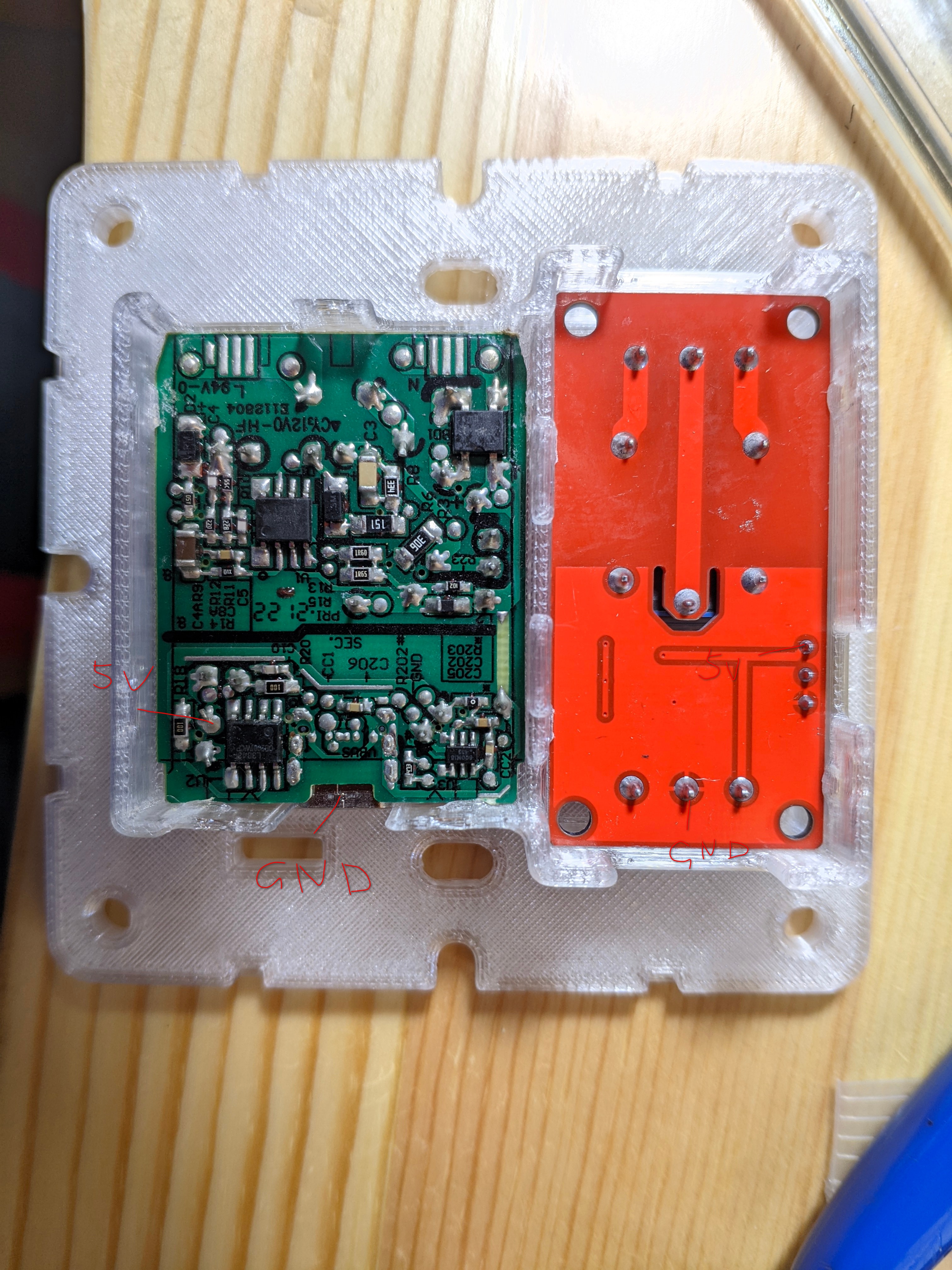

只需要简单的ESP8266 + 机械轴 + 打印件即可完成。强弱电隔离，使用卡扣固定零件，降低漏电风险。强电端引出5v gnd 以及继电器控制引脚与控制端连结。控制端做了磁吸可拆卸设计，方便后续更新。

可以通过hass同时控制多个设备

图片中采用便宜的8285模块，最大引出4个gpio脚位。后续可根具自己的需要跟换为esp32，可以引出更多gpio脚位，增加更多按键控制更多智能家居，或者增加屏幕模块或者增加人体存在传感器实现更多功能。

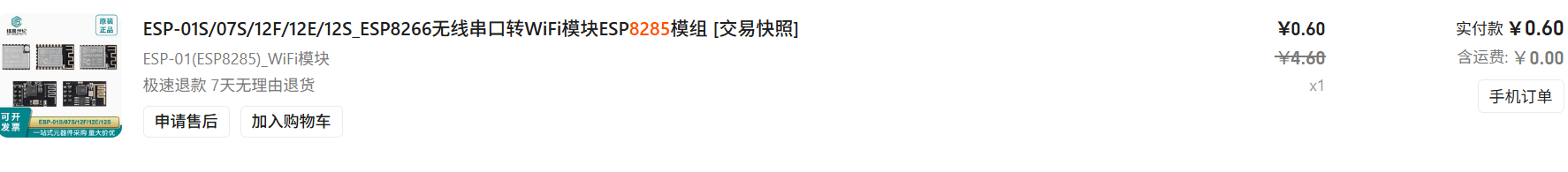

需要esp-01

6*2.5圆柱磁铁

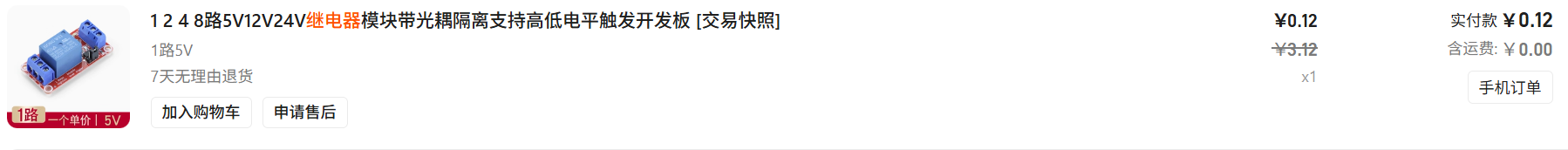

5v继电器

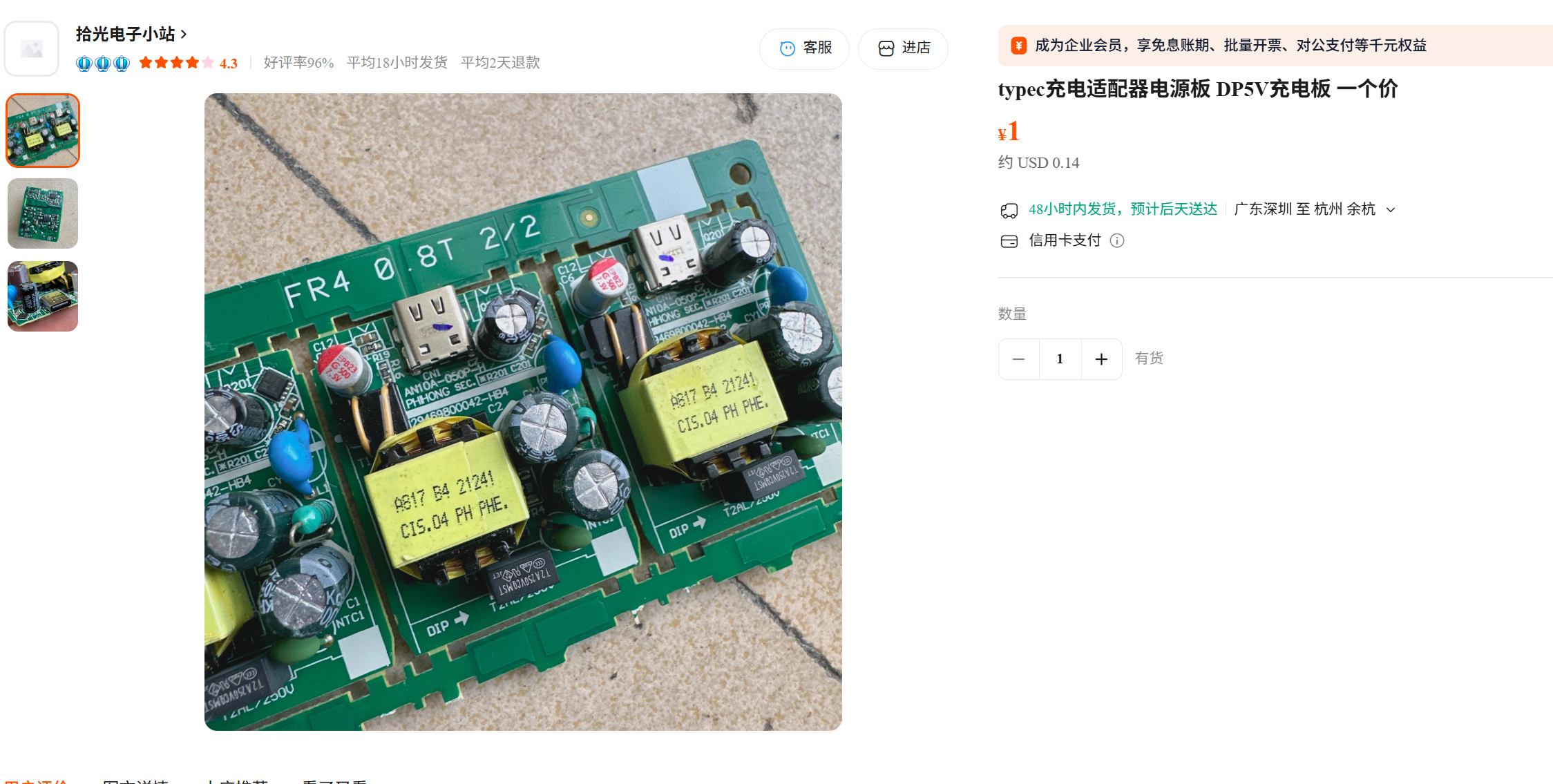

5v充电板

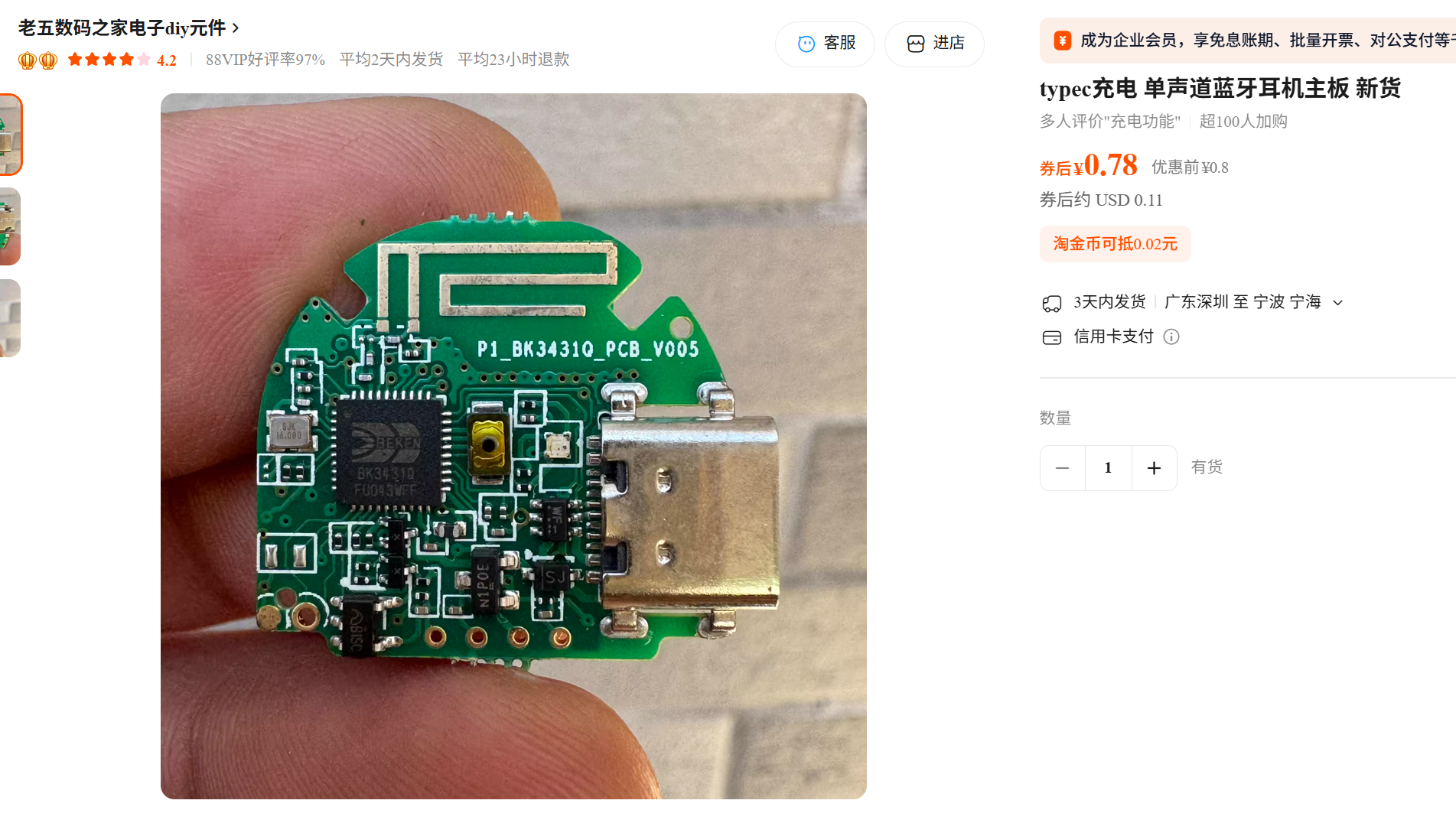

5v转3v小板(该小板体积小自带typec口，可给电池充电可提供3v输出再加上便宜可以说是性价比十足了）

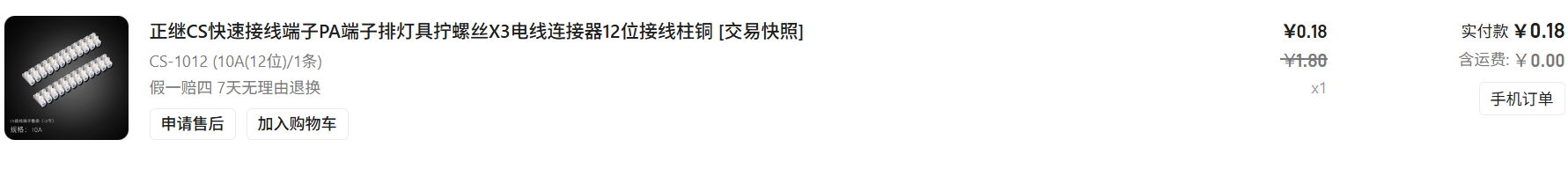

接线端子排

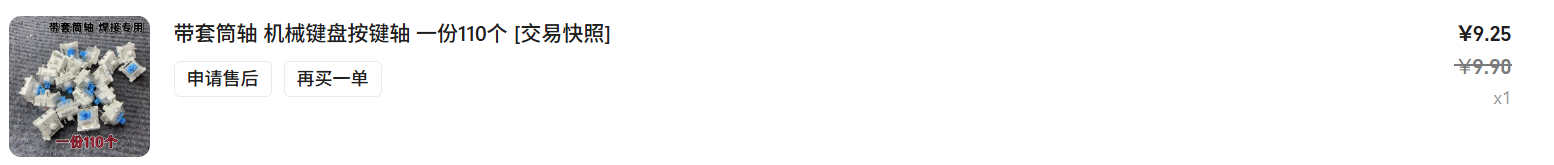

键盘轴体

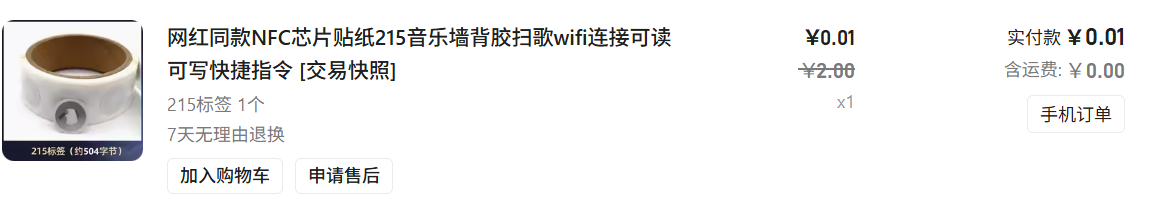

可根据需要在面板上贴nfc标签（拓竹官方耗材上会自带一个配合nfc tool即可写入数据）

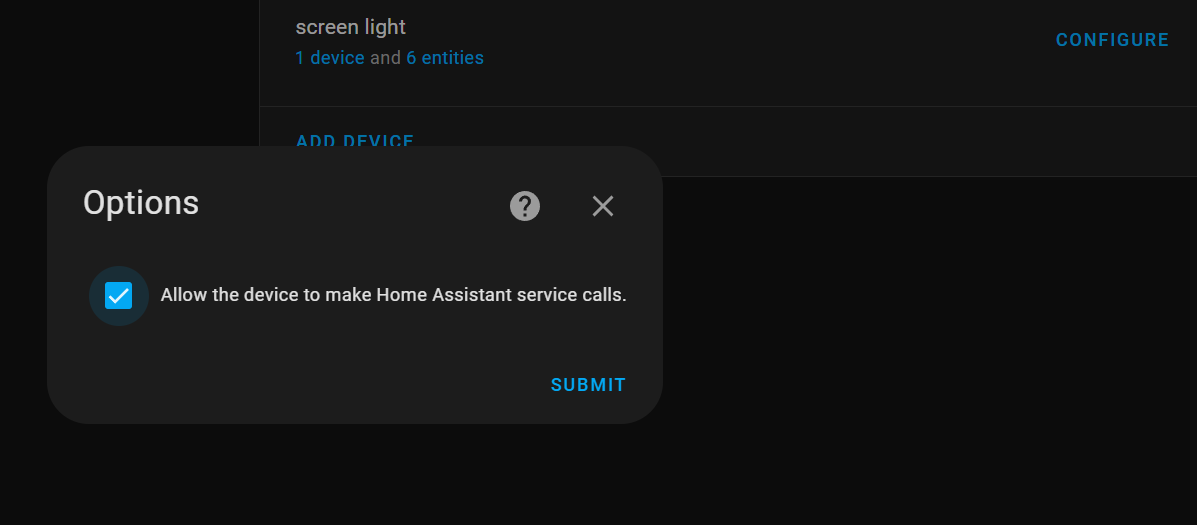

esphome配置，控制其它智能家居时需要在hass授予权限

web_server:

port: 80

sensor:

- platform: uptime

filters:

- lambda: return x / 86400.0;

unit_of_measurement: D

switch:

- platform: gpio

pin: GPIO5

id: relay1

restore_mode: RESTORE_DEFAULT_OFF

inverted: no

icon: "mdi:ceiling-light"

- platform: template

id: relay

lambda: |-

return id(relay1).state;

icon: "mdi:ceiling-light"

turn_on_action:

- switch.turn_on: relay1

- delay: 0.5s

- switch.turn_off: relay1

- delay: 0.5s

- switch.turn_on: relay1

- delay: 0.5s

- switch.turn_off: relay1

- delay: 0.5s

- switch.turn_on: relay1

turn_off_action:

- switch.turn_off: relay1

- platform: gpio

pin: GPIO12

id: Indicator_light1

restore_mode: RESTORE_DEFAULT_OFF

inverted: no

icon: "mdi:led-on"

- platform: gpio

pin: GPIO14

id: Indicator_light2

restore_mode: RESTORE_DEFAULT_OFF

inverted: no

icon: "mdi:led-on"

binary_sensor:

- platform: gpio

pin:

number: 4

mode: INPUT_PULLUP

inverted: True

id: button1

filters:

- delayed_on_off: 30ms

on_click:

- min_length: 20ms

max_length: 450ms

then:

- if:

condition:

- switch.is_on: relay

then:

- switch.turn_off: relay

else:

- switch.turn_on: relay

on_press:

then:

- delay: 0.5s

- if:

condition:

and:

- wifi.connected:

- api.connected:

then:

- if:

condition:

- binary_sensor.is_on: button1

then:

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.light_test_relay

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.light_3_relay

- switch.turn_off: relay

- platform: gpio

pin:

number: 0

mode: INPUT_PULLUP

inverted: True

id: button2

filters:

- delayed_on_off: 20ms

on_click:

- min_length: 20ms

max_length: 450ms

then:

- homeassistant.service:

service: switch.toggle

data_template:

entity_id: switch.light_test_relay

on_press:

then:

- delay: 0.5s

- if:

condition:

and:

- wifi.connected:

- api.connected:

- binary_sensor.is_on: button2

then:

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.light_test_relay

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.light_3_relay

- switch.turn_off: relay

- platform: gpio

pin:

number: 2

mode:

input: true

pullup: True

inverted: True

id: button3

filters:

- delayed_on_off: 20ms

on_click:

- min_length: 20ms

max_length: 450ms

then:

- if:

condition:

and:

- wifi.connected:

- api.connected:

then:

- homeassistant.service:

service: switch.toggle

data_template:

entity_id: switch.light_3_relay

on_press:

then:

- delay: 0.5s

- if:

condition:

and:

- wifi.connected:

- api.connected:

- binary_sensor.is_on: button3

then:

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.light_test_relay

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.light_3_relay

- switch.turn_off: relay

- platform: gpio

pin:

number: 1

mode:

input: true

pullup: True

inverted: True

id: button4

filters:

- delayed_on_off: 20ms

on_click:

- min_length: 20ms

max_length: 450ms

then:

- if:

condition:

and:

- wifi.connected:

- api.connected:

then:

- homeassistant.service:

service: switch.toggle

data_template:

entity_id: switch.power_strip_spotlight

on_press:

then:

- delay: 0.5s

- if:

condition:

and:

- wifi.connected:

- api.connected:

- binary_sensor.is_on: button4

then:

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.power_strip_track_light

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.power_strip_lamp2

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.power_strip_spotlight

- homeassistant.service:

service: light.turn_off

data_template:

entity_id: light.yeelink_lamp4_126e_light

- switch.turn_off: relay

- platform: gpio

pin:

number: 13

mode:

input: true

pullup: True

inverted: True

id: button5

filters:

- delayed_on_off: 20ms

on_click:

- min_length: 20ms

max_length: 450ms

then:

- if:

condition:

and:

- wifi.connected:

- api.connected:

then:

- homeassistant.service:

service: switch.toggle

data_template:

entity_id: switch.power_strip_track_light

on_press:

then:

- delay: 0.5s

- if:

condition:

and:

- wifi.connected:

- api.connected:

- binary_sensor.is_on: button5

then:

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.power_strip_track_light

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.power_strip_lamp2

- homeassistant.service:

service: switch.turn_off

data_template:

entity_id: switch.power_strip_spotlight

- homeassistant.service:

service: light.turn_off

data_template:

entity_id: light.yeelink_lamp4_126e_light

- switch.turn_off: relay

- platform: gpio

pin:

number: 3

mode: INPUT_PULLUP

inverted: True

id: button6

filters:

- delayed_on_off: 20ms

on_click:

- min_length: 20ms

max_length: 450ms

then:

- homeassistant.service:

service: light.toggle

data_template:

entity_id: light.yeelink_lamp4_126e_light

on_press:

then:

- delay: 0.5s

- if:

condition:

and:

- wifi.connected:

- api.connected:

- binary_sensor.is_on: button6

then:

# - homeassistant.service:

# service: light.turn_on

# data_template:

# entity_id: light.yeelink_lamp4_126e_light

# brightness_pct: '100'

# color_temp_kelvin: '4000'

- homeassistant.service:

service: switch.toggle

data_template:

entity_id: switch.xiaomi_h39h00_aec7_switch_status
