This insert fits almost all of the content from the three games Imperium Classic, Legends, and Horizons. The insert is used for the Imperium Horizons box.

There are different packaging sizes internationally. This insert fits perfectly in boxes with internal dimensions of 290 x 290 x 94 mm. Other packaging is usually larger, so additional spacers may need to be printed to prevent anything from slipping.

The boxes for the individual factions were created from this file: Transformer-Card-Box

Gamegenic Premium Sleeves measuring 66 x 91 mm were used. These and all smaller sleeve variants fit into the boxes.

The box on the first printing plate must be printed 30 times! The text can be selected and adjusted in Bambu Studio, making all languages possible. The texts on the second printing plate can also be adjusted.

There is a cut-out for the dice in the middle card tray. The middle card tray therefore has a slightly different design than the two outer variants, which differ only in the color of the upper section.

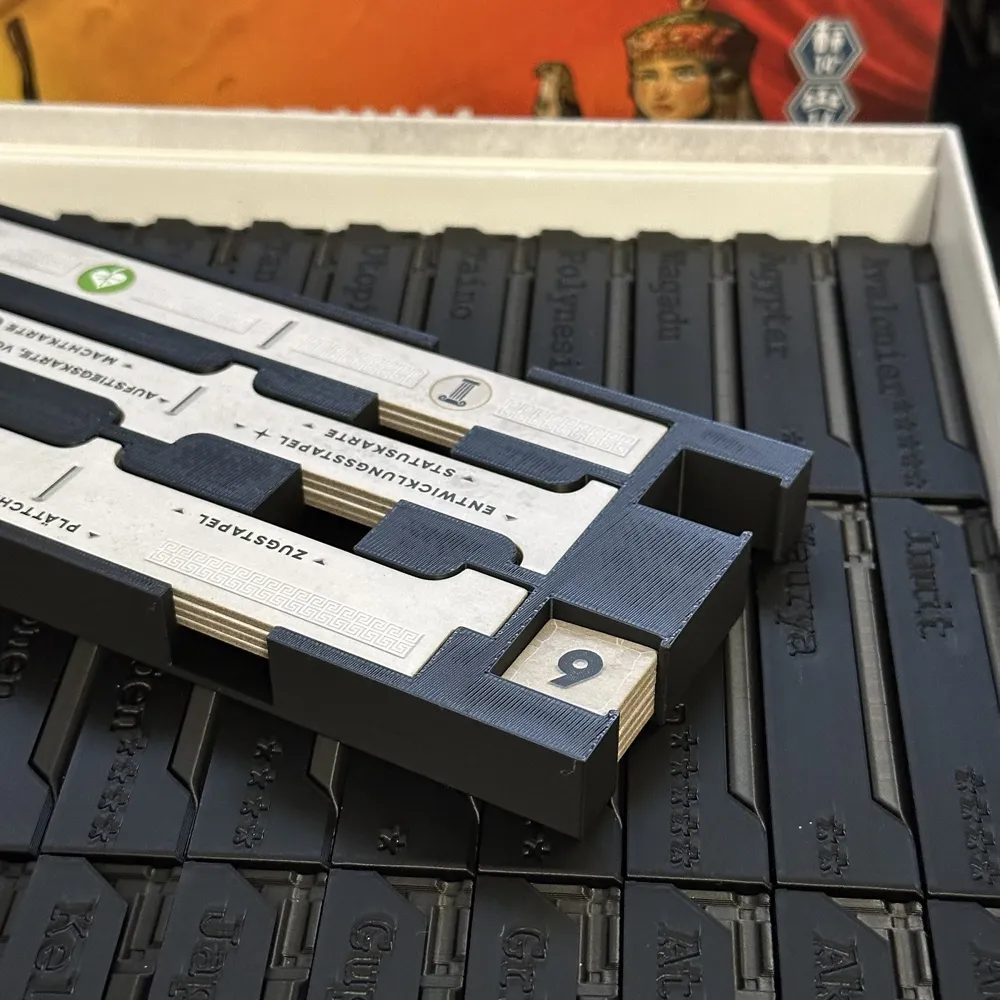

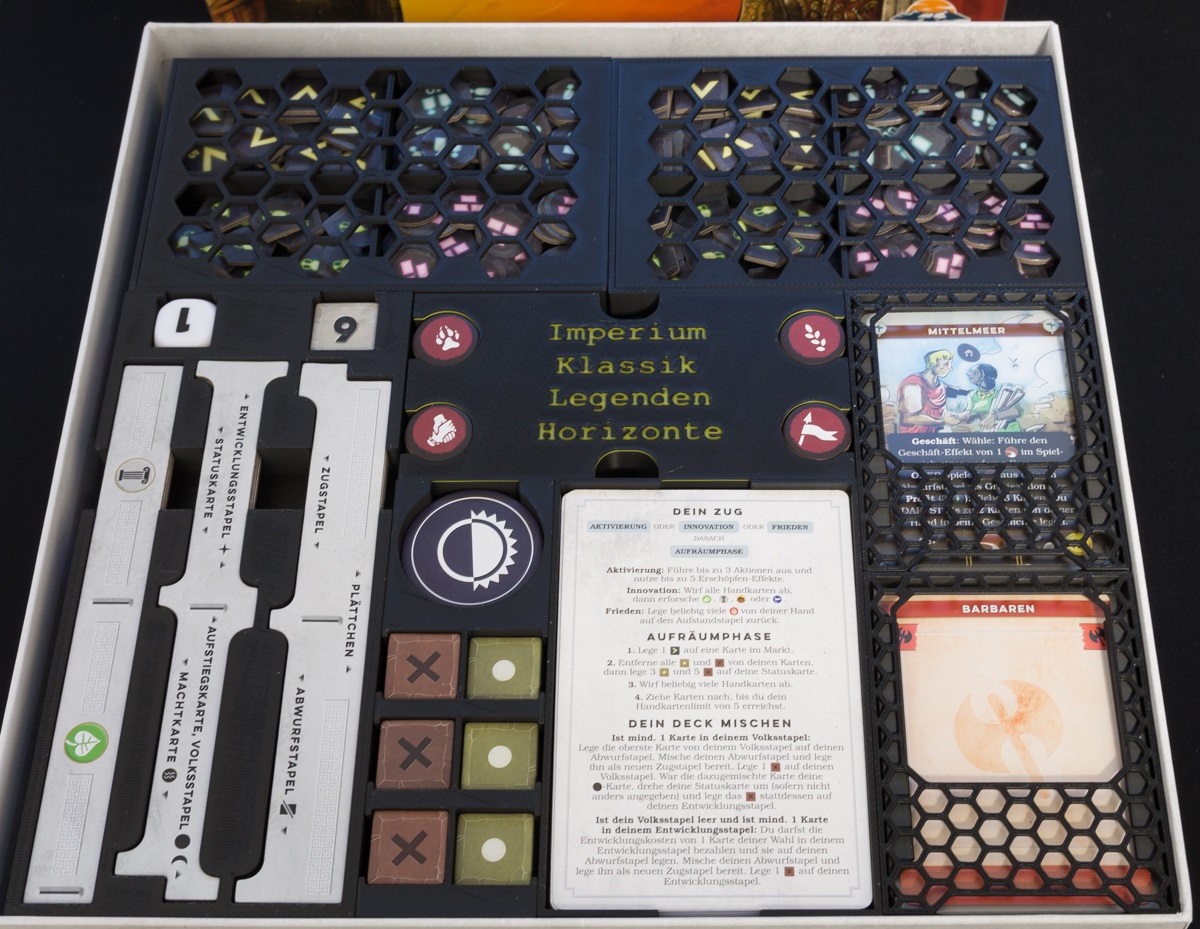

Where each material belongs should be self-explanatory or can be seen in the photos. Only the card slots need to be explained:

General cards are located in a box on top. The cards for the trade routes have been sorted into the second box. In the card trays, the order from right to left is: Tributary, Uncivilized, Region, Civilized, Fame, and 3-4 player cards.

The Imperium Horizons instructions and two keyword overviews can be placed on top without lifting the lid.

I would love to hear your feedback and comments on the design!
