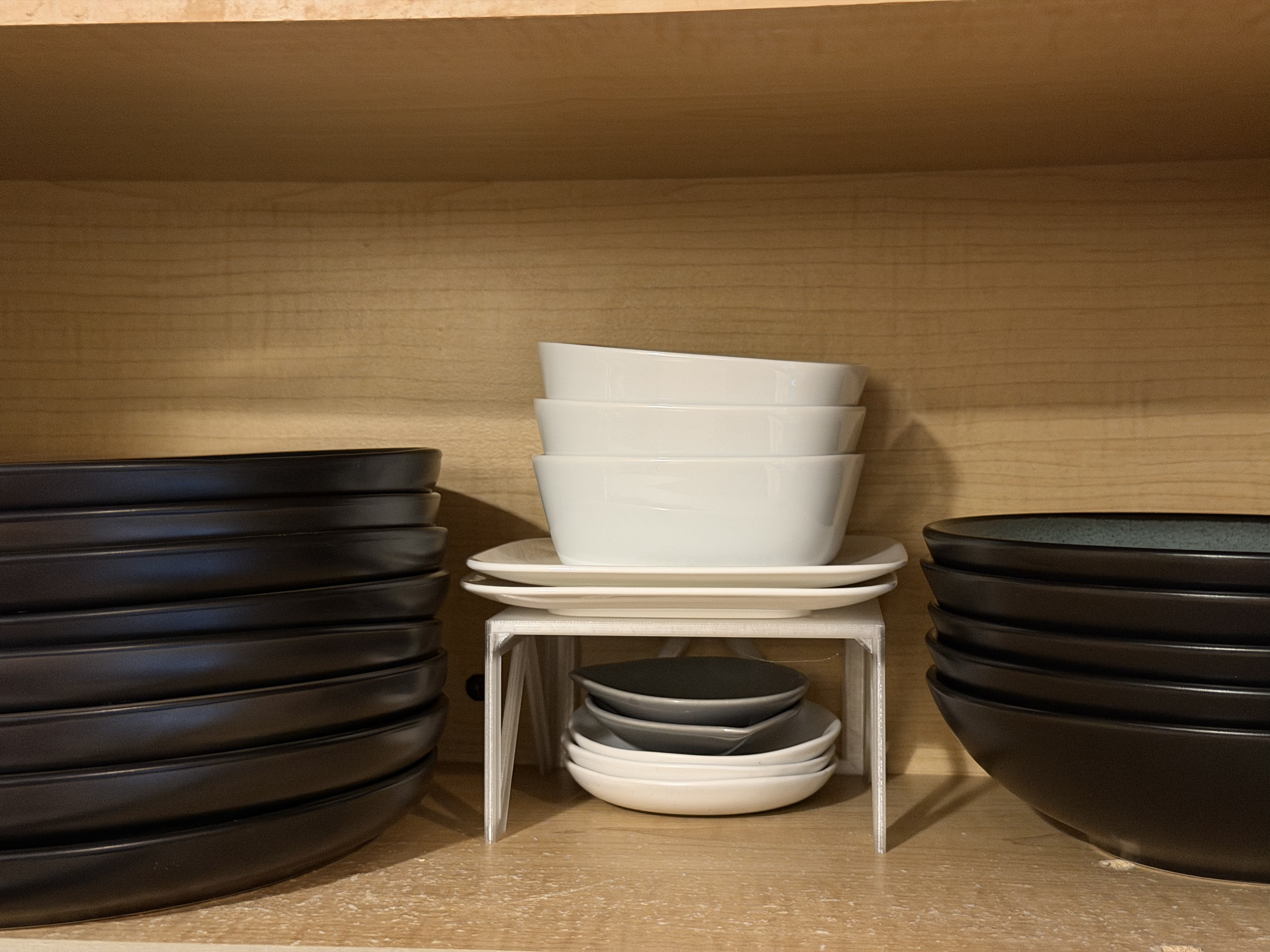

Maximize your kitchen storage with this heavy-duty cabinet riser. I designed this shelf specifically to safely hold heavy stacks of ceramic plates and bowls, doubling the usable space in your cupboards.

The design features a reinforced truss-style leg structure to prevent sagging under load, and a honeycomb top surface to keep material usage low without compromising strength.

📏 Dimensions & Specs

• Width: 250mm
• Depth: 230mm
• Height: 130mm
• Shelf Thickness: 7mm
• Side Panel Thickness: 5mm
• Compatibility: Designed to maximize the build volume of the Bambu Lab A1 / P1 / X1 series (256 x 256 x 256mm).

🖨️ Print Settings & Instructions

This model is optimized for easy printing with no supports required.

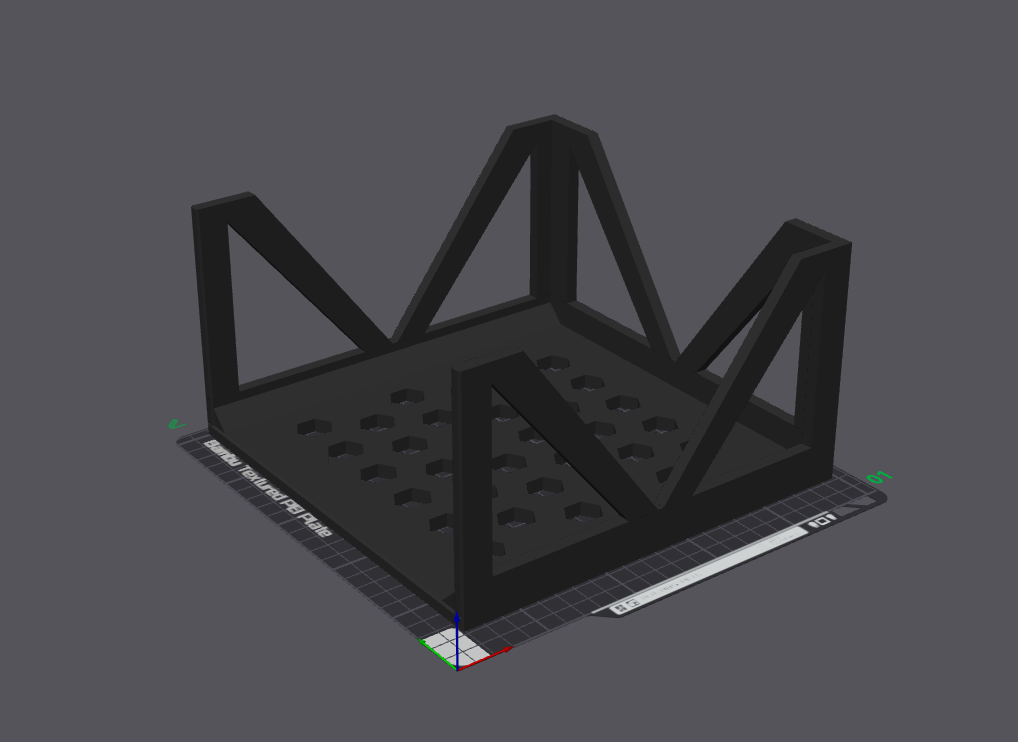

• Orientation: IMPORTANT! Print the object upside-down (with the top plate flat against the build plate).
• Supports: None needed (if printed upside-down).
• Material: PETG is recommended for its durability and slight flex, but PLA works perfectly fine for standard use.
• Wall Loops: 3 (Essential for strength).
• Infill: 10% Rectilinear (The structural strength comes mostly from the walls and the truss geometry).

If you find this model helpful for organizing your kitchen, please leave a like or a boost!
