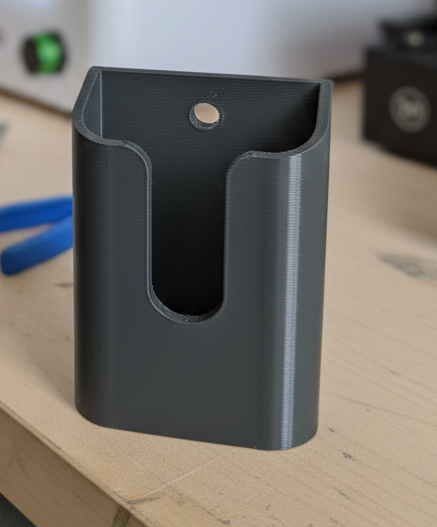

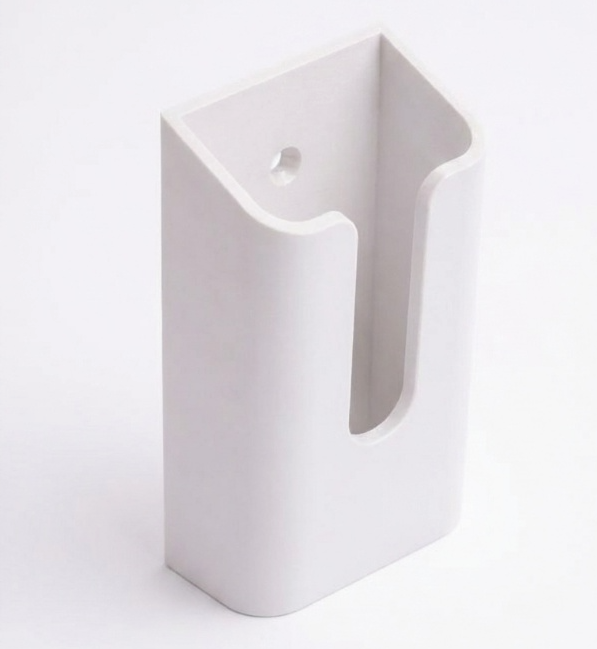

Parametric Wall Holder (Customizable)

Parametric Universal Remote / Phone Holder (Wall Mount) – Custom Size + Screw Presets

Tired of remotes and phones floating around the house? This is a parametric wall-mounted holder you can customize to fit almost anything: TV remotes, AC remotes, phones (with cases), small gadgets, even flashlights.

✅ Fully customizable (no more “almost fits”)
✅ Mount-ready with countersunk screw presets (M3/M4/M5/M6)
✅ Comfortable and customizable thumb-scoop for quick grab
✅ Clean minimalist design – looks great in living room, bedroom, office, or garage

Customize parameters (defaults shown)

Inside size (mm):

Inside_Width (W) = 50
Inside_Depth (D) = 20
Inside_Height (H) = 90

Ergonomics:

Tilt_Angle = 5°
Thumb_Scoop_Depth = 50
Thumb_Scoop_Width = 15

Strength:

Wall_Thickness = 2.5

Mounting (mm):

Pitch_Between_Screw = 25
Screw_distance_from_edge = 10

Countersunk screws (90°):

Hole_D / CSK_D auto-style values (example shown for M3)
CSK_Depth is calculated with a +0.2 mm print allowance to help the screw head sit flush.

Print recommendations

Material: PLA / PLA+ (PETG if you expect heat / heavy use)
Layer height: 0.2mm
Walls: 3–4 perimeters
Infill: 15–20%
Supports: Not required (depending on your printer bridging, you may enable “support for holes only”)
