暴力风扇v2涵道风扇40mm

暴力风扇X-40 v2版本

更新迭代版本，重新优化外形和布局，修复了第一版存在的一些问题

1、充电模块更新为支持PD60-100w双向快充

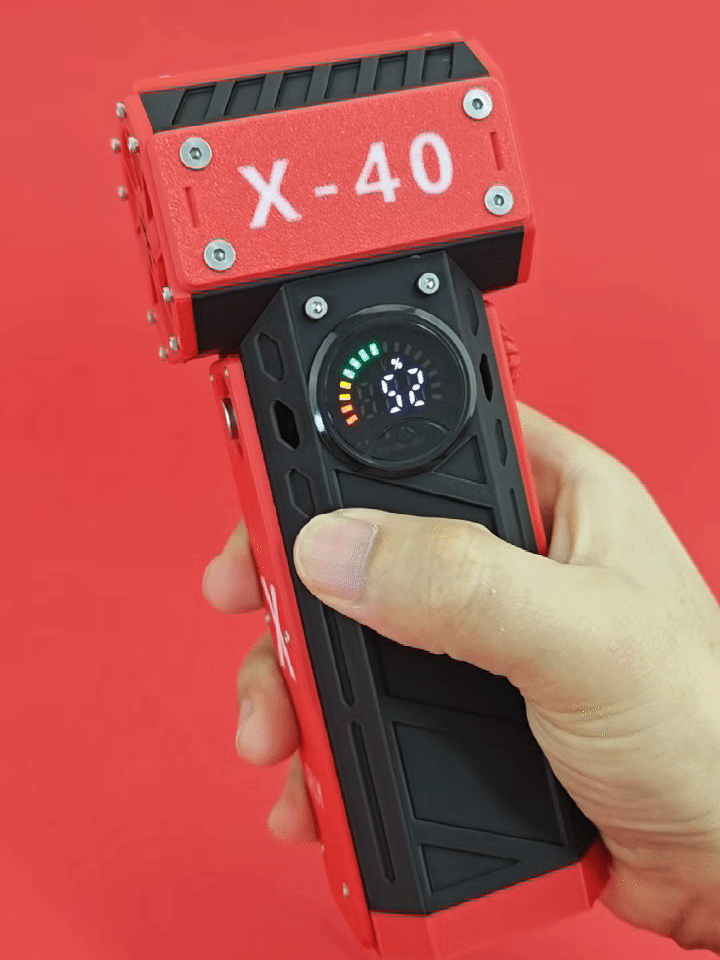

2、灯显升级为触摸屏，可切换电压、电量显示

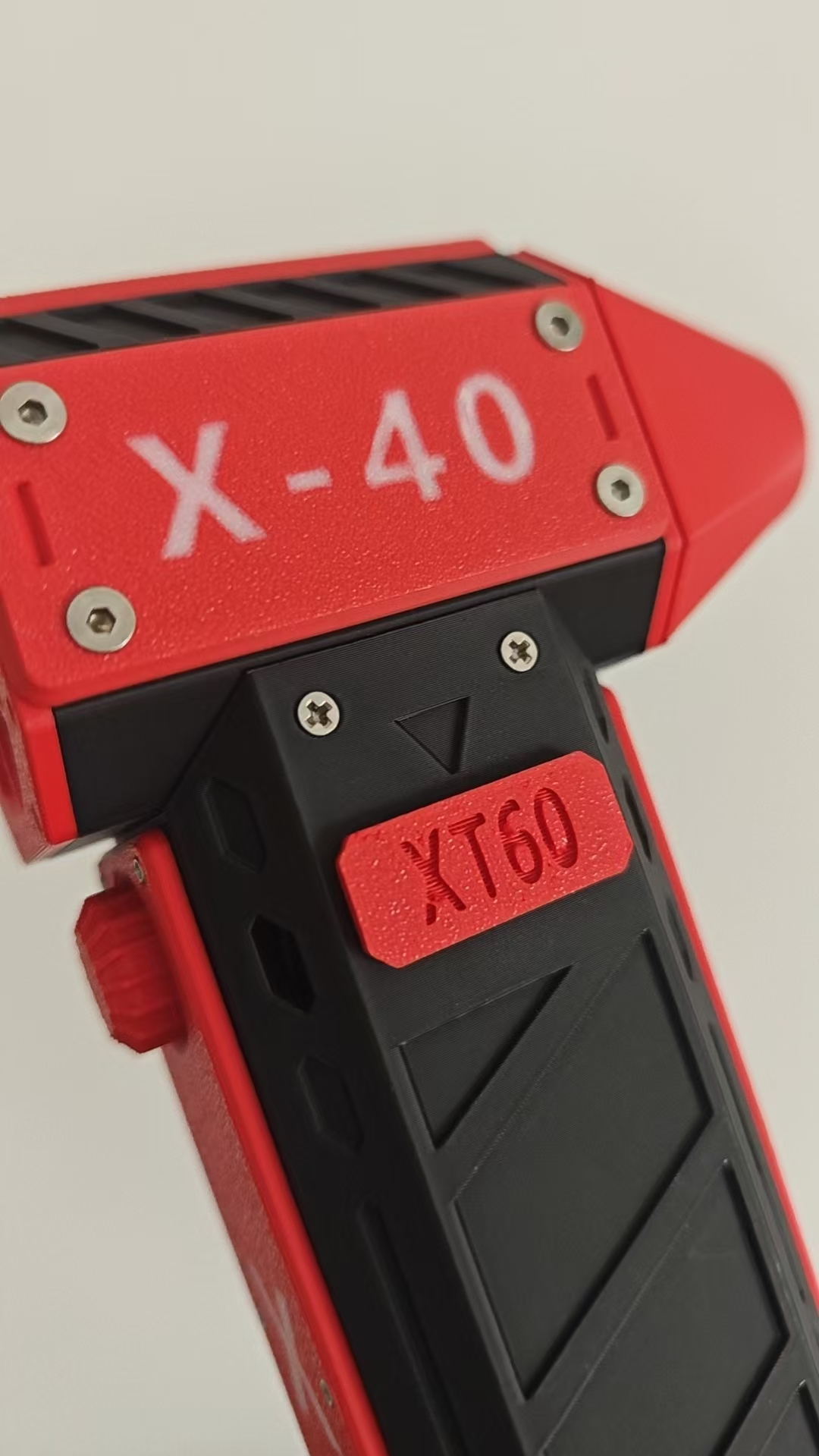

3、增加XT60输出接口，可连接夹子作为启动宝使用

100w充电模块选用的是无屏幕数显的性价比更高，使用机身带的显示屏更为实用，某宝售卖的有数显的那款充电模块显示并不准确而且价格虚高

因为显示屏和xt60接口，开关调速都集成在一个位置，线束较多注意安装顺序，先把电池焊接XT60接口安装，其他可自由安排，最后焊接电机供电线

磁吸风嘴和吸尘套件都可与上一版本通用

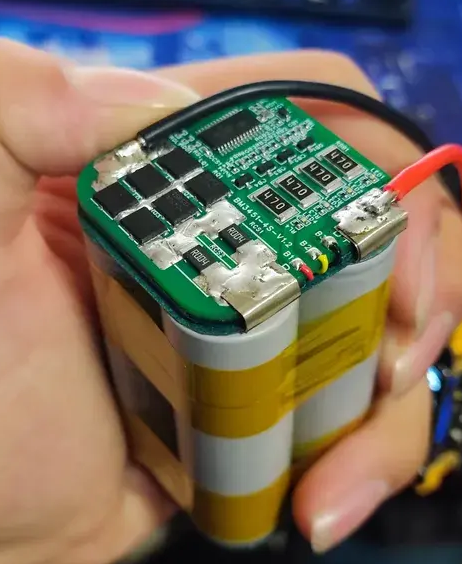

21700电池4节串联焊接

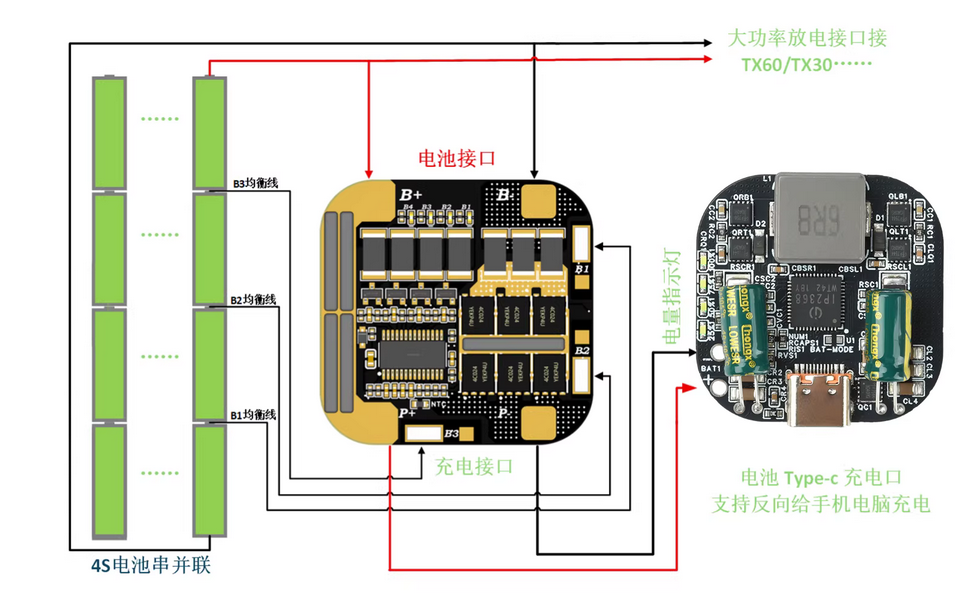

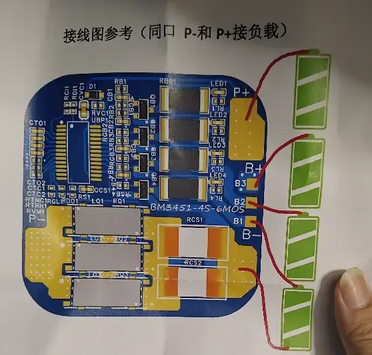

保护板和充电模块接线示意图

注意：有反应接错线烧控制板的，

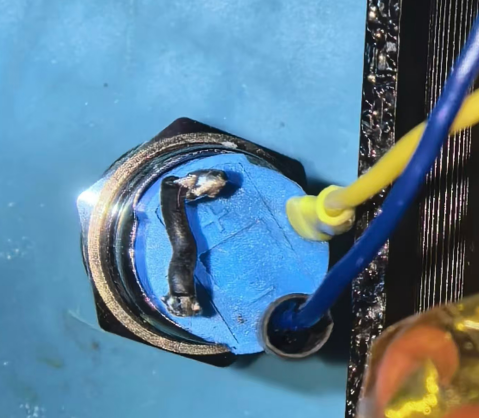

按钮开关是接电机的两根控制线，不要接直接接供电

成品或物料小黄鱼：极致DIY

物料	数量	参考链接
16.8v 40mm电调驱动板一体调速电机（优惠口令：尽欢）	1	[https://www.goofish.com/item?id=912620692956&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.912620692956.33807930](https://www.goofish.com/item?id=912620692956&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.912620692956.33807930)
4S电池均衡保护板	1	[https://www.goofish.com/item?id=922966153231&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.922966153231.33807930](https://www.goofish.com/item?id=922966153231&spm=widle.12011849.copy.detail&ut_sk=1.ZQQTIIeZadgDAC++HJ8l969V_21407387_1753685642690.copy.detail.922966153231.33807930)
4S锂电池100W充电模块	1	[https://item.taobao.com/item.htm?id=992455863967&mi_id=0000R8PDEdI3fcWzhAjZ97YoEaSTNO-nOyXoBBy-6I37xSU&spm=tbpc.boughtlist.suborder_itemtitle.1.70442e8dfxckXT](https://item.taobao.com/item.htm?id=992455863967&mi_id=0000R8PDEdI3fcWzhAjZ97YoEaSTNO-nOyXoBBy-6I37xSU&spm=tbpc.boughtlist.suborder_itemtitle.1.70442e8dfxckXT)
电量显示模块，4串锂电充饱16.8v	1	[https://item.taobao.com/item.htm?id=872442865696&mi_id=0000niMSYmpEaGKN3OY8_7wZJ3NQeosFAAuQuL-K1jxPpZo&spm=tbpc.boughtlist.suborder_itemtitle.1.70442e8dfxckXT](https://item.taobao.com/item.htm?id=872442865696&mi_id=0000niMSYmpEaGKN3OY8_7wZJ3NQeosFAAuQuL-K1jxPpZo&spm=tbpc.boughtlist.suborder_itemtitle.1.70442e8dfxckXT)
力神21700锂电池4000ma，10c放电	4节	[https://item.taobao.com/item.htm?id=754387888987&pisk=gKZ3sGmfcyuBLm1tWliCot4OCU_xJDi747K-w0hP7fl1FeLdd4kzE7q8J8l-q7VuZX3PODEus-wRduBIYgDzM5m8pXh8sTVLF3CCPDKyZWwVOJhRducrsWPoP9G-abV8UyUhDieQd0irZsIADAjdieNHL3uFUhkxnOHFCySzu0iPMsL942smVW7ozhYe7AlsKQRUa2-aQvGZUeozafuZ3xdE47PrbVkxKY8ELXSNIxkD4H-yYdJZdvAyT7oPIVkm_bor87yZgWLEMuz4b11wqw2by5qiK2c4IqtymdHeMj2Ff3xzjnnSgnhM43ridRgF6BKcyjzj9qhu_GKnqRkusqUhiHVuU-arSuAFpSyUOoazKGfqbchZuAa1ZUc0zJUjQoWJlfEi97rn7tKmycrxuDzO563-xYoElP6WJbzznomL91tr9r2asqE96nn4l5qoumSPfF84ttKSQTEMPF3ECAcx1VZ0Ug7n-VBGIEeS8AMjMuBMzeOX43LOIOYYO2kshxC..&spm=tbpc.boughtlist.suborder_itemtitle.1.7ea52e8d9UawSs](https://item.taobao.com/item.htm?id=754387888987&pisk=gKZ3sGmfcyuBLm1tWliCot4OCU_xJDi747K-w0hP7fl1FeLdd4kzE7q8J8l-q7VuZX3PODEus-wRduBIYgDzM5m8pXh8sTVLF3CCPDKyZWwVOJhRducrsWPoP9G-abV8UyUhDieQd0irZsIADAjdieNHL3uFUhkxnOHFCySzu0iPMsL942smVW7ozhYe7AlsKQRUa2-aQvGZUeozafuZ3xdE47PrbVkxKY8ELXSNIxkD4H-yYdJZdvAyT7oPIVkm_bor87yZgWLEMuz4b11wqw2by5qiK2c4IqtymdHeMj2Ff3xzjnnSgnhM43ridRgF6BKcyjzj9qhu_GKnqRkusqUhiHVuU-arSuAFpSyUOoazKGfqbchZuAa1ZUc0zJUjQoWJlfEi97rn7tKmycrxuDzO563-xYoElP6WJbzznomL91tr9r2asqE96nn4l5qoumSPfF84ttKSQTEMPF3ECAcx1VZ0Ug7n-VBGIEeS8AMjMuBMzeOX43LOIOYYO2kshxC..&spm=tbpc.boughtlist.suborder_itemtitle.1.7ea52e8d9UawSs)
金属按压开关12mm，12-24v自锁	1个	[https://item.taobao.com/item.htm?id=775942345988&pisk=gVMQ_fxtjwbISZyRVWxaclCQOXwPRhJ2egZ-m0BF2JeLNTnEluWzaBq5FPivxyRkt4GsyVVUJzPzFug4SDWyxD-WF0nYJ8lU8u3ZPVfE8Yzr7LimlWWE2YSnsqoALvR3UT63E8L2uKJqYD2ueYIBcNj3BuquyLWLvGe34ZidYipqxD2lAaKq6KSSTPCRv_U-ydITDPEd99FJf5E428BLw9COWP4TekF8vdFT0o6dv4BdWOEUDuBLykpOXk4Ty8FRphiTSuw8ybM15uRQ2DtncQLtr6Qr-P6ReAZTrrn6ltZEpkTulDz_jXk1nWaxvP6yk0_G_zaiHFRsj4hK8l0WhFwxiVM7M89CokGtcRUUHLsu77MsRbgOmTosb2DbpxTCLlos2jPsQnp0dJUKaJmPceosd2onC0SRO4Gq-jVSee6bWvcZKSDeW9wxiDyEwqLNTyhb2gWN3r6th_s_iTE1tht1Z_vUIAxQlLjDtWEgvK-6fN1loTBP_Y-1w6VLjkLwfh_1r&spm=tbpc.boughtlist.suborder_itemtitle.1.7ea52e8d9UawSs](https://item.taobao.com/item.htm?id=775942345988&pisk=gVMQ_fxtjwbISZyRVWxaclCQOXwPRhJ2egZ-m0BF2JeLNTnEluWzaBq5FPivxyRkt4GsyVVUJzPzFug4SDWyxD-WF0nYJ8lU8u3ZPVfE8Yzr7LimlWWE2YSnsqoALvR3UT63E8L2uKJqYD2ueYIBcNj3BuquyLWLvGe34ZidYipqxD2lAaKq6KSSTPCRv_U-ydITDPEd99FJf5E428BLw9COWP4TekF8vdFT0o6dv4BdWOEUDuBLykpOXk4Ty8FRphiTSuw8ybM15uRQ2DtncQLtr6Qr-P6ReAZTrrn6ltZEpkTulDz_jXk1nWaxvP6yk0_G_zaiHFRsj4hK8l0WhFwxiVM7M89CokGtcRUUHLsu77MsRbgOmTosb2DbpxTCLlos2jPsQnp0dJUKaJmPceosd2onC0SRO4Gq-jVSee6bWvcZKSDeW9wxiDyEwqLNTyhb2gWN3r6th_s_iTE1tht1Z_vUIAxQlLjDtWEgvK-6fN1loTBP_Y-1w6VLjkLwfh_1r&spm=tbpc.boughtlist.suborder_itemtitle.1.7ea52e8d9UawSs)
XT60NE-F母头	1个	[https://item.taobao.com/item.htm?abbucket=7&id=744239758786&mi_id=00005bmiDkCh6WprDhTcB6ryuHg4sAYN1AlTFitzmlNdv8w&ns=1&priceTId=2150499617675943604683041e137f&skuId=5943535109195&spm=a21n57.1.hoverItem.6&utparam=%7B%22aplus_abtest%22%3A%22b7bb07792db12cc6e1ce452cf6fb67d3%22%7D&xxc=taobaoSearch](https://item.taobao.com/item.htm?abbucket=7&id=744239758786&mi_id=00005bmiDkCh6WprDhTcB6ryuHg4sAYN1AlTFitzmlNdv8w&ns=1&priceTId=2150499617675943604683041e137f&skuId=5943535109195&spm=a21n57.1.hoverItem.6&utparam=%7B%22aplus_abtest%22%3A%22b7bb07792db12cc6e1ce452cf6fb67d3%22%7D&xxc=taobaoSearch)

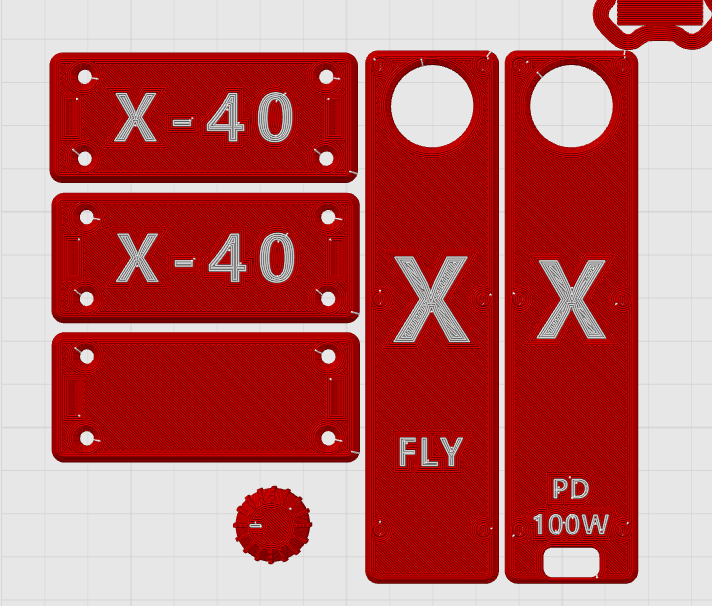

M1.6*5杯头内六角螺丝	12颗	安装前后条板
M1.6*8杯头内六角螺丝	16颗	安装机头电机前后护网
M1.6*16杯头内六角螺丝	4颗	安装充电模块底板
M2.5*16沉头内六角螺丝	6颗	连接机头和手柄，XT60接口固定
M3*6沉头内六角螺丝	12颗	安装机头3块小条板
圆形强磁铁20mm*5mm	2个	胶水粘贴固定在出风口内侧和风嘴内侧
硅胶线若干		电机2.5平方，平衡线0.3平方即可
