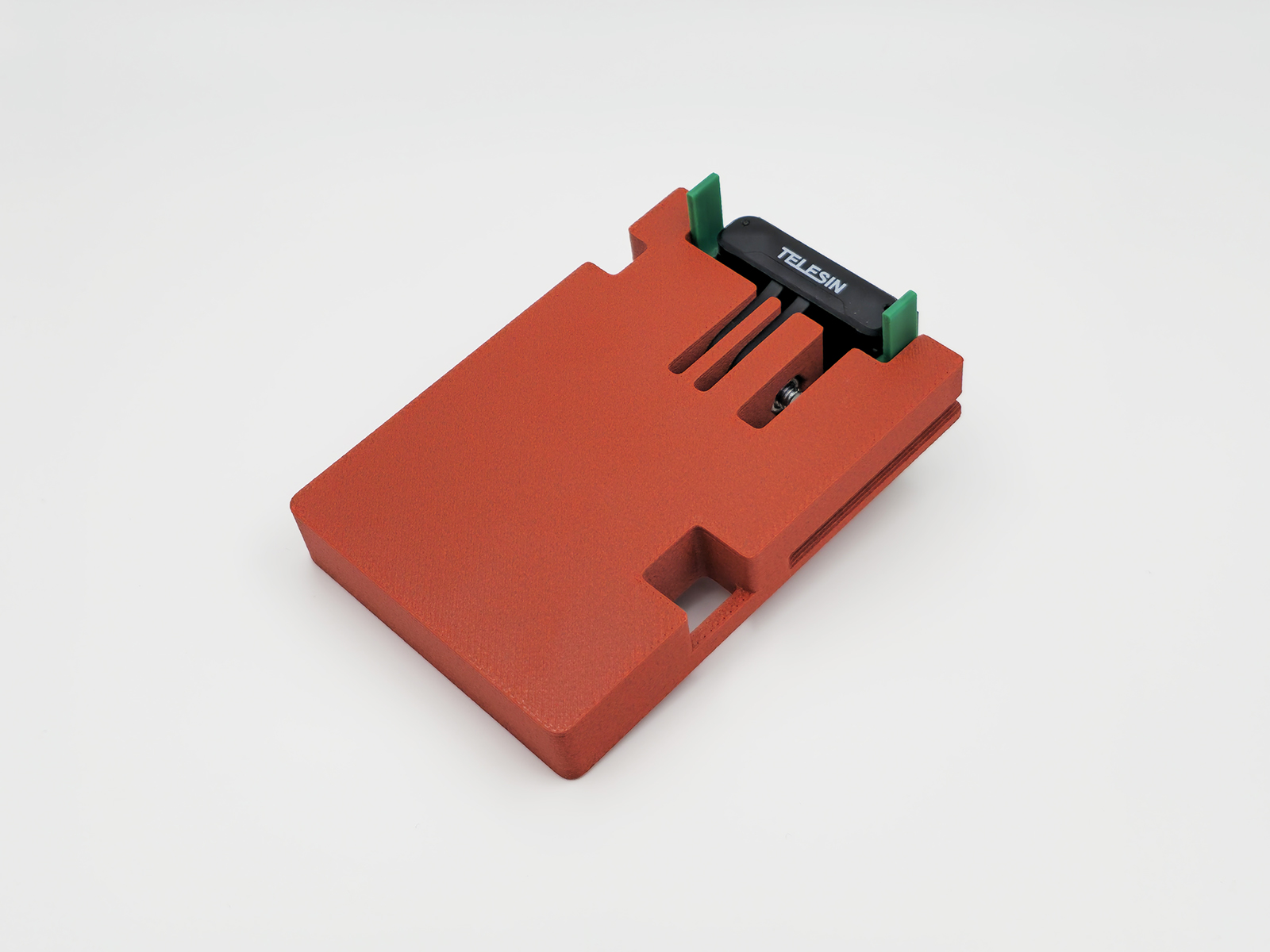

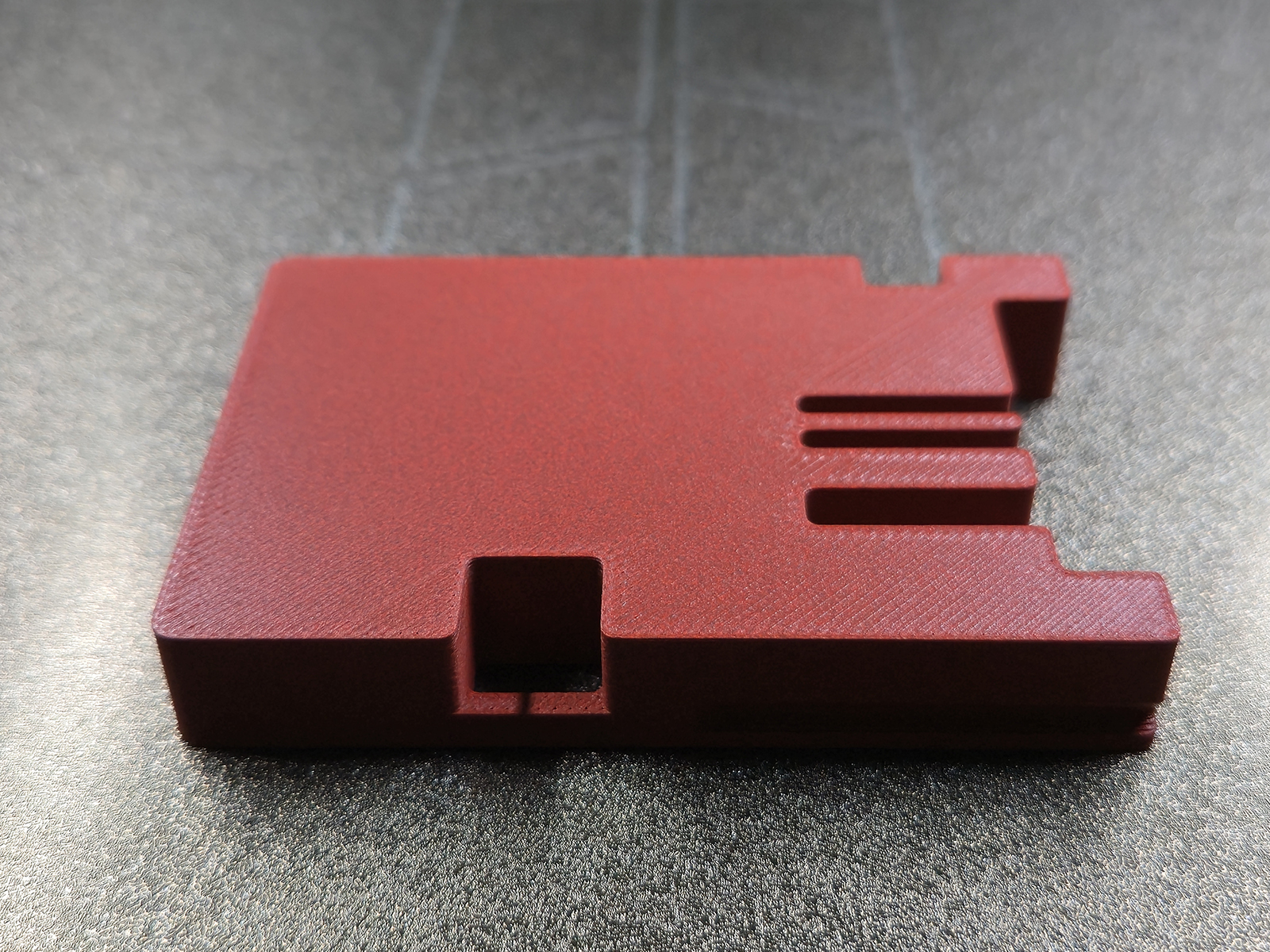

Action camera gimbal mount

Mount for action camera to hold in gimbal. Its designed for DJI Osmo Action 5 and DJI Osmo Mobile 7P, but it should work wit others brands and types too. For better balance is there on the bottom space for steel balls or similar high weith things.

Print profile

In print profile is pause inserted for placing the weight.

I printed it of PLA with 0,4 mm nozzle but its designed to work with 0,6 mm nozzle printing PETG-CF filament.

Hardware

Camera holder is tighten with M5x40 screw and M5 nut.

“Pliers” for camera detachment

Because of good balance at minimum weight I had to move camera as much as possible to center, so buttons for camera release are now hidden in the middle of the mount. So I designed little “pliers” to make camera detachment easier.

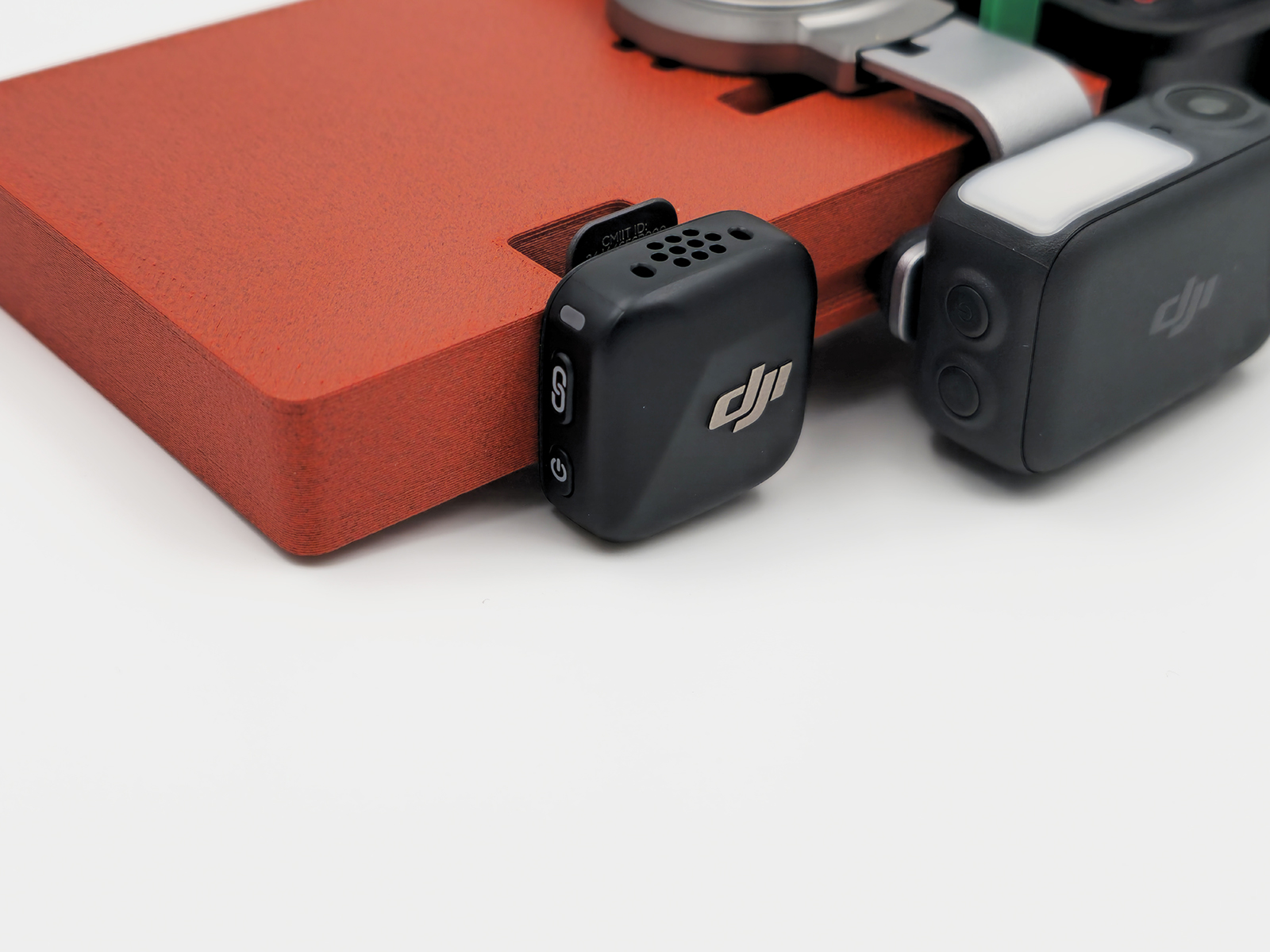

Upgraded version wit DJI Mic Mini holder

24.1.2026 Upgrade: Added slot for holding DJI Mic Mini.
