Stacked Sliding Trays/Boxes Customizable

Parametric/Customizable model I designed to help keep things neatly organized :)

This model is a part of my: Parametric Collection

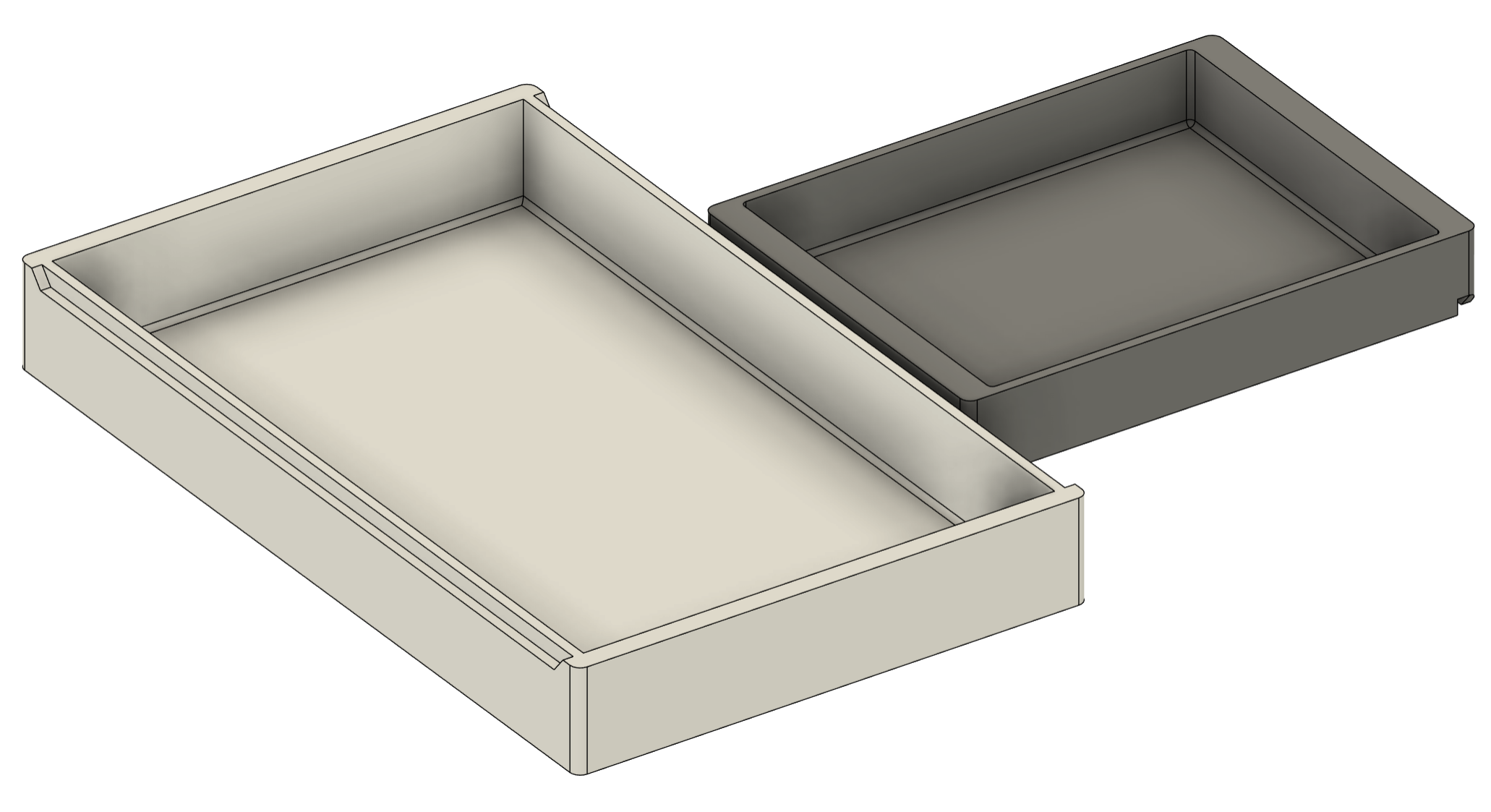

the box/tray on top slides (left to right.. or top to bottom, depends how you orient it) on those tiny rails so you can reach the things you put in the tray below
2 print profiles with sample sizes (you can print those without going into the customizer)
no extra hardware

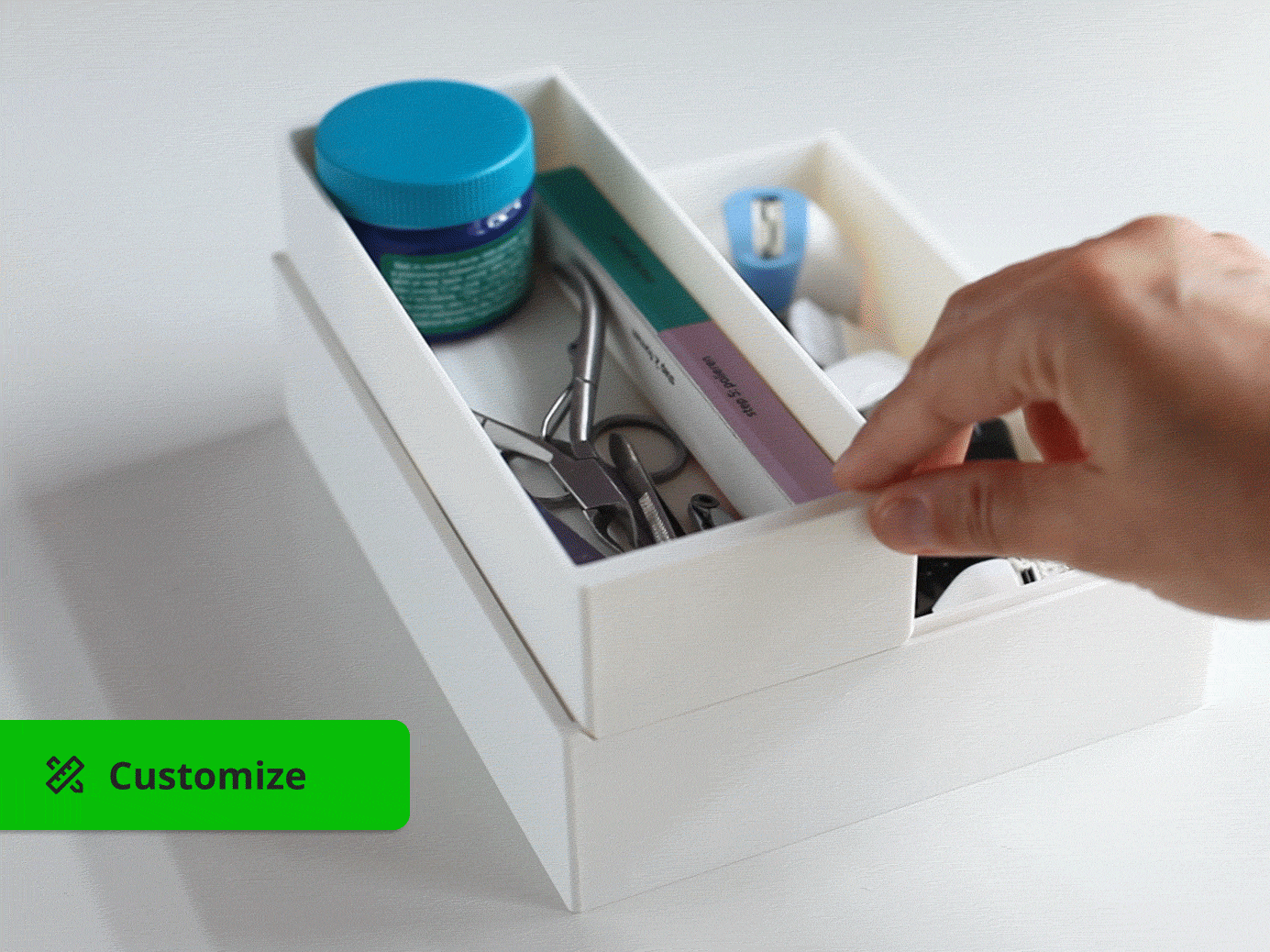

the GIF above isn't displaying properly in Bambu Handy so use a browser to see it in it's full glory :)

Click that Customize button to enter your own dimensions

Length, Width and Height of the main (bottom) box/tray
Thickness of the bottom of the main (bottom) box/tray
Height of the Box on Top

There are also 4 variations to choose from, whether you'd like a divider or not or want the top box to cover half or ⅓ of the main box, make sure you choose the right Customizable File

no divider, top box= 1/3

2 dividers, top box = ⅓

no divider, top box= ½ (half)

1 divider, top box= ½ (half)

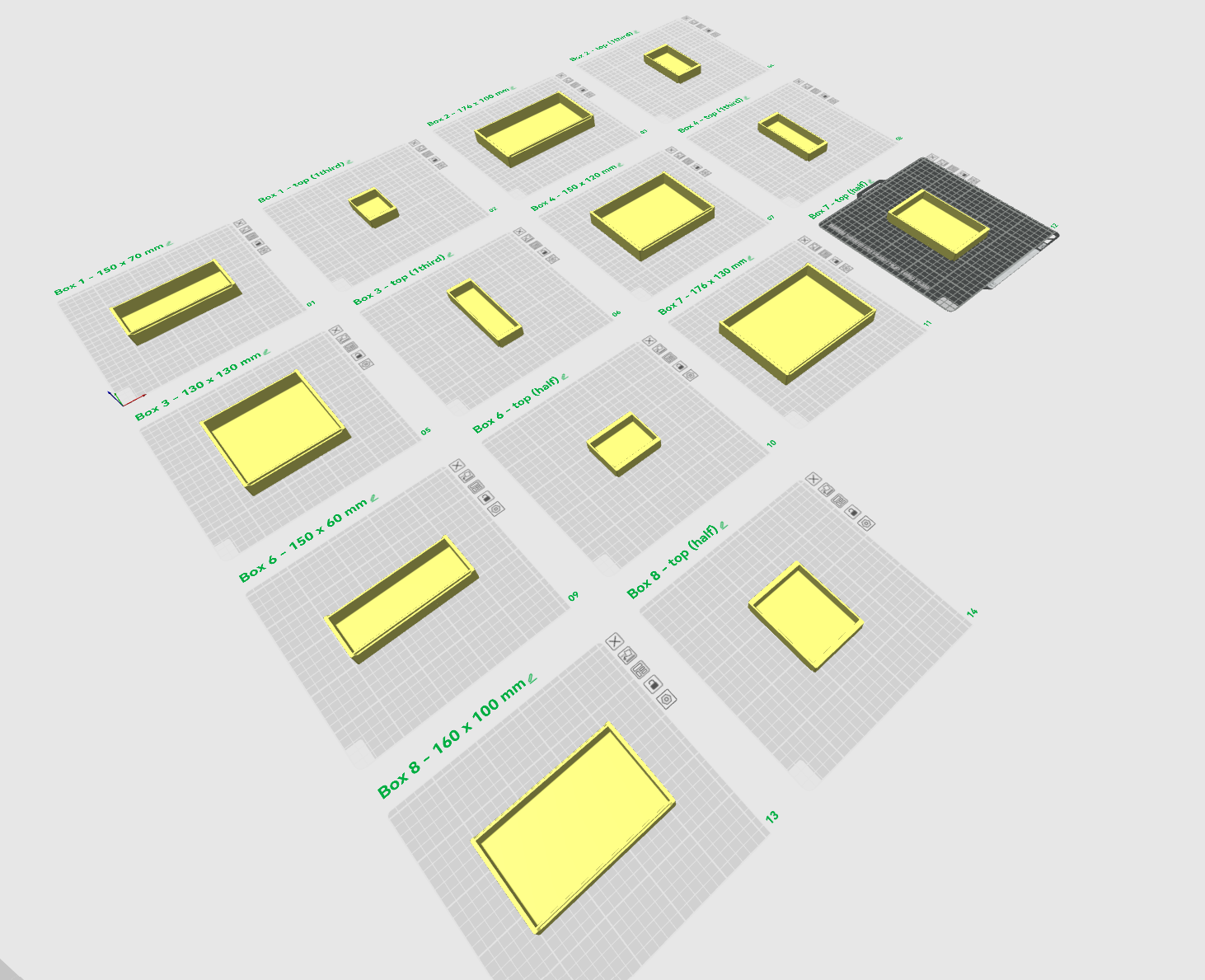

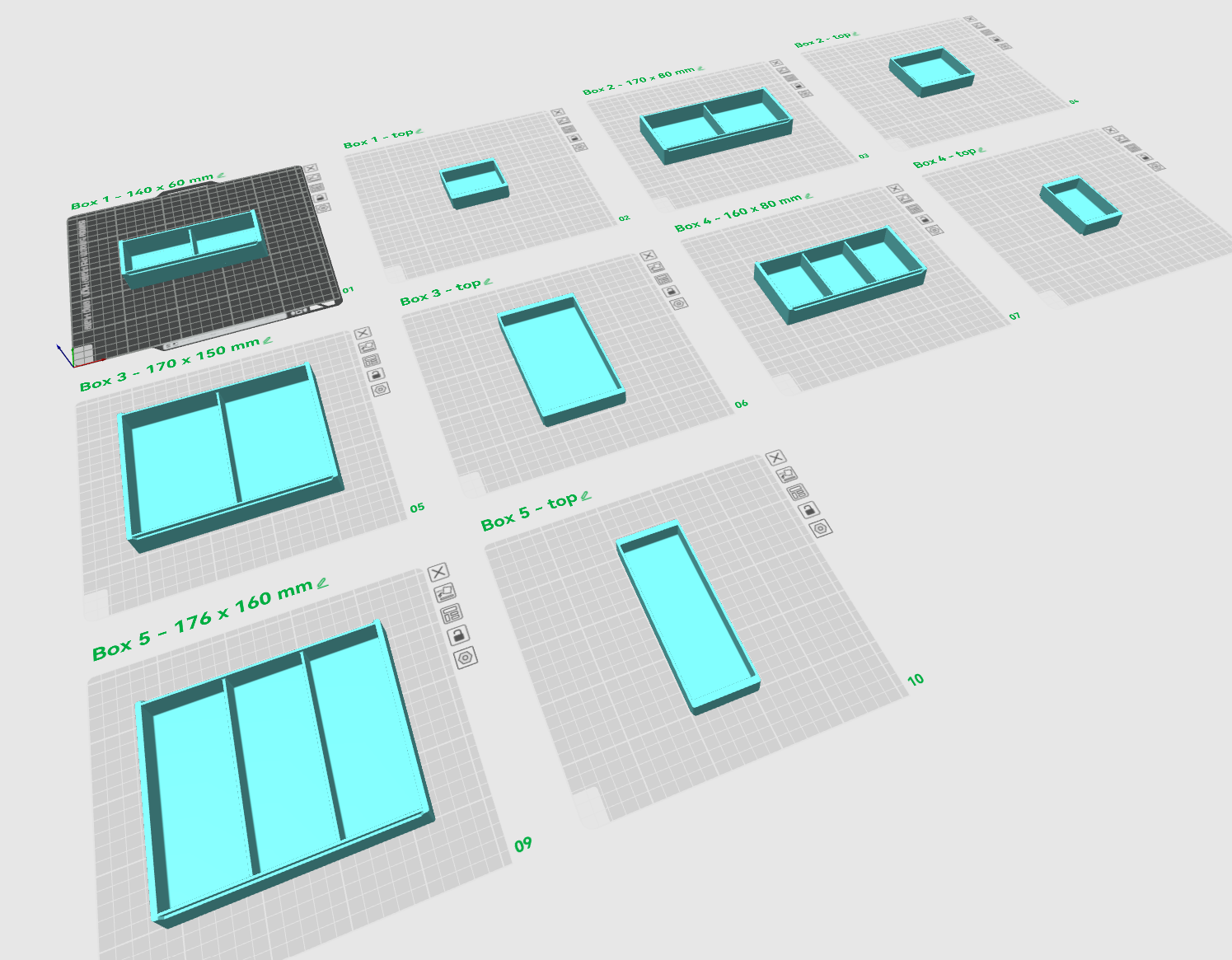

2 print profiles contain a lot of sample boxes so you can just print those without going into the customizer:

Hope you like it, let me know if there are any problems with the model so I can fix it

Happy Printing! :)
