A Truly

Universal Rackmount

for

Standard Racks and HomeRacker

📼 Watch this Video

This is my take on the ultimate mount solution for ANY rack and ANY device size (bold claim, I know).

• 📏 Universal Fit — When I say any rack size, I mean it. This works for standard 10" or 19" racks, as well as all printable custom HomeRacker sizes.

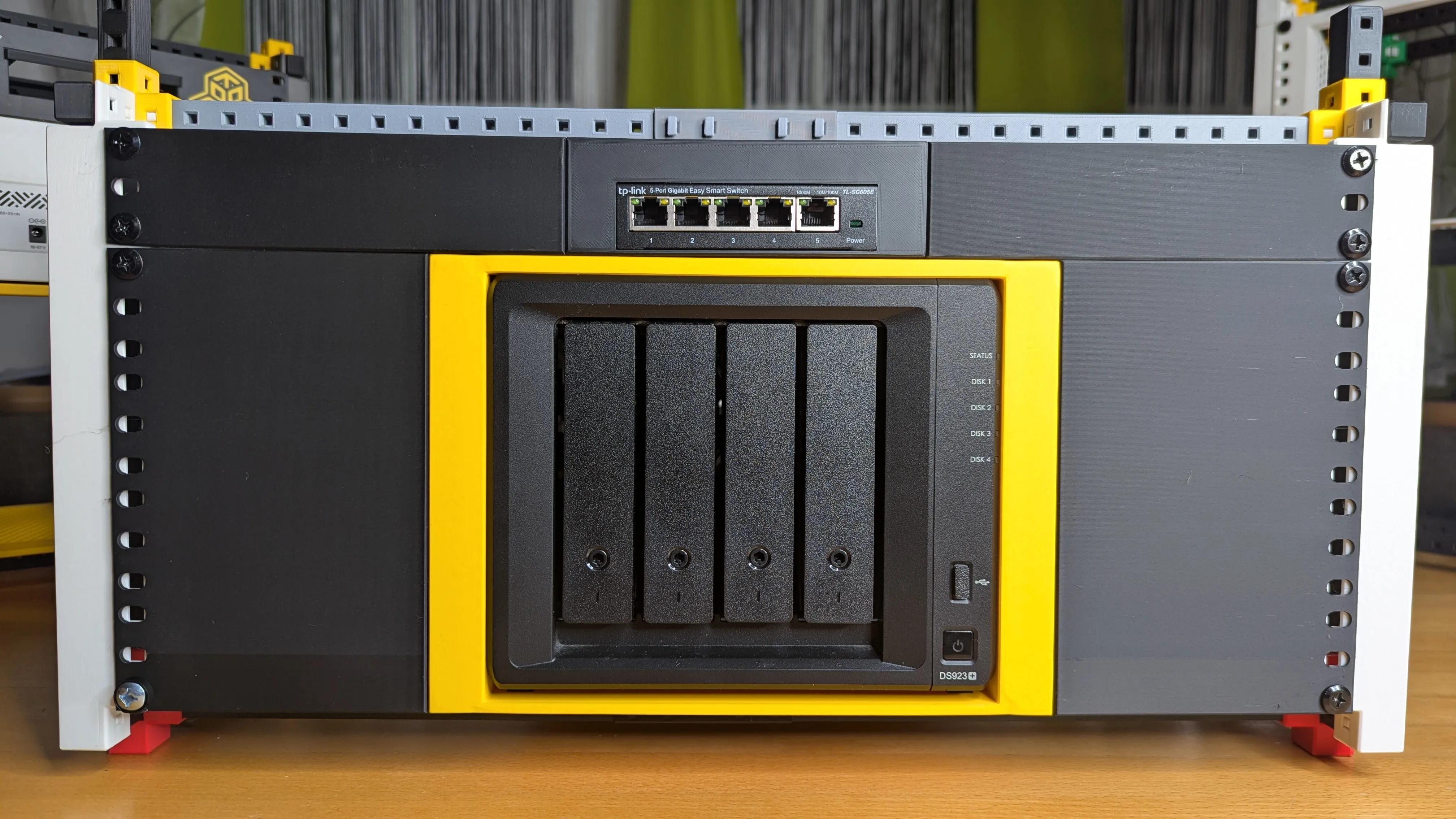

• 📦 Universal Compatibility — From tiny 15x30x11mm dongles up to a massive Synology NAS, this model handles it all. If it's a rectangular box (cuboid) and fits on your printer bed, you can mount it! (And if not 🤫 here's a nice community take on those brackets for roundish devices)

This model is designed for those "outlier" devices that never seem to fit a regular rack, or for mounting standard devices into non-standard racks. The choice is yours.

• ⚙️ Fully Customizable — The model is fully customizable using the Parametric Model Maker. It is smart enough to adapt the geometry automatically based on your dimensions.
• 🖨️ Easy Printing (Even for 19") — Don't worry if you have a smaller printer. I included a "Split Front Panel" option. This divides the front panel into 3 parts for easy printing while maintaining total stability—thanks to HomeRacker's "UNpatented" lock-pin mechanism.

🛠️ Mounting Options

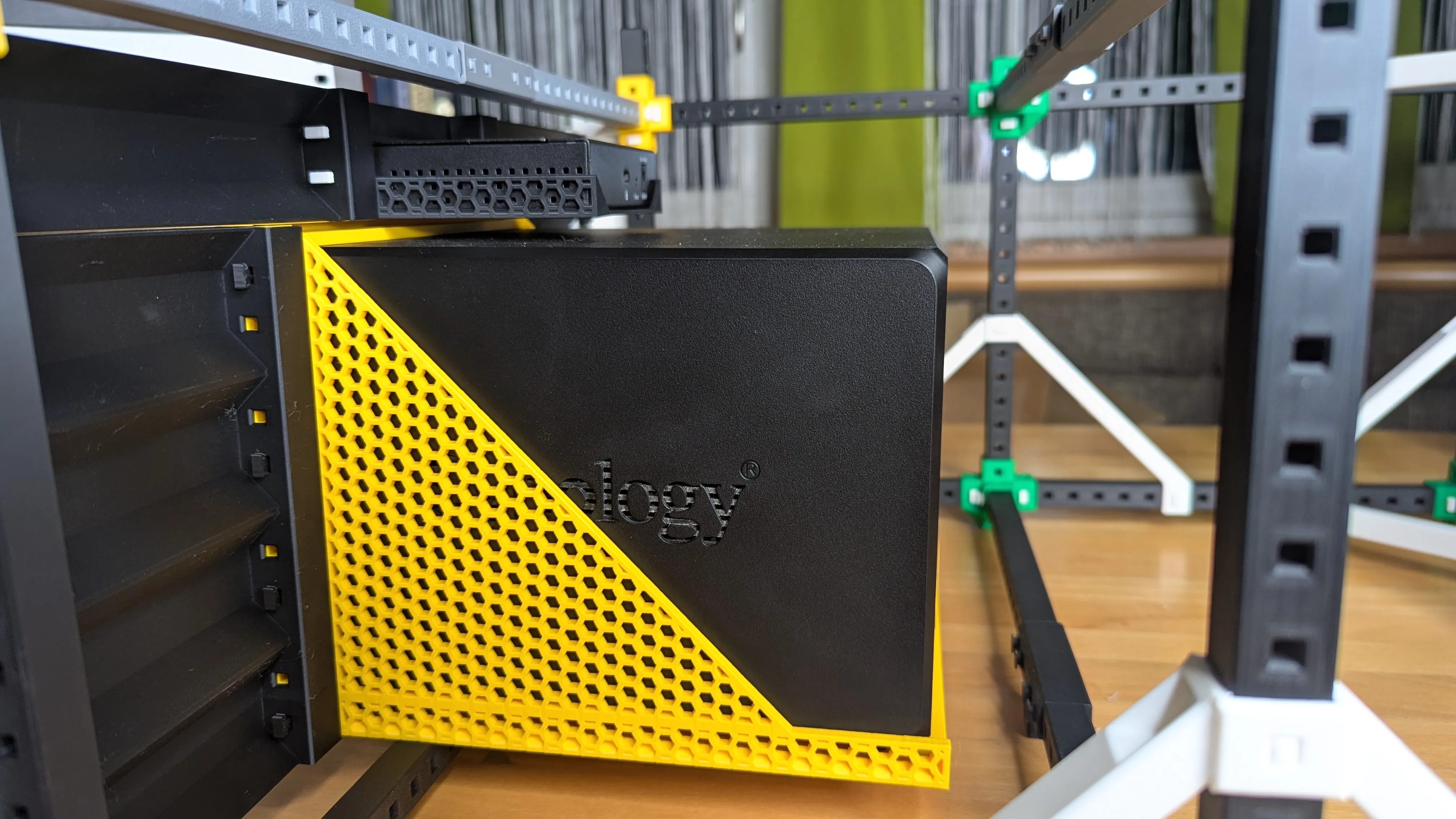

• The Tray Version: Perfect for regular racks. It securely fits your device onto a solid tray.

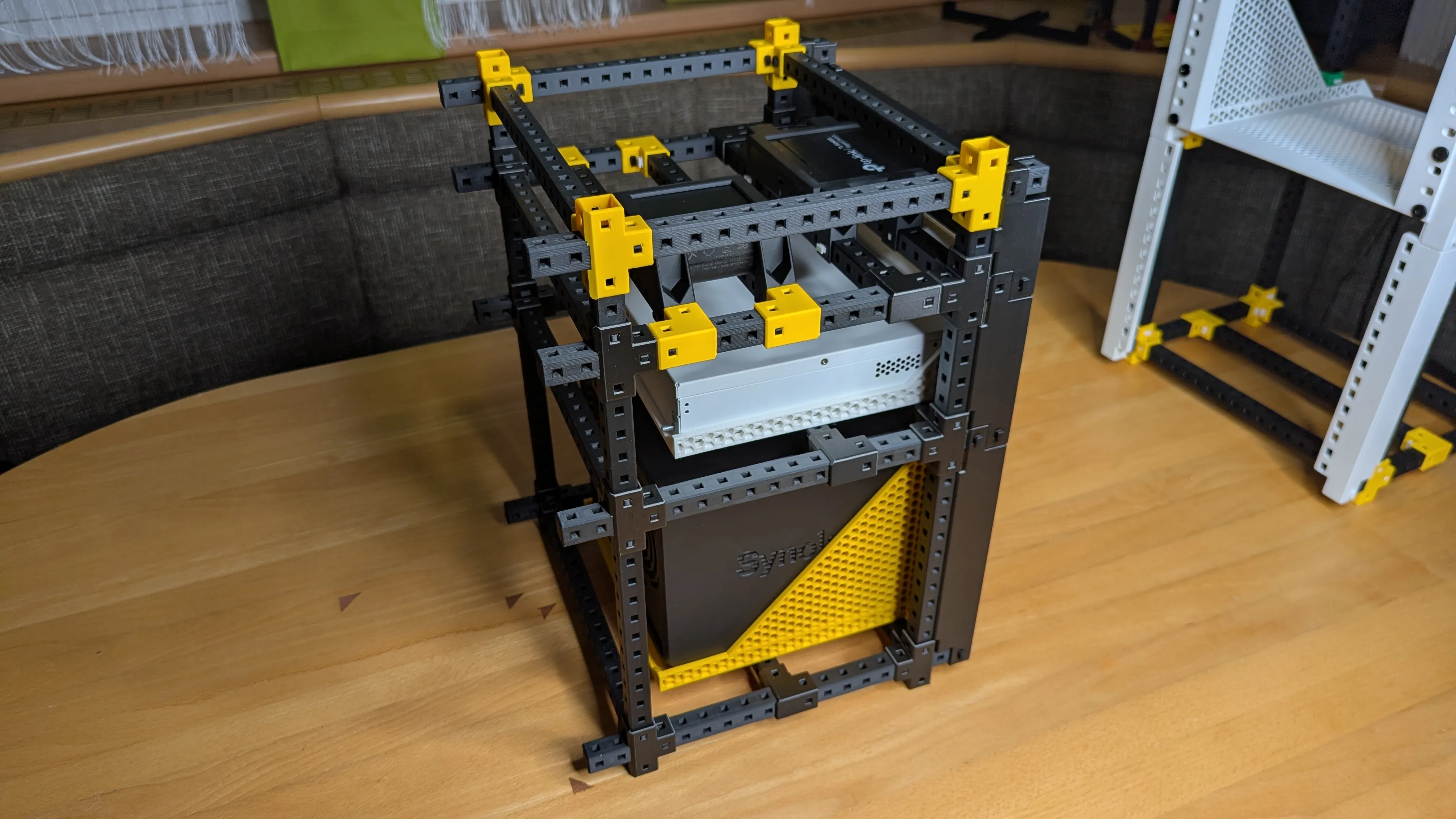

• HomeRacker Integration: If your device is heavy, you can mount it to a HomeRacker frame. It uses the same mount, just paired with the HomeRacker Rackmount Adapters.

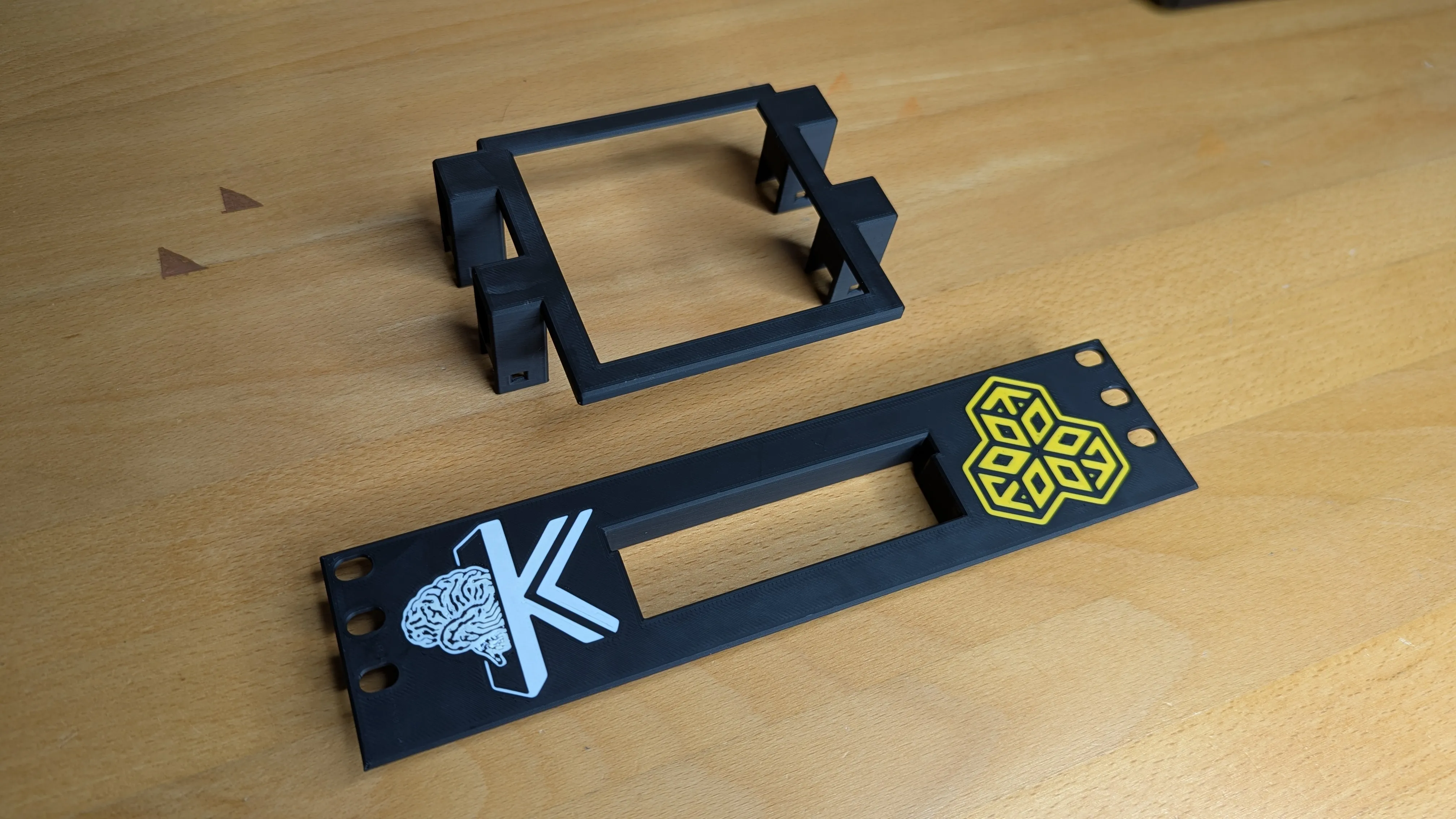

• The Bracket Variant: Exclusive to HomeRacker users! You can skip the tray and use brackets to mount your device directly to HomeRacker supports. Note: If your device needs frequent maintenance, I still recommend the Tray version.

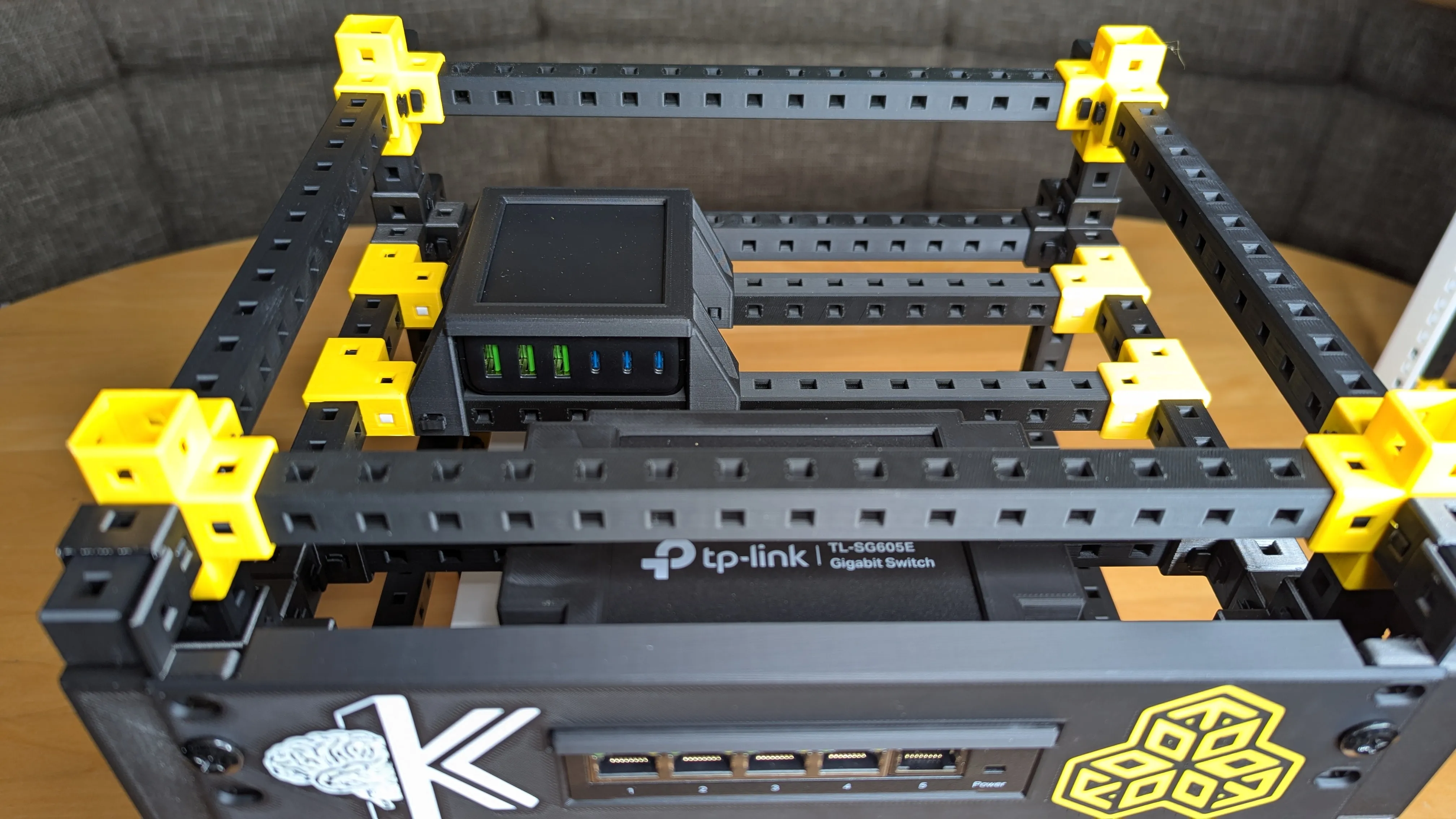

• Rear Mounting: There is also a bracket-only variant, which is super handy for fixing devices in the back of your rack, like small USB power supplies.

🖨️ How to

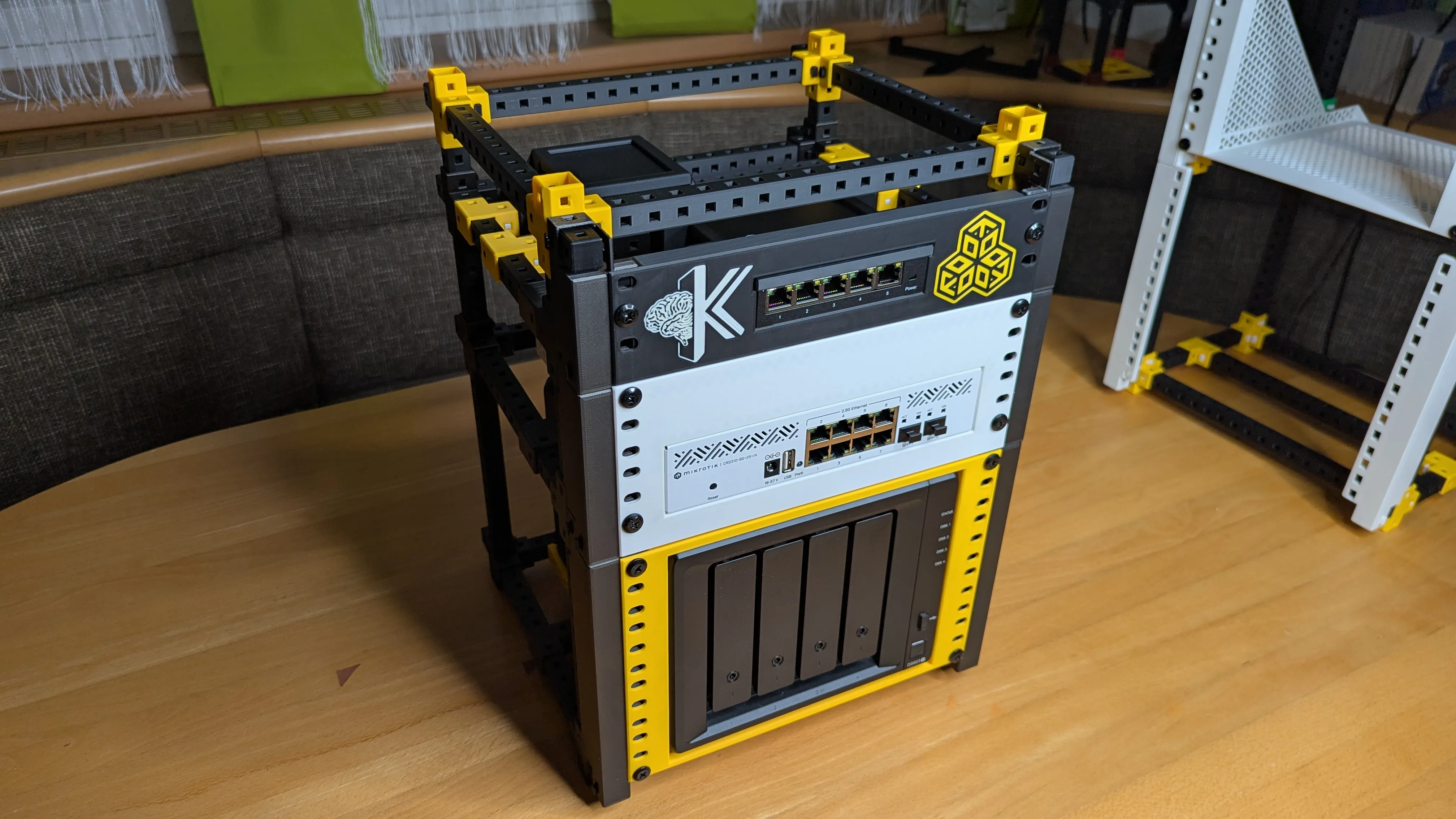

You can either go for the attached print profile which contains already customized AND proven 10" rackmounts for

• Mikrotik CRS310-8G+2S+IN Network Switch
• TP-Link TP-SG605E Smart Switch
• Synology DS923+ (apparently superseded by DS925+ nowadays, so no link)

The print profile also includes all necessary parts to build the exact HomeRacker frame including the respective rackmount adapters.

OR

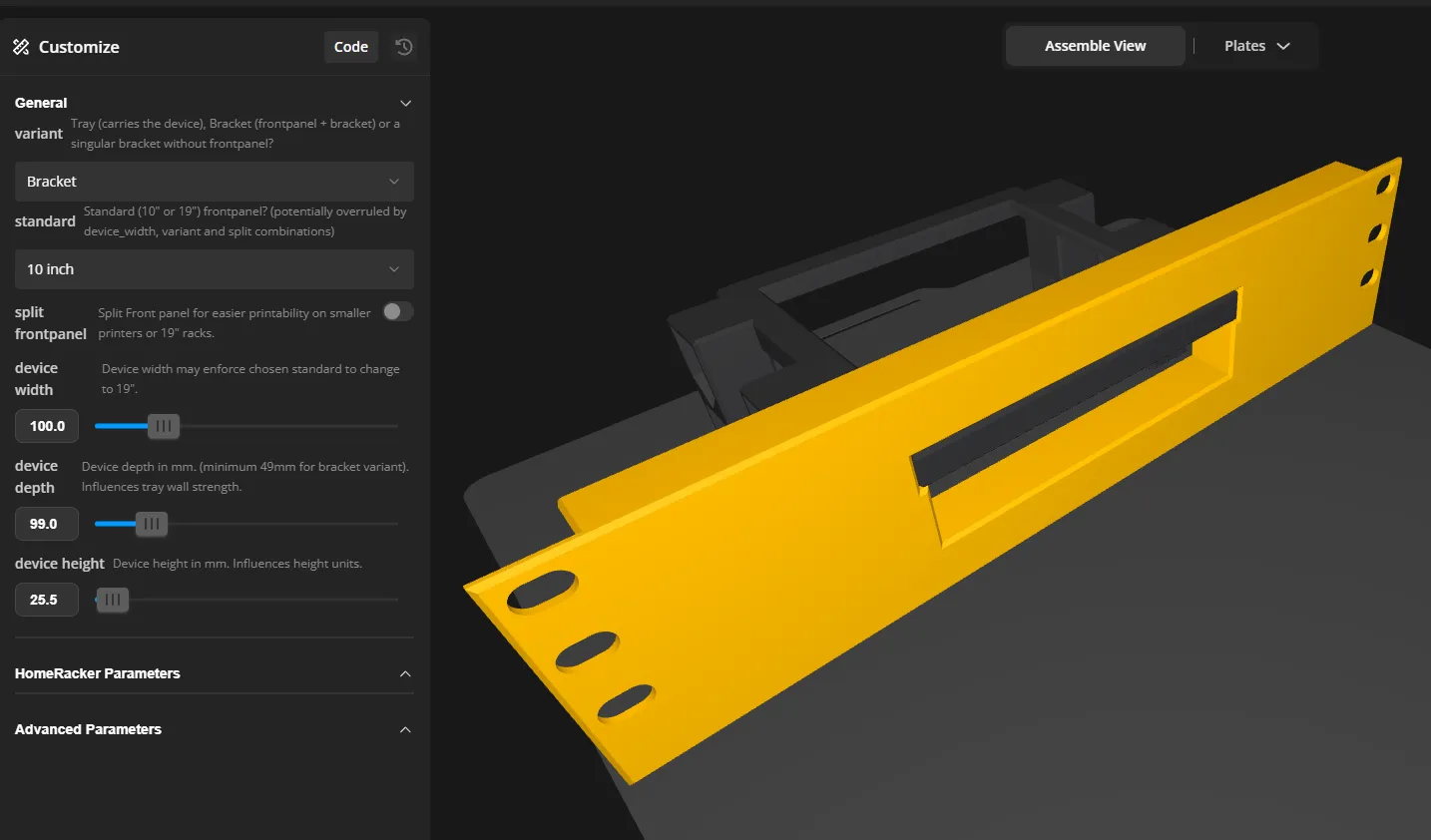

you can Customize a mount EXACTLY for your device in the Parametric model maker. Just click on CUSTOMIZE and select unimount.scad — You'll be forwarded to the customizer.

I created a VERY COMPREHENSIVE Customization Guide pdf which is attached here somewhere.

🏡 What is HomeRacker?

HomeRacker is a universal modular rack building system I created. It's based on an open specification. Find out more here:

HomeRacker - Core on Makerworld

or visit

[https://homeracker.org/](https://homeracker.org/)

or checkout

The Official HomeRacker Collection

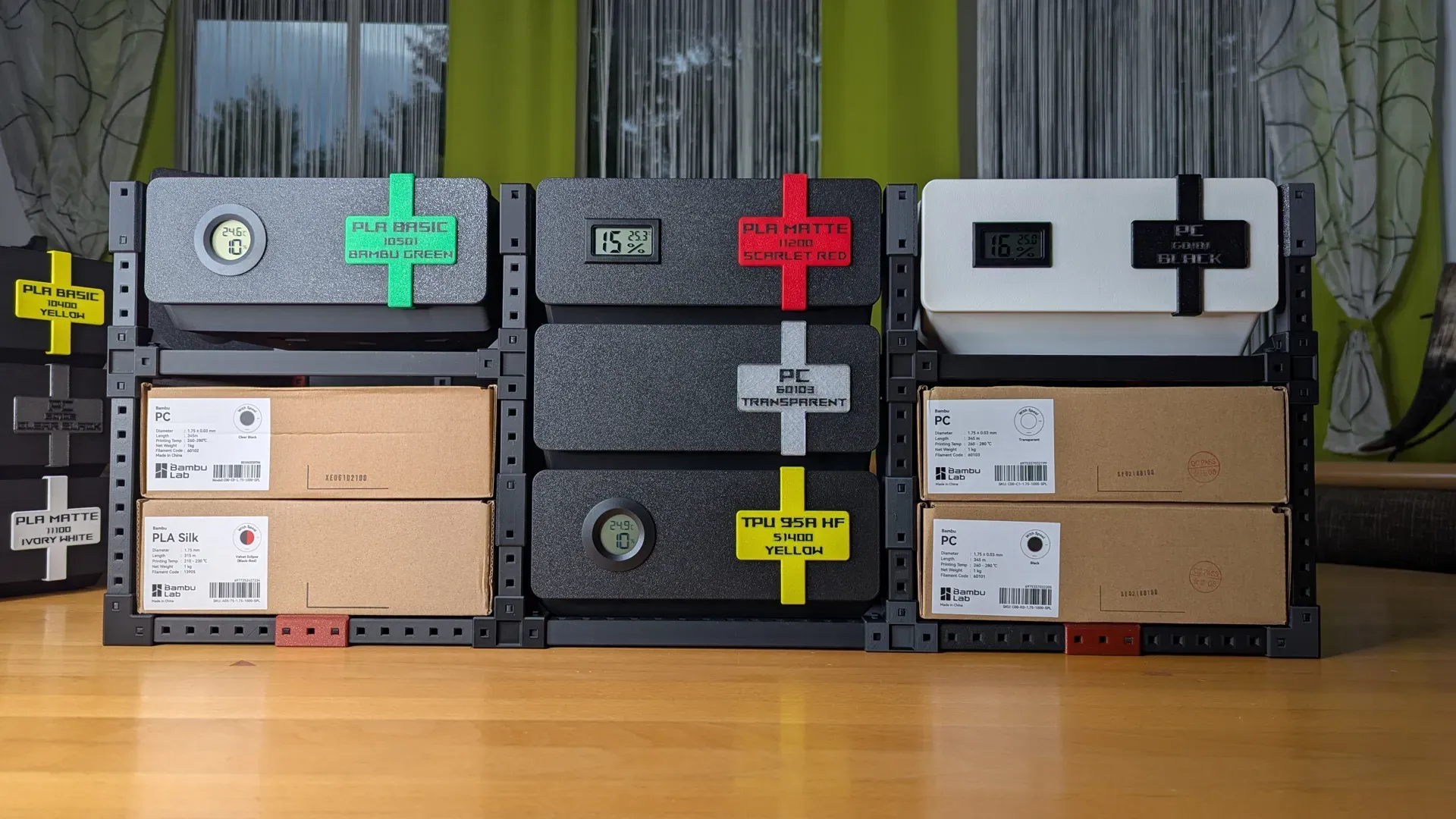

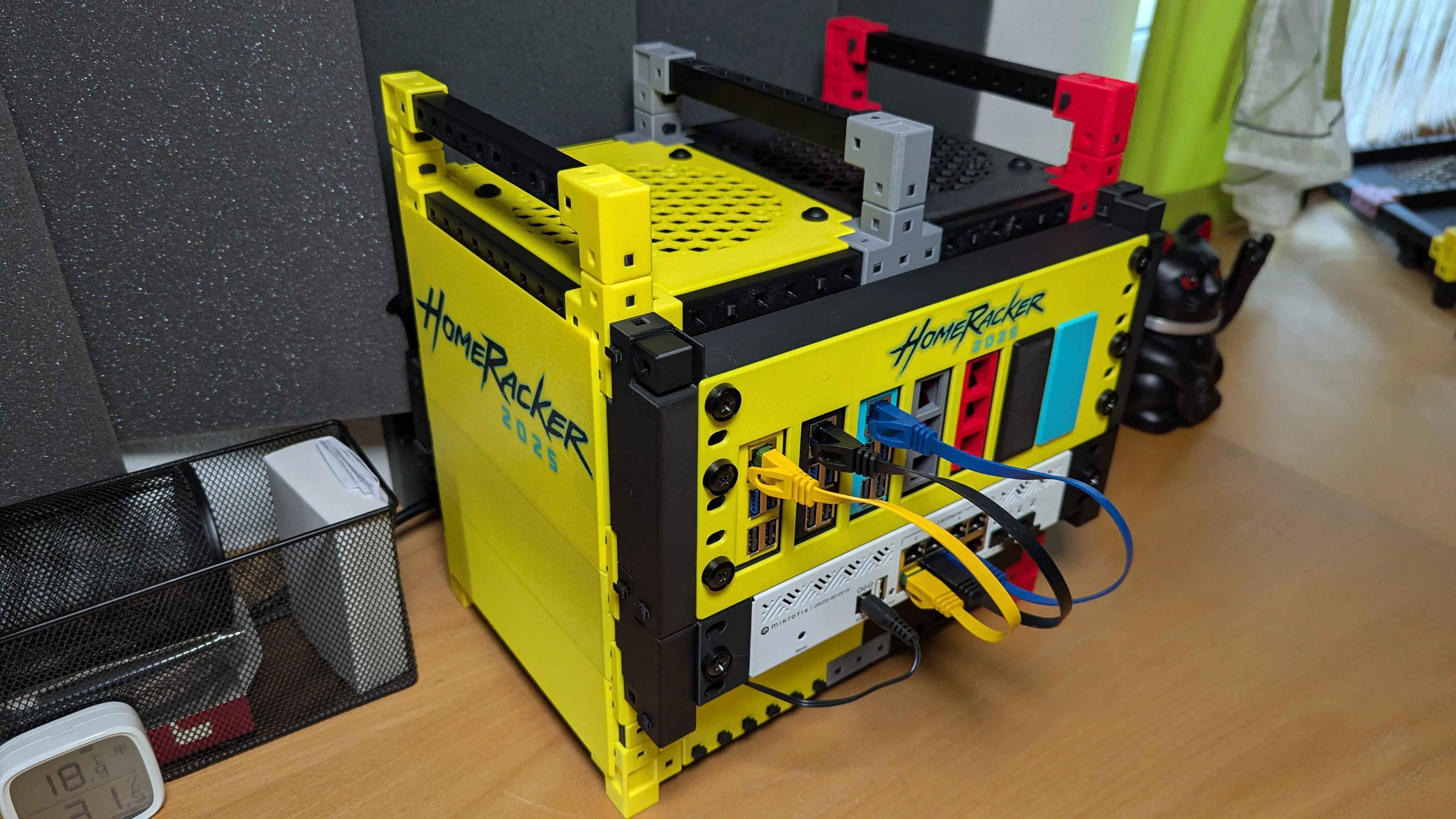

With HomeRacker, you can build all sorts of things—like the Dry Filament Shelf or this 10" Cyberpunk-style rack which you can also find on Makerworld. Check it out!

What's missing? 🤷

To build a custom rackmount you'll need - besides the customizer results - additional connectors and supports, download the free HomeRacker - Core system. Please refer to the Customization Guide in the Documentation section.

You might also want to checkout the 10" or 19" rackmount kits to build a standard rack in your desired configuration.

🤝Community Driven

I created HomeRacker - Core as an open specification. This means anyone can create and share their own extensions and models based on it without any licensing restrictions—all I ask for is attribution!

🧑💻 For Designers

If you have an idea and the skills to design CAD models, please go ahead! I'd be happy to link and feature your creations in the catalog.

💭 For Idea-Generators

If you're not familiar with CAD design, feel free to pitch your idea to me with as much detail as possible! Let's make it happen.

Check out the glorious Community Catalog

Pitch ideas or vote for them here on GitHub!

Join the KellerLab Discord Server:

Discord Invite

☕ Support

If you appreciate this model and wanna buy me coffee, you can do so here: [https://ko-fi.com/kellervater](https://ko-fi.com/kellervater)

Or simply scan this QR-Code:

🗓️ Changelog

[10.01.2026]

• 🐛 Fixed "Showcase" print profile: Settings weren't ideal.
• Wall Loops: 2 → 3
• Sparse Infill Pattern: Grid → Gyroid
• Wall Generator: Classic → Arachne

[23.12.2025]

• 🐛 Fixed 1U rackmount on showcase plate. There were 2 right-sided rackmounts. I mirrored one of them now. Thx to @fgnlie for reporting 💛

[17.12.2025]

• 🎉 Initial Release
