Modelo 3D 点焊机外壳4电容通用版 por 尽欢 no MakerWorld

Descrição

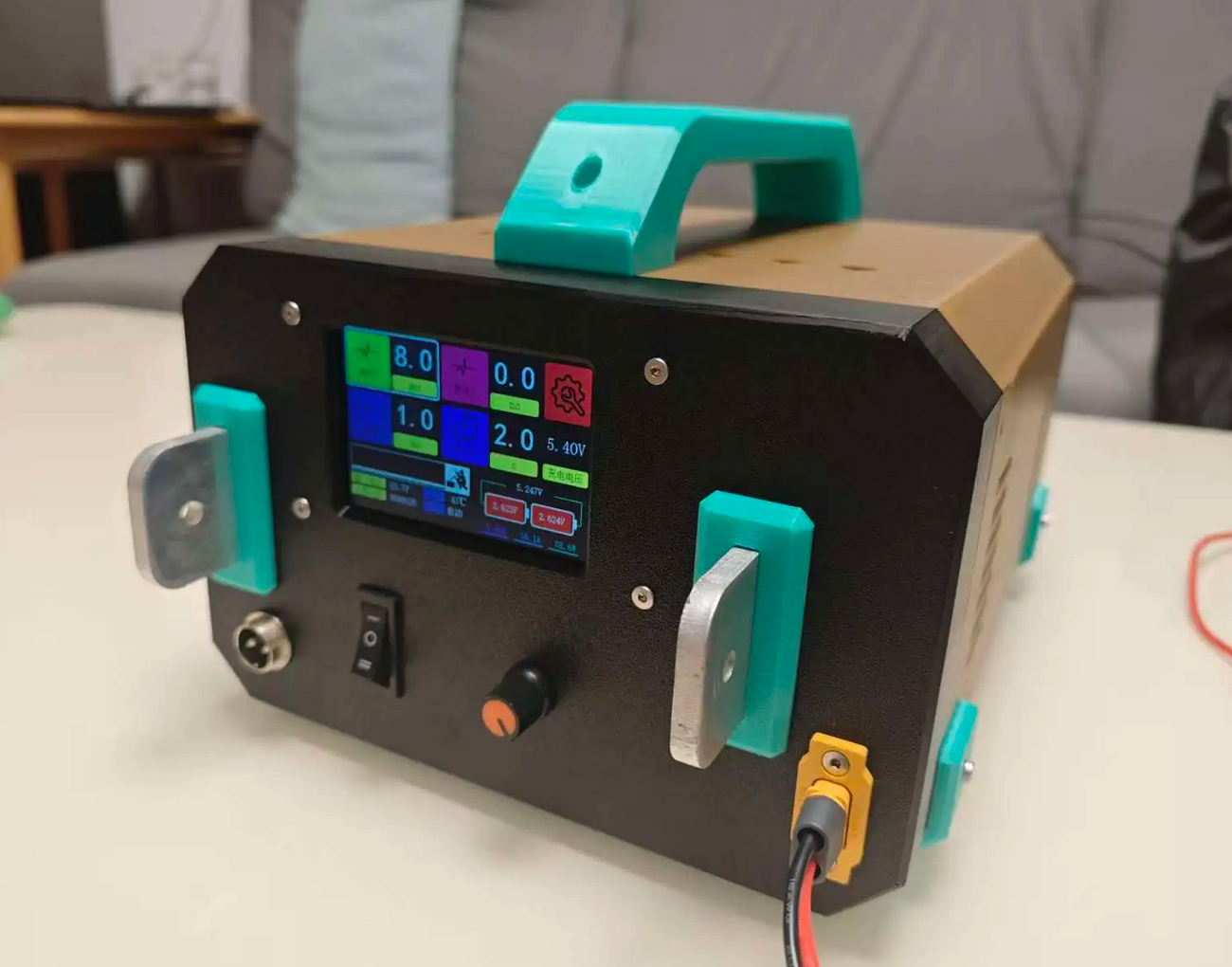

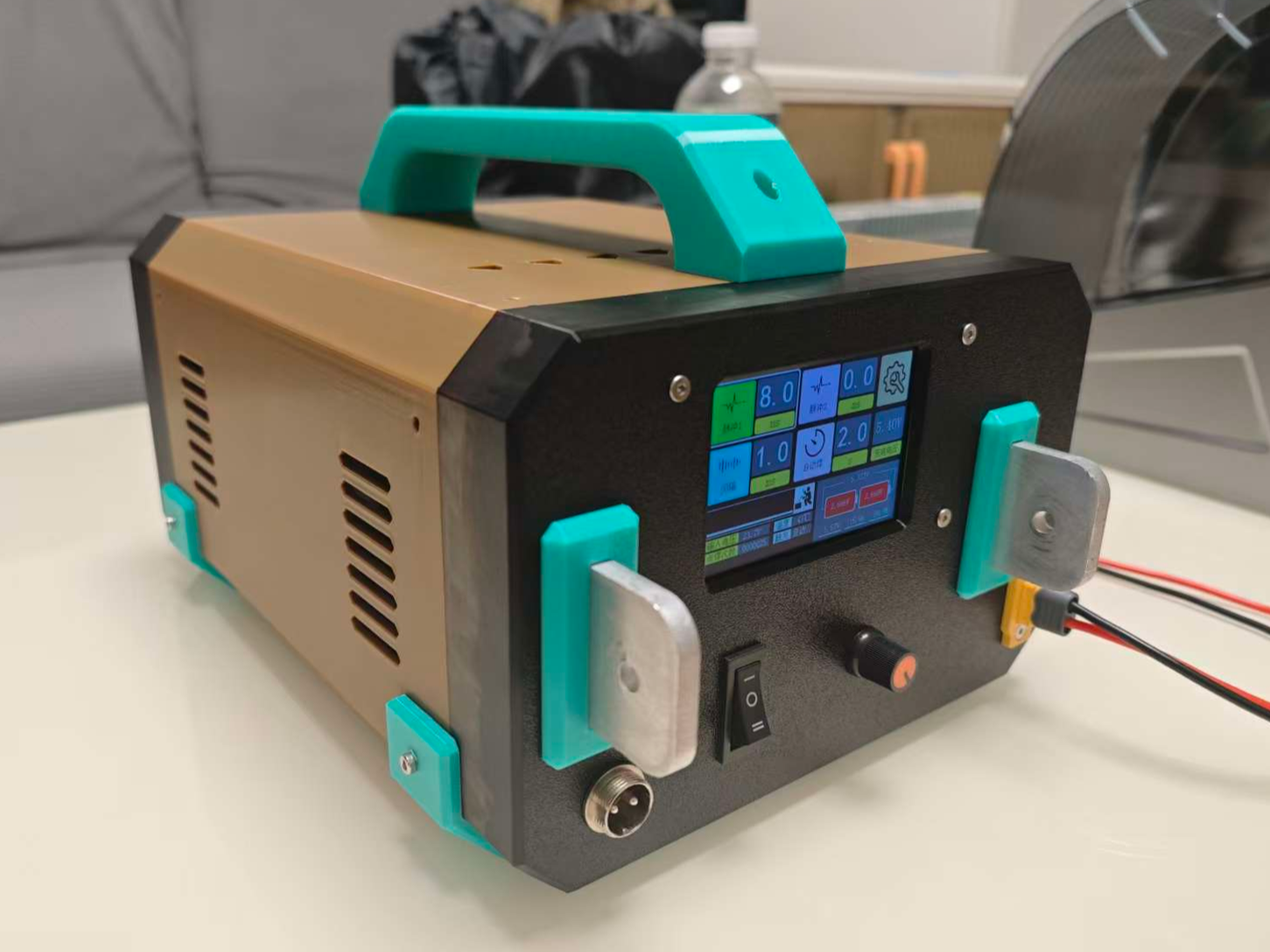

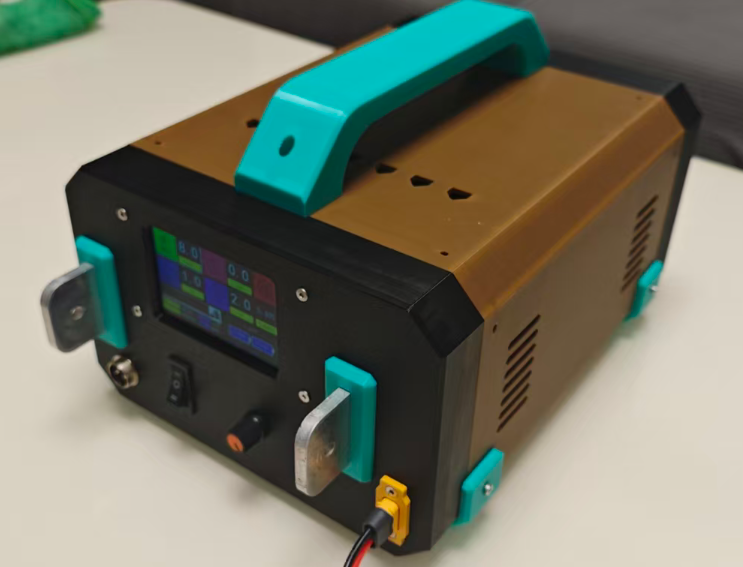

最近升级了4电容点焊机66912mos版，没有找到能适配的外壳，于是画了个4电容版外壳，支持大部分4电容点焊机

铝排孔54x15mm，两孔内侧距离137m，外侧167mm

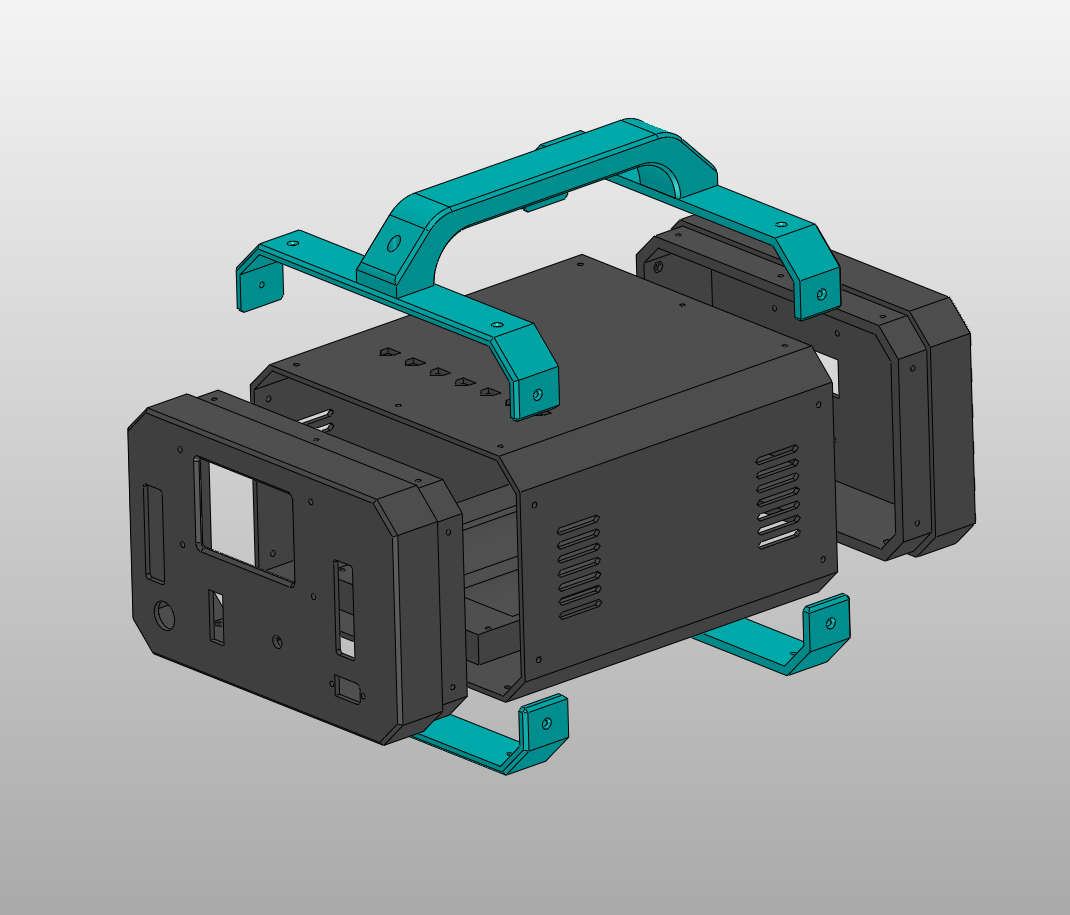

正面宽高约197x122mm，内部总长约275mm

目前版本是DC+牧田电池插口输入，背板设计尺寸可以放入150w电源，有需要的我可以再出电源款后板

螺丝螺母为沉头M3x16固定主体，平头M3x6固定面板控制器，如需详细物料清单稍后更新

物料清单：

DC插口55*2.5（20a）	1个	[https://item.taobao.com/item.htm?id=732189881789&mi_id=0000qOjDwMWqpUrN6nJH2GHGQZ9_dn6riYGniMMn-R0hoJo&spm=tbpc.boughtlist.suborder_itemtitle.1.3b702e8dhJlPJw](https://item.taobao.com/item.htm?id=732189881789&mi_id=0000qOjDwMWqpUrN6nJH2GHGQZ9_dn6riYGniMMn-R0hoJo&spm=tbpc.boughtlist.suborder_itemtitle.1.3b702e8dhJlPJw)
船型开关两档	1个	[https://mobile.yangkeduo.com/goods1.html?ps=t7qnUK7AhN](https://mobile.yangkeduo.com/goods1.html?ps=t7qnUK7AhN)
XT60BE-M公头座	1个	[https://item.taobao.com/item.htm?abbucket=9&id=817347220239&mi_id=0000gRiR4hh5y7WysrX9ntND1SFBXj-6ZHiMOMREiT3DTOU&ns=1&priceTId=214780c717655966840155142e21fe&skuId=5943537421885&spm=a21n57.1.hoverItem.2&utparam=%7B%22aplus_abtest%22%3A%22d5434fb6582bc34aa71179fc093b9e63%22%7D&xxc=taobaoSearch](https://item.taobao.com/item.htm?abbucket=9&id=817347220239&mi_id=0000gRiR4hh5y7WysrX9ntND1SFBXj-6ZHiMOMREiT3DTOU&ns=1&priceTId=214780c717655966840155142e21fe&skuId=5943537421885&spm=a21n57.1.hoverItem.2&utparam=%7B%22aplus_abtest%22%3A%22d5434fb6582bc34aa71179fc093b9e63%22%7D&xxc=taobaoSearch)
航空插头2针	1个
牧田款插脚	1个	[https://item.taobao.com/item.htm?id=882047369940&mi_id=0000_wyEulQ3jD5BtwgTpE8SucxpxQvFzBe7Zovq6nLlPPA&spm=tbpc.boughtlist.suborder_itemtitle.1.76f42e8dBPTDSO](https://item.taobao.com/item.htm?id=882047369940&mi_id=0000_wyEulQ3jD5BtwgTpE8SucxpxQvFzBe7Zovq6nLlPPA&spm=tbpc.boughtlist.suborder_itemtitle.1.76f42e8dBPTDSO)

内置电源款清单：

AC-04品字插头	1个	[https://detail.tmall.com/item.htm?id=619778843662&mi_id=0000QCRhRCSiZiID8au5pbQjjDQxZbpBOHlSxmlJniPXVdo&spm=tbpc.boughtlist.suborder_itemtitle.1.3a3f2e8dYlvX24](https://detail.tmall.com/item.htm?id=619778843662&mi_id=0000QCRhRCSiZiID8au5pbQjjDQxZbpBOHlSxmlJniPXVdo&spm=tbpc.boughtlist.suborder_itemtitle.1.3a3f2e8dYlvX24)
LRS-150-24电源	6.5A 1个	[https://mobile.yangkeduo.com/goods1.html?goods_id=623931867306&page_from=101&pxq_secret_key=IO3HHDTEKATHVD7VFCBYYGZG7P77KWYW6ABH22DUY4O5BA5O4RBA&_oak_share_snapshot_num=1800&_oak_share_time=1766064379&share_oak_rcto=YWILwFdVh6b2J6NOsBe3MXda0W46UREzemmR1kkqGbtCEWZKeBJPpTkkyEHHu0BxYcsA27ZDMk82Hg&share_uin=RGW5NJ7X7OBMIQ6BW5UNSFSXDM_GEXDA&refer_share_id=bc563d4bb285467799acde3930a75a9c&refer_share_uin=RGW5NJ7X7OBMIQ6BW5UNSFSXDM_GEXDA&refer_share_channel=message&refer_share_form=card#pushState](https://mobile.yangkeduo.com/goods1.html?goods_id=623931867306&page_from=101&pxq_secret_key=IO3HHDTEKATHVD7VFCBYYGZG7P77KWYW6ABH22DUY4O5BA5O4RBA&_oak_share_snapshot_num=1800&_oak_share_time=1766064379&share_oak_rcto=YWILwFdVh6b2J6NOsBe3MXda0W46UREzemmR1kkqGbtCEWZKeBJPpTkkyEHHu0BxYcsA27ZDMk82Hg&share_uin=RGW5NJ7X7OBMIQ6BW5UNSFSXDM_GEXDA&refer_share_id=bc563d4bb285467799acde3930a75a9c&refer_share_uin=RGW5NJ7X7OBMIQ6BW5UNSFSXDM_GEXDA&refer_share_channel=message&refer_share_form=card#pushState)
