HANGR - Modular Expandable Hanging System

This System is designed to be quick for 3D printing, lightweight and really strong, orientation of parts takes all the best from 3D printing. Hangers are really strong and easy to replace. Use one of those Amazon/Temu magic transparent double sided adhesive tapes - those keeps it in place absurdly well.

HANGR is a modular hanging system that grows with your ideas.

Headphones today, pen cups tomorrow — you decide.

Print, snap, hang, repeat.

For best results print it by using PLA or PETG with following setup:

0,2 mm layer height
4 walls
5 top and bottom layers

Holes are designed in a way to fit 7,5 mm thick (wide) hangers - “wall” for hanging mentioned hangers has 2mm thickness. If you want to design your own shapes please remember to make 0,3 mm clearance so basically make 2,3 mm space to fit hanger perfectly. On the back you have 6 mm space between holes and your physical Wall so basically your hanger should have max 5 mm thick on the back.

Simple documentation with crucial info for designing hangers - attached.

Also below pasted simple drawing (thickness: 7.5 mm):

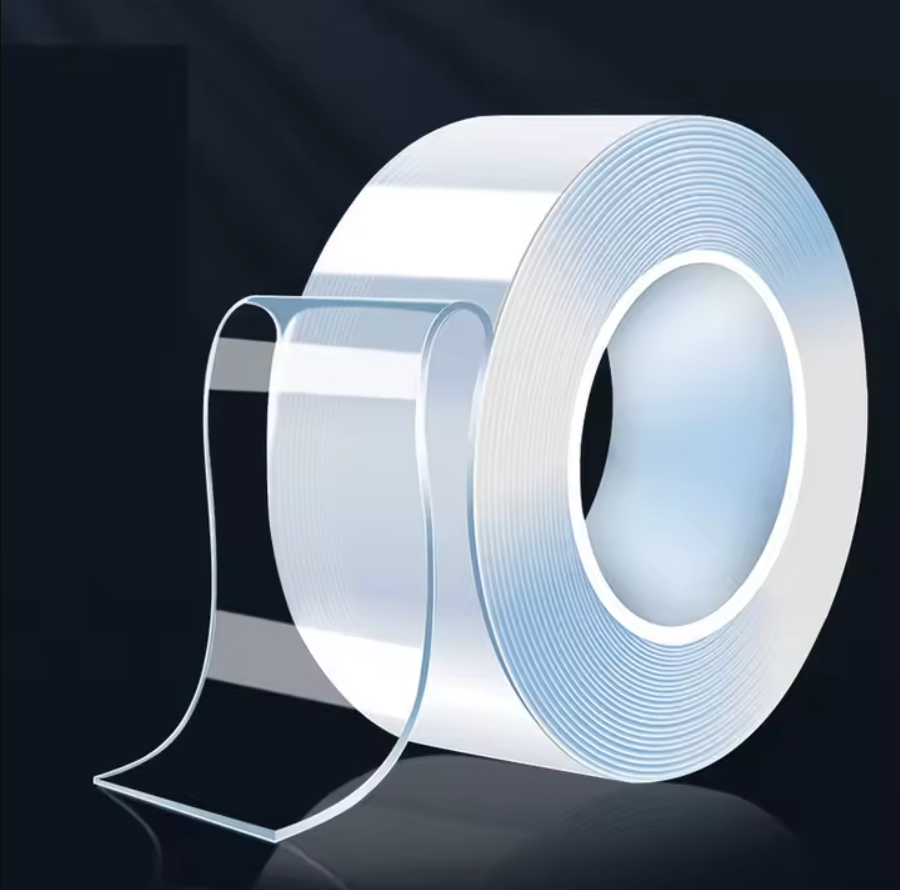

Highly Recommend this type of tape - Gel/Magic/Nano/5M:
