Flexi Grid WITH SMALLER SIZE

FOLLOW FOR MORE! 🚀🚀🚀

BIG EDIT: added a completly new design, that twists on a spiral path.

you will need to print it with -0.08 tollerences on on xy.

I have printed it but I have not uploaded pictures, but I will when i have the chance!

note: if bambu studio, or whatever you open the stl with has and error, please reopen it or allow bambu studio to do what it thinks best. model was designed in millimeter, so if you have us customary settings on in bambu studio, the model will become extremely tiny.

Check out my other models!

Spiral Christmas Tree with Legs- Christmas Themed!

Pin Art Board
Articulated Fire Breathing Dragon

VERSION 2.3

This is the first version of a flexi grid, made entirely by me in Onshape! For all designers out there, this is actually a really fun project to make in CAD—especially if you use variables. If anyone wants me to upload a video, comment below.

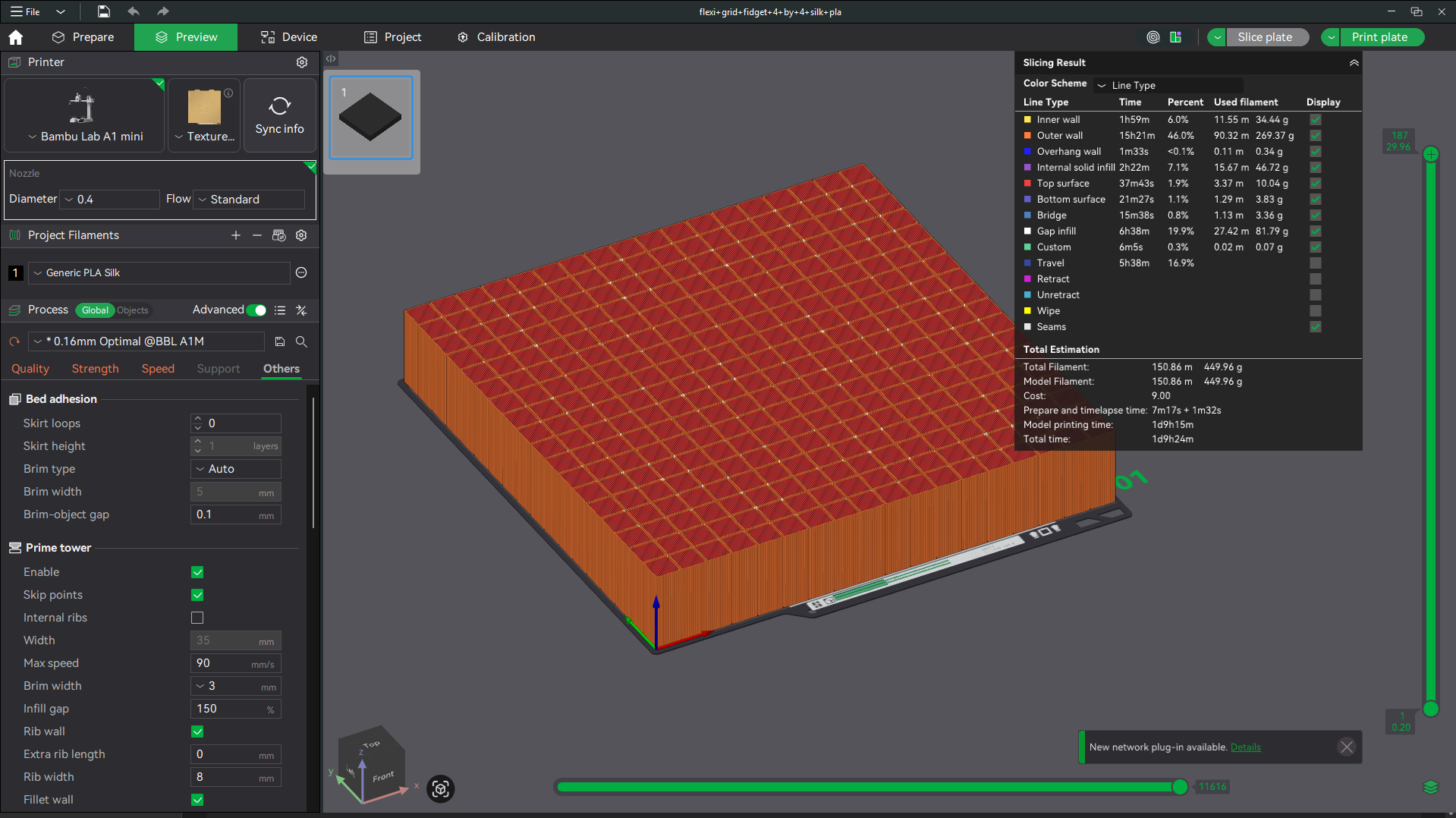

Unlike most fidgets, this one actually works, although you do need a well-tuned machine. On my P1S, it took just over 10 hours to print, which is quite long, but I used a 0.12 mm layer height. A 0.16 mm layer height would be fine; I do not recommend 0.2 mm.

The tolerances are 0.2 mm everywhere, so if you want to print this on an Ender 3, you’ll probably want to use XY compensation in the range of about −0.08 mm to −0.1 mm. Bed adhesion is acceptable, although you’ll most likely want to print it on a clean bed. I personally printed it with −0.08 mm tolerance, which results in very smooth, easy movement.

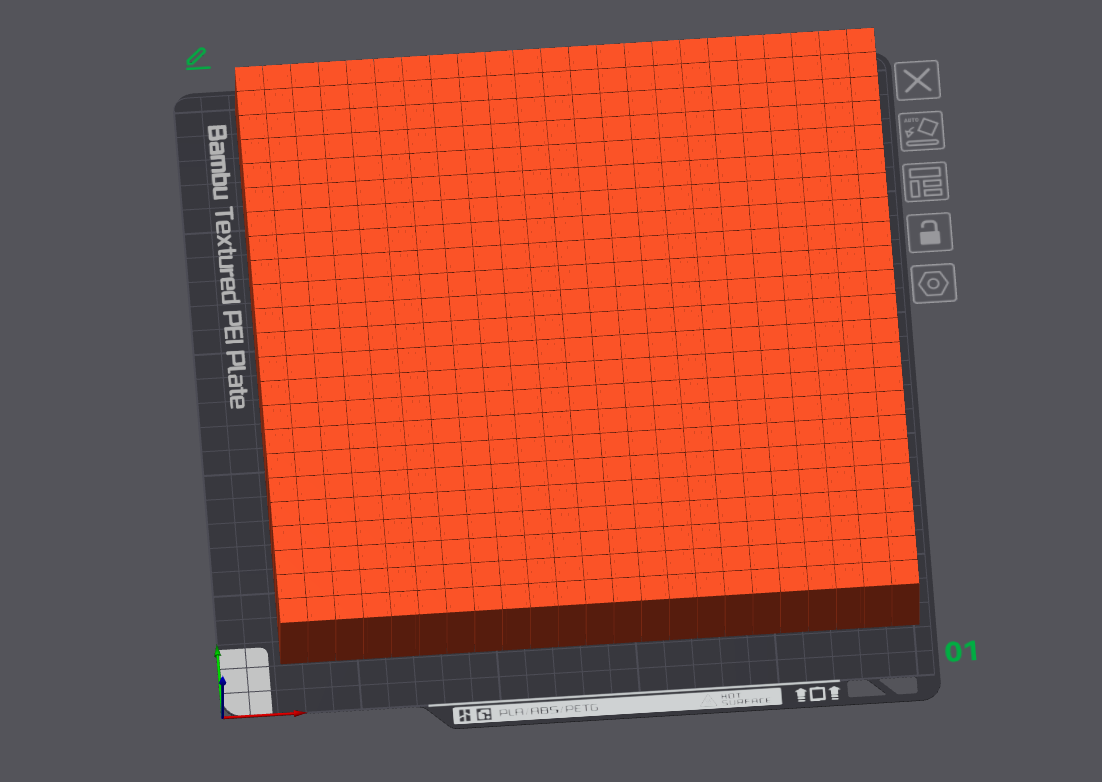

NOW WITH A 24 BY 24 VERSION FOR A1 USERS, AND A 23 BY 23 VERSION FOR P1/X1 OWNERS!

EDIT:

added a 4*4 section, for users with a1 mini

cascading fidget slime ball on eliptical path, flexi grid and small flexi grid 3 by 3.
