Update 15.03.2026

• Triangulus ATX Tower - Released!



  The Triangulus ITX Tower couldn't meet the requirements for ATX hardware, so the Triangulus ATX Tower was completely redesigned. The new project was inspired by the triangular shape but significantly changes structure and dimensions and also improves functionality. Now you can enjoy attractive design without purchasing expensive ITX/SFX hardware.



  Check my designs!

v2 Update 27.01.2026

• Added GPU mounting position with video output facing down
• Added support for 140 / 280 / 420 AIO Coolers
• Added Print Profile for A1 mini printer
• Improves AIO backplates compatibility

What makes this project interesting:

A unique triangular design. The open-air structure provides excellent hardware display, especially for AIO water coolers. It allows you to build a PC in a new, unparalleled form. Each of the three sides of the tower can be displayed according to your preferences. The case is multifunctional, allowing you to build a spectacular PC or file server.  It is easy to print and assembly is straightforward.

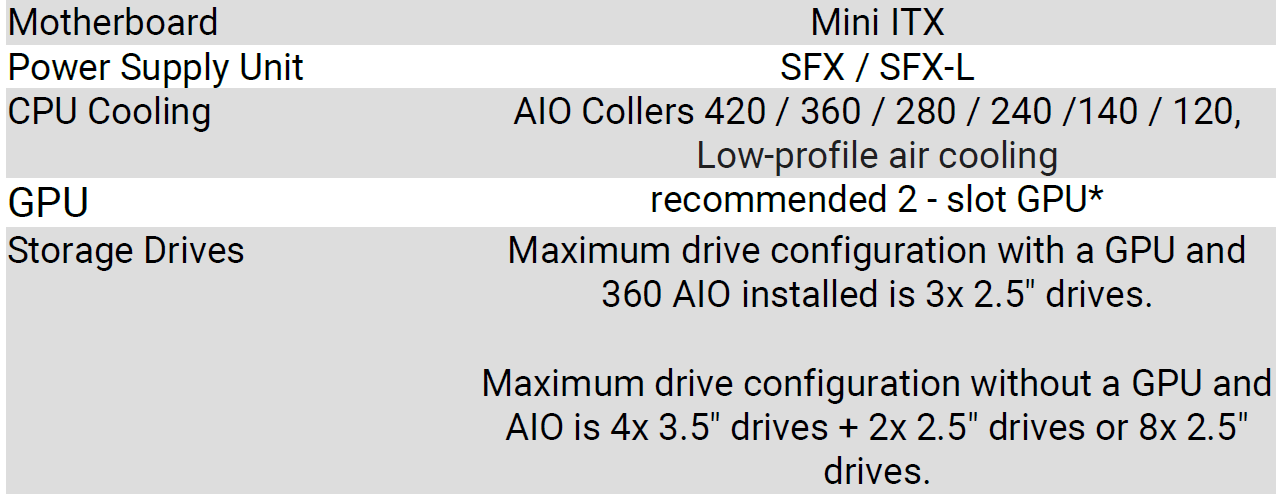

Hardware Compatibility

* tested with MSI RTX 3070 Ventus x3 ~1Kg

Printing

For maximum durability, print with ABS in a closed chamber. You can also print with PETG using an A1 and A1 mini printers.

Basic parameters

• nozzle 0.4
• layer height 0.2
• wall count 3
• top layers 5
• infil 20%

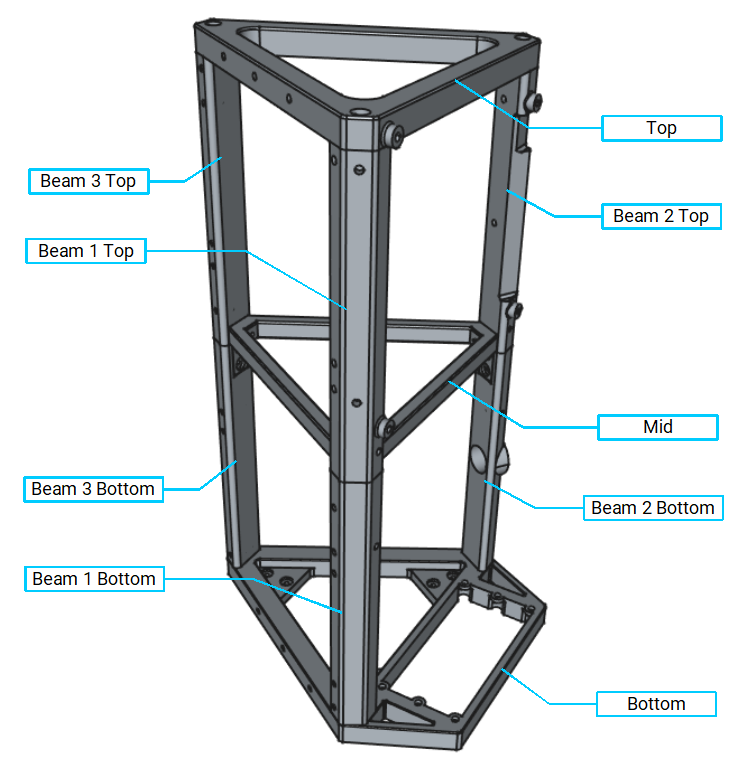

3D Printed Parts Overview
Core

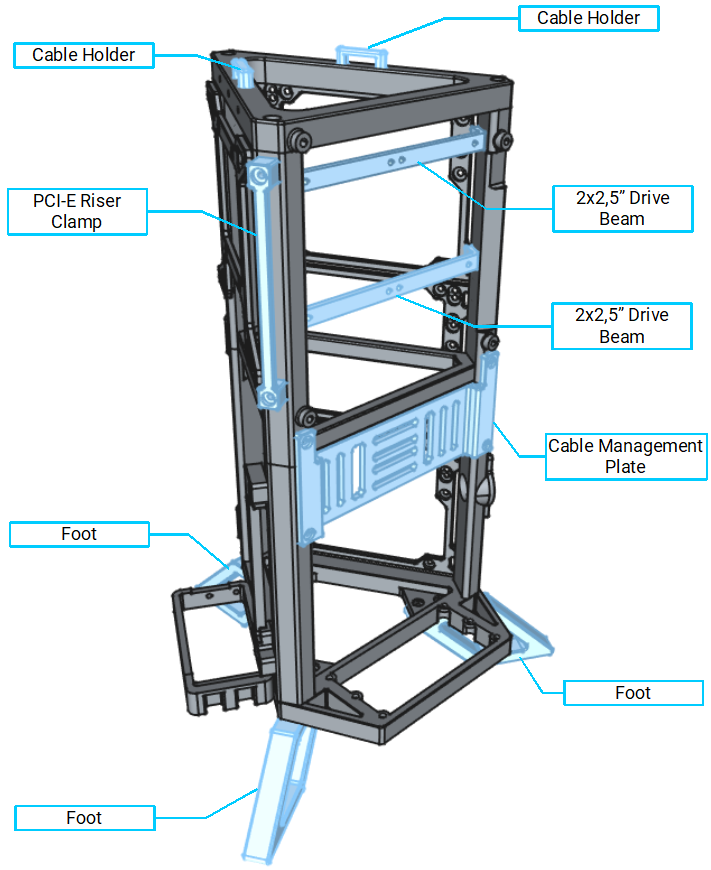

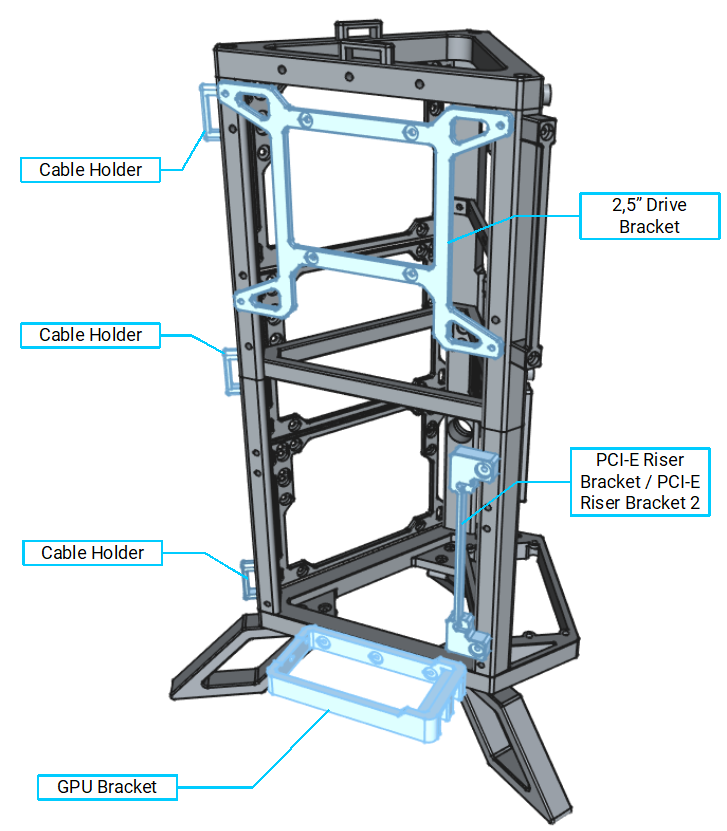

3D Printed Parts Overview
Additional parts

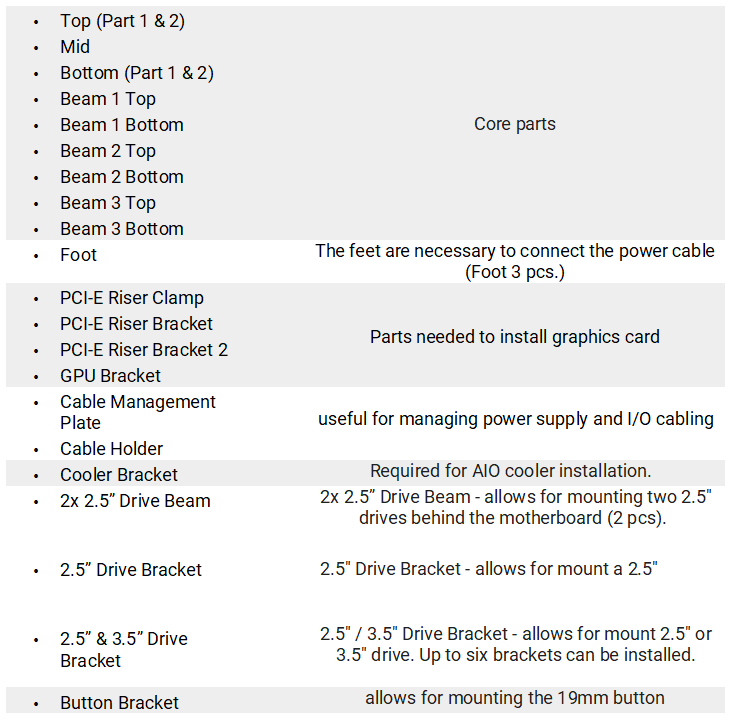

3D Printed Parts description

Optional parts

Optional parts can be found in print profiles.

Three slot GPU Bracket

Allows the installation of a three-slot graphics card.

2.5” / 3.5” Drive Bracket

Allows to mount a 2.5" or 3.5" drive.

Assembly

Below in the Triangulus_ITX_Tower_Asswmbly_Manual_v2.pdf file you will find a detailed description of the assembly.

Hardware Assembly

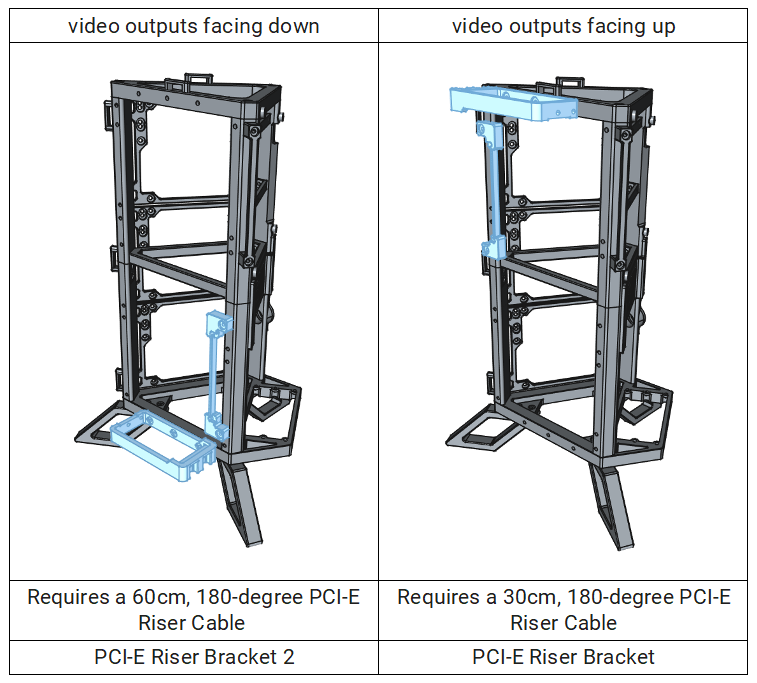

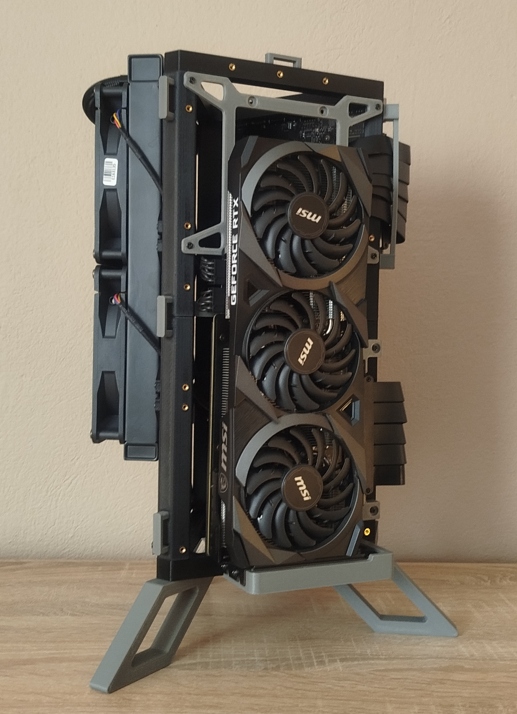

GPU Mounting position

It is possible to mount the graphics card with the video outputs facing up or down. This is an individual matter and depends on the GPU model. In some cases, the graphics card cooling may operate at lower efficiency whan video outputs facing up.

Generally heat pipes works better when heating source is lower than cooling side. It can be assumed that the GPU cooler has two sides and between them there is the core. The cooling side, which is larger, should be placed higher, than cooling performance will be similar to standard mounting position.

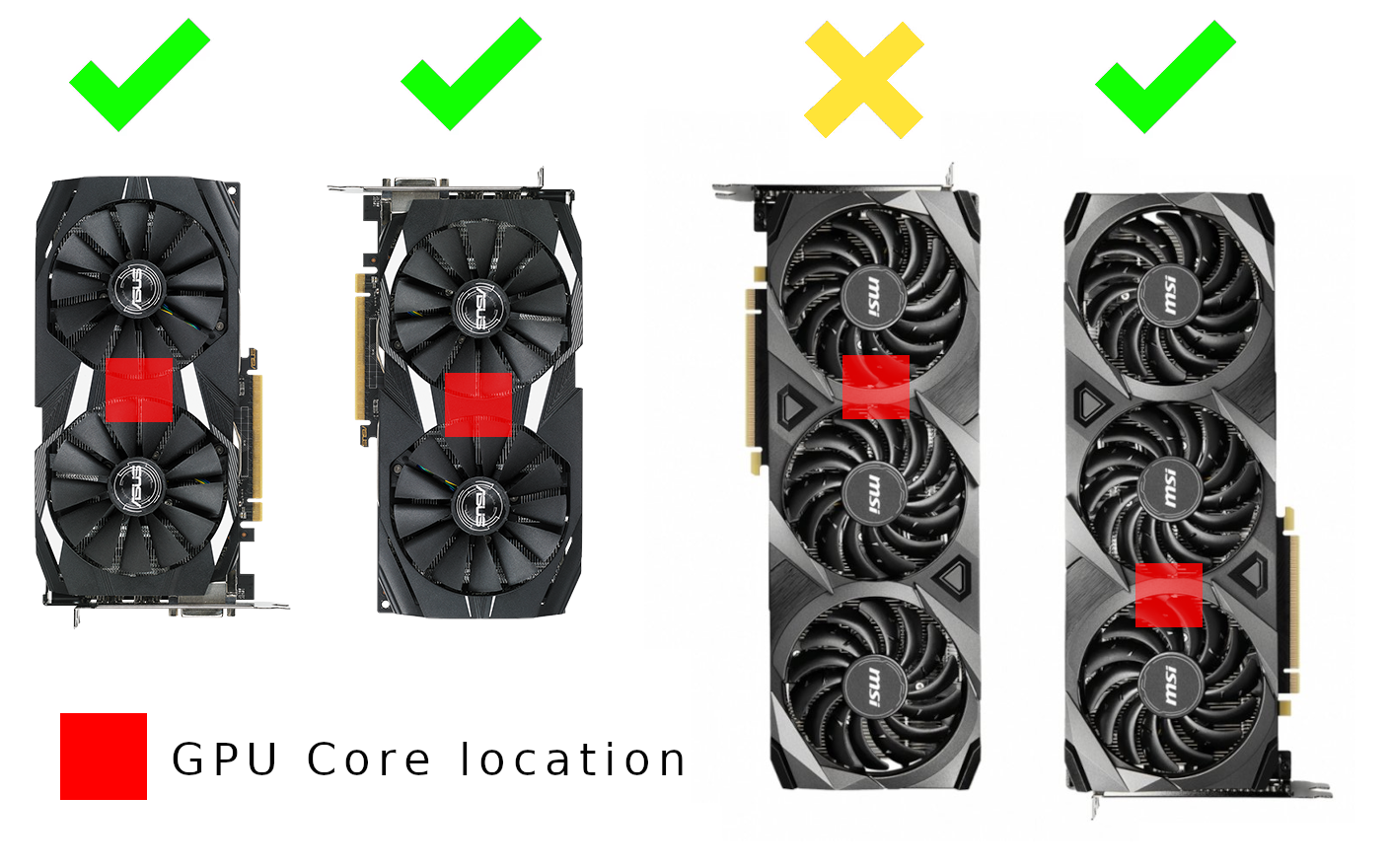

For simplicity, it can be assumed that: Video output position facing UP is good for GPUs:

• with two fans and the core centered between them
• without heat pipes
• with blowair cooling
• some ITX GPUs with one fan like a Sapphire Pulse RX 570 ITX

Video output position facing Down is good for GPUs:

• with three fans
• with two fans but core placed not central, is nearer video output ports
• some retro GPUs with one fan like Asus GTX 460 DirectCU

Hardware Assembly

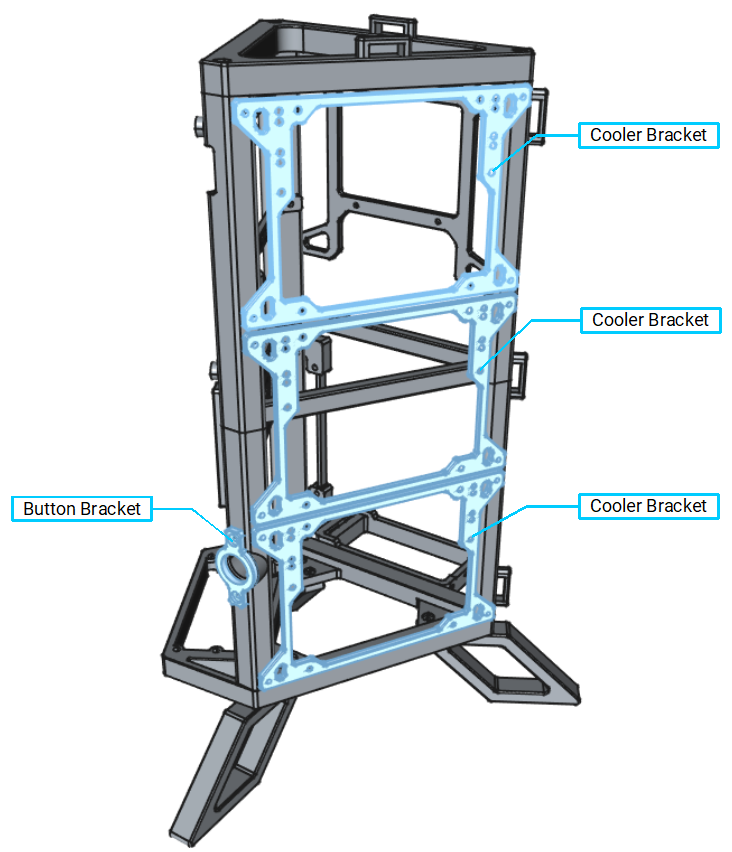

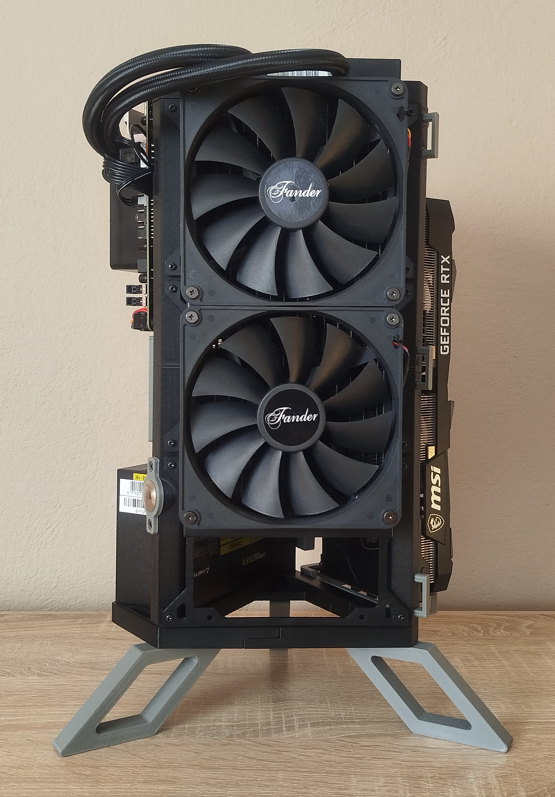

AIO Cooler

PCI-E Riser

Unfortunately, not every riser has identical mounting points. If you have problem to mount different riser, send me private message. I'll try to resolve the compatibility issue.

As a file server

The Triangulus ITX Tower case can be used as a home file server. Instead of mounting an all-in-one water cooler and a graphics card, you can use drive brackets. Below is an example configuration. An additional print profile for a single drive bracket is included.
