Make-Your-Own Parametric Mount Bracket

Generic parametric mounting bracket you can resize to fit almost any small device or object.
The preview image shows the three main dimensions you can change:

Length – total distance between the two screw tabs
Depth – how far the bracket extends under the object
Height – how high the side wall goes up

There is also a parameter for the screw diameter, which supports flat-head / countersunk screws up to M8.

Important about tolerances:

The screw diameter you enter is automatically increased by 0.2 mm to add clearance.
All other dimensions (Length, Depth, Height, etc.) are applied exactly as you set them, so you should include your own tolerances in those values depending on your printer and use case.

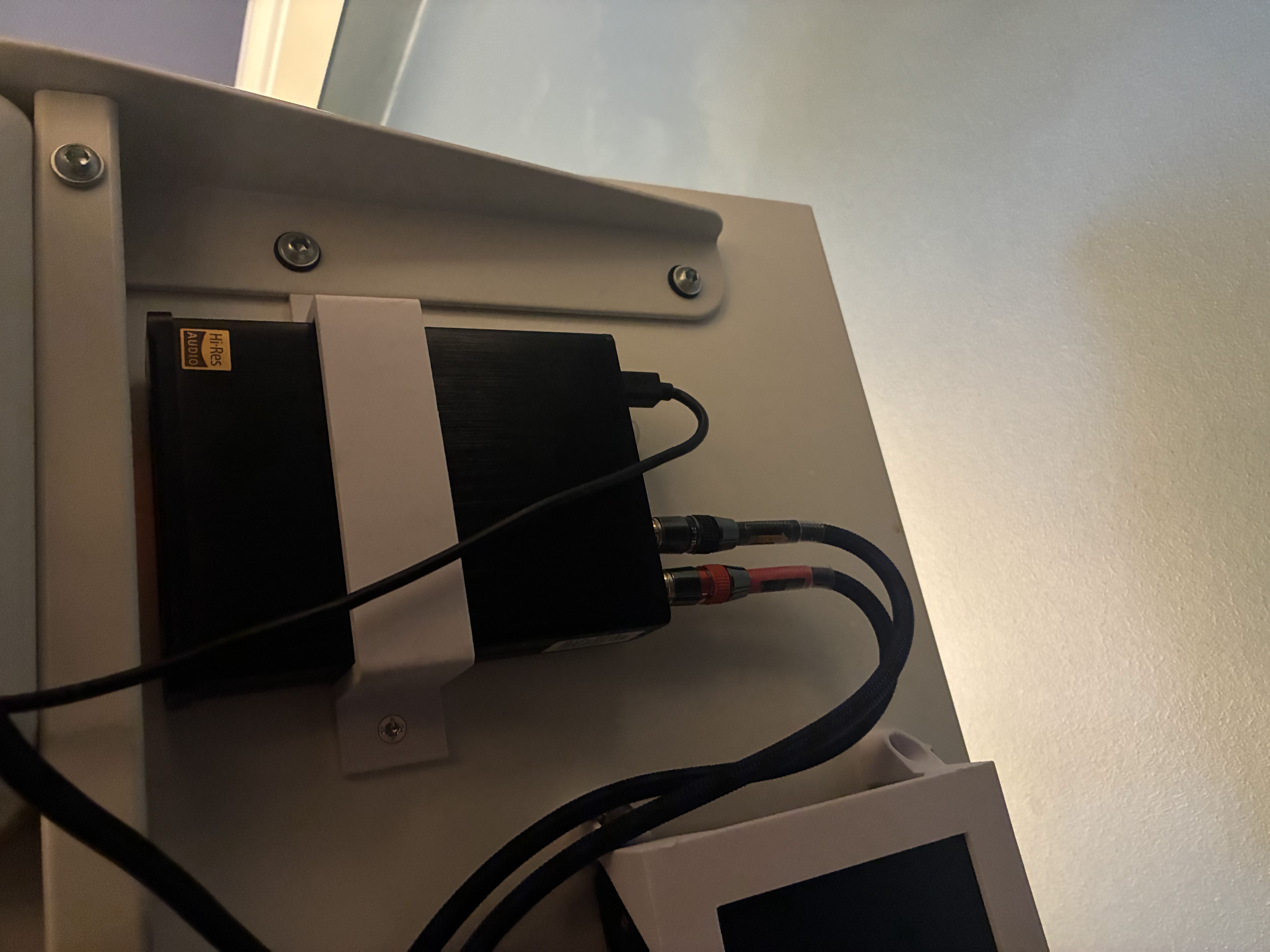

The examples in the images are just sample uses; the model itself is not tied to any specific device.
