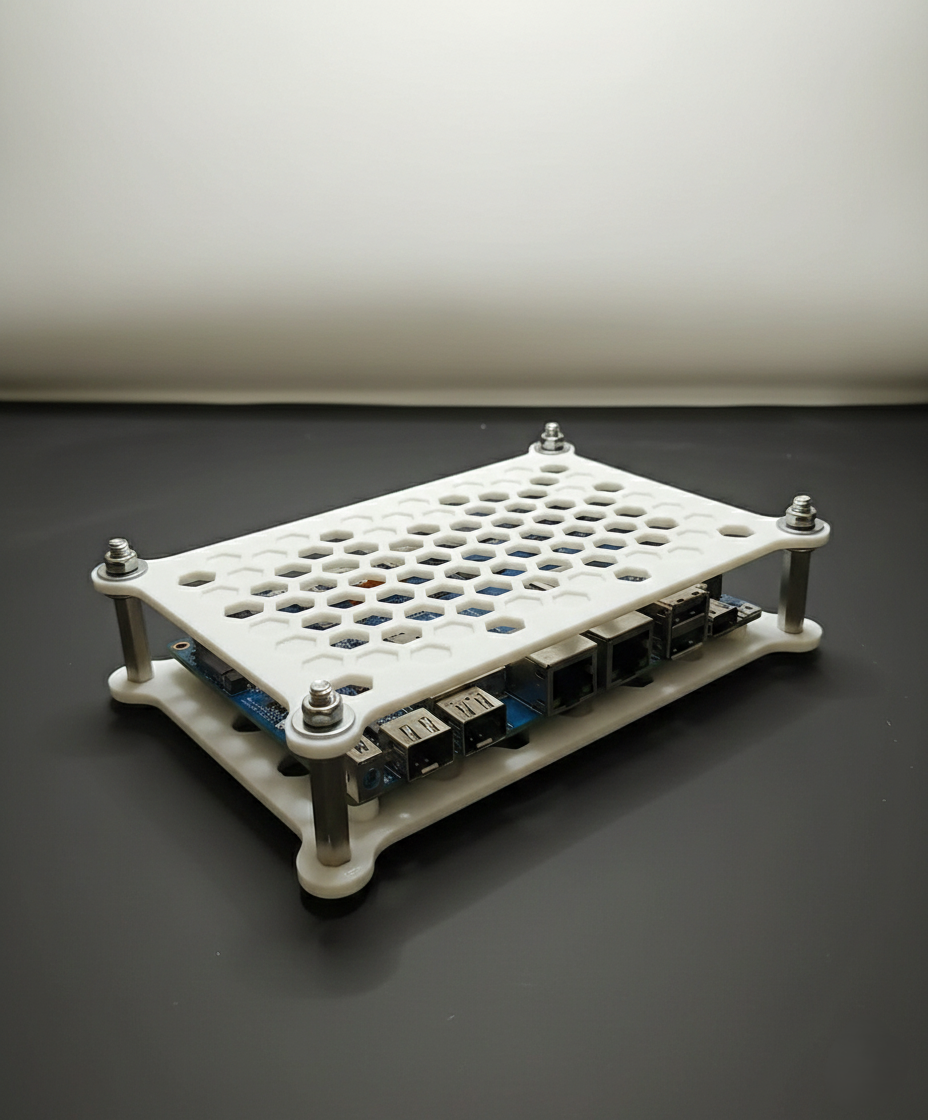

Banana Pi Cage | Raspberry Pi Box

• Pi board samples : Banana PI

                                           Raspberry PI

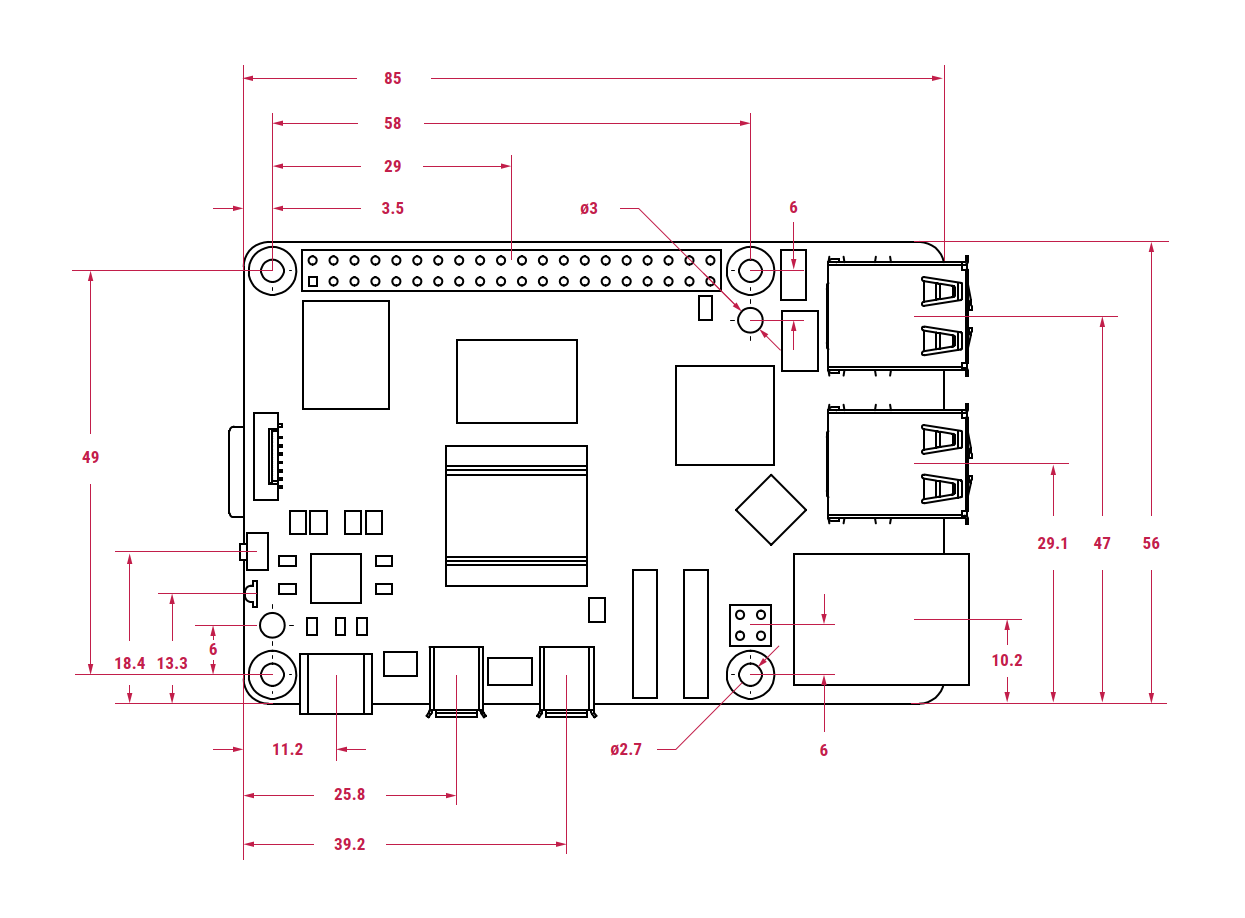

Tip: Please make sure that the mounting hole positions on your Pi board are consistent with those shown in the image！

• Installation Instructions



  1.Use M3 self-tapping screws to fix the Pi board on the four cylindrical supports on the printed base plate;



  2.Connect and fix the top and bottom plates using 4 M3 Socket Head Shoulder Machine Screws.

  (Additionally, if you want to continue stacking your Pi board, here you can replace the M3 Socket Head Shoulder Machine Screws with M3×30 isolation bolts for connection. )

  As shown in the figure:
