• Updated：Optimized the insufficient preload of the latch that caused disengagement. —tested!! 2026_01_20

• Updated the incorrectly-uploaded version, adjusted the dimension in the red box—tested!! 2026_01_14

——————————

U1 Auto-Feeder Angle-Adjustable Bracket.

• Designed for scenarios where the angle needs to be adjusted when using a dry-box!!
• After opening, it does not affect the original wiring harness!
• The angle adjustment has obvious tactile detents.

【PS：No need to mirror; just print two identical parts for installation—U1's two sides aren't mirrored.】

【PS：无需镜像，直接打印2个一样的使用即可】

update：

——————————

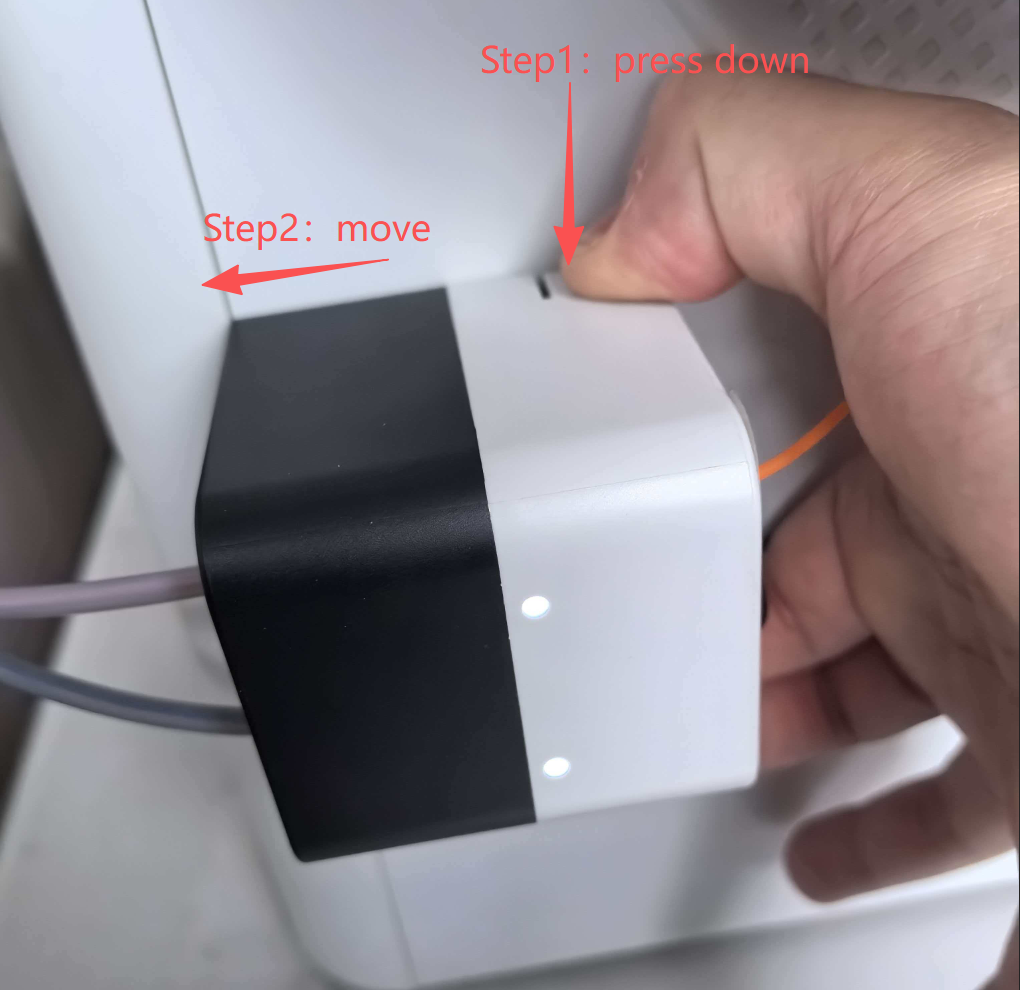

• Steps to disassemble the automatic feeder

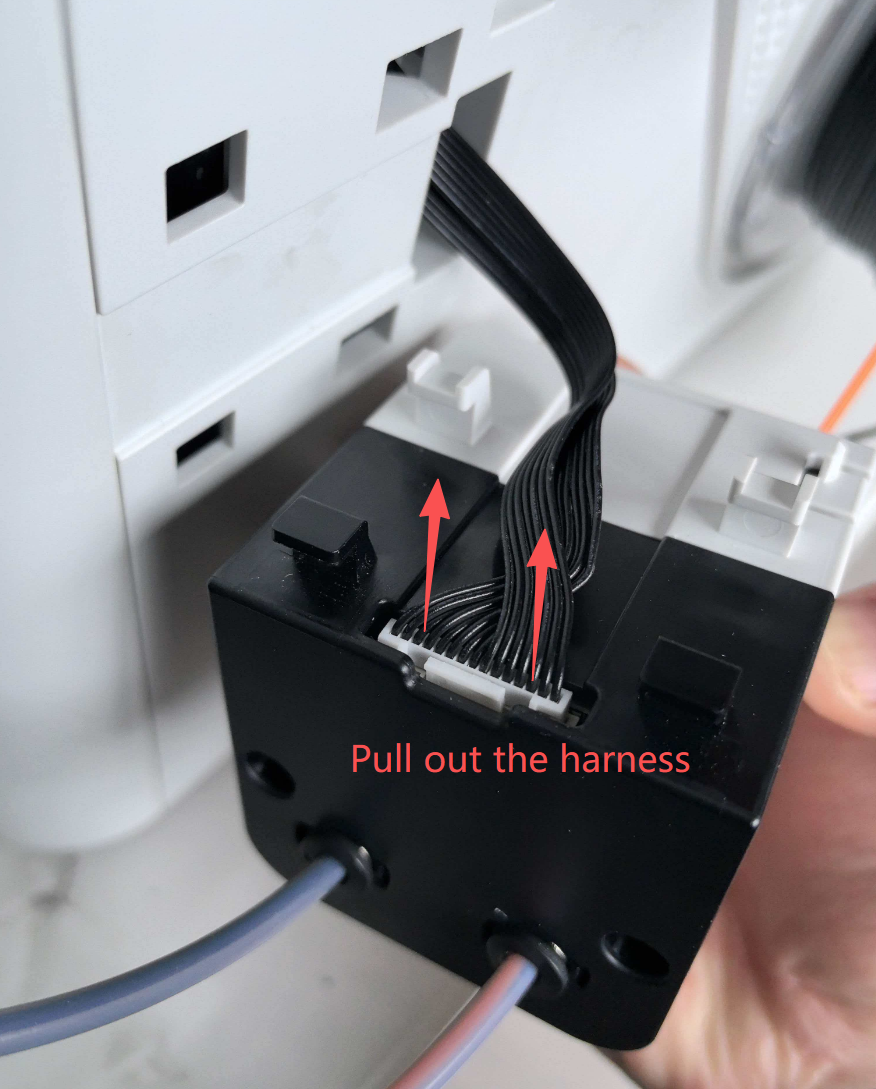

• If the cable is too short, gently pull it out—there’s plenty of slack inside, it’s just taped to the housing.

• Two things to watch in the process settings:

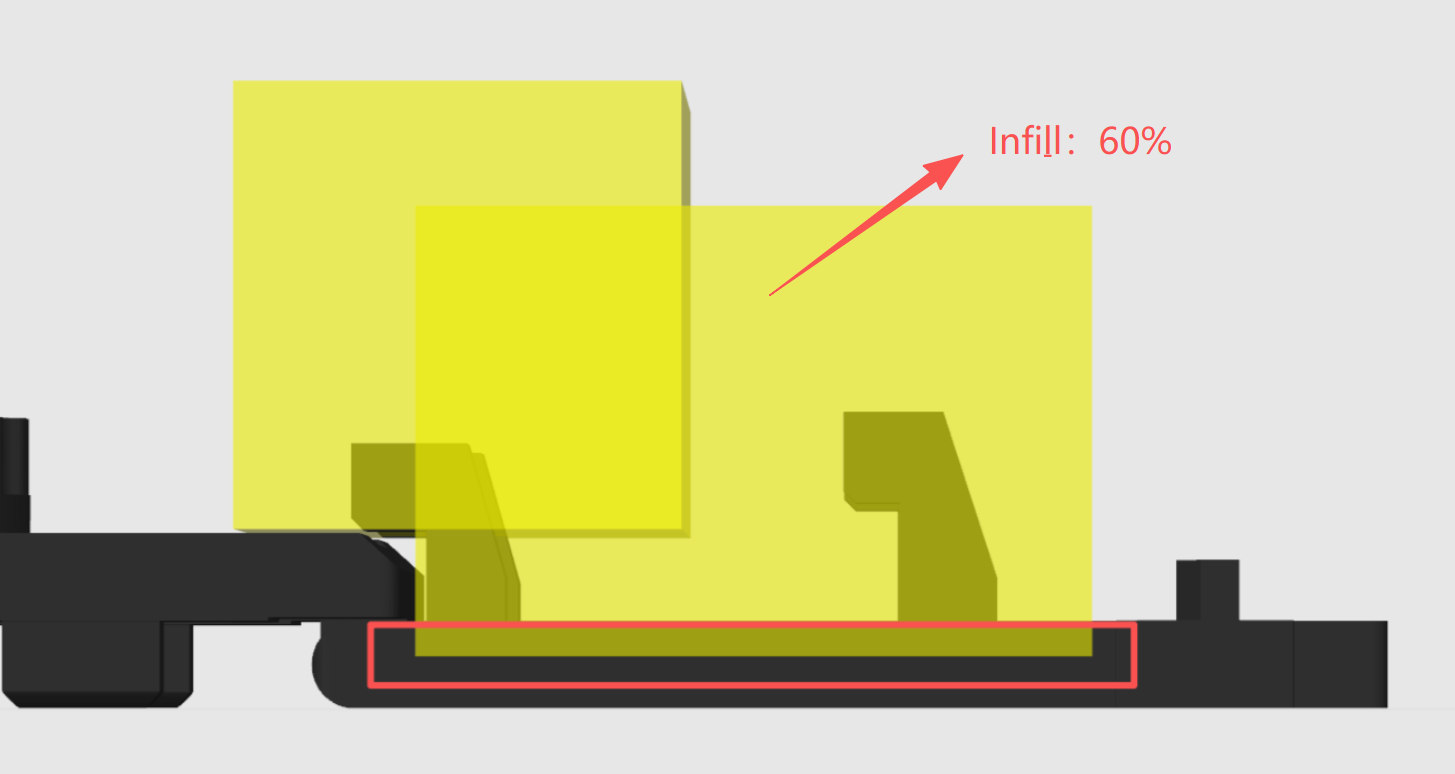

  • 1. Set modifier infill to 60 % to reduce the chance of breakage.

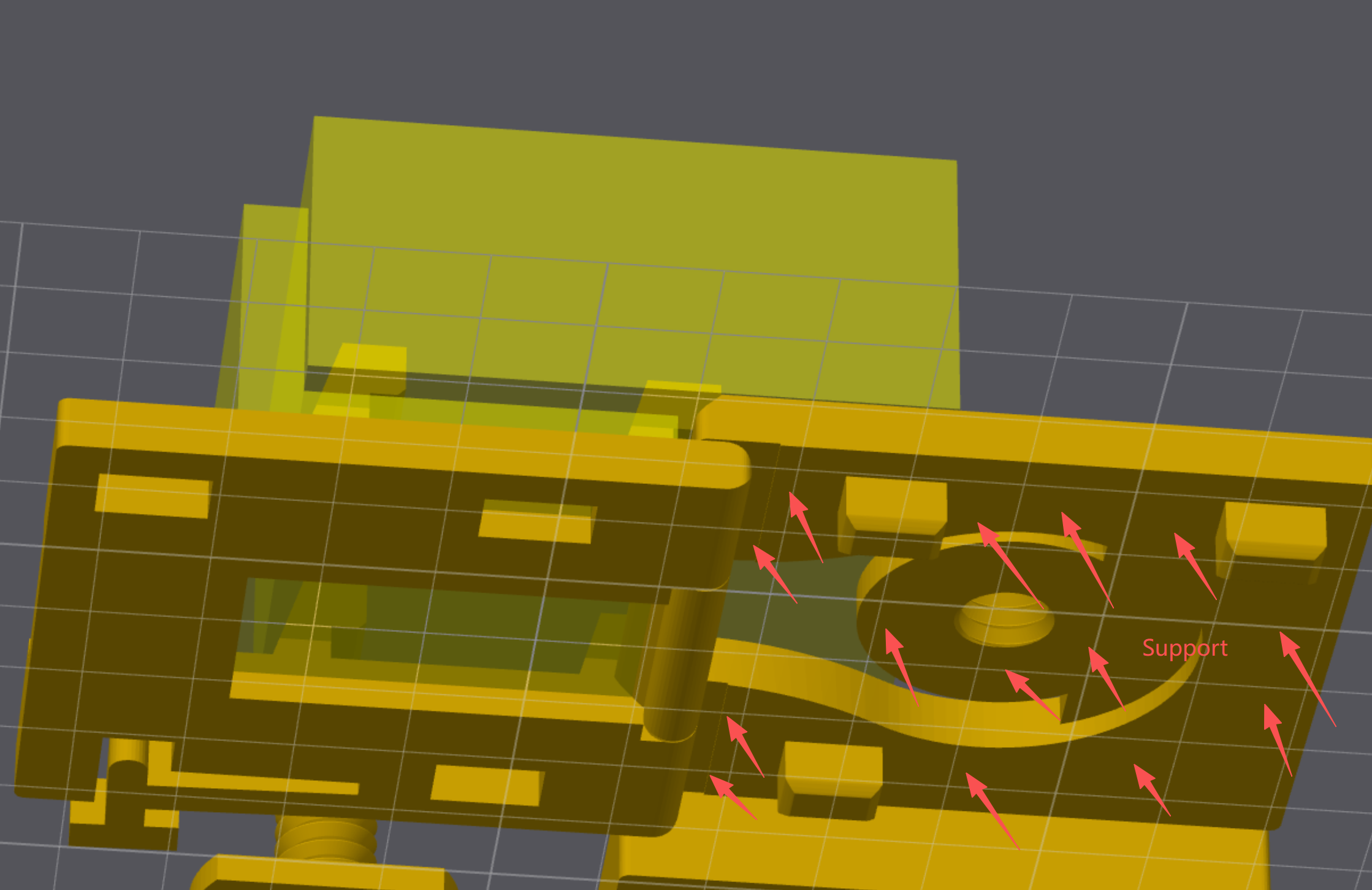

  • 2. Supports are required.

• For Snapmaker Orca download here！

If you need laser cutting or CNC engraving, you can give the DXF directly to a shop. If you need to edit the drawing yourself, download the first DWG file.
