Play-Doh Pasta Roller – Version 2 (Reinforced & Improved)

A fully re-engineered upgrade based on community feedback. Stronger, smoother, clearer, and easier to assemble.

Description
Version 2 of the Play-Doh Pasta Roller is a complete redesign focused on durability, smoother rolling, easier assembly, and real-world kid testing. Nearly every part has been strengthened or tolerance adjusted to address community feedback from Version 1. The result is a more rugged, more reliable roller that still produces ~3mm Play-Doh sheets with synchronized twin rollers and a crank handle.

What’s New in Version 2 (Based on Community Feedback)

Major Strength Improvements

• Thicker, reinforced handle to prevent bending or snapping during heavy kid use.
• Larger, square connector plugs (replacing triangles) for dramatically better strength and easier gluing.
• Thicker base walls & strengthened frame to reduce flexing and eliminate “wiggle” during rolling.
• Greater spacing between handle and secondary gear to prevent rubbing or collision.
• Rebalanced tolerances for gears, rollers, and plug interfaces to support imperfect alignment and reduce binding.
• Improved geometry on gear connections to better handle off-angle torque from young kids.

Mechanical & Fit Enhancements

• Extra gear clearance to prevent the secondary gear from hitting the handle base.
• Roller tolerances aligned to reduce stiffness and allow smoother spinning.
• Rollers made wider for improved stability and smoother rolling.
• Plug bases strengthened to avoid snapping during heavy use.
• All connection geometry redesigned for glue-first assembly.

Assembly Instructions (IMPORTANT — MUST READ)

This model must be glued together.

Snap-fits are alignment guides, not permanent mechanical locks.

For best results:

1. Dry-fit every part before gluing.
2. Apply super glue or gel CA glue to every plug and cap.
3. Press connectors together firmly and allow time to cure before use.
4. Do not rely on friction alone — it will fall apart during play.

If assembled correctly with glue, V2 is considerably stronger than V1 and resists off-angle torque from young children.

Step-by-Step Assembly

Step 1: Glue roller cap into roller

Step 2: Glue gear onto roller

Step 3: Glue roller cap into 2nd roller

Step 4: Glue gear handle onto roller

Step 5: Insert inside handle into outside handle and glue cap into handle

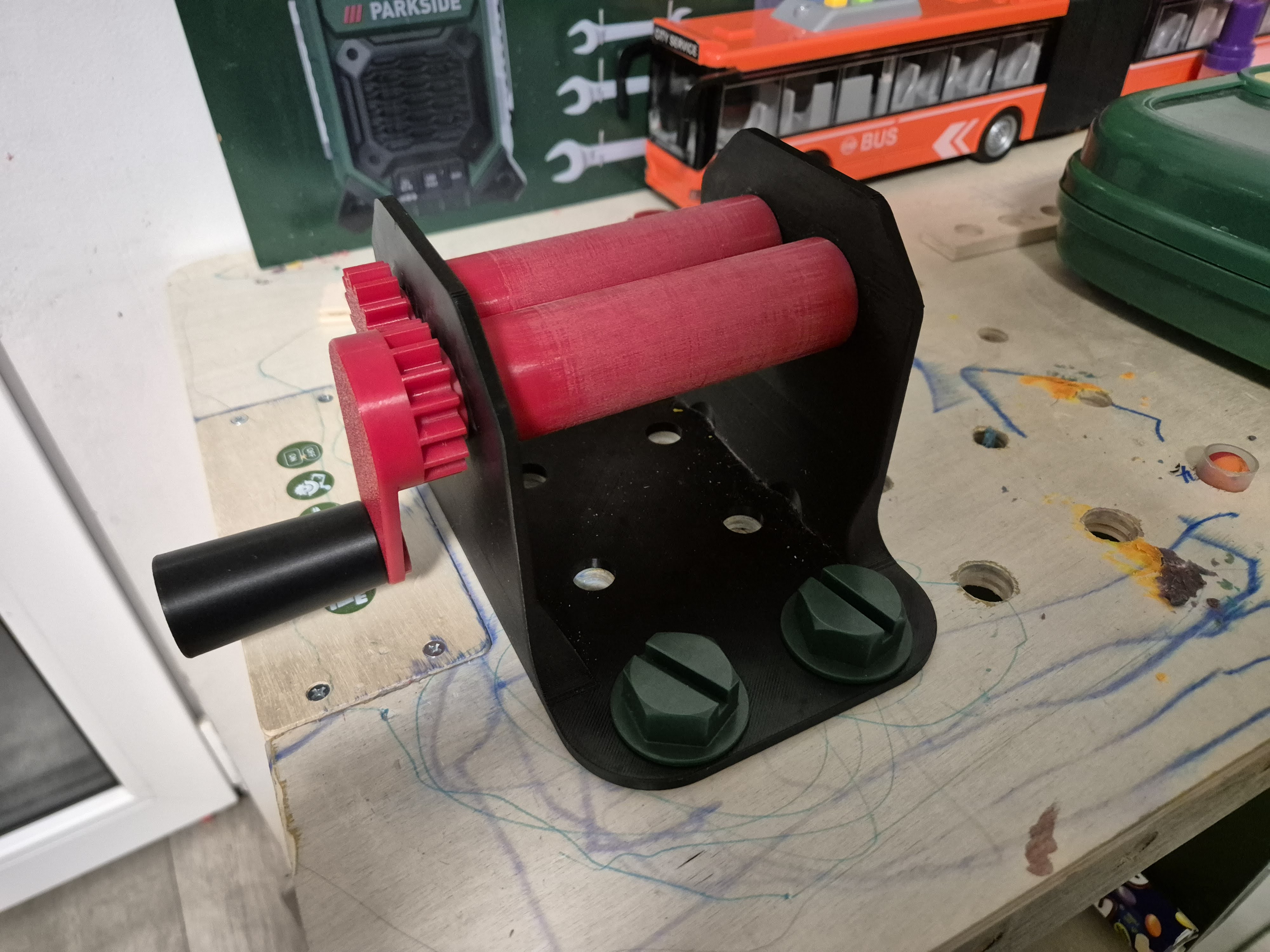

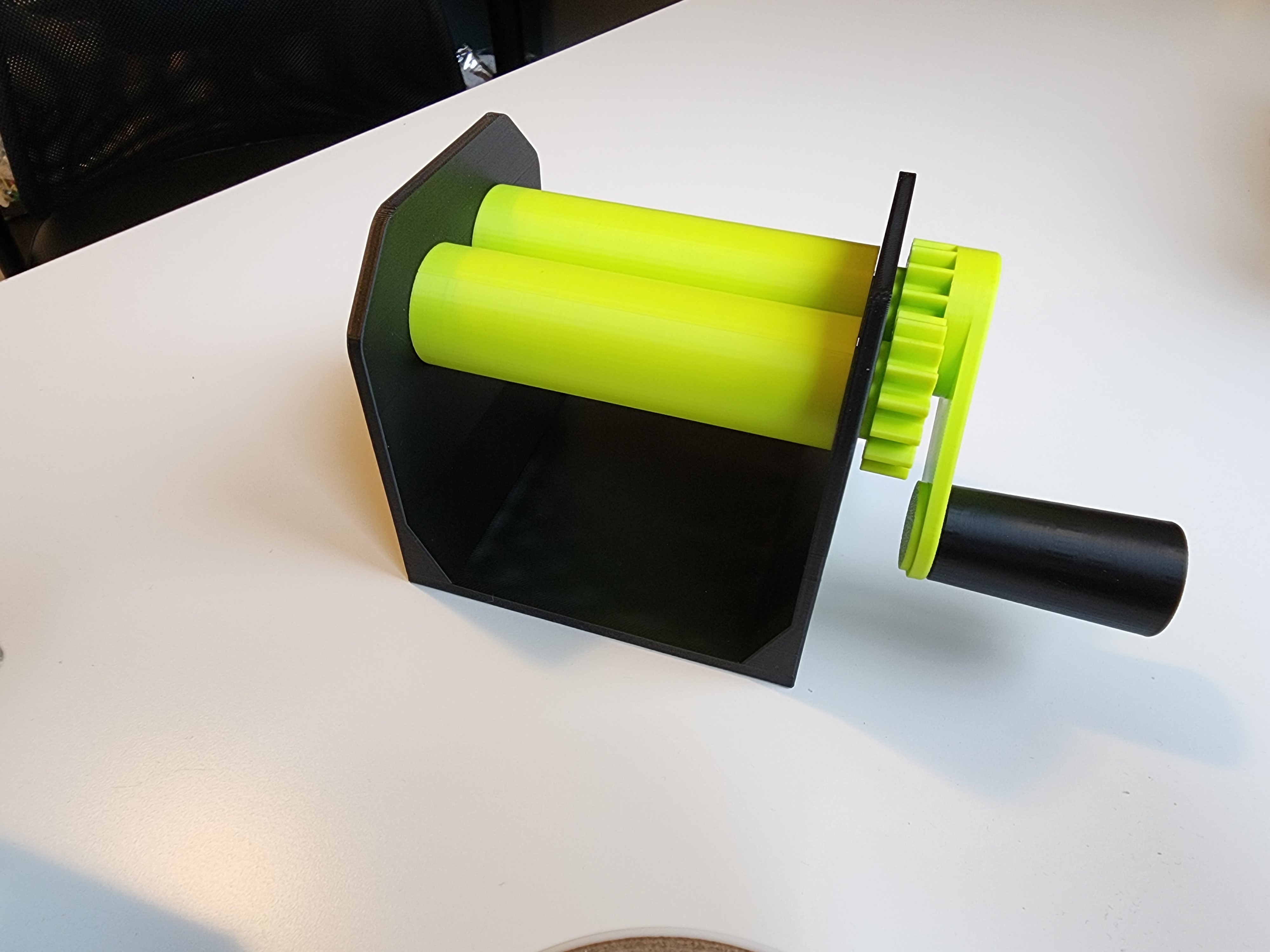

Completed Assembly

Features

• Crank-Driven Twin Rollers – Synchronized gears rotate both rollers smoothly.
• Consistent 3mm Sheet Output – Ideal for Play-Doh pasta, pretend lasagna, and craft projects.
• Kid-Friendly Design – Rounded edges; supervision recommended due to roller pinch points.
• Improved Durability – Designed to withstand real toddler abuse.
• Customizable Colors – Make rollers, gears, and handle any palette you like.

• Table Clamp Compatible – Can be clamped using a small printed or household clamp for easier operation.



FAQs

Can it be used for real pasta or polymer clay?
Some community members have tried it successfully, but it was designed for Play-Doh. Use PETG for stronger usage scenarios.

Why does it squeak or feel stiff at first?
Tolerances are intentionally snug but loosen with use. A small amount of mineral oil or sanding can help.

Do I really need glue?
Yes. Absolutely. Nearly every breakage report comes from non-glued assemblies.
