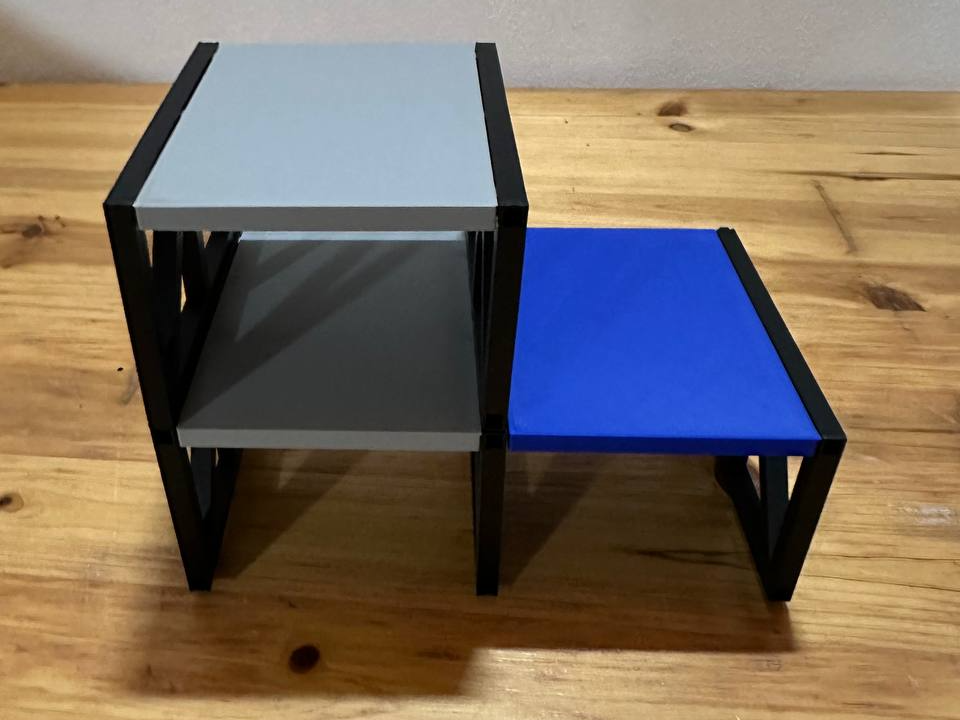

Stackable shelf system.

The developed model allows the shelves to be extended infinitely in all 3 directions.
There are several structures with different connections, to avoid making unwanted connections visible.

Each plate indicates the type of connections present for that structure.

The back (always present) and top connections are holes, while the front and top connections are protrusions to be fitted into the corresponding holes.

There are four types of shelves: standard and extended, both of which also include a wire shelf.

The model is scalable up to 50%, making it still stackable. However, at this size the supports for the interlocking pieces are difficult to remove, requiring a cutter.
