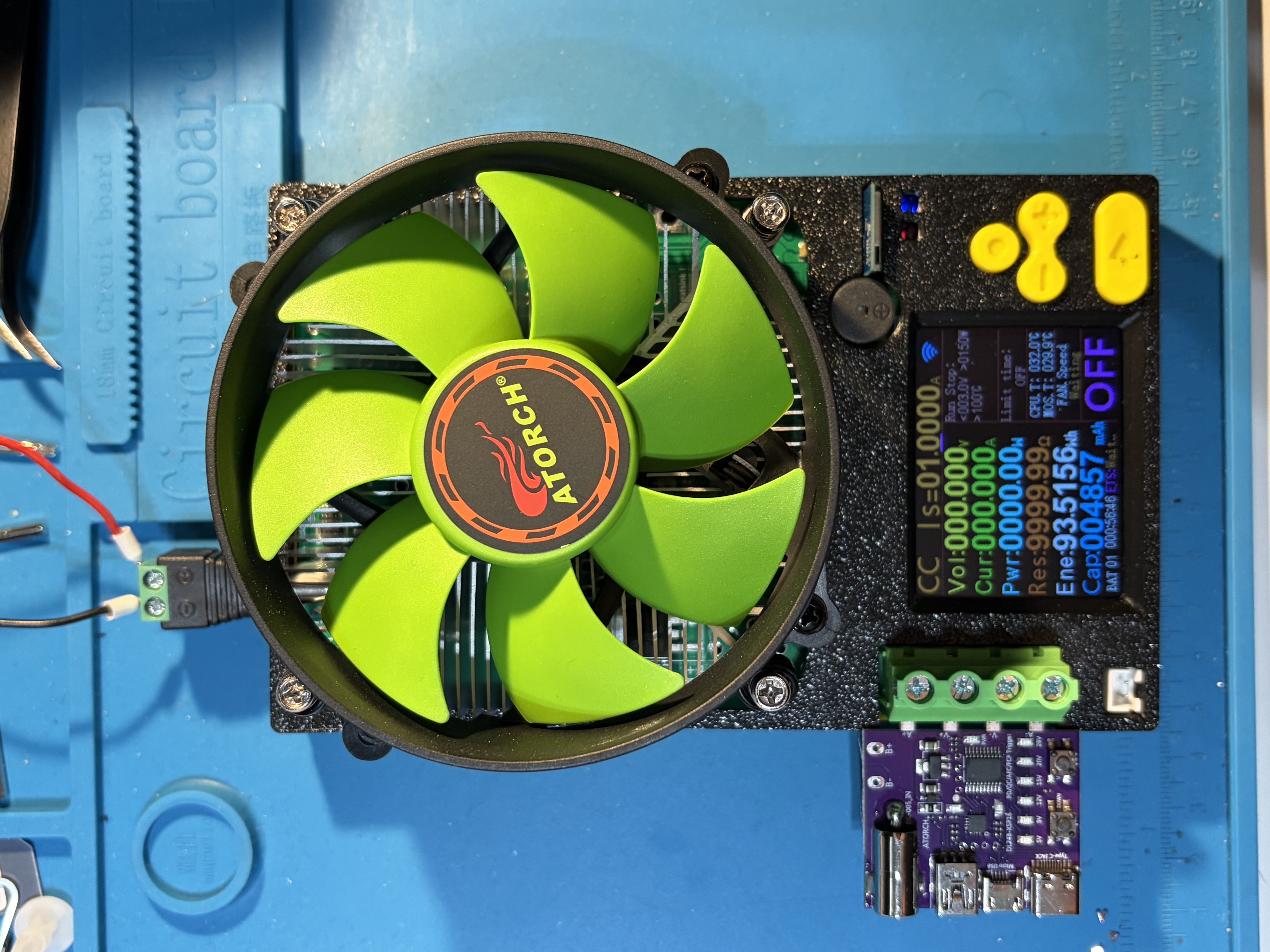

This is another remix of Fix Daily's excellent work. I adapted it for the BW150, which is currently the most comprehensive Electronic Load on the market. For anyone needing to test batteries, this model is the ideal choice.

Changes from the original model:

• Side cutout for the charging module connection.
• Added 2 holes for LED visibility.
• Top and side ventilation holes.
• Support bracket for the battery box module (prevents it from hanging unsupported).
• Adjusted feet to better secure the screws.

Important Note: The manufacturer has been shipping some BW150 units with the factory backplate installed inverted. When this occurs, the backplate obstructs the ventilation holes located on the PCB. Before installing this printed case, please verify the orientation of your unit's backplate. If the ventilation holes are blocked, unscrew and invert the backplate to ensure proper airflow and thermal dissipation.

Installation Tip: You do not need to remove the heatsink to install this case. You can gently spread the sides apart; the model will flex without breaking, allowing it to slide over the heatsink.

Required Hardware:

• 4x 3x16mm flat head self-tapping screws.
