CLICKBase was the best Gridfinity base… till now.

DON'T PRINT WITH PLA, USE PETG! or any filament with less creep.
Use ARACHNE! This model makes use of thin walls for support structure and is optimized for a 0.4 nozzle. ( CLASSIC should work with standard settings but worse. 0.6 with 0.2 layer height and Arachne is working as well but brakeaway is less consistent )

I recommend to use a rugged or solid bin for the first use to break the detent clip free from the support structure.

Comes with all the benefits from the original:

• Hold your bins without expensive magnets

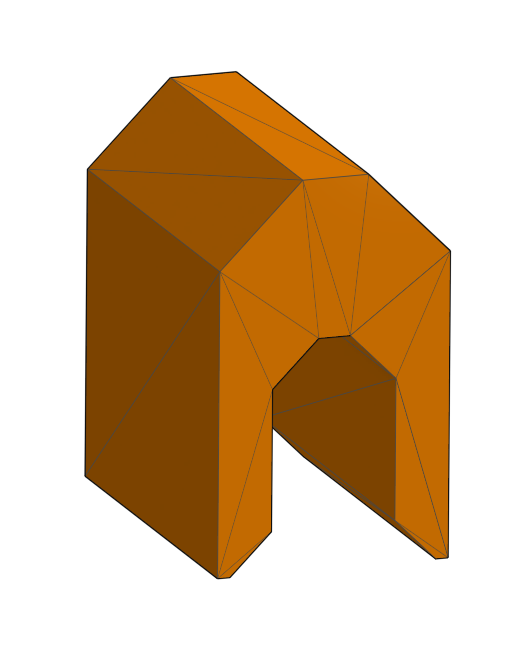

• extendable with clips
• flush edges

but improves on:

• print in place (easier to integrate into models)
• filleted corners and chamfer the outside edge for easier fitment into drawers
• magnets for easier mounting in metal sheet drawers
• more print surface for better bed adhesion
• filament and printing time by using more continuous loops and less travel moves

•  slightly shorter and without the unnecessary pointy rim. (follows @grizzie17 specs)

NxN grids can be found here, for MxN and additional features check out the onshape file below. its really easy to use

1. (Create a onshape account)

1. Copy the workplace
2. Go to the configuration page
3. Create a new config with the size you want(or missuse the default. Its your file do whatever you want with it)

(Additional features will follow if there is demand for it)

CAD Files (with Generator): [https://cad.onshape.com/documents/f81a819150a243d6d4065374/w/18779e927ed888131f317aec/e/cc5b0ddb722edbf79339d807?configuration=List_ZYy7If2k9uZruR%3DDefault&renderMode=0&rightPanel=configPanel&uiState=6920355f651695f604e28388](https://cad.onshape.com/documents/f81a819150a243d6d4065374/w/18779e927ed888131f317aec/e/cc5b0ddb722edbf79339d807?configuration=List_ZYy7If2k9uZruR%3DDefault&renderMode=0&rightPanel=configPanel&uiState=6920355f651695f604e28388)

Changelog:

• 2025-11-21: Added simple padding. Not fully tested

Thank you @JohnHall_303304 for the most work
