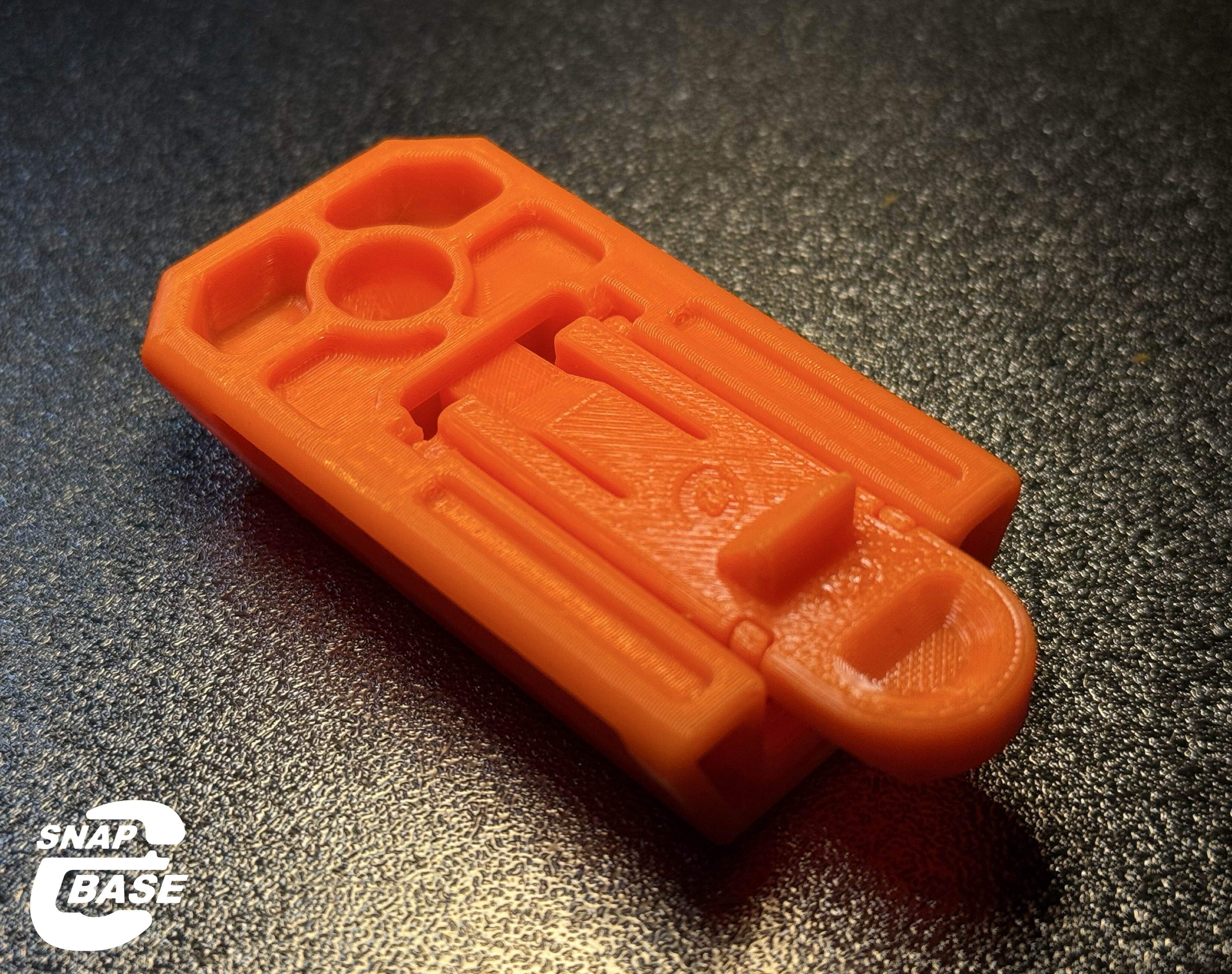

SnapBase Wall System

The slide and snap wall management system.

Hang smarter, faster, and stronger. Tired of your accessories? Just slide one out and snap in a new 3D-printed utility attachment.

There will be three sizes depending on the application, such as for a house, a printer or other applications, to suit a variety of needs. Since the latch works well, I plan to use it!

The Ooze Cleat has been updated to v1.2 after a community member reached out because the lock tab had snapped. Took down the model couple days to modify it, now it is back available! Please read profile description, for information on fitment, tolerance, and more!

• SnapCan Holder, caged can holder, no TPU insert. Can hold a beer nicely! There also a hole for a straw for spray can!
• SnapRoll Vertical, simple towel holder that snap together without hardware, with additonal SnapOn accessories coming up!
• SnapCan LITE, Quickly hang and release a can! Not suited for a moving application, best suited for a shop/ wall that doesn't move! The can is quickly removed by prying it, simply slide it in when done!

• Some models include a TPU insert to protect the wall, which will be provided on a separate plate in the print profile.



• As seen on Youtube: Perfect Snaps & Pretty Little Baby Support Free

Hang faster in the shop, garage, trailer, truck, etc.

The latch mounting holes measures 0.4 inches for the screw head and 0.20 inches for the screw diameter.

C59 Basics, those little things that make a big difference.

Upgrade your daily routine with 3D-printed simplicity!

Instructions (may vary). Individual videos and instructions will be sorted in a timely manner.

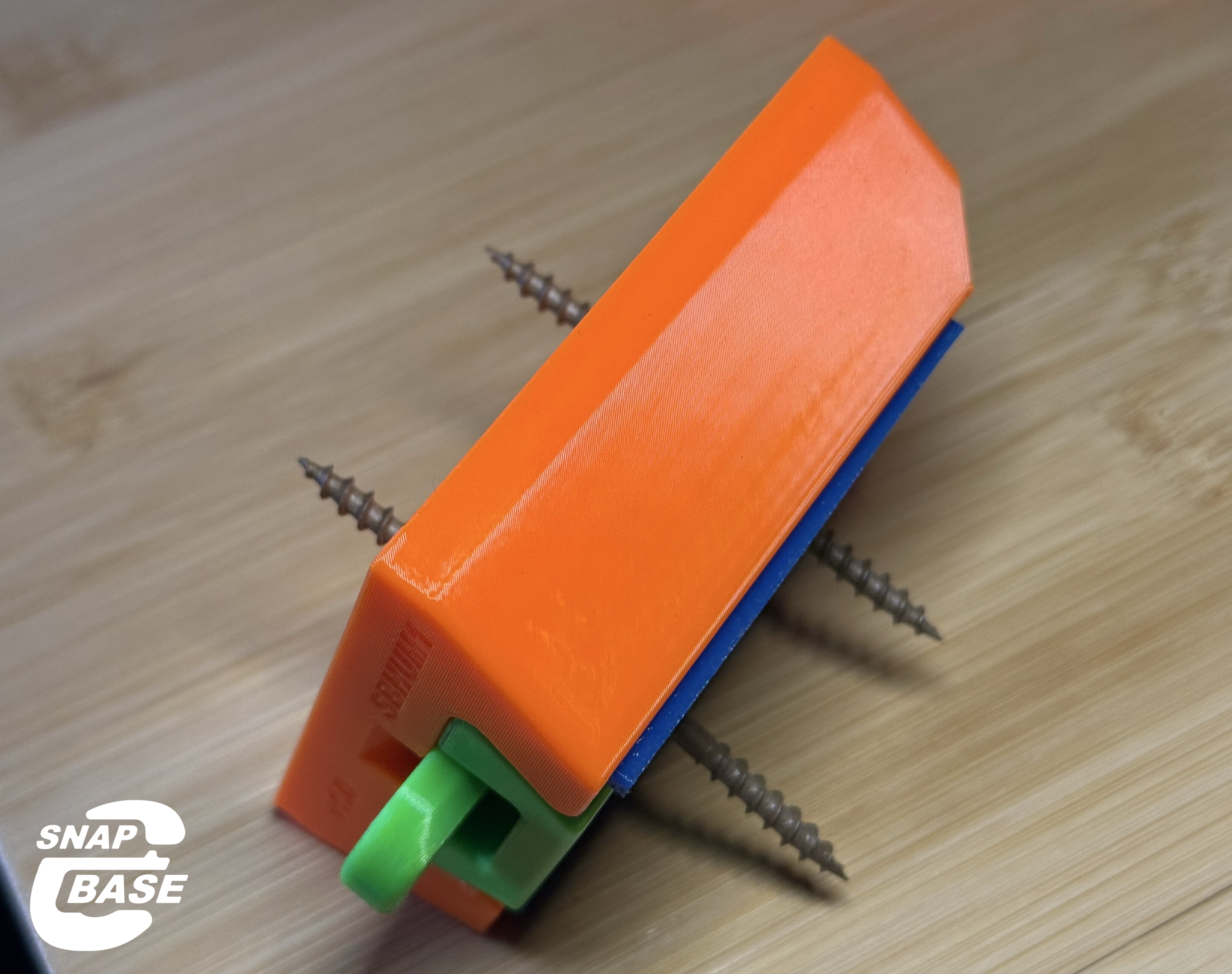

• Secure the Wall Latch using two screws with the release tab facing downward.



• Slide in your selected accessories. Depending on the print, tolerances, and plastic used, you may need to pull the tab toward you after it’s fully inserted to lock it in place. Alternatively, use a support removal tool to fine-tune the latch’s clipping action.



• Open a beer, start the BBQ, and relax. You’re done.

Enjoy the convenience of easy hanging!

v1.2 Print Specifications (Wall Latch Only_ The Ooze)

Material: PETG Recommended for the latch lock tab and especially if Outside use or exposed to sun.

Please note: The latch might break in freezing weather, you can still use the cleat without the lock mechanism if it is the case!

Printer Settings:

• Profile: Standard
• Layer Height: 0.20 mm
• Material used: PETG
• Mode: CERTIFIED LUDICROUS if not enclosed, or proper cooling (P2S) otherwise standard.
• Infill: 40% Gyroid
• Walls: 4
• Bottom Layers: 3
• Top Layers: 5

Printing Details:

• Supports: Not Required
• Print Time: 1h15m
• Filament Usage: 0.85 oz
• Estimated Cost: ~$0.72 (based on a $26 PETG spool)

Enjoy your printing journey, and remember—keep your fingers away from the poop chute, she's angry!

"I’ll be sure to keep you updated with any future developments. If you come across any issues or need assistance, don’t hesitate to reach out—I’m here to help!"

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

Current ver.1.2_02/11/2026
