🚲 Heavy-Duty Pivoting E-Bike Wall Mount (Space-Saving)

Stop struggling with heavy e-bikes and bulky wall hangers. After testing many models that didn't quite fit the needs of a heavy electric mountain bike, I designed this simple, effective, and ultra-strong pivoting mount.

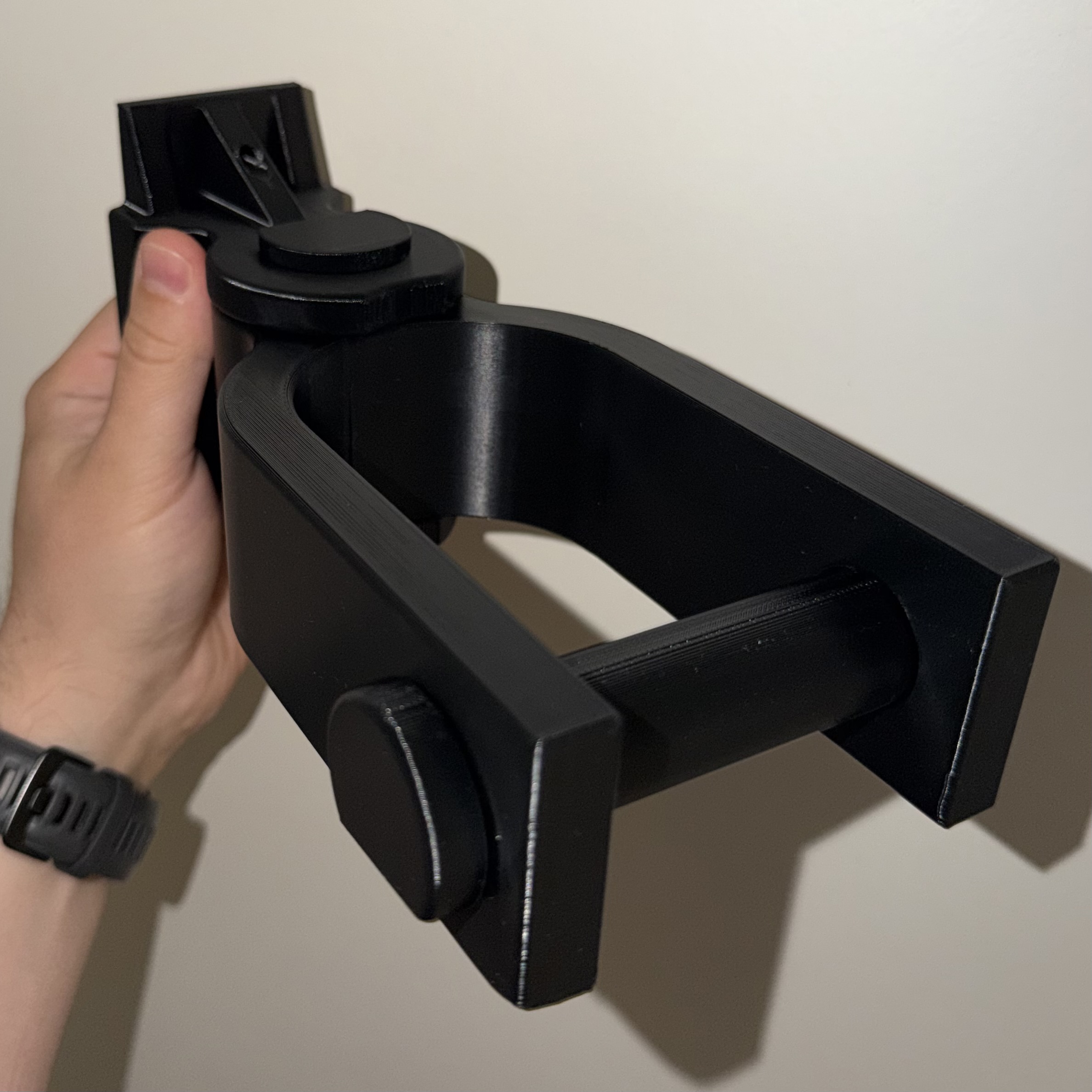

This mount is specifically designed to stabilize your bike while the rear tire remains on the floor. This is the smartest way to store heavy e-bikes: it saves space by allowing the bike to swing against the wall, but removes the risk of the bike falling or damaging the wall since the weight isn't fully suspended.

✅ Why this design?

• Pivoting Action: Allows you to "fold" the bike towards the wall to clear up floor space in your garage or apartment.
• E-Bike Optimized: Perfect for heavy bikes where lifting them onto a high hook is difficult or unsafe.
• Wide Compatibility: Fits tires up to 70mm (2.5") wide and deep rims up to 100mm (4").
• Robust Construction: Thick walls and reinforced pivot points to handle the torque of wide handlebars.

🛠️ Technical Specifications & Hardware

• V2 Profile: Optimized for use with an M5 Socket Head Cap Screw (SHCS) for wall mounting.

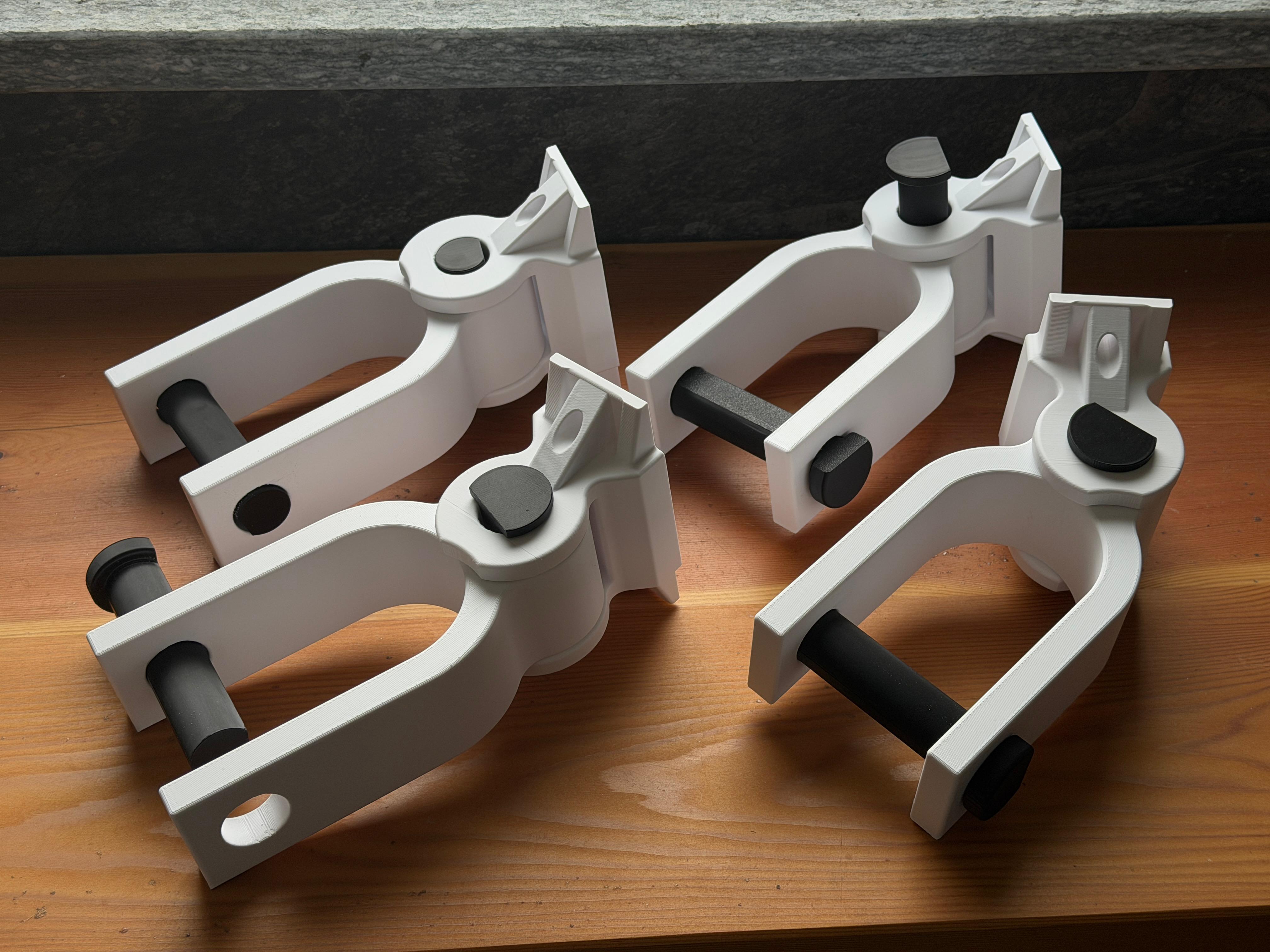

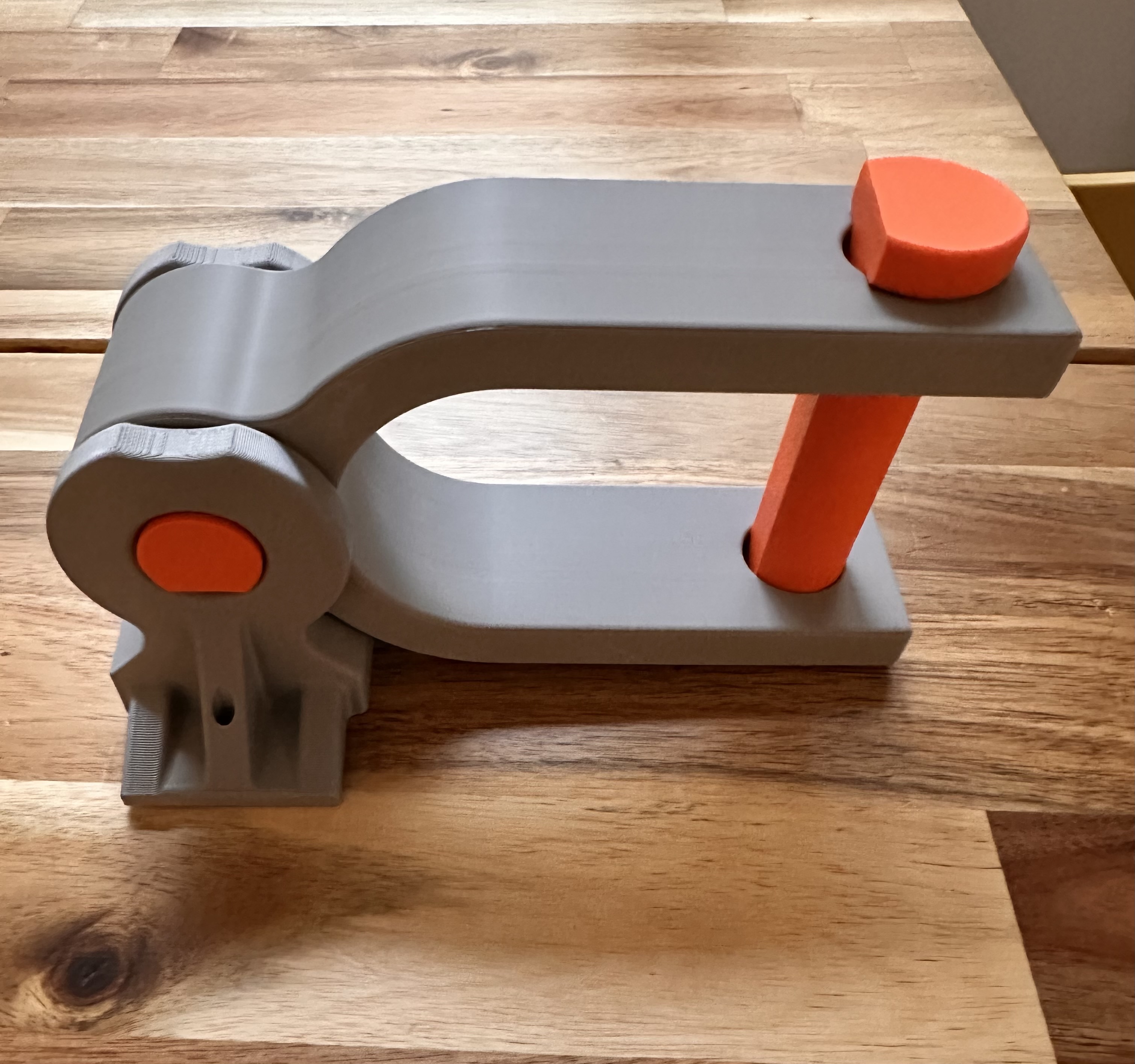

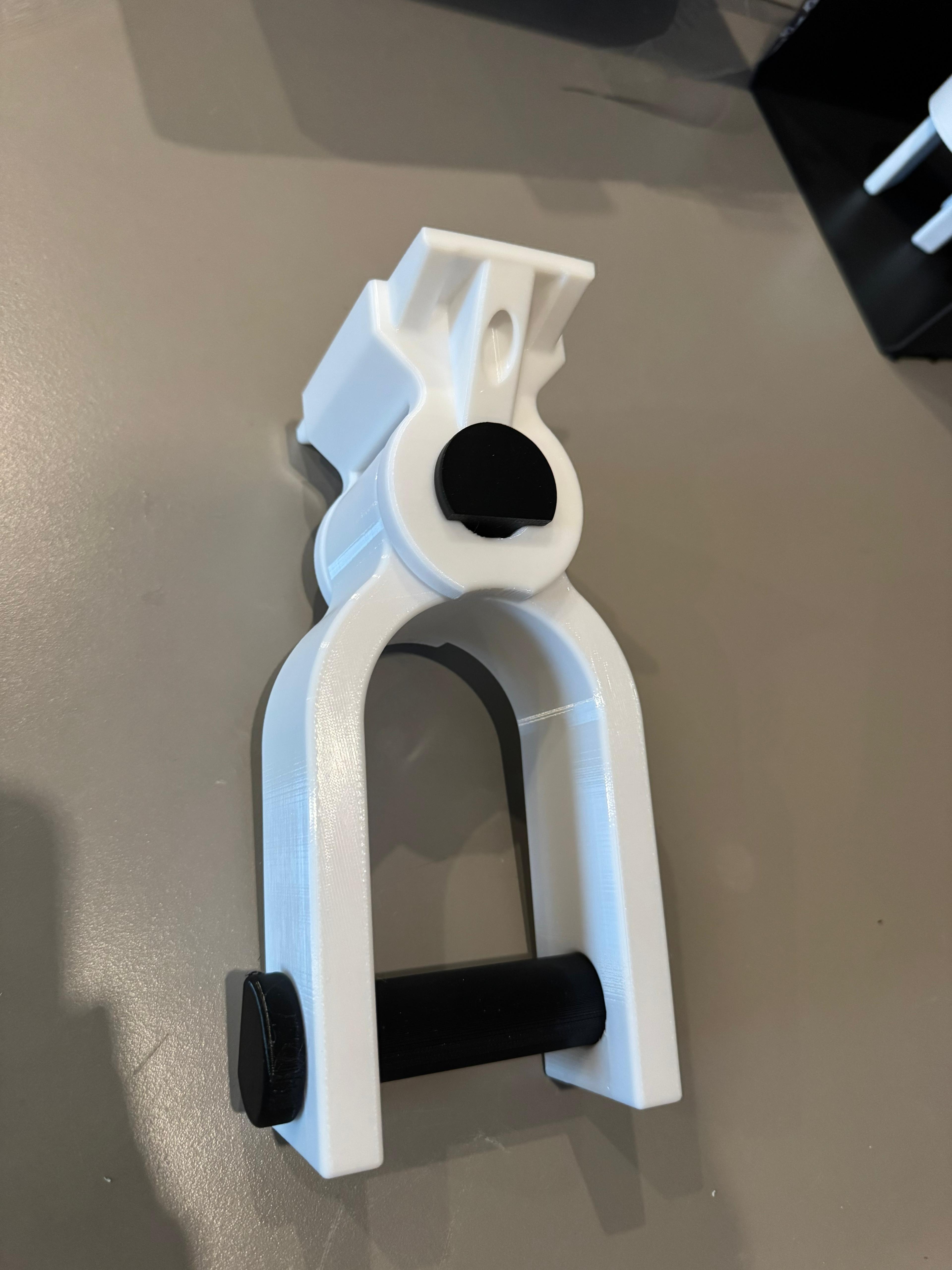

• Easy Assembly: Only 4 printed parts that fit together perfectly.
• Mounting: Use high-quality wall anchors and screws suitable for your wall type (brick, concrete, or wood studs).

🖨️ Print Settings (Tested & Verified)

• Material: At least PETG HF, ASA or ABS (Highly recommended for its strength and slight flexibility under load).
• Settings: The provided print profile has everything accounted for—no need to tweak.
• Orientation: Parts are oriented for maximum structural integrity.
