Modelo 3D Hinge drilling template por AndresMakes en MakerWorld

Descripción

Hi

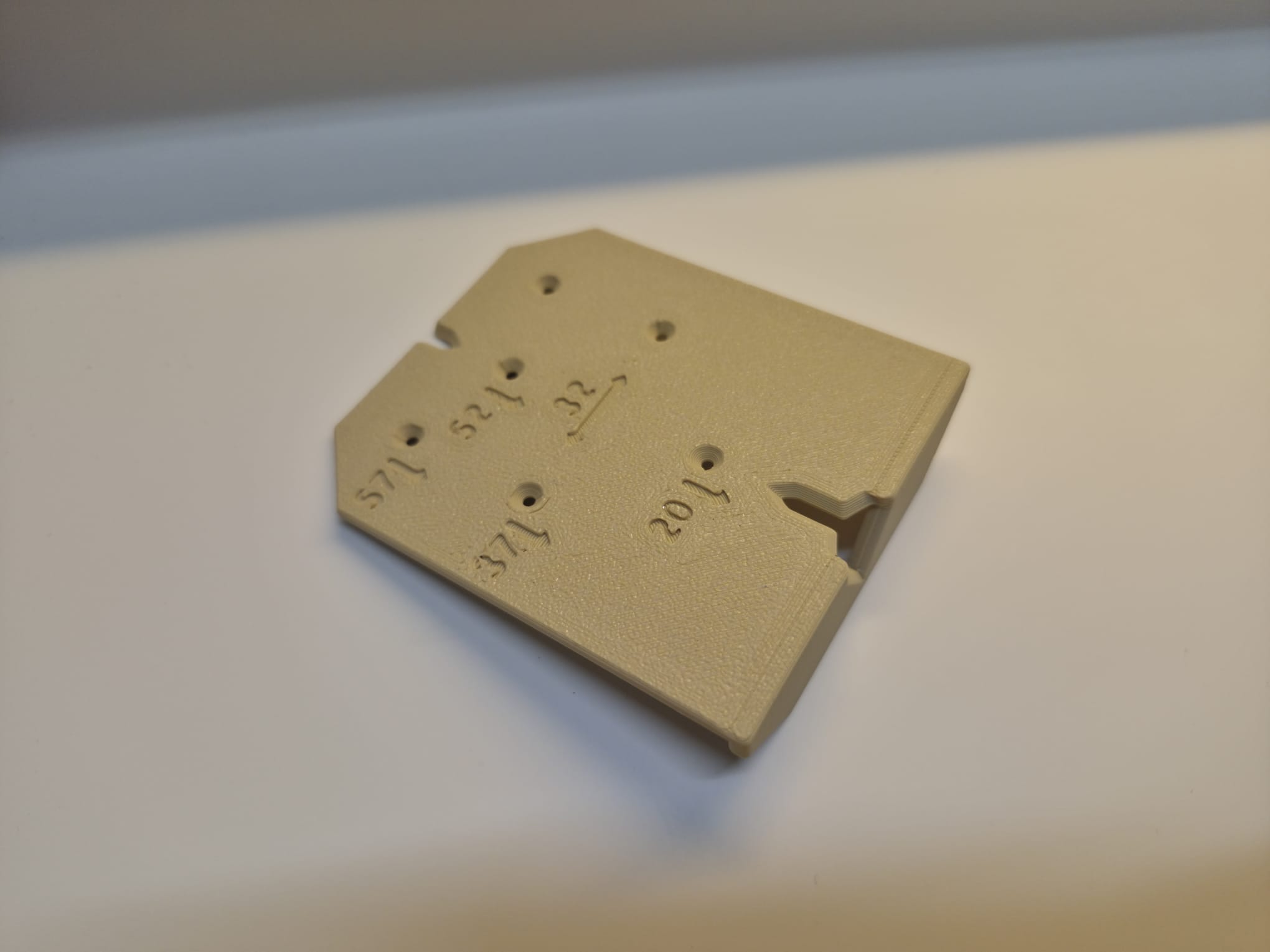

These are marking tools for installing hinges for you furniture. Easy to use and to mark desired drilling locations.
The dimensions (from support plate to the hole) are marked on the plate for visual aid.



Update 08.05.26: Added a new drilling template, 20mm from the support to the middle first hole. (coworker wished)



I made three models for concealed mounting plates (middle row is different).

Different manufacturer hinges have different middle row recommendation. Pick what suits your hinges type.

  • Dessert tan has middle first hole 20mm from the support
  • Gray has middle first hole 21mm from the support
  • White has middle first hole 22mm from the support

Dimensions:

  • Lenght: 70 mm
  • Width: 60 mm
  • Height: 15 mm
  • Measurment plate thickness: 2 mm
  • Support plate thickness: 2.5 mm
  • Filament usage: about 12.2 g
