This is a 3D-printed mini tape dispenser modeled after the iconic design of an industrial packing gun.

It serves as a fully functional and unique eye-catcher for any desk or workspace. The dispenser is designed to fit standard small adhesive tape rolls (such as Scotch Tape, approx. 19mm or 3/4" wide).

The model consists of several easy-to-print parts that are glued together during assembly. For the cutting edge, a small piece of 0.5mm sheet metal is required (e.g., from an old tin can or a metal strip). This piece can be cut to size with tin snips or heavy-duty scissors and inserted into the designated slot.

This is a quick and practical project that brings a popular industrial design to your desktop.

Happy printing!

Print Settings

• Material: PLA or PETG should be good enough
• Layer Height: 0.2mm
• Walls (Perimeters): 3
• Infill: 15-20%

Assembly

• Cut the Blade: Take your 0.5mm sheet metal and cut it to the correct size to fit the slot at the front of the dispenser (20mm lenght, width can vary).
  • Warning: The cut metal can be very sharp. Please work carefully!

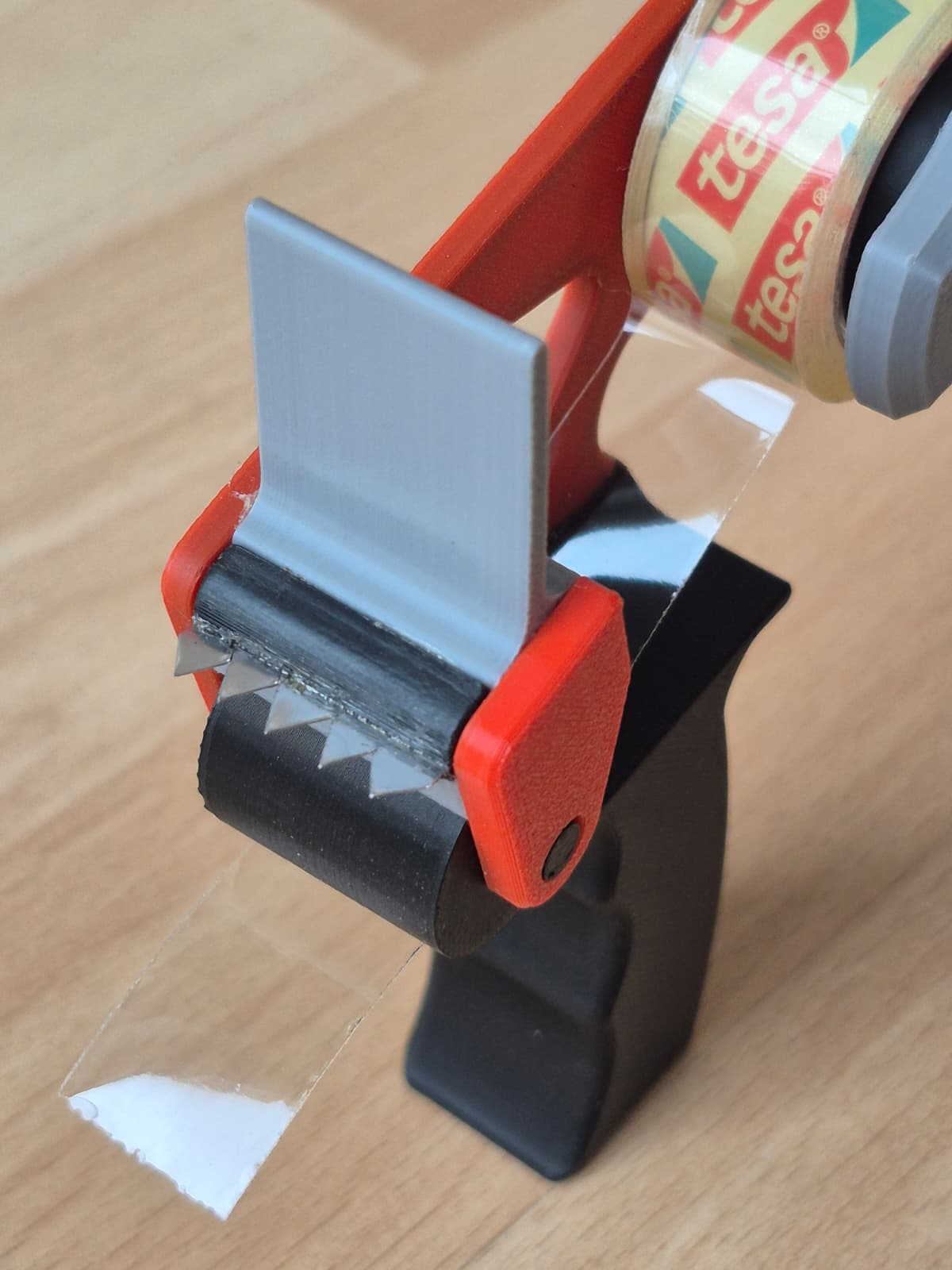

• Insert the Blade: Slide the cut metal piece into the designated slot. You can (and should) secure it with a drop of superglue(as shown as in the picture).
• Glue Main Parts: Glue all parts together.
• Insert Tape: Place your roll of tape onto the spool holder.
• Secure Roll: Screw the printed nut onto the threaded post to hold the tape roll in place.
